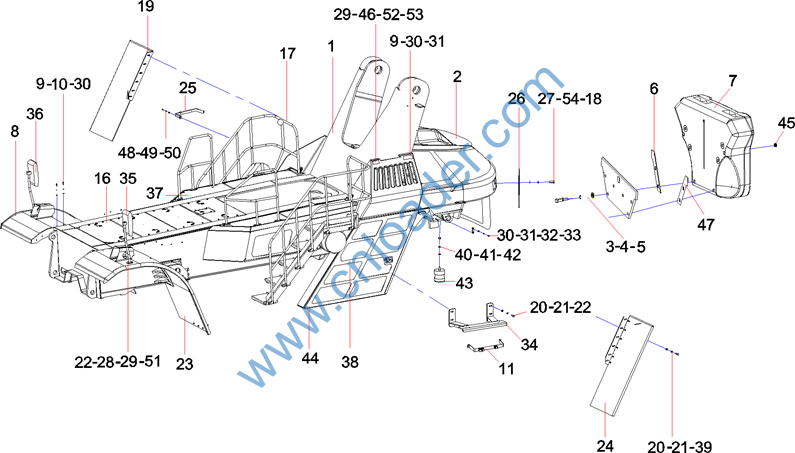

Body,container reach stacker, SRSC45H1 EWG




















Item No.

Part No.

Description

Qty.

1

13571844

Weldment, frame body

1

2

13026020

Counterweight, fixed

1

3

A210401000012

Washer 36GB93

4

4

A820102010533

Washer

4

5

60269169

Bolt

4

6

12898172

Board, connecting board, lower counterweight

4

7

13013690

Counterweight, rear

1

8

12457630

Plate, mudguard, (right)

1

9

A210111000038

Bolt

24

10

A210404000004

Washer

24

11

11849040

Support

1

16

12451260

Plate, cover

1

17

10941541

Assembly, handrail and platform

1

18

A210405000006

Washer

8

19

12009348

Dashboard, rear, right

1

20

A210404000008

Washer

24

21

A210401000004

Washer

24

22

A210111000090

Bolt

8

23

12457625

Plate, mudguard, (left)

1

24

13116970

Dashboard, rear, left

1

25

10136225

Support, oil-water separator

1

26

11006387

Plate, mounting, tail lamp

2






















Item No.

Part No.

Description

Qty.

27

A210210000017

Screw M6×20GB818

8

28

A210405000007

Washer

8

29

A210401000017

Washer

12

30

A210401000002

Washer

30

31

A210405000001

Washer

12

32

A210111000039

Bolt

4

33

10106057

Block, retaining

2

34

10246102

Support, oil-radiation, hydraulic

2

35

10201511

Assembly, rearview mirrow, left

1

36

10182064

Assembly, rearview mirrow, right

1

37

13861321

Support

1

38

13434648

Cover, guide wind

1

39

A210111000112

Bolt

24

40

A210307000029

Nut

2

41

A210405000008

Washer

2

42

A210401000006

Washer

2

43

A222000000066

Absorber, shock

2

44

13115789

Assembly, covering parts

1

45

10480997

Sleeve, mounting

8

46

10545244

Plate, coupling

4

48

A210404000003

Washer

2

49

A210401000001

Washer

2






















Item No.

Part No.

Description

Qty.

50

A210111000018

Bolt

2

51

A210307000012

Nut

6

52

A210111000093

Bolt

4

53

A210404000005

Washer

4

54

A210401000016

Washer

8
















Item No.

Part No.

Description

Qty.

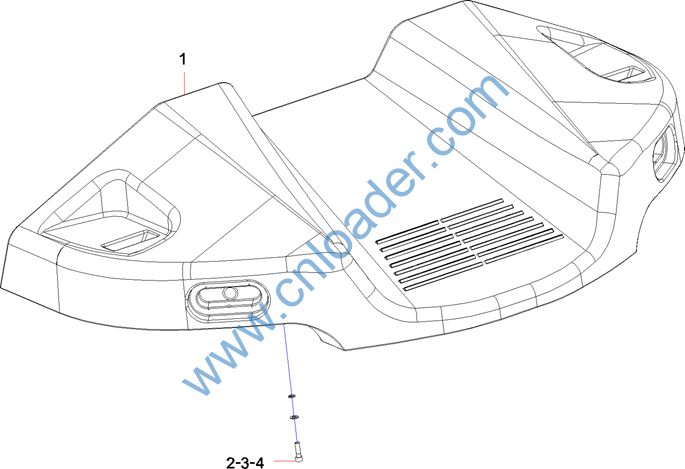

1

13659228

Counterweight, upper

1

2

A210401000006

Washer

10

3

A210405000008

Washer

10

4

21010899

Screw

10
















Item No.

Part No.

Description

Qty.

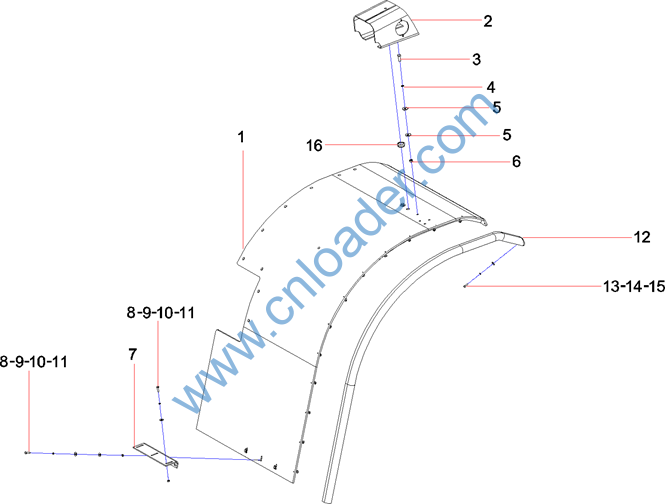

1

12457629

Weldment, mudguard, (right)

1

2

13587140

Seat, front headlight, right

1

3

A210111000023

Bolt

2

4

A210401000001

Washer

2

5

A210404000003

Washer

4

6

A210307000017

Nut

2

7

10477981

Plate, support

1

8

A210111000091

Bolt

6

9

A210401000017

Washer

6

10

A210404000005

Washer

12

11

A210307000012

Nut

6

12

12462196

Banding, (right)

1

13

A210210000017

Screw M6×20GB818

13

14

A210401000016

Washer

13

15

A210404000009

Washer

13

16

12904926

Sleeve, rubber

1


















Item No.

Part No.

Description

Qty.

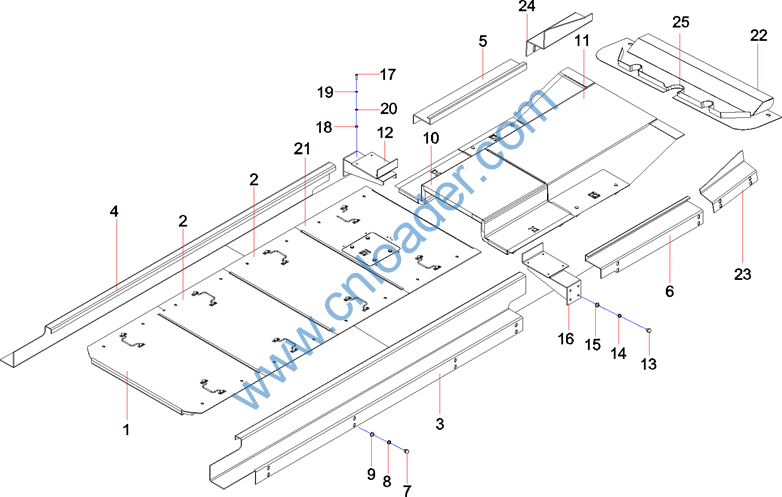

1

10719147

Plate, cover

1

2

10719146

Plate, cover

2

3

10762082

Board, supporting, cover plate, 1

1

4

10762083

Board, supporting, cover plate, 2

1

5

11027922

Plate, support

1

6

11027877

Plate, support

1

7

A210111000227

Bolt

32

8

A210401000004

Washer

32

9

A210405000003

Washer

32

10

10437780

Plate, cover

1

11

12613084

Plate, cover

1

12

10902059

Rack, mounting, carrier, right

1

13

A210204000020

Screw M12×25GB70.1

8

14

A210401000002

Washer

8

15

A210405000001

Washer

8

16

10902060

Rack, mounting, carrier, left

1

17

A210111000090

Bolt

4

18

A210307000012

Nut

4

19

A210401000017

Washer

4

20

A210405000007

Washer

4

21

11338703

Plate, cover

1

22

12759700

Plate, cover

1


















Item No.

Part No.

Description

Qty.

23

11621027

Plate, support

1

24

11621032

Plate, support

1

25

60239386

Strip, sealing

1
