Body,container reach stacker, SRSC45H1 FHT LPO


















Item No.

Part No.

Description

Qty.

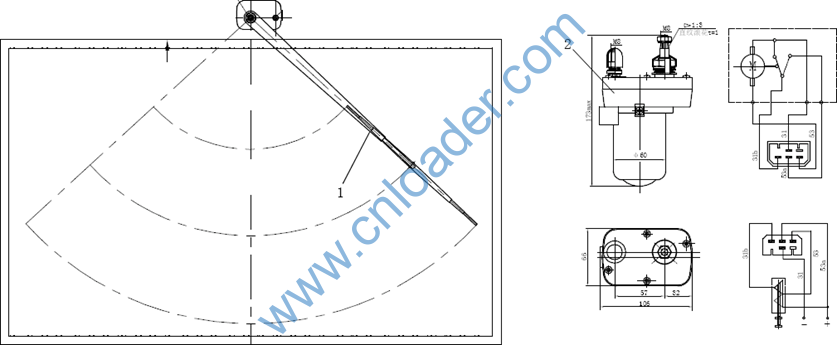

1

60154823

Rod, wiper blade

1

2

60154808

Motor, wiper

1






























Item No.

Part No.

Description

Qty.

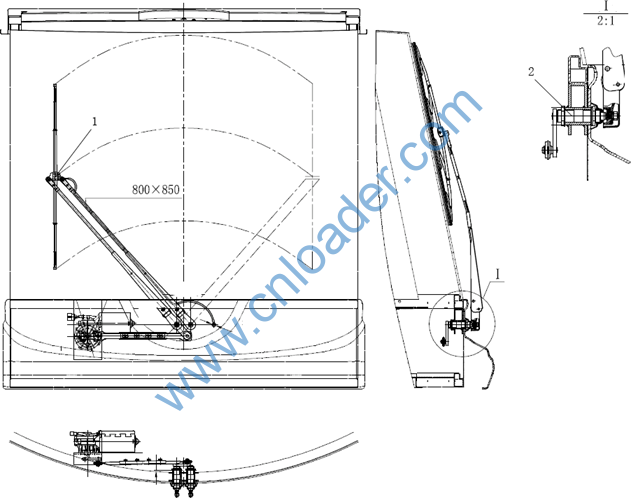

1

60154817

Rod, scratch, wiper blade

1

2

60154810

Motor, wiper

1

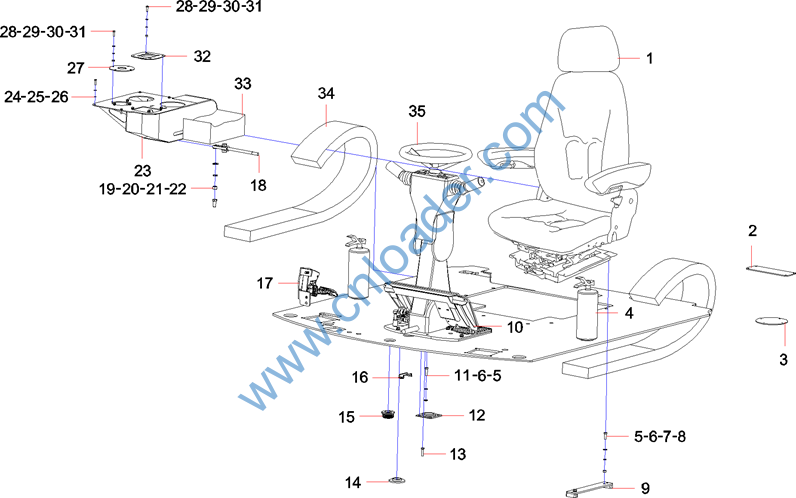

Group 7 Assembly, operating console


















Item No.

Part No.

Description

Qty.

1

60149848

Seat, driver, suspending, mechanical

1

2

12493451

Baffle, radio hole

1

3

12530718

Plate, speaker hole, radio

2

4

59001329

Fire Extinguisher, Powder, ABC

2

5

A210405000007

Washer

19

6

A210401000017

Washer

19

7

A210111000090

Bolt

2

8

A210307000015

Nut

2

9

12153581

Plate, mounting, seat

2

10

12142583

Pedal, double

1

11

A210111000091

Bolt

7

12

13529215

Sleeve, guide

1

13

A210204000147

Screw

12

14

13863031

Ear, anchor, moire tube

2

15

10480997

Sleeve, mounting

2

16

12180237

Cover, protective, parking button

1

17

60099291

Pedal, accelerator, suspension

1

18

12148869

Stud, connecting

2

19

A210405000001

Washer

6

20

A210401000002

Washer

6

21

A210111000037

Bolt

4

22

A210307000001

Nut

6


















Item No.

Part No.

Description

Qty.

23

12148799

Support, handle seat

1

24

A210405000005

Washer

6

25

A210401000015

Washer

6

26

A210111000071

Bolt M5×20GB5783

10

27

11775191

Board, cord-out, joystick

1

28

A210405000006

Washer

6

29

A210401000016

Washer

6

30

A210111000080

Bolt

6

31

A210307000016

Nut

6

32

13099978

Plate, mounting, joystick

1

33

60154116

Armrest, wide, seat

1

34

B229900003089

Chain, drag

2

35

60025888

Assembly, steering-column, adjustable

1




















Item No.

Part No.

Description

Qty.

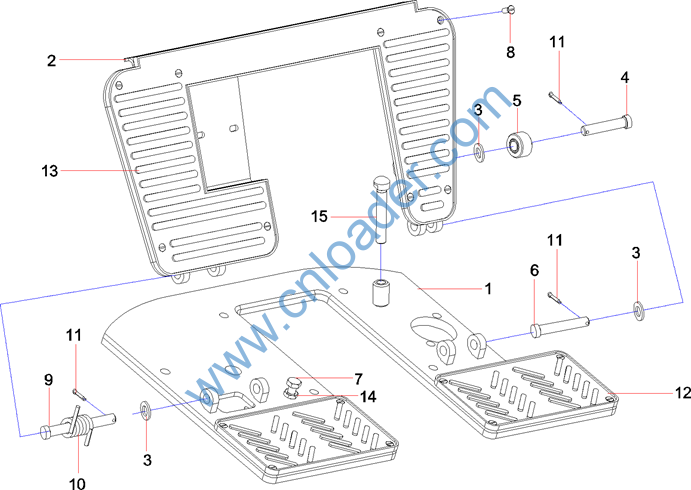

1

12142587

Seat, bottom

1

2

12142593

Pedal

1

3

A210405000011

Washer

3

4

13058570

Shaft, pin, roller

1

5

10253342

Roller

1

6

12142582

Shaft, pin, right

1

7

A210111000088

Bolt

1

8

A210211000002

Screw M5×10GB819.1

17

9

12142581

Shaft, pin, left

1

10

13400089

Spring, torsion

3

11

A210501000001

Pin, Cotter

2

12

12260600

Sleeve, rubber, cushion foot

1

13

12260594

Sleeve, rubber

1

14

A210309000012

Nut

1

15

12906437

Bolt, adjusting

1
















Item No.

Part No.

Description

Qty.

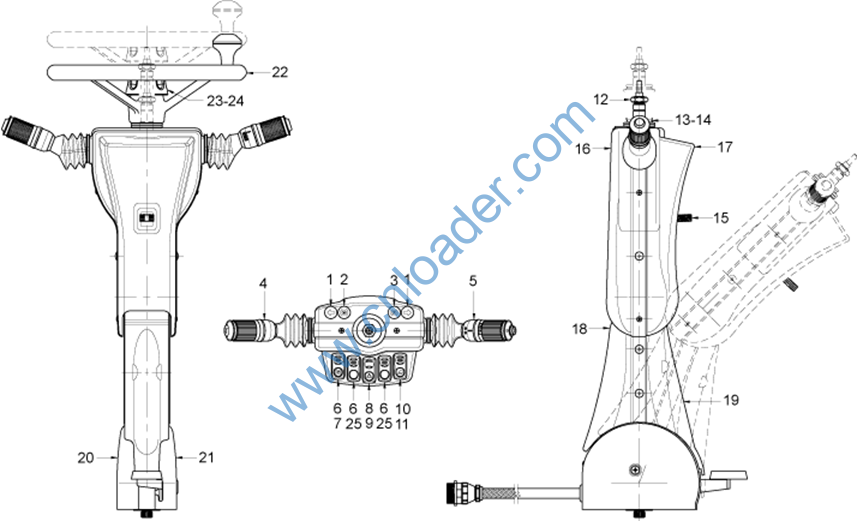

1

60236822

Light, warning

2

2

60236823

Light, warning

1

3

60236824

Light, warning

1

4

60191984

Switch, column

1

5

60191985

Switch, column

1

6

60191986

Switch, rocker

3

7

60191987

Key, swith

1

8

60191988

Switch, rocker

1

9

60191989

Key, swith

1

10

60191990

Switch, rocker

1

11

60191991

Key, swith

1

12

60236825

Column, steering

1

13

60236826

Disc, telescopic, rubber

1

14

60236827

Tube, telescopic, rubber

1

15

60236828

Adjustment, lift

1

16

60236829

Cover, front, upper

1

17

60236830

Cover, rear, upper

1

18

60236831

Cover, front, lower

1

19

60236832

Cover, rear, lower

1

20

60236833

Protection, left

1

21

60236834

Protection, right

1

22

60236835

Wheel, steering

1
