Body,container reach stacker, SRSC45H1 SWG





Item No.

Part No.

Description

Qty.

5

12904502

Handle, rear, frame

1

7

12904869

Handle, middle front, frame

1

11

12901989

Headlight, front

2

33

60119462

Band, dual loop, black

25

35

13577240

Fuse

1
























Item No.

Part No.

Description

Qty.

4

12893735

Harness, torque converter, gear shifter

1

15

13127421

Sensor, pressure

1

16

12912711

Sensor, temperature

1

20

12916541

Switch, proximity

2

28

60165334

Clamp, Tube, Single

2

29

60111064

Nut

2

30

A210204000139

Screw M6×60GB70.1

2

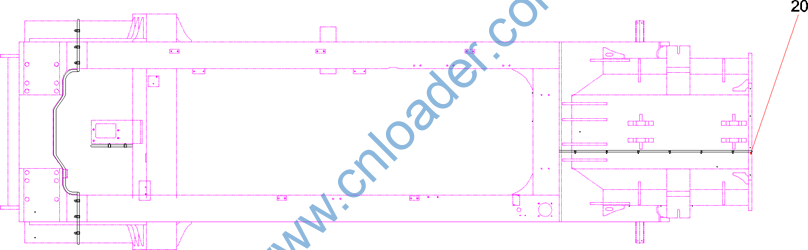

Item No.

Part No.

Description

Qty.

20

12916541

Switch, proximity

2

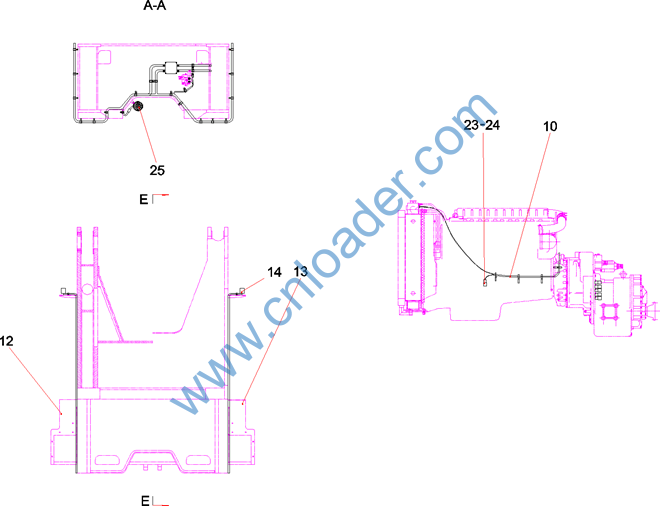

Item No.

Part No.

Description

Qty.

10

12906383

Harness, engine

1

12

12901990

Lamp, mark, side, LED

2

13

12901982

Lamp, tail, LED

2

14

12895470

Lamp, halogen

2

23

B229900002528

Plug

35

24

B229900001096

Seal, Plug

29

25

12912575

Horn

1

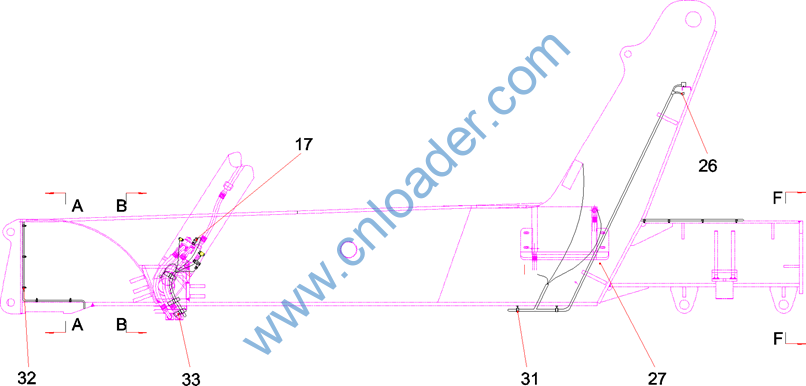

Item No.

Part No.

Description

Qty.

17

13127423

Sensor, pressure

4

26

12912580

Horn, polyphonic

1

27

A810201055737

Diagram, assembling, cable support, frame body

1

31

13654076

Clamp, fastening

50

32

13654056

Clamp, fastening

50

33

60119462

Band, dual loop, black

25

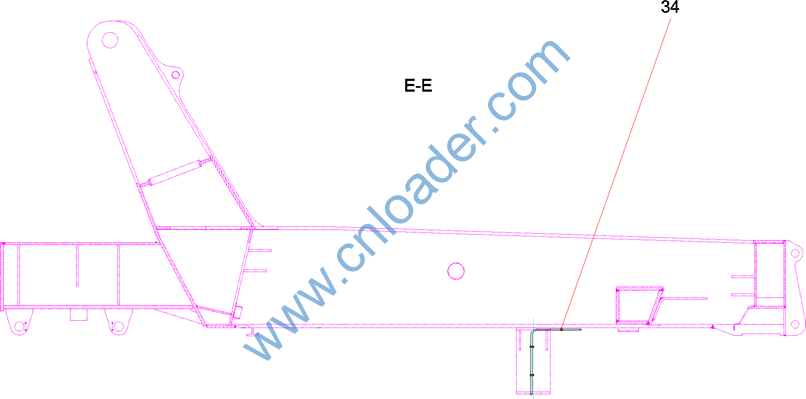

Item No.

Part No.

Description

Qty.

34

13426722

Welding, clamp, frame body

1


















Item No.

Part No.

Description

Qty.

1

13120844

Layout, electric control cabinet, frame

1

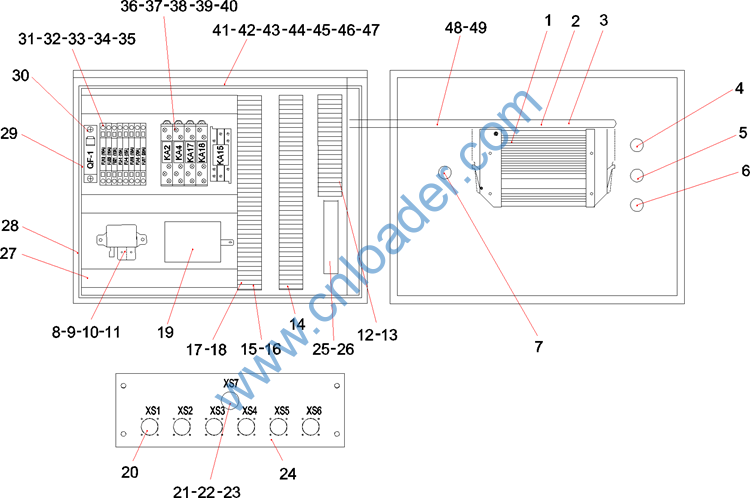

Item No.

Part No.

Description

Qty.

1

A810201206127

Assembly, movement controller, SANY

1

2

A829900003236

Harness, erminal, SYMC

1

3

A229900004092

Clamp

4

4

60134346

Lamp, indicator

1

5

60134345

Lamp, indicator

1

6

60134344

Lamp, indicator

1

7

B240200000055

Knob

1

8

60210957

Relay

2

9

B241000000018

Receptacle, 2-position

2

10

B241000000001

Socket, sectional

4

11

60162156

Terminal, copper wire, peephole

4

12

A241600000002

Rail

1

13

A242000000055

Terminal

3

14

B242000000017

Terminal

130

15

A241900000055

Wire

300

16

A242000000390

Terminal

250

17

A241900000152

Wire

50

18

A242000000013

Terminal

30

19

A810299000548

Assembly, change-over plate, reach stacker, Sany Port

1

20

A241200001143

Receptacle, 32-position

6

21

60028683

Socket, round, 2-core

1

22

A241000000290

Pin

32
