Body,container reach stacker, SRSC45H1 WGL

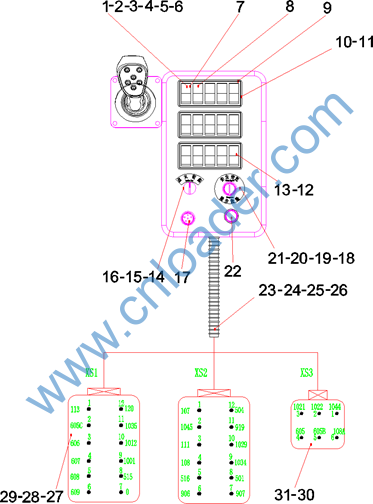

Item No.

Part No.

Description

Qty.

1

60143815

Joystick

1

2

A241900000012

Cable

1

3

B249900000288

Pin

18

4

23005309

Lock, 12-position Receptacle

1

5

B241200000583

Receptacle, 12-position

1

6

A249900001140

Lock, 6-position Receptacle

1

7

B241200000606

Receptacle, 6-position

1


















Item No.

Part No.

Description

Qty.

1

A249900000519

8-cable socket protective sleeve (rocker switch)

10

2

B241800000043

Card, symbol

1

3

B241800000009

Card, symbol

7

4

B241800000023

Card, symbol

1

5

A241000000040

Receptacle

20

6

B241800000046

Card, symbol

1

7

B241200000612

Switch, rocker

1

8

A241200000539

Switch, rocker

3

9

60063150

Switch, rocker

5

10

A249900000513

Frame, single, side

6

11

A249900000514

Frame, single, siddle

9

12

A249900000518

Plate, cover

6

13

B241800000001

Card, symbol

1

14

B241200000030

Switch, ignition

1

15

A241000000105

Socket

2

16

A242000000007

Terminal

56

17

B240500000009

Buzzer, flash

1

18

60269946

Knob

1

19

60271427

Pedestal

2

20

60263159

Block, contact, normally-closed

3

21

60263158

Block, contact, normally-opened

3

22

60269944

Button

1


















Item No.

Part No.

Description

Qty.

23

A241900000055

Wire

40

24

A239900000563

Hose, nylon

2

25

A241400000018

Tube, heat-shrinking

6

26

A241400000180

Tube, heat-shrinking

1

27

B249900000288

Pin

30

28

23005309

Lock, 12-position Receptacle

2

29

B241200000583

Receptacle, 12-position

2

30

B241200000606

Receptacle, 6-position

1

31

A249900001140

Lock, 6-position Receptacle

1

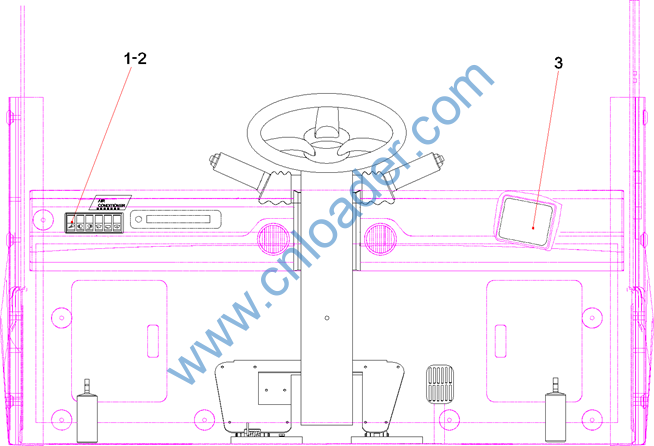

Item No.

Part No.

Description

Qty.

1

13484262

Layout, radio, front panel switch

1

2

13487571

Diagram, wiring, front operation panel

1

3

13476016

Display

1

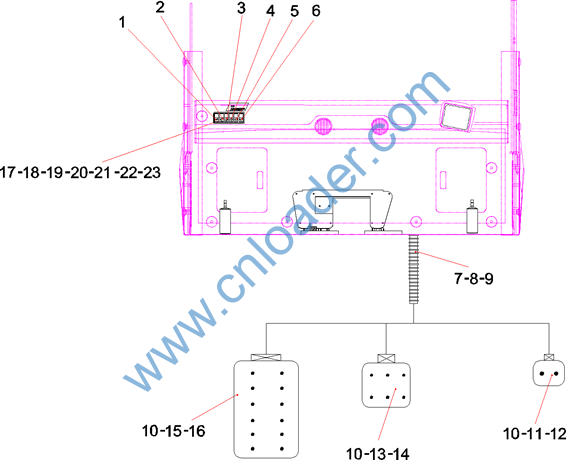

Item No.

Part No.

Description

Qty.

1

B241800000016

Card, symbol

1

2

B241800000021

Card, symbol

1

3

B241800000008

Card, symbol

1

4

B241800000020

Card, symbol

1

5

B241800000005

Card, symbol

1

6

B241800000003

Card, symbol

1

7

A241900000014

Cable

2

8

A239900000563

Hose, nylon

2

9

A241900000012

Cable

2

10

B249900000288

Pin

20

11

A249900001139

Lock, 2-position Receptacle

1

12

B241200000582

Receptacle, 2-position

1

13

A249900001140

Lock, 6-position Receptacle

1

14

B241200000606

Receptacle, 6-position

1

15

23005309

Lock, 12-position Receptacle

1

16

B241200000583

Receptacle, 12-position

1

17

A241200000539

Switch, rocker

6

18

B249900000091

Frame

2

19

B249900000092

Frame

4

20

60067206

Lamp

6

21

B241200000078

2-cable socket protective sleeve (rocker switch indicator)

6

22

B241200000185

Protective sleeve GP,socket,eight-wire

6






















Item No.

Part No.

Description

Qty.

23

A241000000040

Receptacle

72

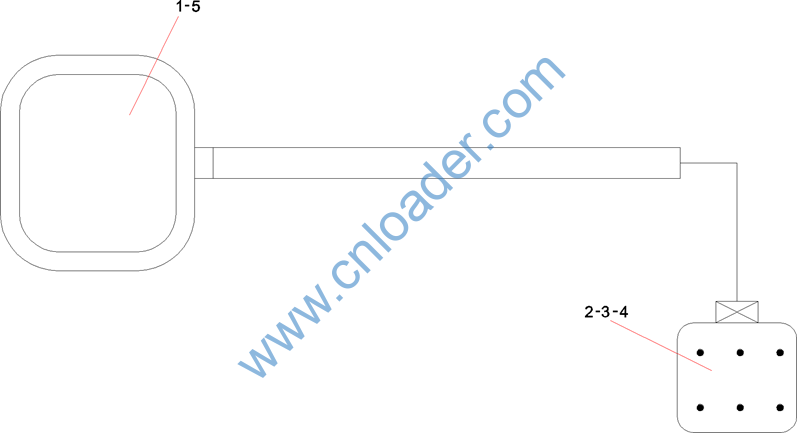

Item No.

Part No.

Description

Qty.

1

A810201206090

Display

1

2

B249900000288

Pin

6

3

A249900001140

Lock, 6-position Receptacle

1

4

B241200000606

Receptacle, 6-position

1

5

12493453

Transition plate, display

1

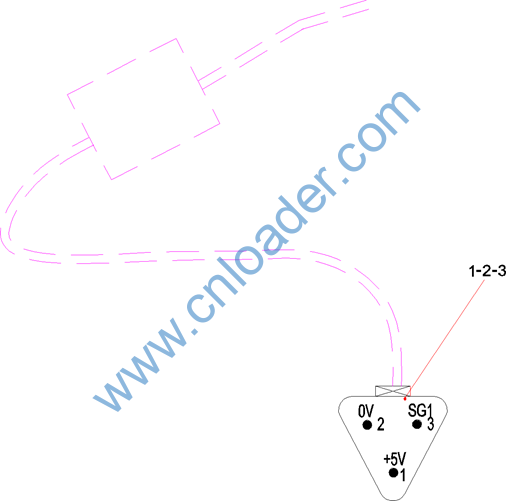

Item No.

Part No.

Description

Qty.

1

B241200000591

Receptacle, 3-position

1

2

B241200000603

Lock, 3-position Plug

1

3

B249900000288

Pin

3
