Body,container reach stacker, SRSC45H1 LOE





Item No.

Part No.

Description

Qty.

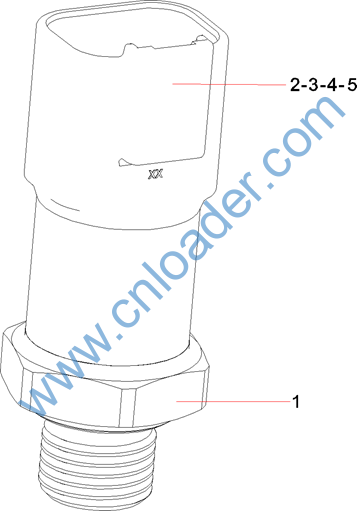

1

60265484

Sensor, pressure

1

2

A241200001134

Socket, rectangle, 4-core

1

3

B241200000586

Lock, secondary pole, 4-wire, socket

1

4

60247805

Sleeve, protective, 4-pin plug

1

5

B229900001093

Socket

2






















Item No.

Part No.

Description

Qty.

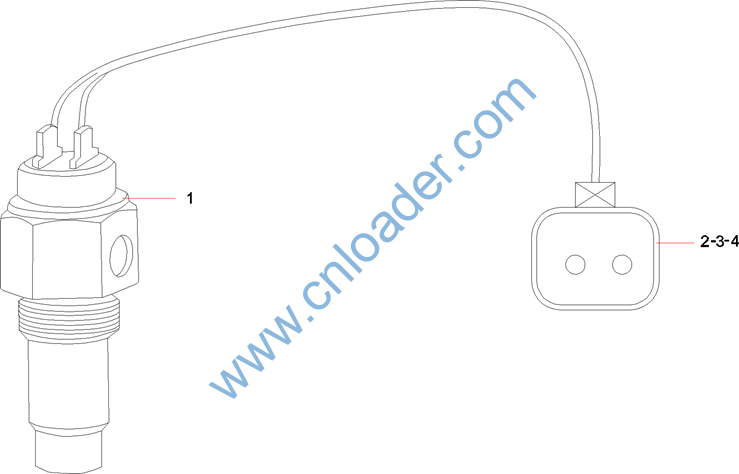

1

B240600000172

Sensor, temperature

1

2

B241200000582

Receptacle, 2-position

1

3

B249900000288

Pin

2

4

A249900001139

Lock, 2-position Receptacle

1


























Item No.

Part No.

Description

Qty.

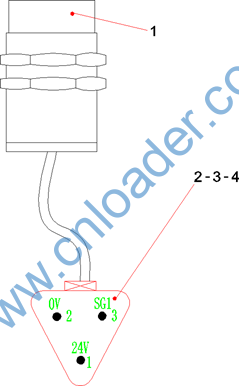

1

B241200000884

Switch, Proximity

1

2

B241200000591

Receptacle, 3-position

1

3

B241200000603

Lock, 3-position Plug

1

4

B249900000288

Pin

3
























Item No.

Part No.

Description

Qty.

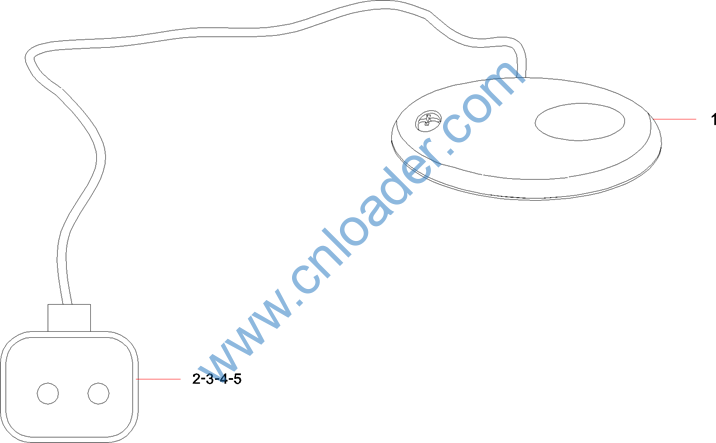

1

A241100000555

Lamp, mark, side, LED

1

2

B241200000582

Receptacle, 2-position

1

3

B249900000288

Pin

2

4

A249900001139

Lock, 2-position Receptacle

1

5

60120497

Tail, socket, 2-wire

1






















Item No.

Part No.

Description

Qty.

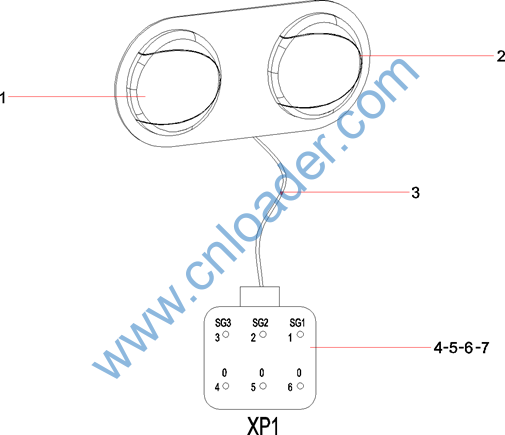

1

B241100000446

Lamp, tail, LED

1

2

B241100000447

Lamp, turn signal, LED

1

3

A239900000561

Bellows, Nylon

1

4

B241200000606

Receptacle, 6-position

1

5

B249900000288

Pin

6

6

A249900001140

Lock, 6-position Receptacle

1

7

60120499

Tail, socket, 6-wire

1
























Item No.

Part No.

Description

Qty.

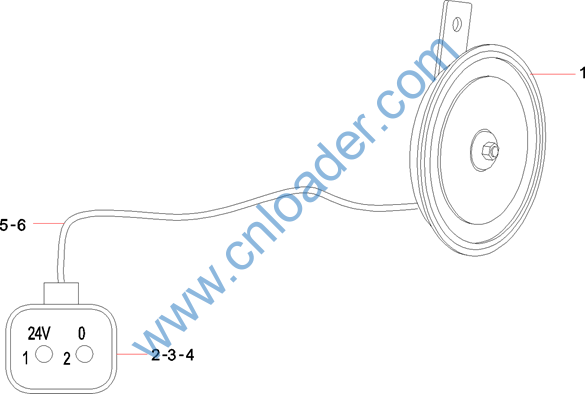

1

60246671

Horn

1

2

B241200000582

Receptacle, 2-position

1

3

A249900001139

Lock, 2-position Receptacle

1

4

B249900000288

Pin

2

5

A241000000040

Receptacle

2

6

A241900000014

Cable

1


















Item No.

Part No.

Description

Qty.

1

67301761

Sensor, pressure

1

2

A241200001134

Socket, rectangle, 4-core

1

3

B241200000586

Lock, secondary pole, 4-wire, socket

1

4

60247805

Sleeve, protective, 4-pin plug

1

5

B229900001093

Socket

2






















Item No.

Part No.

Description

Qty.

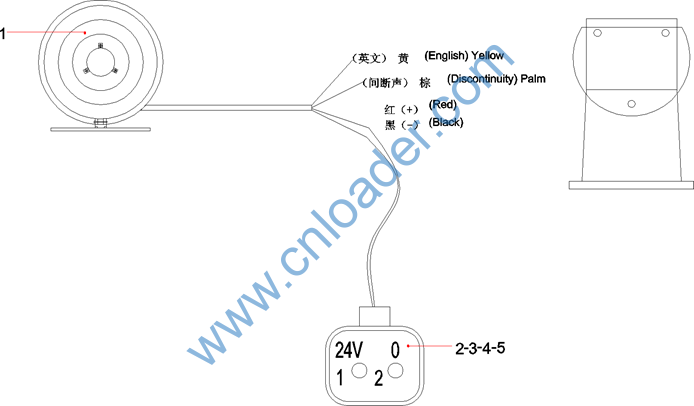

1

60208396

Horn, reversing alarm

1

2

B241200000582

Receptacle, 2-position

1

3

B249900000288

Pin

2

4

A249900001139

Lock, 2-position Receptacle

1

5

60120497

Tail, socket, 2-wire

1
