Item No.

Part No.

Description

Qty.

1

60009847

Device, fire extinguisher, dry powder, superfine, pressureless

4

2

24000529

Bolt

8

3

A210401000017

Washer

8

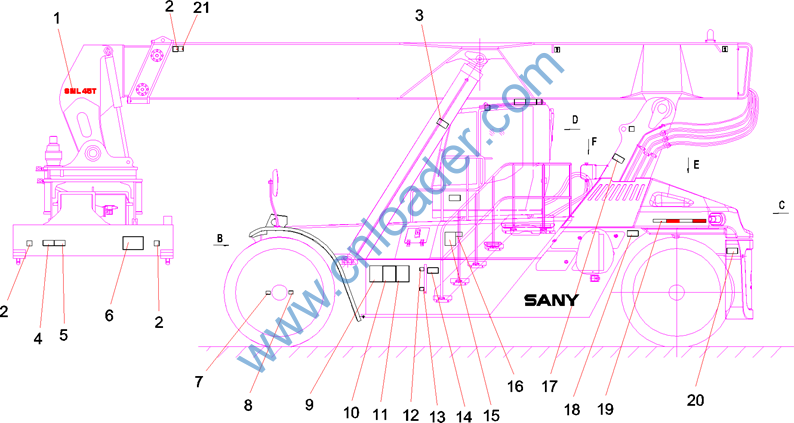

Item No.

Part No.

Description

Qty.

1

10061340

Label, safety load

2

2

A820101990552

Diagram, hoisting point

16

3

13567189

Label, beware of head

2

4

13564363

Label, caution high voltage wire

1

5

13567166

Label, watchful of the hanged objects

2

6

13609639

Label, warning, spreader

2

7

13564381

Label, air pressure of tyre

2

8

13564392

Label, check, tyre bolt

2

9

13564394

Label, hydraulic pressur

1

10

13578390

Label, lubrication points

1

11

13564292

Label, safety operating

1

12

12120439

Label, instruction, max. oil level

2

13

12120438

Label, instruction, min. oil level

2

14

13564377

Label, hydraulic oil tank

1

15

12393603

Nameplate

1

16

10061841

Nameplate, CE

1

17

13567179

Label, warning, no climbing

2

18

13567191

Label, warning, tyre

3

19

A290000003269

Mark, reflecting, vehicle body

7

20

13567194

Label, no going closer, turning caution board

2

21

13816362

Label, fixed point

14

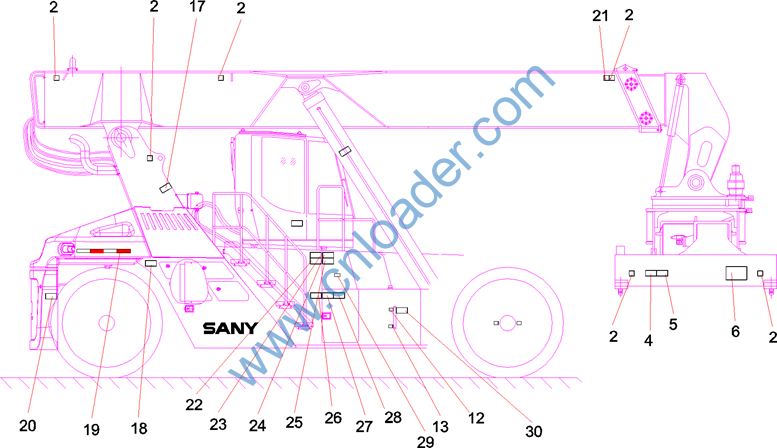

Item No.

Part No.

Description

Qty.

2

A820101990552

Diagram, hoisting point

16

4

13564363

Label, caution high voltage wire

1

5

13567166

Label, watchful of the hanged objects

2

6

13609639

Label, warning, spreader

2

12

12120439

Label, instruction, max. oil level

2

13

12120438

Label, instruction, min. oil level

2

17

13567179

Label, warning, no climbing

2

18

13567191

Label, warning, tyre

3

19

A290000003269

Mark, reflecting, vehicle body

7

20

13567194

Label, no going closer, turning caution board

2

21

13816362

Label, fixed point

14

22

13564376

Label, fuel tank

1

23

13567217

Label, no aether

1

24

13567167

Label, warning, anti-pinching

1

25

13567185

Label, no smoke or fire

1

26

13564372

Label, power supply switch

1

27

13564373

Label, battery

1

28

13567164

Label, warning, prevent electricity attack

1

29

13781617

Label, moving direction

1

30

13564379

Label, brake oil

1

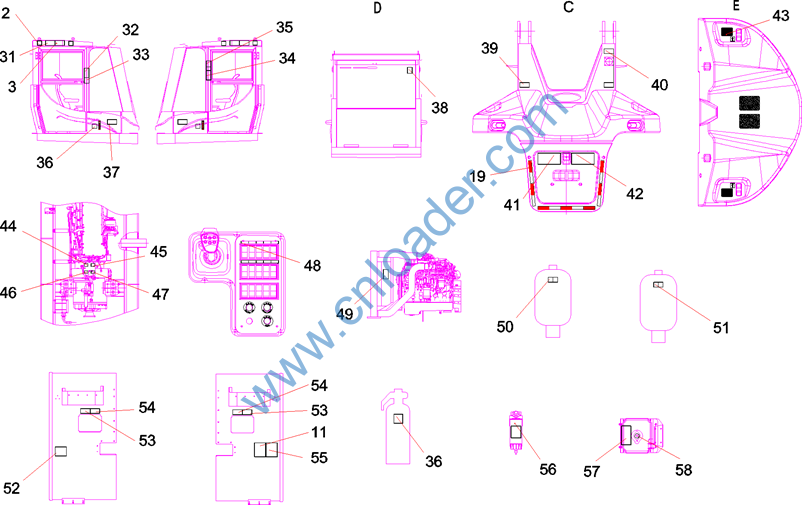

Item No.

Part No.

Description

Qty.

2

A820101990552

Diagram, hoisting point

16

3

13567189

Label, beware of head

2

11

13564292

Label, safety operating

1

19

A290000003269

Mark, reflecting, vehicle body

7

31

13567200

Label, no rider

2

32

13564359

Label, warning, operation

1

33

13564398

Label, load

1

34

13567210

Label, stop

1

35

13567208

Label, Safety belt

1

36

13278376

Label, instruction, preventing fire disaster

3

37

13567186

Label, moving without people

2

38

13564367

Label, emergency exit

1

39

13567193

Label, anti-cutting

2

40

13567188

Decal, warning, hot surface

1

41

13609641

Label, warning, dismantlement ounterweight

1

42

13609643

Label, no going closer

1

43

10049665

Sticker, antislip

4

44

13564391

Filler, oil, gearbox

1

45

13564389

Plate, mounting, front end, engine

1

46

13564390

Point, engine oil level check

1

47

13564382

Point, gearbox oil level check

1

48

13525786

Label, control function

1

Item No.

Part No.

Description

Qty.

49

13567176

Label, hand-injury-proof

1

50

13567192

Label, brake accumulator

1

51

13644652

Label, brake accumulator

1

52

12120476

Label, load

1

53

13567181

Label, warning, no jumping off

2

54

13567169

Label, warning, mind the fallen parts

2

55

13564383

Decal, maintenance

1

56

13564374

Label, oil-water separator

1

57

13567177

Label, no trample

1

58

13677224

Label, warning, scalding, expansion water tank

1

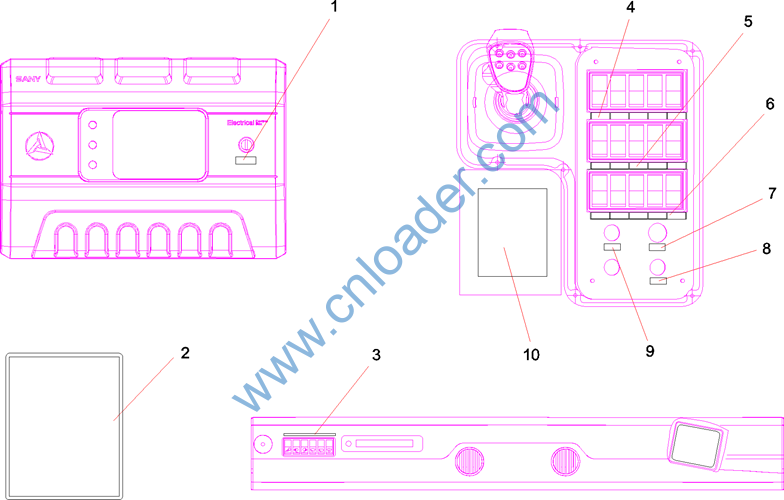

Item No.

Part No.

Description

Qty.

1

12120437

Decal, instruction, cab moving

1

2

13525767

Label, fuse instruction

1

3

13525363

Label, front operation panel

1

4

13525776

Label, operation panel, right

1

5

13525779

Label, operation panel, right 2

1

6

13525773

Label, operation panel, right 3

1

7

13525784

Label, safety pass

1

8

12943544

Plate, indication, emergency stop button

1

9

12120480

Plate, instruction, ignition key

1

10

13521864

Label, joystick function

1
