Body,container reach stacker, SRSC45H1 SER



















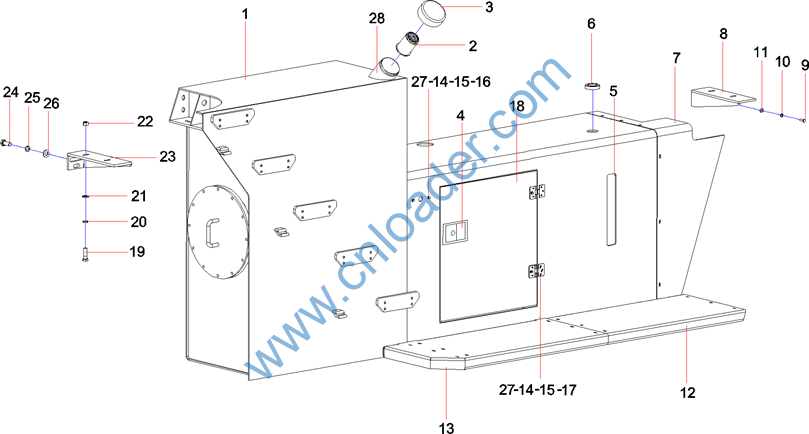

Group 13 Assembly, fuel tank






















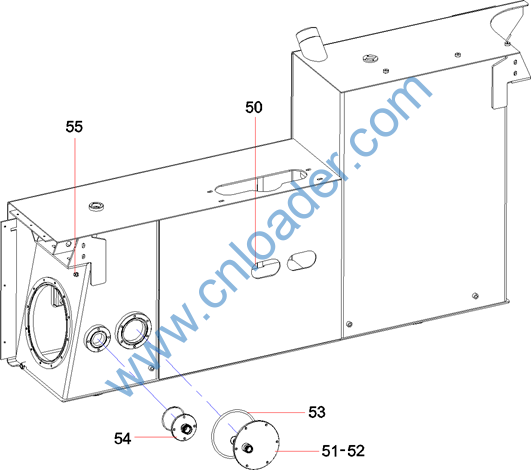

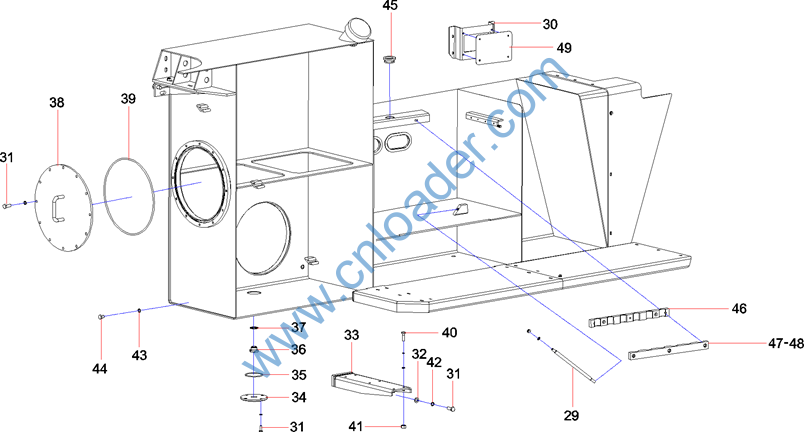

Item No.

Part No.

Description

Qty.

1

13216636

Body, fuel tank

1

2

60022607

Stainer

1

3

60333717

Cover, oil tank

1

4

A222200000042

Latch, Electrical Control Box

1

5

A250100000041

Gauge, liquid level and temperature

1

6

A222100000265

Cleaner, air

1

7

12602467

Cap, front, right

1

8

10187941

Support, rear, fuel tank

1

9

A210111000089

Bolt

21

10

A210401000017

Washer

26

11

A210404000005

Washer

21

12

10043086

Pedal

1

13

10043085

Pedal, 2

1

14

A210401000016

Washer

14

15

A210405000006

Washer

14

16

A210307000016

Nut

2

17

A210891000015

Hinge

2

18

12506004

Door, battery box

1

19

A210111000040

Bolt

8

20

A210401000002

Washer

8

21

A210404000004

Washer

8

22

A210307000001

Nut

5






















Item No.

Part No.

Description

Qty.

23

12781480

Support, front, fuel tank

1

24

A210111000112

Bolt

6

25

A210401000004

Washer

6

26

A210491000118

Washer 16GB1230

6

27

A210111000080

Bolt

14

28

A210264000004

Tapping screw

3






















Item No.

Part No.

Description

Qty.

29

12495270

Bolt, compressed, battery

1

30

12583793

Plate, mounting, controller

1

31

A210111000018

Bolt

64

32

A210405000011

Washer

18

33

10465351

Support, pedal

2

34

10774636

Plate, cover, oil washing hole

3

35

A210609000082

O-ring

4

36

21051814

Plug, screw

3

37

A210434000015

Washer

3

38

10121195

Assembly, manhole cover plate

2

39

A210609000295

O-ring

2

40

A210111000090

Bolt

15

41

A210307000012

Nut

20

42

A210401000001

Washer

70

43

A210434000009

Washer 18JB982

2

44

A210333000011

Plug

2

45

11342373

Sleeve, protective

1

46

12583792

Seat, pipe clamp

1

47

12583791

Clamp

1

48

A210204000162

Screw

5

49

12495272

Plate

1


















Item No.

Part No.

Description

Qty.

50

11804806

Sleeve, protective, rubber

2

51

24004877

Filter

1

52

10835468

Components, oil-suction cover plate

1

53

A210609000174

O-ring

1

54

A810102000050

Assembly, cover plate, oil returm

1

55

B210780000746

Connector

1





















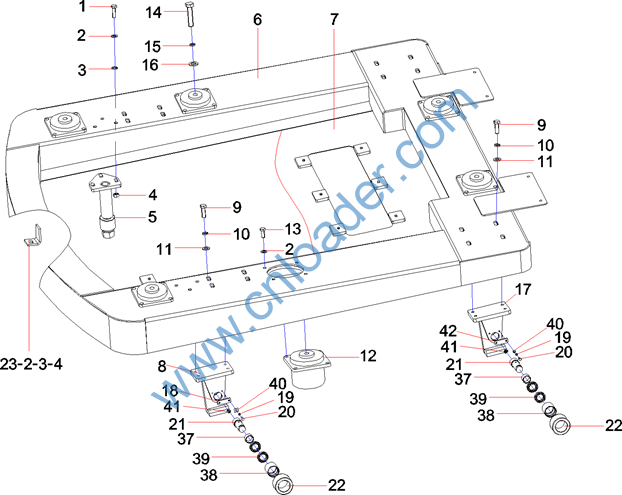

Group 14 Mechanism, cab moving


















Item No.

Part No.

Description

Qty.

1

A210111000026

Bolt

6

2

A210405000011

Washer

36

3

A210401000001

Washer

36

4

A210307000017

Nut

6

5

13552532

Component, guide wheel

2

6

13462144

Board

1

7

10940028

Assembly, sound insulation plate

1

8

13624138

Seat, mounting, wheel, front

2

9

A210111000203

Bolt

32

10

A210401000002

Washer

40

11

A210405000001

Washer

40

12

60100351

Absorber, shock

6

13

A210111000018

Bolt

24

14

A210111000291

Bolt M16×70GB5783 10.9

6

15

A210405000003

Washer

8

16

A210401000004

Washer

8

17

13624135

Seat, mounting, wheel, rear

2

18

A820101314487

Baffle, shaft end

2

19

A210401000016

Washer

8

20

A210111000079

Bolt

8

21

13295507

Shaft

4

22

13294871

Roller

4


















Item No.

Part No.

Description

Qty.

23

21021297

Screw

12

37

13295491

Thimble

4

38

12830208

Bushing

4

39

60197234

Bearing, rolling

8

40

13416055

Board

2

41

A210804000002

Fitting, Grease

4

42

13544363

Board

2
