Body,container reach stacker, SRSC45H1 LPD





Item No.

Part No.

Description

Qty.

12

60136697

Spring, compressed

1

13

60136624

Plug

1

14

60136623

Plug

2

15

60136649

Body, shell

1

21

60136551

Core, valve

1

23

60136515

Ring

1

24

60136603

Ring, retaining, elastic

1

31

60136701

Spring, compressed

1

42

60136601

Seat, spring

1

48

60136602

Seat, spring

1

50

60136745

Controller

1

51

60136639

Sleeve, sliding

1

52

60136522

Sleeve, seal

1

56

60136691

Pin

1

57

60136604

Ring, retaining, elastic

1

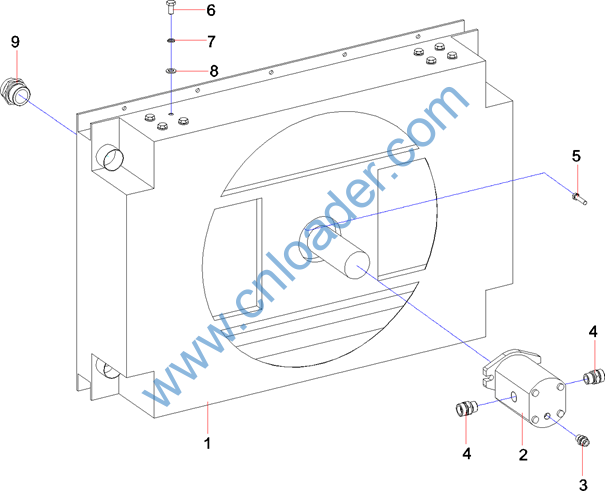

Item No.

Part No.

Description

Qty.

1

B229900001004

Radiator

1

2

B220501000269

Motor, Gear

1

3

B210780000036

Connector

1

4

B210780000131

Fitting, Adapter

2

5

A210111000092

Bolt

1

6

A210111000012

Bolt M10×20GB5783 10.9

8

7

A210401000001

Washer

8

8

A210405000011

Washer

8

9

B210780001181

Connector

2

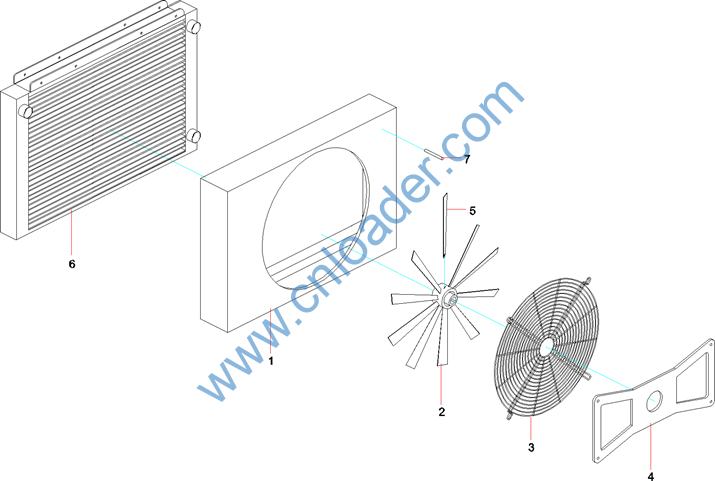

Item No.

Part No.

Description

Qty.

1

60004227

Shroud

1

2

B249900000947

Fan

1

3

60004228

Guard, Fan

1

4

60004226

Plate, Mounting, Motor

1

5

B229900002382

Blade, Fan

10

6

60136520

Cooler

1

7

B241200000833

Switch, temperature

1

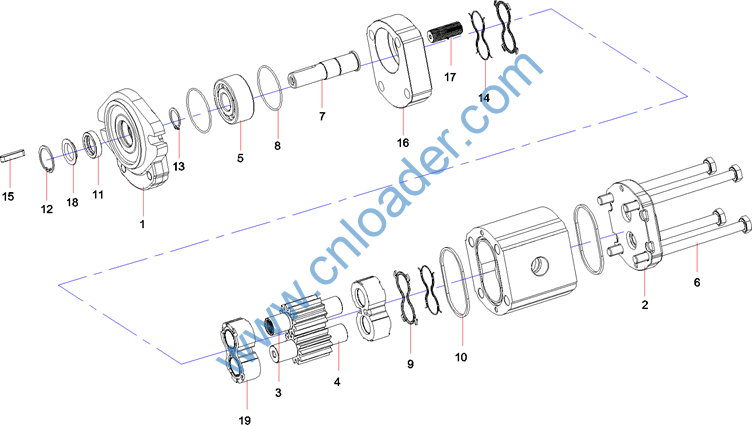

Item No.

Part No.

Description

Qty.

1

60107554

Cover, Front

1

2

60107625

Cover, Rear

1

3

60107578

Gear, Driving

1

4

60107577

Gear, Driving

1

5

60123686

Bearing, Ball

1

6

21008534

Screw

4

7

60107662

Rod, Backup

1

8

60107673

O-ring

2

9

60107645

Seal

2

10

60107544

Ring, Sealing

2

11

60107677

Seal

1

12

60107547

Ring

1

13

60107546

Ring

1

14

60107617

Gasket

2

15

60107658

Pin

1

16

60107616

Flange

1

17

60107627

Shaft, Spline

1

18

60107661

Washer, Thrust

1

19

60107663

Body, Thrust, Gear Pump

2

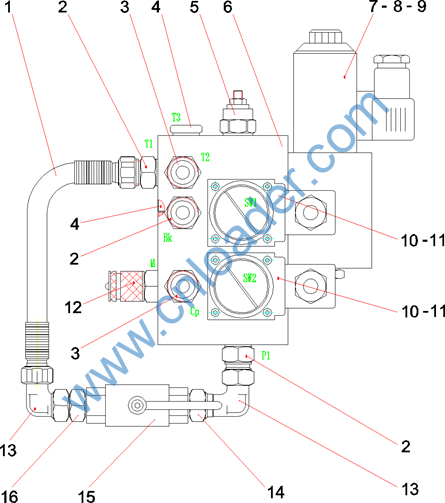

Item No.

Part No.

Description

Qty.

1

B230103003291

Hose, rubber

1

2

B210780000036

Connector

3

3

B210780000232

Fitting, Adapter

2

4

B210399000003

Plug

2

5

60155029

Valve, overflow

1

6

13123193

Block, brake control valve

1

7

A210204000119

Screw

4

8

60155035

Valve, reversal, electromagnetic

1

9

A820601020466

Cover, waterproof

4

10

A210204000219

Screw M5×70(GB70.1) 10.9

8

11

B240700000131

Relay, pressure

2

12

B210770000084

Pressure Tap

1

13

B210780000636

Connector

2

14

B210780000167

Connector

1

15

B220401000263

Valve, ball

1

16

B210780000733

Connector

1

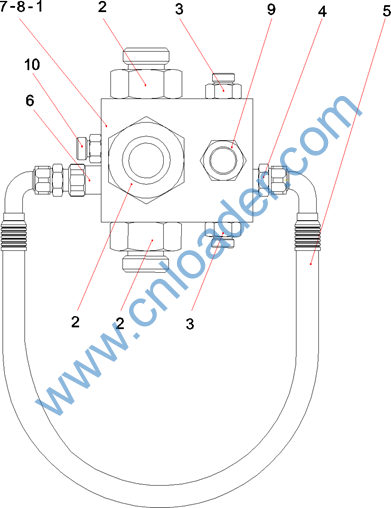

Item No.

Part No.

Description

Qty.

1

A820199002902

Block, oil connecting

1

2

B210780000054

Fitting, Adapter

3

3

B210780000712

Fitting, Adapter

2

4

B210780000040

Fitting, Adapter

1

5

B230103002456

Hose, rubber

1

6

B220400000106

Valve, check

1

7

A210111000089

Bolt

4

8

A210401000017

Washer

4

9

B210780000131

Fitting, Adapter

1

10

B210780000228

Fitting, Adapter

1

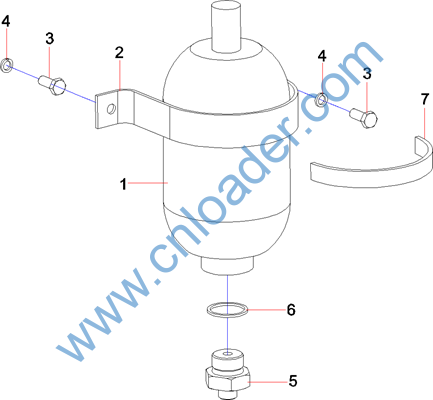

Item No.

Part No.

Description

Qty.

1

24004982

Accumulator

1

2

10996273

Clip, accumulator

1

3

A210204000196

Screw

2

4

A210401000001

Washer

2

5

13389331

Joint, transition, accumulator

1

6

A210434000018

Washer

1

7

A820601020473

Sleeve, protective, rubber

1

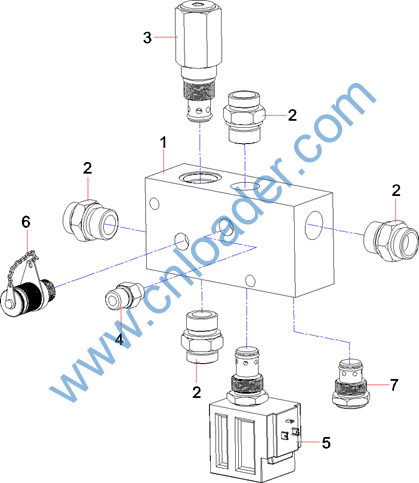

Item No.

Part No.

Description

Qty.

1

A829900002452

Block, cooling switching valve

1

2

B210780000131

Fitting, Adapter

4

3

B220400000083

Valve, overflow

1

4

B210780000201

Plug

1

5

B220400000182

Valve, reversal, electromagnetic

1

6

B210770000084

Pressure Tap

1

7

B220401000539

Valve, check

1
