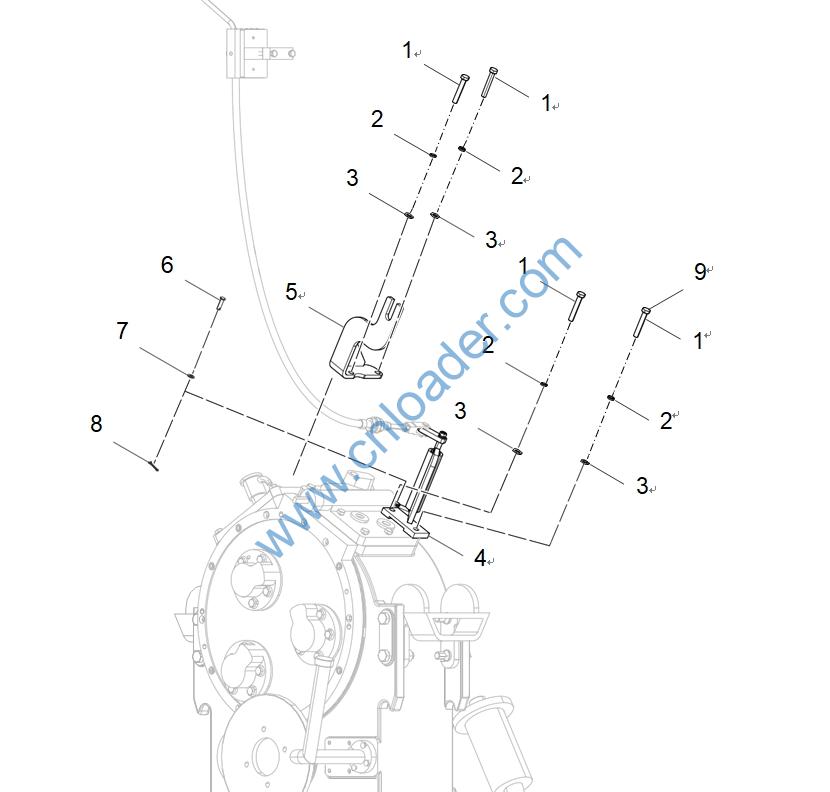

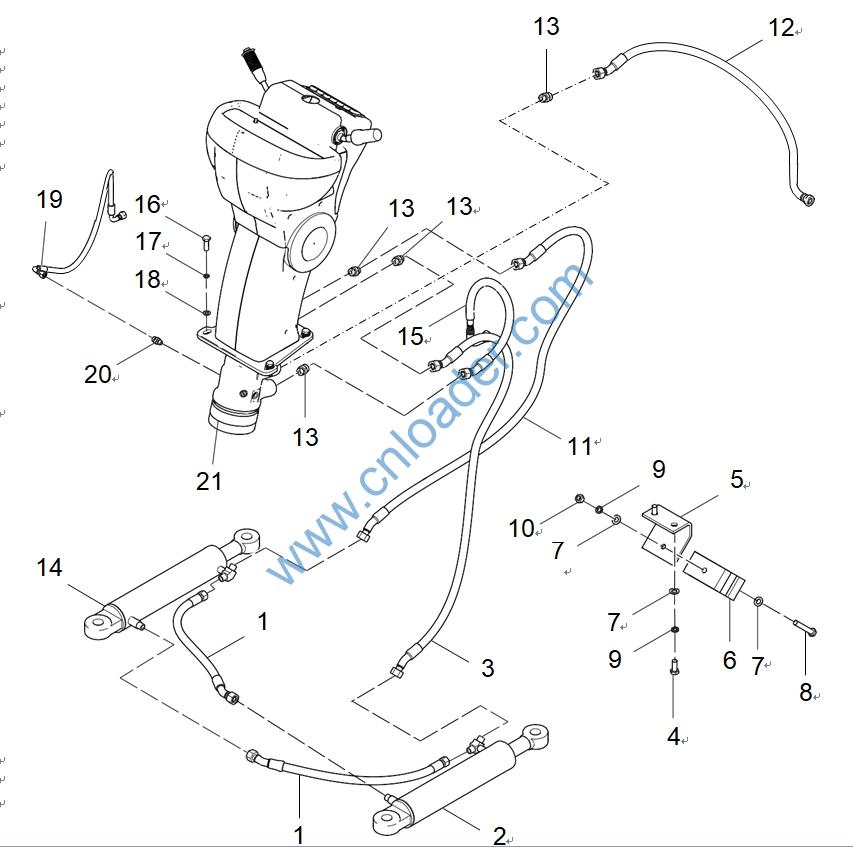

51203101814 螺栓M10×60 BOLT M10×60 GB/T5782
51203101814 螺栓M10×60 BOLT M10×60 GB/T5782
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1
30805013045 支架总成 BRACKET ASSEMBLY LG833NⅩ.05.01.01
30805013105 支架总成 BRACKET ASSEMBLY LG833NGⅩ.05.01.02
30805013104 软轴固定板焊合 FIXING PLATE, CONTROL CABLE LG833NGⅩ.05.01.03
30805013046 软轴固定板焊合 FIXING PLATE, CONTROL CABLE LG833NⅩ.05.01.02
51511051202 销8×28 PIN 8×28 GB/T882
51421090115 垫圈8 WASHER 8 GB/T97.1
51512170101 销3×30 PIN 3×30 GB/T91
51203102314 螺栓M10X115 BOLT M10×115 GB/T5782
17272013255 胶管总成 HOSE ASSEMBLY 20411-22GB/20431-22GB2W 10700
16608029800 转向油缸 LG30F.06.03(LGH)
17272013107 胶管总成 20431-22GB2W101300/90°
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
30806100351 管夹固定板 FIXING PLATE, CLAMP LG833BGⅦ.06.02-001
30807100959 管夹5 CLAMP 5 CDM856DⅠ.07.19-005
51421100115 垫圈10 WASHER 10 GB/T97.1
51204102014 螺栓M10×70 BOLT M10×70 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
51307001019 螺母M10 NUT M10 GB/T6170
17272013106 胶管总成 20431-22GB2W101200/270°
17272017376 胶管总成 HOSE ASSEMBLY 20431-22GB/20491-22GB2W 10800
17601000010 过渡接头 TRANTITION CONNECTOR L1CH-22-20GB
16608029790 转向油缸 LG30F.06.05(LGH)
17272005671 胶管总成 HOSE ASSEMBLY 20431-22GB/20491-22GB2W 101100
51204111314 螺栓M12×35 BOLT M12×35 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
17272007257 胶管总成 HOSE ASSEMBLY 20491-142W051050/90°
17601000202 过渡接头 TRANTITION CONNECTOR L1CH-14-12
30806000209 全液压转向机 HYDRAULIC STEERING GEAR LG833BG.06Ⅸ.03.01
36608990540 密封包 SEAL KIT

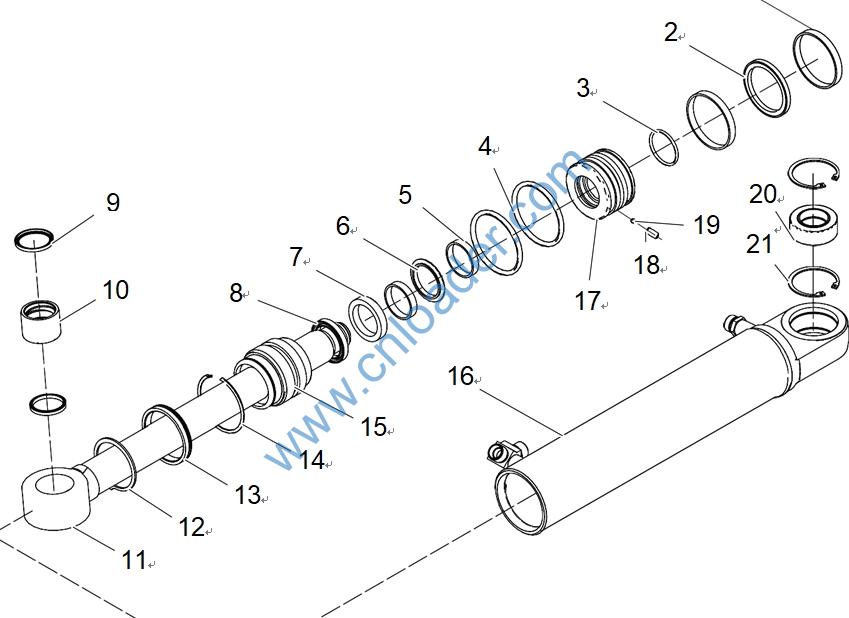

56199002701 支承环75×80×9.7 SUPPORTING RING 75×80×9.7 支承环
56189002201 活塞密封圈80×64.5×6.3 PISTON SEAL RING 80×64.5×6.3 格莱圈型
56900003003 O形圈44.04×3.53 O-RING 44.04×3.53 AS568
56900005403 O形圈69.22×5.33 O-RING 69.22×5.33 AS568
56199002201 支承环45×50×9.7 SUPPORTING RING 45×50×9.7 支承环
56188000302 缓冲圈45×60.5×6.3 BUFFER RING 45×60.5×6.3 缓冲圈
56187000801 轴用密封圈45×60×12.5 SEAL RING 45×60×12.5 轴用密封圈
56185000401 防尘圈45×53×6 DUST HOOD 45×53×6 防尘圈
56186001101 防尘圈40×50×4 DUST HOOD 40×50×4 端头防尘圈
36608090190 轴套 SLEEVE ZL40-630006B
36608040860 活塞杆 PISTON ROD ZL30-630001A
51453500107 挡圈70 CIRCLIP 70 GB/T894.1
36608080020 环 RING ZL30-630002B
36608110010 弹簧挡圈 CIRCLIP ZL30-630003
36608035370 导向套 ZL30-630004C
36608466510 右缸缸体 ZL30-631000CA R
36608020110 活塞 PISTON ZL30-630005B
51106211307 螺钉M8×14 GB/T77
52900000502 钢球6 STEEL BALL φ6 GB/T308
52555000401 关节轴承GE40ES-C3 JOINT BEARING GE40ES-C3 JB/T8879
51451460107 挡圈62 CIRCLIP 62 GB/T893.1

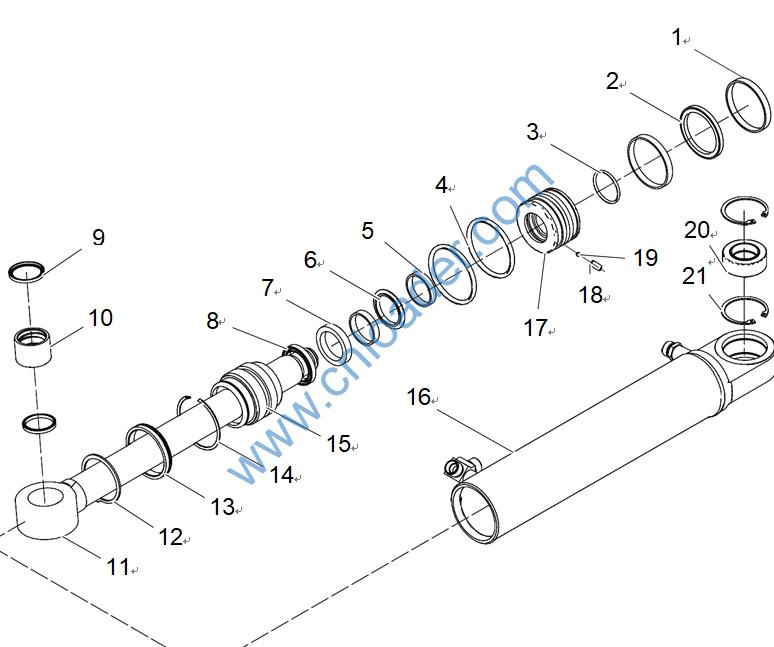

36608990540 密封包 SEAL KIT
56199002701 支承环75×80×9.7 SUPPORTING RING 75×80×9.7 支承环
56189002201 活塞密封圈80×64.5×6.3 PISTON SEAL RING 80×64.5×6.3 格莱圈型
56900003003 O形圈44.04×3.53 O-RING 44.04×3.53 AS568
56900005403 O形圈69.22×5.33 O-RING 69.22×5.33 AS568
56199002201 支承环45×50×9.7 SUPPORTING RING 45×50×9.7 支承环
56188000302 缓冲圈45×60.5×6.3 BUFFER RING 45×60.5×6.3 缓冲圈
56187000801 轴用密封圈45×60×12.5 SEAL RING 45×60×12.5 轴用密封圈
56185000401 防尘圈45×53×6 DUST HOOD 45×53×6 防尘圈
56186001101 防尘圈40×50×4 DUST HOOD 40×50×4 端头防尘圈
36608090190 轴套 SLEEVE ZL40-630006B
36608040860 活塞杆 PISTON ROD ZL30-630001A
51453500107 挡圈70 CIRCLIP 70 GB/T894.1
36608080020 环 RING ZL30-630002B
36608110010 弹簧挡圈 CIRCLIP ZL30-630003
36608035370 导向套 ZL30-630004C
36608466500 左缸缸体 ZL30-631000CA L
36608020110 活塞 PISTON ZL30-630005B
51106211307 螺钉M8×14 GB/T77
52900000502 钢球6 STEEL BALL φ6 GB/T308
52555000401 关节轴承GE40ES-C3 JOINT BEARING GE40ES-C3 JB/T8879
51451460107 挡圈62 CIRCLIP 62 GB/T893.1
51421100115 垫圈10 WASHER 10 GB/T97.1
51401100107 垫圈10 WASHER 10 GB/T93
51203103714 螺栓M10×95 BOLT M10×95 GB/T5782
51204101314 螺栓M10×35 BOLT M10×35 GB/T5783
30806100090 压板 PLATE LG853.06-004
17272005640 胶管总成 HOSE ASSEMBLY 20411-14/20491-142W051
300

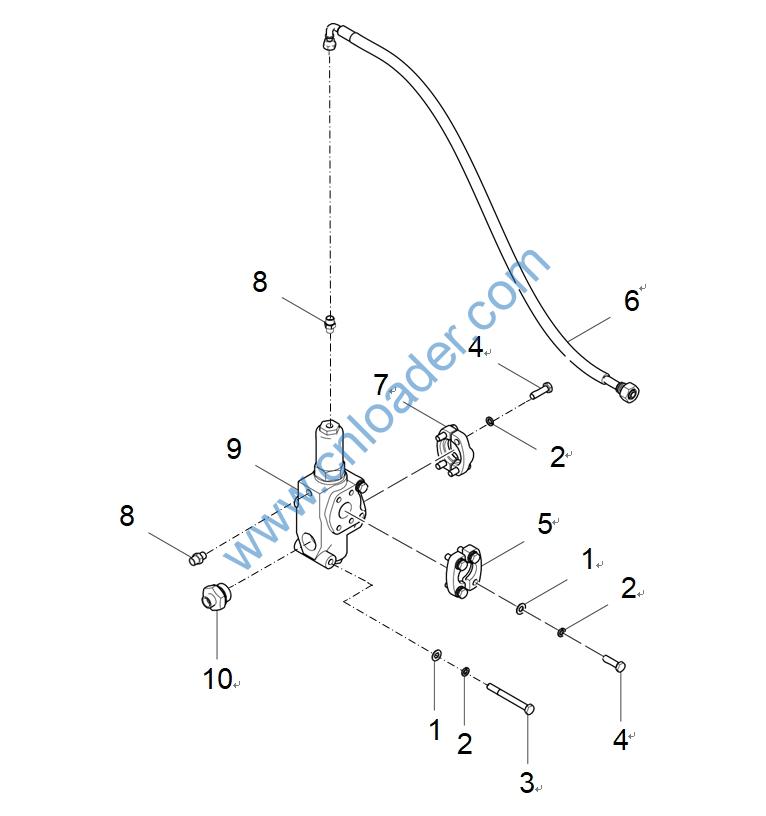

30807100343 压板 PLATE LG853.07-007
17601000202 过渡接头 TRANTITION CONNECTOR L1CH-14-12

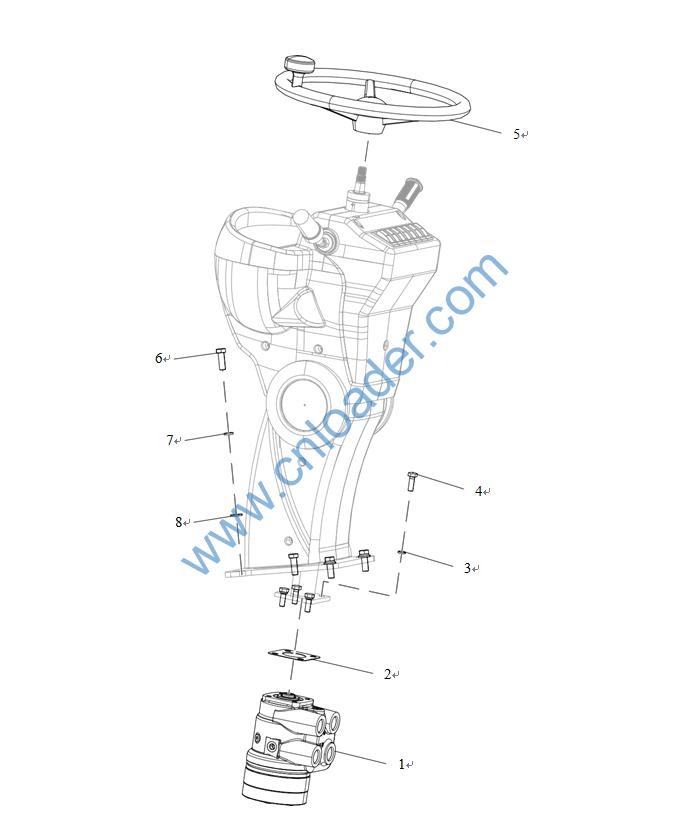

60304000044 优先阀总成 PRIORITY VALVE ASSEMBLY LG853.06.10
17601000247 过渡接头 TRANTITION CONNECTOR L1CH-22-33
60305000041 全液压转向机总成 HYDRAULIC STEERING GEAR
ASSEMBLY LG833B.06Ⅵ.03.01.01
30806101181 调整垫 ADJUSTING GASKET LG853.06.02-003
51401100107 垫圈10 WASHER 10 GB/T93
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
60405050003 方向盘总成 STEERING WHEEL ASSEMBLY LG855.06.02.01
51204111314 螺栓M12×35 BOLT M12×35 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1

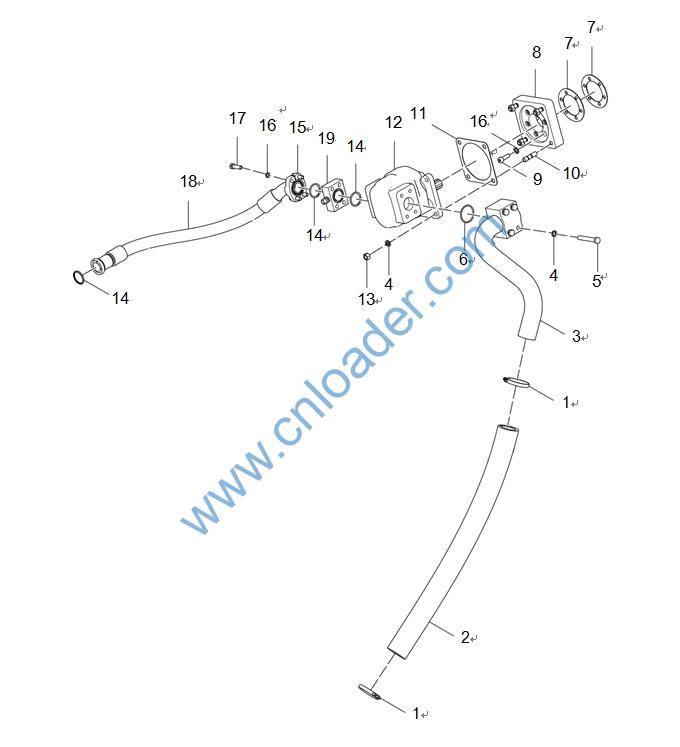

60700008160 T型恒定压力卡箍62-70 T-CLAMP 62-70 LG855N.07.01
37205002667 胶管51×630 HOSE 51×630 Q/(HG4)JG21
30893000838 钢管焊合 PIPE FABRICATE CDM835.07.10
51401110107 垫圈12 WASHER 12 GB/T93
51203112214 螺栓M12×80 BOLT M12×80 GB/T5782
56145012804 O形圈48.7×3.55 O-RING 48.7×3.55 GB/T3452.1
30802100020 密封垫片 SEAL SHIM LG30F.02Ⅰ.02-012
30807100188 双联泵连接板 CONNECTING PLATE, PUMP LG30F.07Ⅰ-001
51139220405 螺钉M10×30 SCREW M10×30 GB/T70.1
51288111304 螺柱M12×35 STUD M12×35 GB/T898
60922010004 密封垫片 SEAL SHIM LG853.06-001
60301000260 齿轮泵总成 GEAR PUMP ASSEMBLY LG833B.06Ⅵ.01.01
51307001119 螺母M12 NUT M12 GB/T6170
56900001001 O形圈37.69×3.53 O-RING, 37.69×3.53 AS568

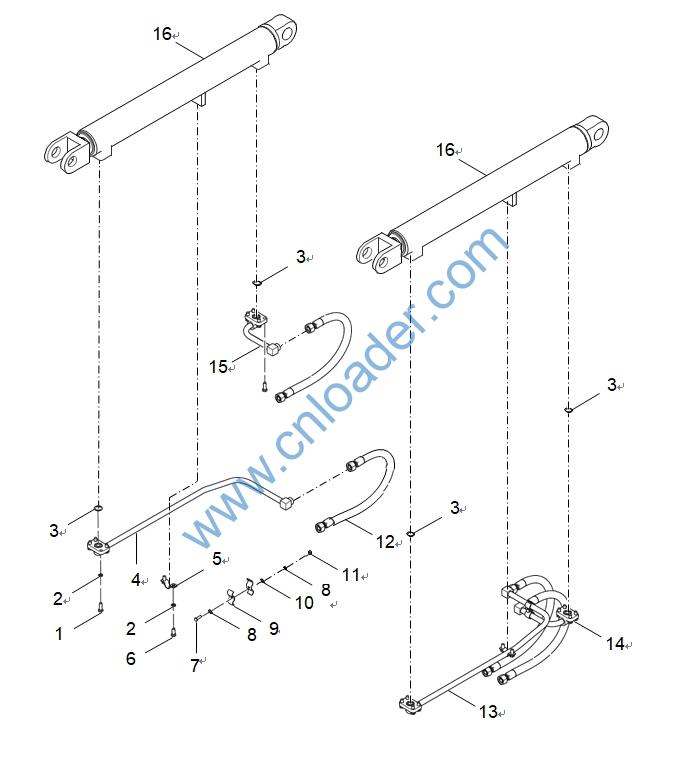

30807100343 压板 PLATE LG853.07-007
51401100107 垫圈10 WASHER 10 GB/T93
51203101914 螺栓M10×65 BOLT M10×65 GB/T5782
17272012233 胶管总成 HOSE ASSEMBLY 87311-20/87341-20R1716
480
30893900529 钢管焊合 PIPE FABRICATE LG860.06.09
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
56900000201 O形圈24.99×3.53 O-RING, 24.99×3.53 AS568
30893900116 钢管焊合 PIPE FABRICATE CDM835.07.14
30807100363 管夹 CLAMP LG30F.07Ⅰ-009
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
30807100190 动臂缸进出油管管夹 CLAMP, BOOM CYLINDER OIL
INLET/ OUTLET LG30F.07Ⅰ-003
51421090115 垫圈8 WASHER 8 GB/T97.1
51307000919 螺母M8 NUT M8 GB/T6170
17272000110 胶管总成 HOSE ASSEMBLY 20411-27T2N12892
30893900228 钢管焊合 PIPE FABRICATE CDM835.07.15
30893900167 钢管焊合 PIPE FABRICATE CDM835.07.13
30893900117 钢管焊合 PIPE FABRICATE CDM835.07.12
16608062820 动臂油缸 ZL30-720000F(LGH)
51204101314 螺栓M10×35 BOLT M10×35 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
17601001217 过渡接头 TRANTITION CONNECTOR FL-16
17272012653 胶管总成 HOSE ASSEMBLY 87311-16/87391-16R1716
1200
56900000401 O形圈32.92×3.53 O-RING, 32.92×3.53 AS568
30893000602 钢管焊合 PIPE FABRICATE CDM835EⅢ.07.02
56145008301 O形圈30×3.55 O-RING, 30×3.55 GB/T3452.1
16608064760 转斗油缸 LG833BG.07Ⅸ.02.01(LGH)
17272003383 胶管总成 HOSE ASSEMBLY 87311-16/87391-16R1716
1350
30807100264 压板 PLATE LG833B.07Ⅵ.02-001
30807100339 转斗油缸保护板 PROTECTION PLATE, TILT
CYLINDER LG50D.07-001
51204101014 螺栓M10×20 BOLT M10×20 GB/T5783
51421100115 垫圈10 WASHER 10 GB/T97.1

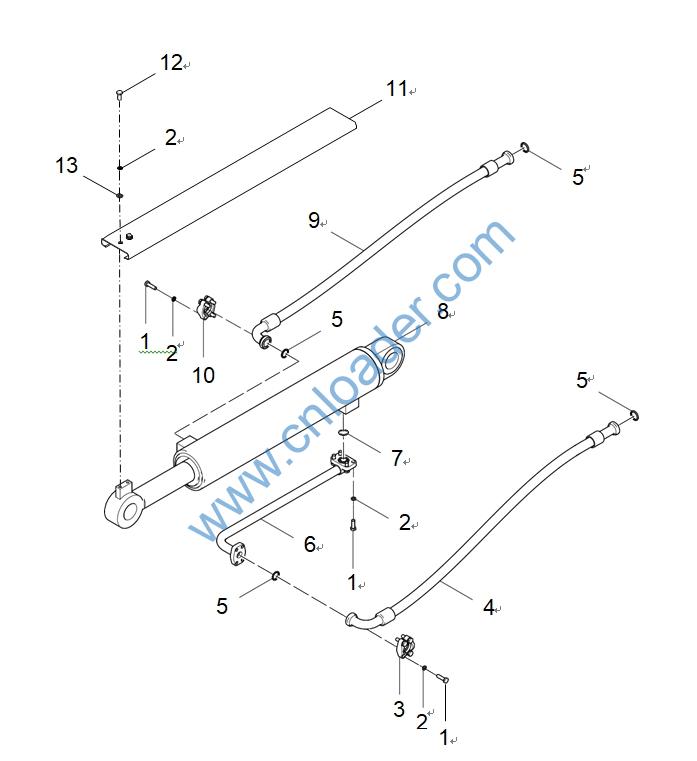

1 51204101314 螺栓M10×35 BOLT M10×35 GB/T5783 12
2 51401100107 垫圈10 WASHER 10 GB/T93 14
3 17601001217 过渡接头 TRANTITION CONNECTOR FL-16 1
4 17272012653 胶管总成 HOSE ASSEMBLY 87311-16/87391-16R1716
1200 1
5 56900000401 O形圈32.92×3.53 O-RING, 32.92×3.53 AS568 4
6 30893000602 钢管焊合 PIPE FABRICATE CDM835EⅢ.07.02 1
7 56145008301 O形圈30×3.55 O-RING, 30×3.55 GB/T3452.1 1
8 16608064760 转斗油缸 LG833BG.07Ⅸ.02.01(LGH) 1
9 17272003383 胶管总成 HOSE ASSEMBLY 87311-16/87391-16R1716
1350 1
10 30807100264 压板 PLATE LG833B.07Ⅵ.02-001 1
11 30807100339 转斗油缸保护板 PROTECTION PLATE, TILT
CYLINDER LG50D.07-001 1
12 51204101014 螺栓M10×20 BOLT M10×20 GB/T5783 2
13 51421100115 垫圈10 WASHER 10 GB/T97.1 2
71
转斗油缸 (16608064760)
1
2
3
4
5
6
7 8
14 9
10
13 15
12 16
11 17
18
19
20
27
25 21
28
29 26 22
23
24

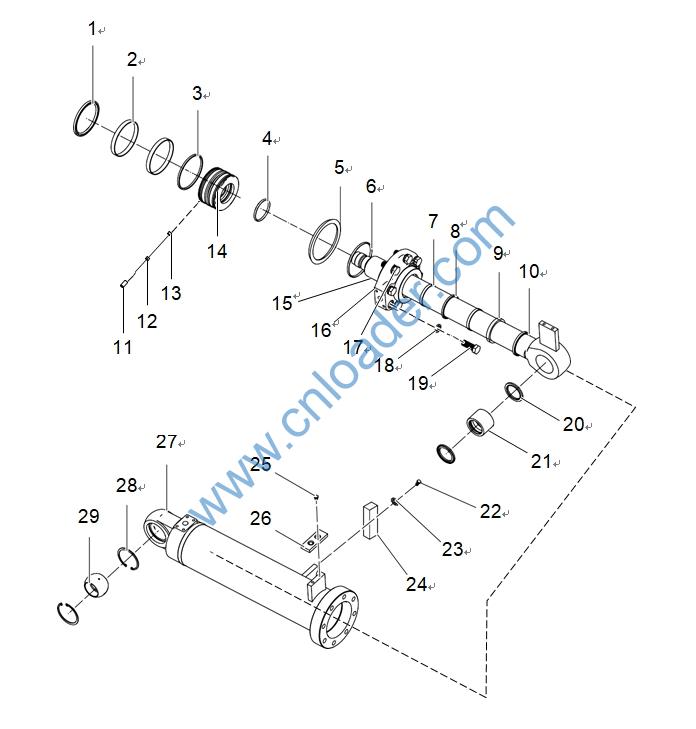

72
转斗油缸 (16608064760)
序号
NO. 代码
S.C 零件名称
PART NAME PART NAME
零件名称 代号
CODE 数量
QTY 备注
NOTE
0 36608990080 密封包 SEAL KIT 1
1 56200000701 纳污环140×132×6.2 DUST RING 140×132×6.2 纳污环 1
2 56199000901 支承环135×140×15 SUPPORT RING 135×140×15 支承环 2
3 56189000701 活塞密封圈140×119×8 PISTON SEAL RING 140×119×8 格莱圈型 1
4 56900005503 O形圈78.74×5.33 O-RING 78.74×5.33 AS568 1
5 56900005803 O形圈129.54×5.33 O-RING 129.54×5.33 AS568 1
6 56908002504 O形圈139.4×3.1 O-RING 139.4×3.1 JISB2401 1
7 56199003001 支承环80×85×9.7 SUPPORT RING 80×85×9.7 支承环 2
8 56188001002 缓冲圈80×95.5×6.3 BUFFER RING 80×95.5×6.3 缓冲圈 1
9 56187002101 轴用密封圈80×95×12.5 SHAFT SEAL RING 80×95×12.5 轴用密封圈 1
10 56185000801 防尘圈80×90×7 DUST RING 80×90×7 防尘圈 1
11 51106231607 螺钉M12×10 SCREW M12×10 GB/T77 1
12 51106233007 螺钉M12×28 SCREW M12×28 GB/T77 1
13 52900000402 钢球8 STEEL BALL φ8 GB/T308 1
14 36608020013 活塞 ZL30-710003D 1
15 36608880008 活塞杆组件 CDM835EⅢ.07.01.20A 1
16 36608030320 导向套 GUIDE SLEEVE ZL30-710002A 1
17 51210151714 螺栓M20×1.5×55 BOLT M20×1.5×55 GB/T5785 6
18 51401150107 垫圈20 WASHER 20 GB/T93 8
19 51210157214 螺栓M20×1.5×75 BOLT M20×1.5×75 GB/T5785 2
20 56186001301 防尘圈60×80×5 DUST RING 60×80×5 端头防尘圈 2
21 36608090180 轴套 SLEEVE ZL30-710004A 1
22 51204101518 螺栓M10×45 BOLT M10×45 GB/T5783 2
23 51401100107 垫圈10 WASHER 10 GB/T93 2
24 36608260200 压块 PRESS BLOCK CDM835EⅢ.07.01-01 1
25 51204090914 螺栓M8×16 BOLT M8×16 GB/T5783 2
26 36608260010 导板 GUIDE PLATE ZL50F-710005 1
27 36608460010 缸体 CYLINDER BODY CDM835EⅢ.07.01.10 1
28 51451580107 挡圈90 CIRCLIP 90 GB/T893.1 2
29 52555000501 关节轴承GE60ES-C3 JOINT BEARING GE60ES-C3 JB/T8879 1
