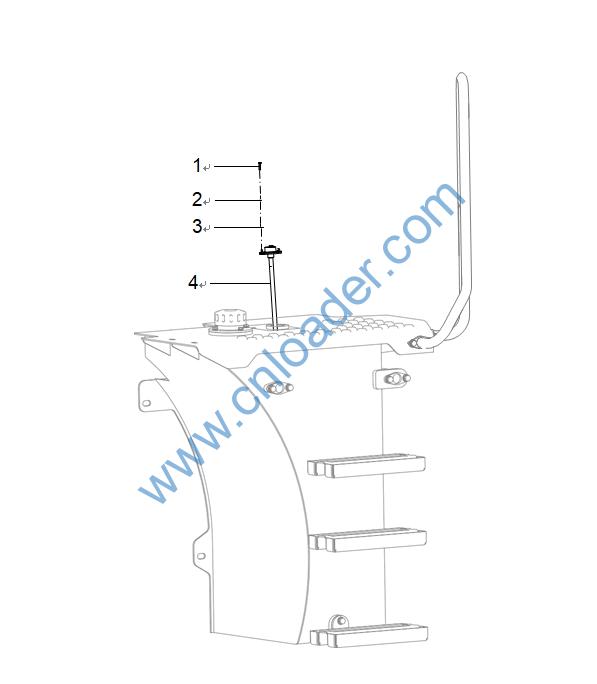

51158171304 螺钉M5×18 SCREW M5×18 GB/T818
51401070107 垫圈5 WASHER 5 GB/T93
51421070115 垫圈5 WASHER 5 GB/T97.1

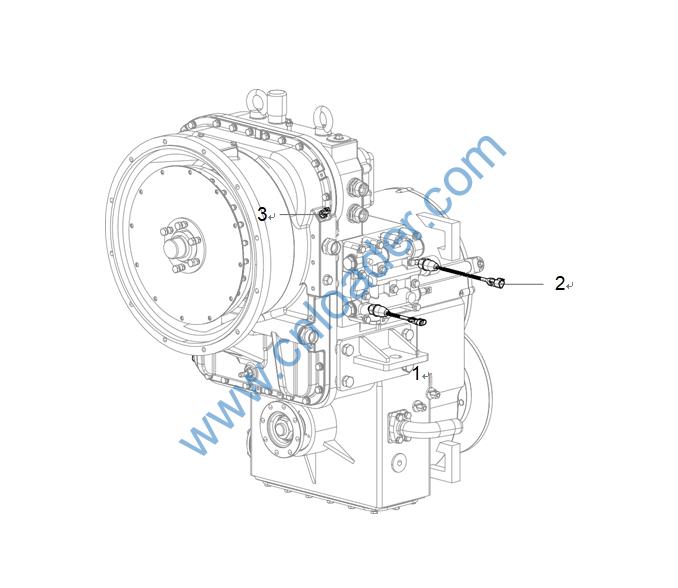

60400000607 燃油传感器 FUEL LEVEL SENSOR LG855DS.15.39
60400000563 压力开关 PRESSURE SWITCH LG855DS.15.26
60400000562 压力开关 PRESSURE SWITCH LG855DS.15.25
60402020050 温度传感器WG-5(Z3/8) TEMPERATURE SENSOR
WG-5(Z3/8) LG855BⅠ.15.16
30815000292 空调压缩机支架 BRACKET, A.C. COMPRESSOR LG855NⅠ.15.46
51401100107 垫圈10 WASHER 10 GB/T93
51420100121 垫圈10 WASHER 10 GB/T96.1
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
60480800002 压差发讯器CMS-I LG855.15.43
51222134714 螺栓M16×25 GB/T16674.1
51307000919 螺母M8 NUT M8 GB/T6170
30815100287 空调管支撑架 SUPPORT BRACKET, A.C. TUBES CDM860.15Ⅴ-001
60911012308 线夹2-25(3700924) HARNESS CLIP 2-25(3700924) LG855BⅡ.15Ⅰ.27
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
60400000550 发动机线束 LG855BⅣ.15.09
60402020050 温度传感器WG-5(Z3/8) TEMPERATURE SENSOR
WG-5(Z3/8) LG855BⅠ.15.16

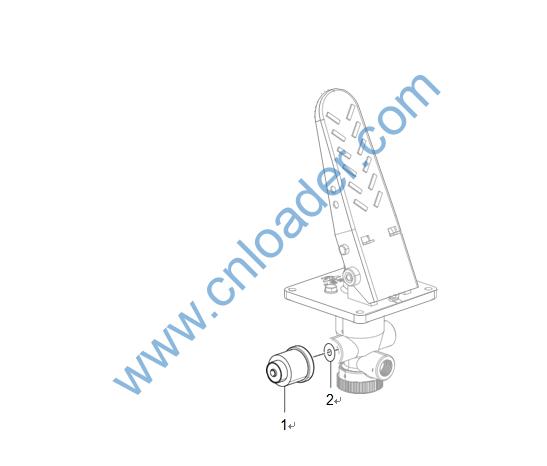

60405020055 低压报警开关SH361 LOW PRESSURE ALARMER LG853.15.27
56901001201 垫圈12 WASHER 12 JB/T966

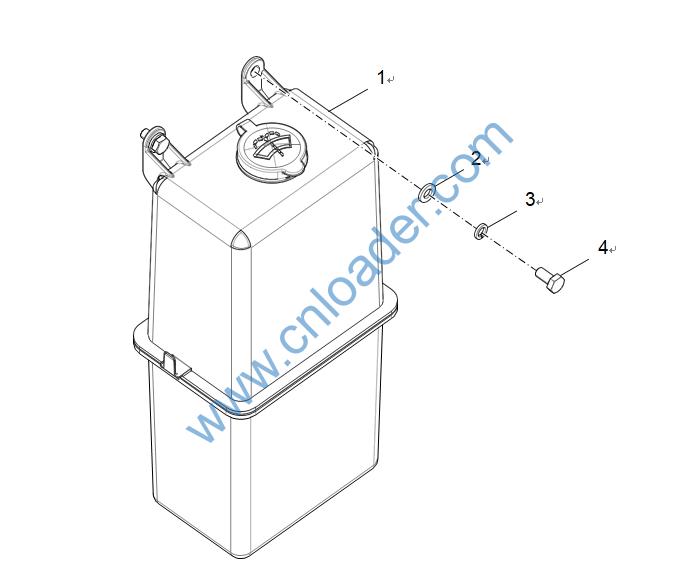

60400000574 洗涤器 WASHER LG855DS.15.35
60400000571 洗涤器 WASHER LG855DS.15.33
51420080121 垫圈6 WASHER 6 GB/T96.1
51401080107 垫圈6 WASHER 6 GB/T93
51204080814 螺栓M6×12 BOLT M6×12 GB/T5783
60400002693 空调管 A.C. TUBE 9009CF0006

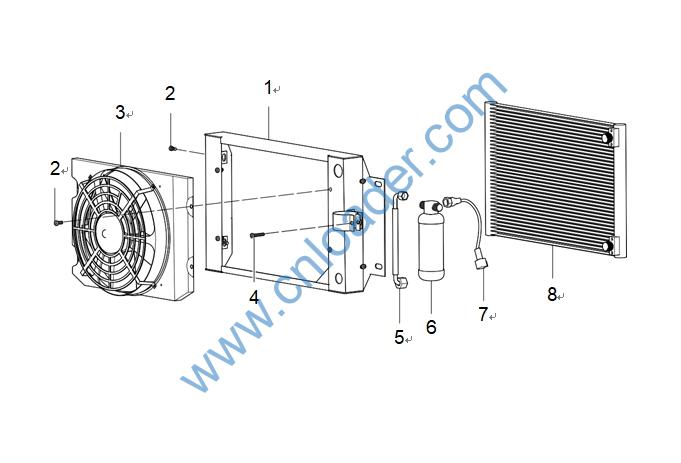

60900003030 内六角螺栓M6×12 INNER HEX BOLT M6×12 GB/T70.1
60100002598 冷凝风机 CONDENSER FAN 011100010
51204081014 螺栓M6×20 BOLT M6×20 GB/T5783
60100002644 CF管 CF TUBE 050600085
60100002633 干燥瓶 DRYING BOTTLE 10400010
60900003026 压力开关 PRESSURE SWITCH 011300006
60100002602 冷凝器芯体 CONDENSER CORE 81200900-1B

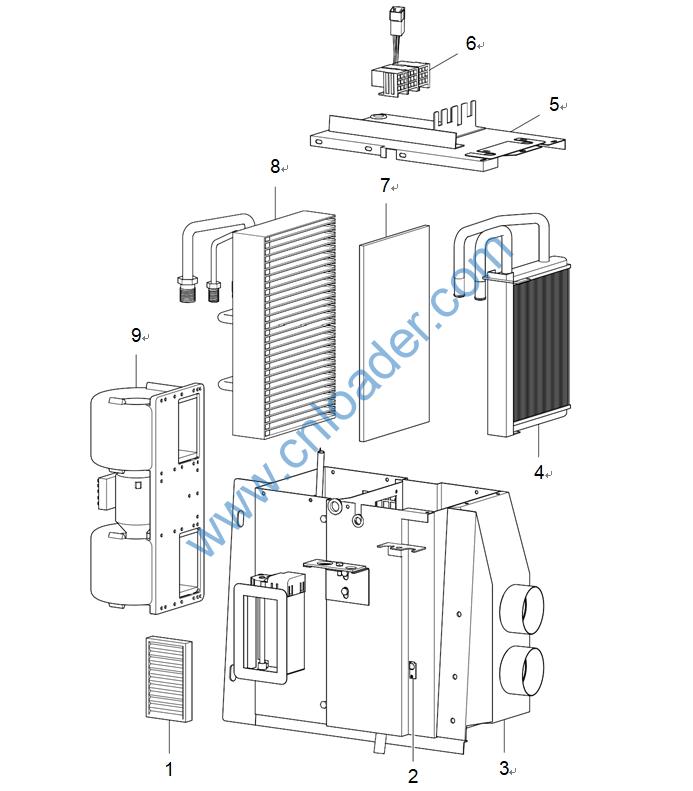

60100002617 棉纸滤网 FILTER SCREEN 021001007
60900003025 温控探头 TEMPERATURE CONTROLLER
PROBE 无
60100002677 蒸发箱体 EVAPORATOR BOX 40709002
60100002623 暖风水箱 RADIATOR, HEATER 80401700-0
60100002672 盖板 COVER PLATE 041009002
60900003013 继电器总成 RELAY ASSEMBLY WI-XS-10-09
60900003021 滤水网 WATER FILTER SCREEN 316*200
60100002605 蒸发器芯体 EVAPORATOR CORE 80200500-0
60100002612 鼓风机 BLOWER 011900016

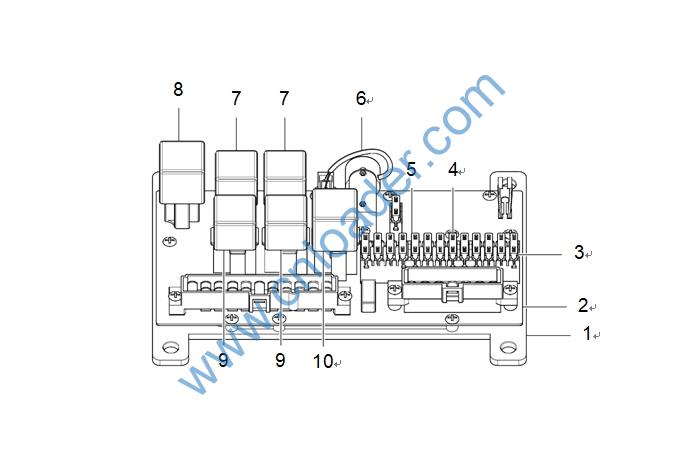

60400001279 支架 BRACKET LG855DS.15.37.02
60400001278 线路板 BREADBOARD LG855DS.15.37.01
60900002953 保险丝 FUSE 10A
60400001280 保险丝 FUSE 15A
60900002954 保险丝 FUSE 20A
60402020193 低压报警蜂鸣器 LOW PRESSURE BUZZER LG853B.15.31
60405030036 继电器HD4195B/024-1H9M1/F RELAY HD4195B/024-1H9M1/F LG853B.15.17
60401800001 电子闪光器SGD258-24V FLASHER SGD258-24V LG853.15.33
60400008038 继电器
HD4195K/024-1H/9M1LC-F RELAY HD4195K/024-1H/9M1LC-F CDM855NⅡ.15.25
60405030122 继电器HD4195C/024-1H/9M1/F RELAY HD4195C/024-1H/9M1/F LG855BⅡ.15Ⅰ.25

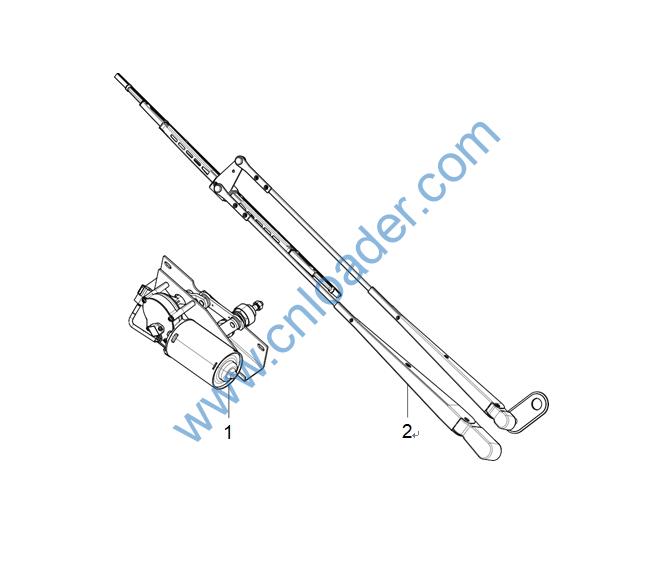

60400000573 刮水电机总成 WIPER MOTOR ASSEMBLY LG855DS.15.34.02
60400000659 雨刮片 WIPER BLADE LG855DS.15.34.01

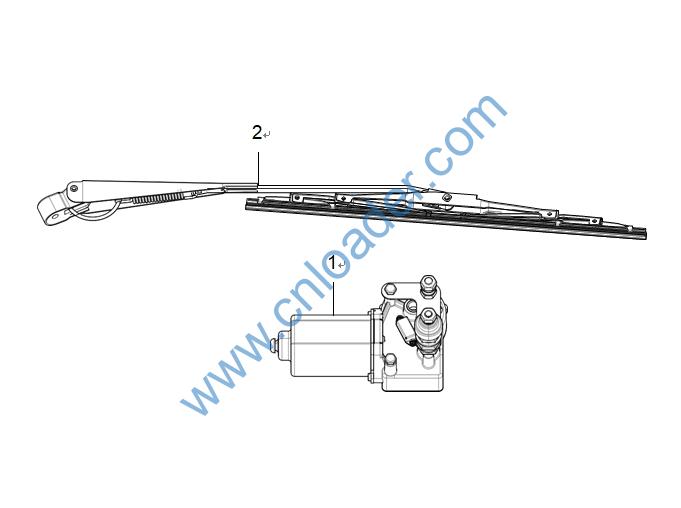

60400000570 刮水电机总成 WIPER MOTOR ASSEMBLY LG855DS.15.32.02
60400000658 雨刮片 WIPER BLADE LG855DS.15.32.01

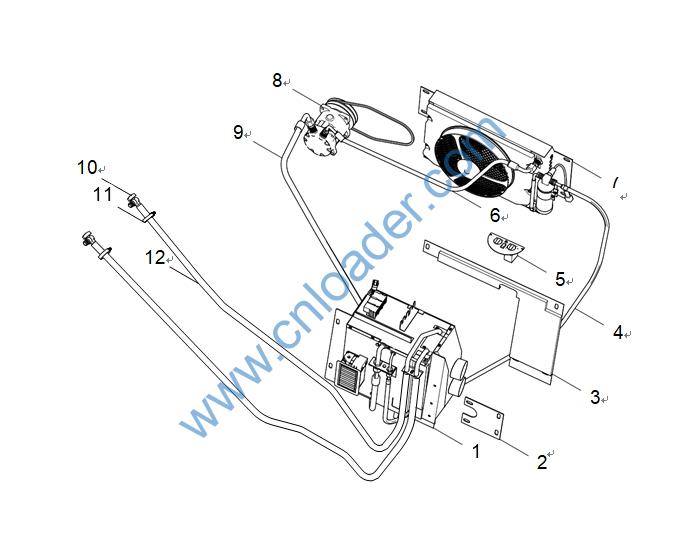

60900003002 蒸发器总成(右侧置式) EVAPORATOR ASSEMBLY (RIGHT
SIDE TYPE) 050109002
60100002686 蒸发器固定板 FIXING PLATE, EVAPORATOR 41509003
60100002687 密封板 SEAL PLATE 041009003
60100002653 FE管 TUBE FE 50609009
60100002618 控制面板 CONTROL PANEL 12400017
60100002638 KC管 TUBE, KC 50609011
60100002345 冷凝器总成 CONDENSER ASSEMBLY LG855DS.15.19.02
60100002594 压缩机 COMPRESSOR 01010001
60100002661 EK管 TUBE EK 50609013
60100002632 水阀 WATER VALVE 010803005
60100002629 管扣 PIPE CLIP 020600033
60100002665 暖风水管 TUBE, HEATER 020502002

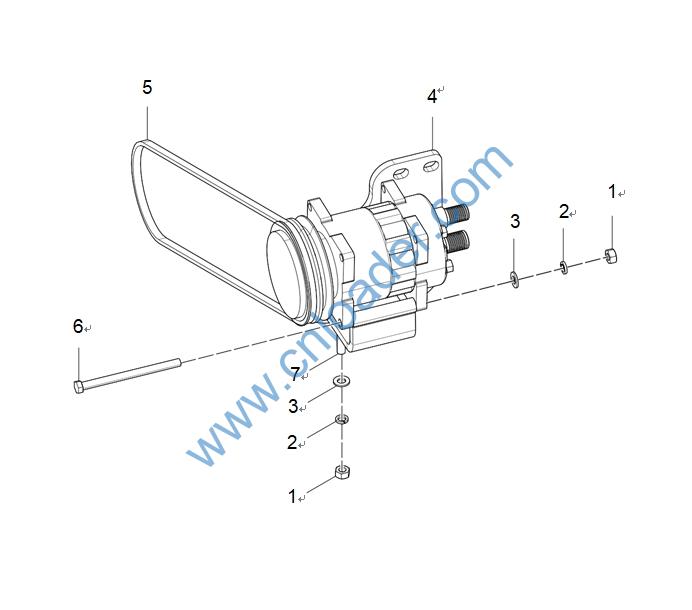

51307001019 螺母M10 NUT M10 GB/T6170
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1
30815000293 空调压缩机支架焊合 BRACKET, A.C. COMPRESSOR LG855NⅠ.15.46.01
60200000414 普通V带(A-1219) V-BELT (A-1219) GB/T11544
51203102914 螺栓M10×130 BOLT M10×130 GB/T5782
30815000106 张紧装置焊合 TENSION DEVICE LG855BⅡ.15Ⅰ.46.02
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1

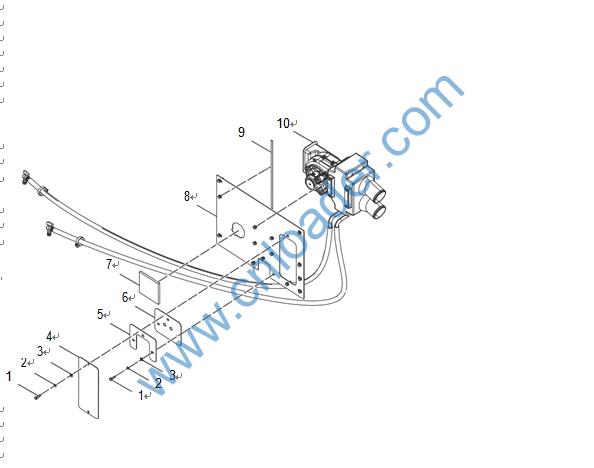

30815113079 封板 SEAL PLATE LG855NⅠ.15.15.11-001
30815100372 密封板压板 PRESS PLATE, SEAL PLATE LG855BⅣ.15.55-003
30815100371 暖风机密封板 SEAL PLATE, HEATER LG855BⅣ.15.55-002
60400008424 暖风机安装板吸音海绵 SOUND-ABSORBING SPONGE,
HEATER FIXING PLATE LG855NⅠ.15.15.12
30815013077 暖风机安装封板 FIXING SEAL PLATE, HEATER LG855NⅠ.15.15.10
60919010045 海绵胶条 SPONGE RUBBER LG856.13Ⅰ.06.01-017
60400002781 暖风机总成 HEATER ASSEMBLY LG855NⅠ.15.15
