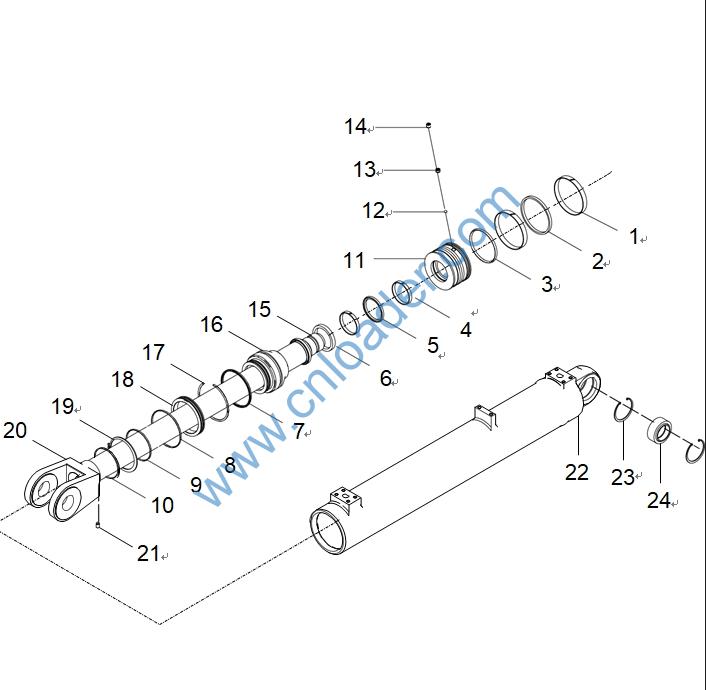

36608990090 密封包 SEAL KIT ZL30-720000E
56199000801 支承环120×125×15 SUPPORT RING 120×125×15 支承环
56189000601 活塞密封圈125×104×8 PISTON SEAL RING 125×104×8 格莱圈型
56900004103 O形圈69.52×2.62 O-RING 69.52×2.62 AS568
56199002601 支承环70×75×9.7 SUPPORT RING 70×75×9.7 支承环
56188003702 缓冲圈70×85.5×6.3 BUFFER RING 70×85.5×6.3 缓冲圈
56187001901 轴用密封圈70×85×12.5 SEAL RING, SHAFT, 70×85×12.5 轴用密封圈
56185000701 防尘圈70×80×7 DUST RING 0×80×7 防尘圈
56900000903 O形圈98.02×3.53 O-RING 98.02×3.53 AS568
56900005203 O形圈117.07×3.53 O-RING 117.07×3.53 AS568
56900005703 O形圈113.67×5.33 O-RING 113.67×5.33 AS568
36608020022 活塞 ZL30-720004D
52900000402 钢球8 STEEL BALL φ8 GB/T308
51106231607 螺钉M12×10 SCREW M12×10 GB/T77
51106231907 螺钉M12×16 SCREW M12×16 GB/T77
36608880056 活塞杆 ZL30-720002C
36608035350 导向套 ZL30-720003C
36608110050 弹簧挡圈 CIRCLIP ZL30-720006
36608080030 环 RING ZL30-720005B
51453640107 挡圈105 CIRCLIP 105 GB/T894.1
36608245200 拉杆头组件 PULL ROD HEAD ZL30-720001C-ZA
51107211207 螺钉M8×12 SCREW M8×12 GB/T78
36608460044 缸体 ZL30-721000CB
51451520107 挡圈75 CIRCLIP 75 GB/T893.1
52555000201 关节轴承GE50ES-C3 JOINT BEARING GE50ES-C3 JB/T8879

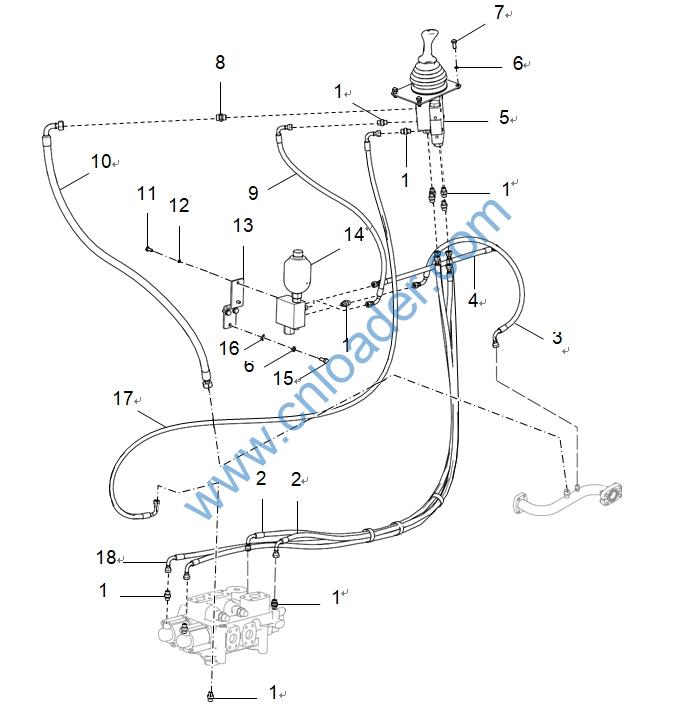

17601001250 过渡接头 TRANTITION CONNECTOR L1DH-16-14
17272007979 胶管总成 HOSE ASSEMBLY 20511-16T/20591-16T*1W05
*2050+RC
17272008013 胶管总成 HOSE ASSEMBLY 20591-16T1W05850/270°+ RC
17272009390 胶管总成 HOSE ASSEMBLY 20511-16T2W05500
60304000194 单手柄先导操纵阀 PILOT VALVE, SINGLE HANDLE DXS-00
51401100107 垫圈10 WASHER 10 GB/T93
51139220405 螺钉M10×30 SCREW M10×30 GB/T70.1
17601001230 过渡接头 TRANTITION CONNECTOR L1CH-20-18GB
17272008261 胶管总成 HOSE ASSEMBLY 20591-16T1W05900/270°
17272008248 胶管总成 HOSE ASSEMBLY 20411-20GB/20491-20GB1W 081500
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
30807100624 供油阀安装支架 FIXING BRACKET, OIL SUPPLY
VALVE CDM835EⅠ.07.11-003
60304000100 减压式比例先导阀总成(二联) PILOT VALVE, 2-WAY LG50EX.07.06.02
60304000042 供油阀WYF65 OIL SUPPLY VALVE LG50EX.07.11.04
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
51421100115 垫圈10 WASHER 10 GB/T97.1
17272008894 胶管总成 HOSE ASSEMBLY 20591-16T1W052800/90°+ RC
17272007980 胶管总成 HOSE ASSEMBLY 20511-16T/20591-16T*1W05
*2550+RC

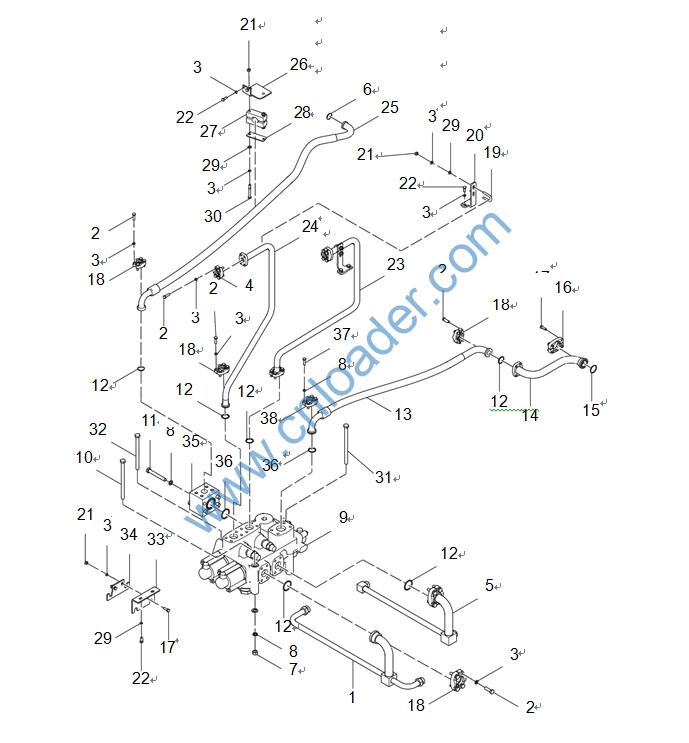

30893900119 钢管焊合 PIPE FABRICATE CDM835.07.07
51204101314 螺栓M10×35 BOLT M10×35 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
60911011234 法兰夹 FLANGE CLAMP FL-16
30893900120 钢管焊合 PIPE FABRICATE CDM835.07.08
56900000401 O形圈32.92×3.53 O-RING, 32.92×3.53 AS568
51307001119 螺母M12 NUT M12 GB/T6170
51401110107 垫圈12 WASHER 12 GB/T93
60304000041 液控多路阀D32 DISTRIBUTION VALVE D32 LG50EX.07.04
51203113214 螺栓M12×160 BOLT M12×160 GB/T5782
51203112414 螺栓M12×90 BOLT M12×90 GB/T5782
56900001001 O形圈37.69×3.53 O-RING, 37.69×3.53 AS568
17272012599 胶管总成 HOSE ASSEMBLY 87301-24a115°/87391-202 W201150/90°
30893013073 钢管焊合 PIPE FABRICATE LG833NⅩⅩ.07.01.02
56145011201 O形圈42.5×3.55 O-RING 42.5×3.55 GB/T3452.1
60300000686 压板 PLATE LG30F.07Ⅰ-004
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
30807100343 压板 PLATE LG853.07-007
51256002604 U型螺栓33-Zn U-BOLT, 33-ZINE JB/ZQ4321
30807100926 固定板 FIXING PLATE CDM856DⅡ.07Ⅱ-001
51307001019 螺母M10 NUT M10 GB/T6170
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
30893900162 钢管焊合 PIPE FABRICATE LG833BGⅦ.07.01.02
30893900161 钢管焊合 PIPE FABRICATE LG833BGⅦ.07.01.01
17272014827 胶管总成 HOSE ASSEMBLY 87301-16a115°/87391-20R 17161750/270°
30807100424 固定板 FIXING PLATE LG833B.07Ⅵ.01-005
30807100259 橡胶管夹 RUBBER CLAMP LG833B.07Ⅵ.01-001
30807100260 管夹压板 PLATE OF CLAMP LG833B.07Ⅵ.01-002
51421100115 垫圈10 WASHER 10 GB/T97.1
51203102714 螺栓M10×85 BOLT M10×85 GB/T5782
51203113014 螺栓M12×140 BOLT M12×140 GB/T5782
51203113114 螺栓M12×180 BOLT M12×180 GB/T5782
30807101264 角铁 ANGLE IRON CDM835.07-001
30807101265 锁板 LOCK PLATE CDM835.07-002
30807100729 法兰块 FLANGE BLOCK CDM856DⅠ.07Ⅰ-001
56900001101 O形圈47.22×3.53 O-RING, 47.22×3.53 AS568
51204111314 螺栓M12×35 BOLT M12×35 GB/T5783
17601001460 法兰夹 CLAMP, FLANGE FL-24

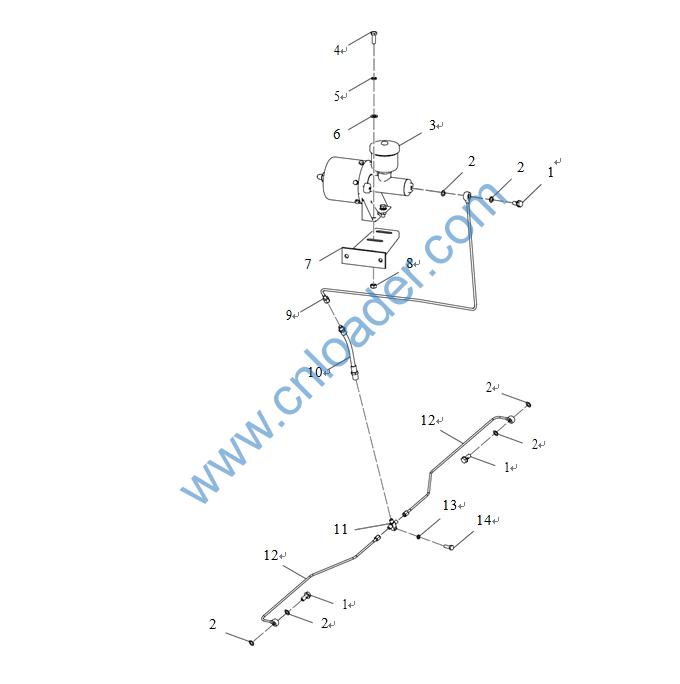

30893900021 钢管总成 PIPE ASSEMLY LG853.08.03
30808100054 垫圈 WASHER LG853.08-005
30808101089 联接螺栓 CONNECTING BOLT LG853.08-004
30808100014 三通接头 T-CONNECTOR LG853.08-012
51401090107 垫圈8 WASHER 8 GB/T93
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
30893900024 钢管总成 PIPE ASSEMLY LG853.08.13
51307001019 螺母M10 NUT M10 GB/T6170
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1
30808000049 前加力泵安装支座 FIXING BRACKET, FRONT AIR
BOOST ER PUMP CDM835EH.08Ⅰ.01
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
60300002949 加力泵总成 AIR BOOSTER PUMP ASSEMBLY LG833NTⅥ.08.01.01

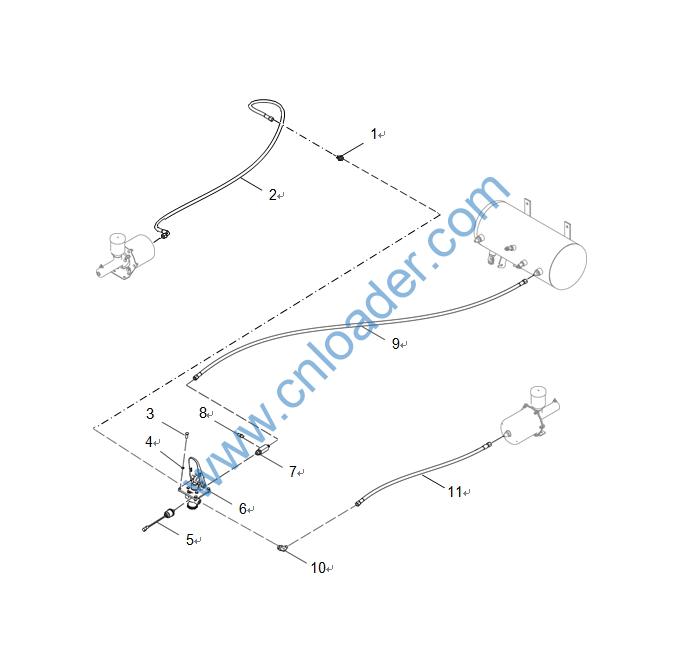

17601000531 过渡接头 TRANTITION CONNECTOR L1QH-16-22
17272000171 胶管总成 HOSE ASSEMBLY 20711-16T/20791-16T*1W05
*2300
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
60900005964 制动灯开关总成 BRAKE LAMP SWITCH ASSEMBLY LG50CⅤ.08.06.01.02
60300000546 制动阀总成 BRAKE VALVE ASSEMBLY LG50CⅤ.08.06.01
30808000250 过渡接头 TRANTITION CONNECTOR LG855BⅣ.08.03
30801100970 测压接头 CONNECTOR, MANOMETRY LG853.01-002
17272000166 胶管总成 HOSE ASSEMBLY 20711-16T1W053200
17601001343 过渡接头 TRANTITION CONNECTOR L1QH9-16-22OG
17272002585 脚制动软管总成 BRAKE HOSE ASSEMBLY 20711-16T1W052300

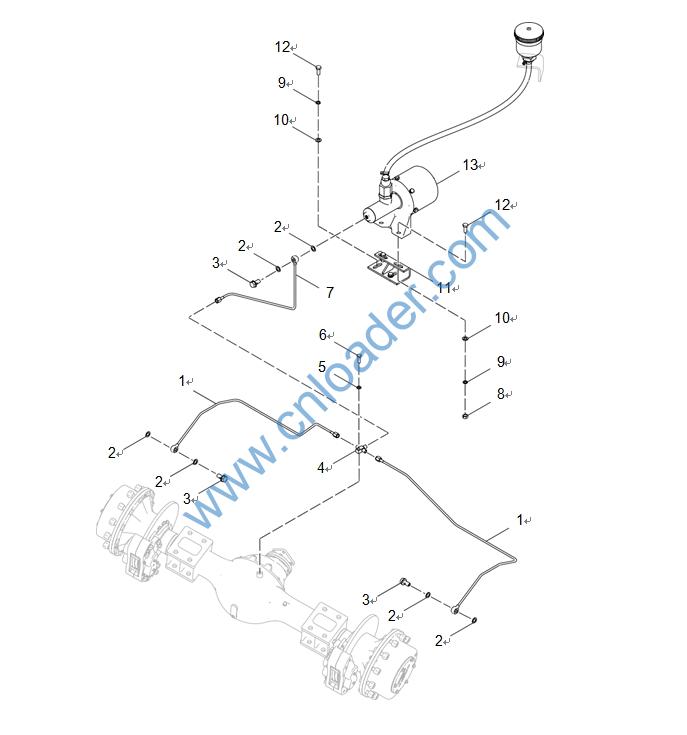

30808101089 联接螺栓 CONNECTING BOLT LG853.08-004
30808100054 垫圈 WASHER LG853.08-005
60301000040 加力泵总成 AIR BOOSTER PUMP ASSEMBLY LG30F.08.10
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1
30808000259 加力泵固定支架 FIXING BRACKET, AIR BOOSTER
PUMP LG833BG.08Ⅸ.02.01
51307001019 螺母M10 NUT M10 GB/T6170
30893900021 钢管总成 PIPE ASSEMLY LG853.08.03
60911010174 制动软管总成 HOSE ASSEMBLY, SERVICE BRAKE LG853.08.11
30808100016 三通接头 T-CONNECTOR LG853.08-014
30893900024 钢管总成 PIPE ASSEMLY LG853.08.13

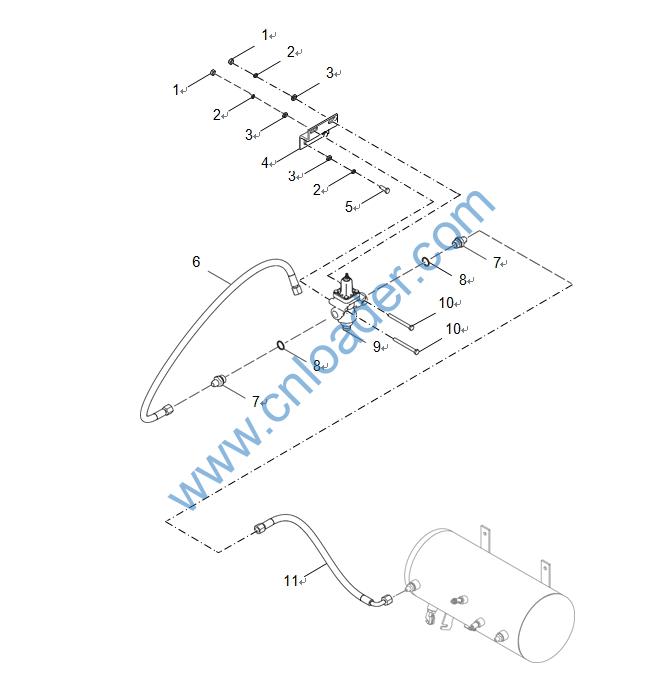

51401090107 垫圈8 WASHER 8 GB/T93
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51307000919 螺母M8 NUT M8 GB/T6170
51401090107 垫圈8 WASHER 8 GB/T93
51421090115 垫圈8 WASHER 8 GB/T97.1
30808100057 卸荷阀支架 BRACKET, RELIEF VALVE LG855.08-001
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
17272000177 胶管总成 HOSE ASSEMBLY 20711-18TJS051400
17601000543 过渡接头 TRANTITION CONNECTOR L1QL-18-22
56901000401 垫圈22 WASHER 22 JB/T966
60304000049 卸荷阀总成EQ135 RELIEF VALVE ASSEMBLY EQ135 LG853.08.08
51204091914 螺栓M8×85 BOLT M8×85 GB/T5783
17272000179 胶管总成 HOSE ASSEMBLY 20711-18T/20791-18T*JS05
*550

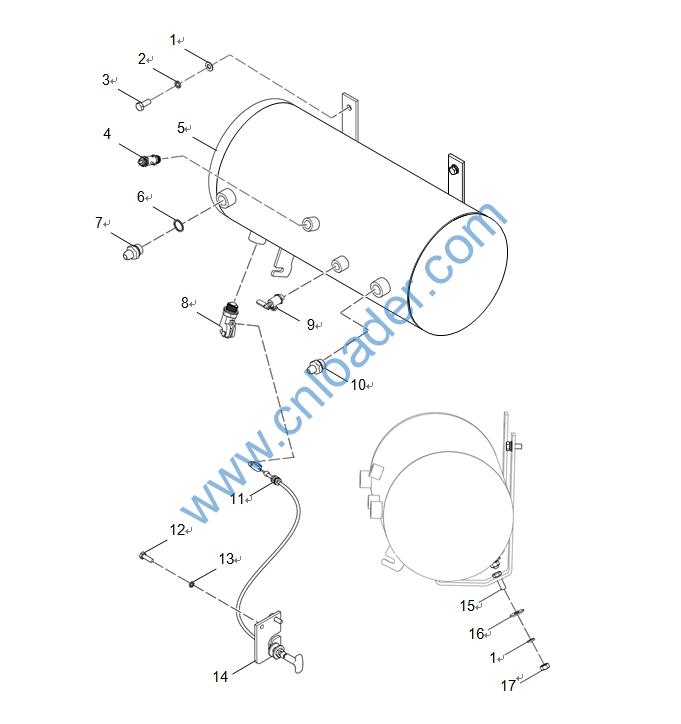

51421100115 垫圈10 WASHER 10 GB/T97.1
51401100107 垫圈10 WASHER 10 GB/T93
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
60304000048 安全阀 SAFETY VALVE LG853.08.01.04
30808000003 储气筒焊合 AIR TANK FABRICATE LG833B.08.01.01
56901000401 垫圈22 WASHER 22 JB/T966
17601000543 过渡接头 TRANTITION CONNECTOR L1QL-18-22
60304000431 放水阀LYG-1305002 WATER DRAIN VALVE LYG-1305002 LG833B.08Ⅵ.03
60304000046 充气阀(1/4) AIR CHARGING VALVE(1/4) LG853.08.01.02
17601000531 过渡接头 TRANTITION CONNECTOR L1QH-16-22
60207020268 放水阀拉线 CABLE, WATER DRAIN VALVE LG833B.08Ⅵ.01
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
30808100177 固定板 FIXING PLATE LG833B.08Ⅵ-001

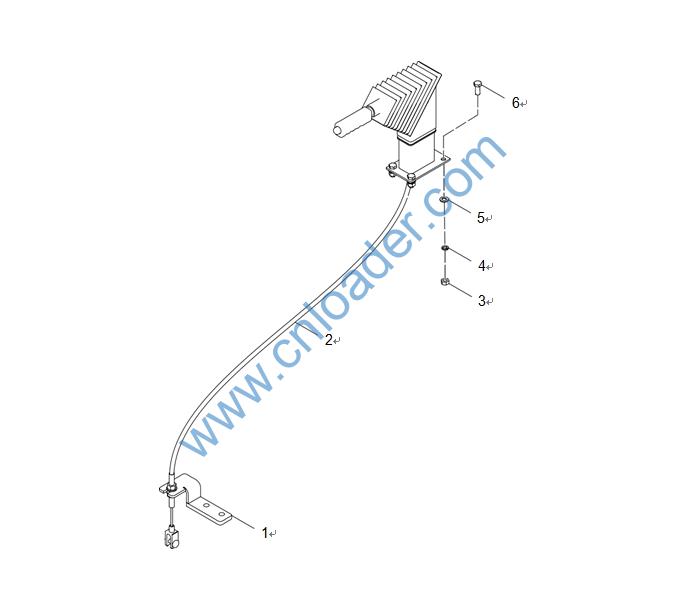

51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
51420100121 垫圈10 WASHER 10 GB/T96.1
51307001019 螺母M10 NUT M10 GB/T6170
30809000028 软轴固定座焊合 FIXING SEAT, CONTROL CABLE LG833B.09Ⅵ.02
60200000217 手刹总成 PARKING BRAKE ASSEMBLY LG833BG.09Ⅸ.01
51307001019 螺母M10 NUT M10 GB/T6170
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
