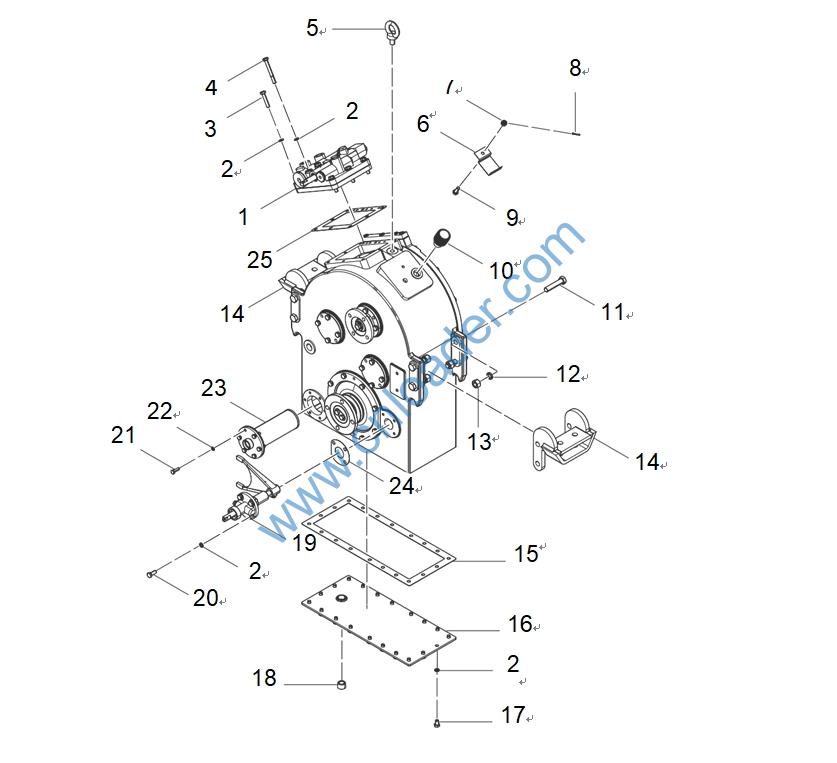

60304000608 操纵阀总成(带缓冲) SPEED CONTROL VALVE
ASSEMBLY(WI TH BUFFER VALVE) ZL30.03.04Ⅱ
51401100107 垫圈10 WASHER 10 GB/T93
51203101614 螺栓M10×50 BOLT M10×50 GB/T5782
51203102714 螺栓M10×85 BOLT M10×85 GB/T5782
51143240103 螺钉M16-B SCREW M16-B GB/T825
36200100245 挡板 BAFFLE PLATE LGX833VA.03-013
51330000419 螺母M10 NUT M10 GB/T6181
51512071001 销2.5×20 PIN 2.5×20 GB/T91
51231101114 螺栓M10×25 BOLT M10×25 GB/T31.1
36224000001 透气管总成 VENT PIPE LG853.03.01.12
51204134514 螺栓M16×75 BOLT M16×75 GB/T5783
51401130123 垫圈16 WASHER 16 GB/T93
51307001319 螺母M16 NUT M16 GB/T6170
36280000005 支架 BRACKET ZL30.03.01B
36200100224 油底板纸垫 GASEKT, OIL PAN LGX833VA.03-003
36201100055 油底板总成 OIL BASEBOARD ASSEMBLY LGX833VA.03.02
51204101014 螺栓M10×20 BOLT M10×20 GB/T5783
36480000008 螺塞 PLUG LG853.04.01.05
36225000001 高低档换档拨叉机构 HIGH-LOW GEAR SHIFT CONTROL
ASS EMBLY ZL30.03.11
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
36218000300 滤清器总成 FILTER ASSEMBLY LGX833VA.03.08
36200100038 密封垫 SEAL GASKET ZL30.03-039
36200100036 纸垫 GASKET ZL30.03-036

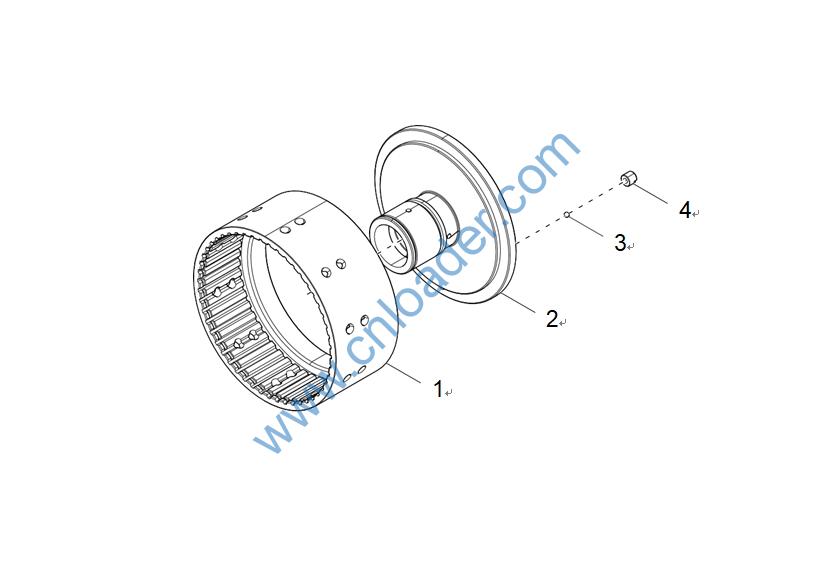

36207100002 离合器齿圈 GEAR RING, CLUTCH ZL30.03.10.01-001
36207100004 离合器壳体 HOUSING, CLUTCH ZL30.03.10.01-003
52900000102 钢球5 STEEL BALL φ5 GB/T308
36207100003 阀座 VALVE SEAT ZL30.03.10.01-002

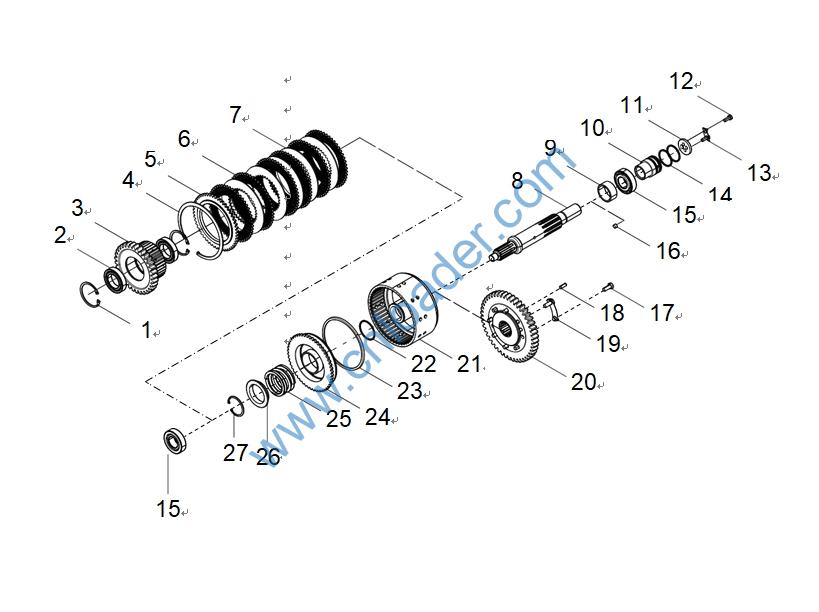

51451520107 挡圈75 CIRCLIP 75 GB/T893.1
52198015501 轴承6009 BEARING 6009 GB/T276
36207100000 输入轴Ⅰ、Ⅲ档齿轮 GEAR, INPUT SHAFT, GEAR 1# 3 LGX833VA.03.03-001
51451800107 挡圈175 CIRCLIP 175 GB/T893.1
36207100007 挡板 BAFFLE PLATE ZL30.03.10-003
36207000005 外摩擦片 FRICTION PLATE, OUTER ZL30.03.10-005
36207100008 内摩擦片 FRICTION PLATE, INNER ZL30.03.10-004
36207100005 输入轴 INPUT SHAFT ZL30.03.10-001
36207100013 轴套 SLEEVE ZL30.03.10-007
36207100014 内封油套 OIL SEAL, INNER ZL30.03.10-008
36207100015 轴端挡板 BUFFLER, SHAFT END ZL30.03.10-009
51204091015 螺栓M8×20 BOLT M8×20 GB/T5783
36207100016 止动垫 THRUST SHIM ZL30.03.10-011
60980000009 活塞环Φ52 PISTON RING Φ52 CA10-350914-A
52324000501 轴承32207 BEARING 32207 GB/T297
60201100330 丝堵(1/8) PIPE PLUG ZL30E.5.1-9
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
51513121302 销8×22 PIN 8×22 GB/T119.1
36207100017 止动片 THRUST PLATE ZL30.03.10-012
36207100026 输入轴Ⅱ、Ⅳ档齿轮 INPUT GEAR, SHAFT 2# 4 LGX833VA.03.03-002
36207000004 离合器壳体总成 HOUSING, CLUTCH ZL30.03.10.01
56146015701 O形圈60×3.1 O-RING 60×3.1 GB/T1235
36207100018 封油圈 OIL SEAL RING ZL30.03.10-013
36207100019 活塞 PISTON ZL30.03.10-014
36207100020 弹簧 SPRING ZL30.03.10-015
36206100003 弹簧座 SPRING SEAT ZL30.03.10-016
51453450107 挡圈60 CIRCLIP 60 GB/T894.1

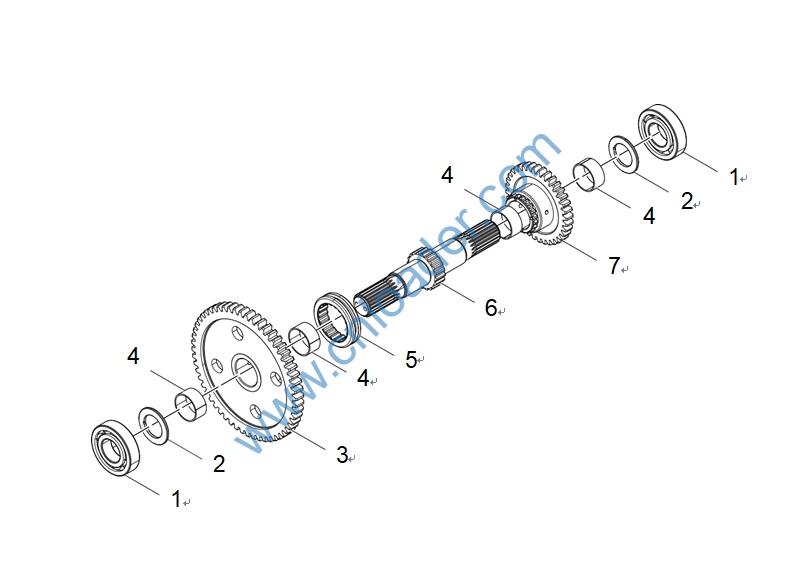

52198025401 轴承6310 BEARING 6310 GB/T276
36208100002 止推环 THRUST RING ZL30.03.12-002
36208100037 输出轴低档齿轮 GEAR, OUTPUT SHAFT, LOWER
GEAR SHIFT LGX833VA.03.04-002
60980000030 滑动轴承 SLIDE BEARING SF-15530
36208100004 高低挡滑动齿套 SLIDE SLEEVE, HI-LOW GEAR
SHIFT ZL30.03.12-004
36208100001 输出轴 OUTPUT SHAFT ZL30.03.12-001
36208100036 输出轴高档齿轮 GEAR, OUTPUT SHAFT, HI-LOW
GEAR SHIFT LGX833VA.03.04-001

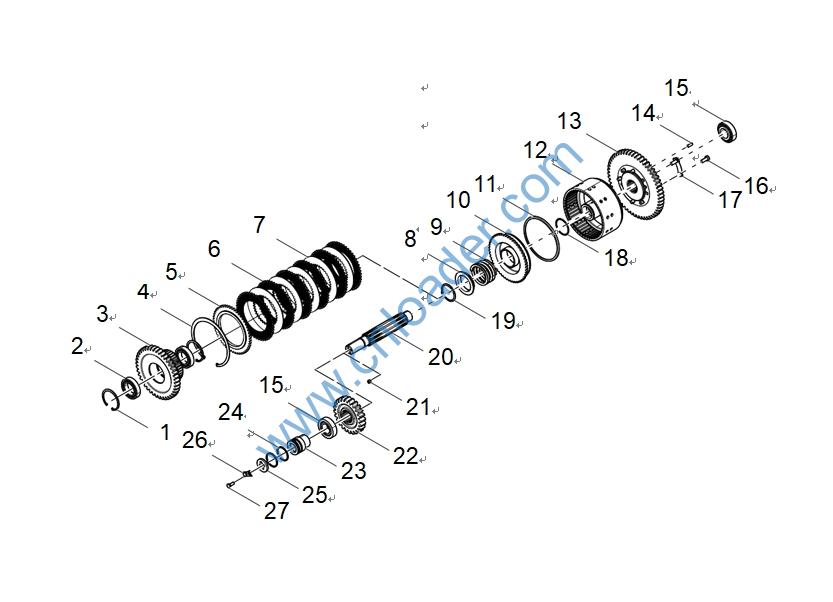

51451520107 挡圈75 CIRCLIP 75 GB/T893.1
52198015501 轴承6009 BEARING 6009 GB/T276
36209100005 中间轴Ⅱ、Ⅳ档齿轮 GEAR, MIDDLE SHAFT, GEAR 2, 4 LGX833VA.03.05-002
51451800107 挡圈175 CIRCLIP 175 GB/T893.1
36207100007 挡板 BAFFLE PLATE ZL30.03.10-003
36207000005 外摩擦片 FRICTION PLATE, OUTER ZL30.03.10-005
36207100008 内摩擦片 FRICTION PLATE, INNER ZL30.03.10-004
36206100003 弹簧座 SPRING SEAT ZL30.03.10-016
36207100020 弹簧 SPRING ZL30.03.10-015
36207100019 活塞 PISTON ZL30.03.10-014
36207100018 封油圈 OIL SEAL RING ZL30.03.10-013
36207000004 离合器壳体总成 HOUSING, CLUTCH ZL30.03.10.01
36209100000 中间轴Ⅰ、Ⅲ档齿轮 GEAR, MIDDLE SHAFT, GEAR 1# 3 LGX833VA.03.05-001
51513121302 销8×22 PIN 8×22 GB/T119.1
52324000501 轴承32207 BEARING 32207 GB/T297
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
36207100017 止动片 THRUST PLATE ZL30.03.10-012
56146015701 O形圈60×3.1 O-RING 60×3.1 GB/T1235
51453450107 挡圈60 CIRCLIP 60 GB/T894.1
36209100001 中间轴 SHAFT, INTERMEDIATE ZL30.03.13-001
60201100330 丝堵(1/8) PIPE PLUG ZL30E.5.1-9
36209100006 中间轴低档齿轮 GEAR, MIDDLE SHAFT, LOWER
GEAR 中间轴低档齿轮
36207100014 内封油套 OIL SEAL, INNER ZL30.03.10-008
60980000009 活塞环Φ52 PISTON RING Φ52 CA10-350914-A
36207100015 轴端挡板 BUFFLER, SHAFT END ZL30.03.10-009
36207100016 止动垫 THRUST SHIM ZL30.03.10-011
51204091015 螺栓M8×20 BOLT M8×20 GB/T5783

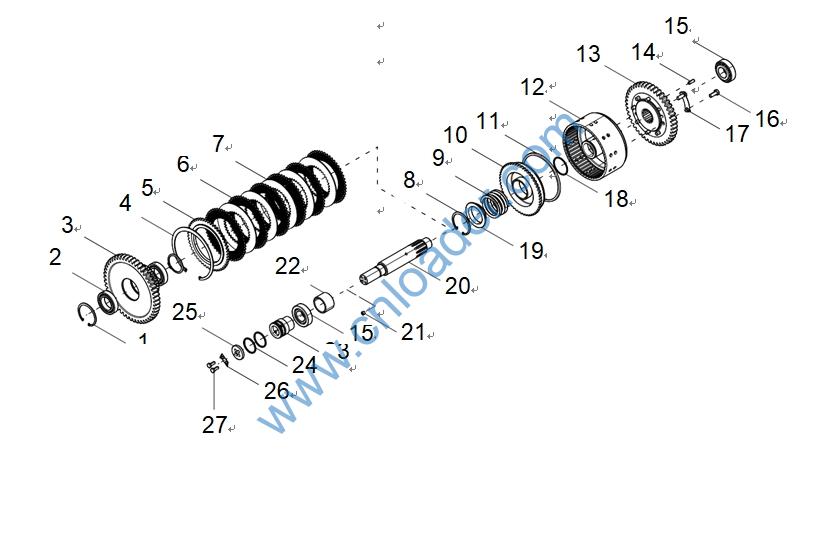

51451520107 挡圈75 CIRCLIP 75 GB/T893.1
52198015501 轴承6009 BEARING 6009 GB/T276
36210100007 倒档轴大齿轮 BIG GEAR, REVERSE GEAR SHAFT LGX833VA.03.06-002
51451800107 挡圈175 CIRCLIP 175 GB/T893.1
36207100007 挡板 BAFFLE PLATE ZL30.03.10-003
36207000005 外摩擦片 FRICTION PLATE, OUTER ZL30.03.10-005
36207100008 内摩擦片 FRICTION PLATE, INNER ZL30.03.10-004
51453450107 挡圈60 CIRCLIP 60 GB/T894.1
36207100020 弹簧 SPRING ZL30.03.10-015
36207100019 活塞 PISTON ZL30.03.10-014
36207100018 封油圈 OIL SEAL RING ZL30.03.10-013
36207000004 离合器壳体总成 HOUSING, CLUTCH ZL30.03.10.01
36210100006 倒档轴小齿轮 SMALL GEAR, REVERSE GEAR LGX833VA.03.06-001
51513121302 销8×22 PIN 8×22 GB/T119.1
52324000501 轴承32207 BEARING 32207 GB/T297
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
36207100017 止动片 THRUST PLATE ZL30.03.10-012
56146015701 O形圈60×3.1 O-RING 60×3.1 GB/T1235
36206100003 弹簧座 SPRING SEAT ZL30.03.10-016
36210100002 倒档轴 REVERSE GEAR SHAFT ZL30.03.14-001
60201100330 丝堵(1/8) PIPE PLUG ZL30E.5.1-9
36210100005 轴套 SLEEVE ZL30.03.14-004
36207100014 内封油套 OIL SEAL, INNER ZL30.03.10-008
60980000009 活塞环Φ52 PISTON RING Φ52 CA10-350914-A
36207100015 轴端挡板 BUFFLER, SHAFT END ZL30.03.10-009
36207100016 止动垫 THRUST SHIM ZL30.03.10-011
51204091015 螺栓M8×20 BOLT M8×20 GB/T5783

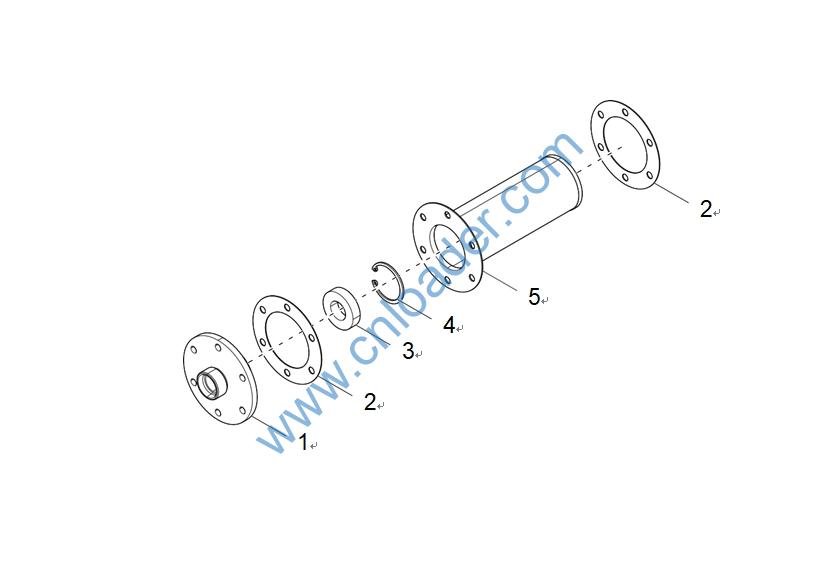

36200100222 法兰 FLANGE LGX833VA.03-001
36200100231 法兰纸垫 GASKET, FLANGE LGX833VA.03-010
36200100223 磁铁 MAGNET LGX833VA.03-002
51451400107 挡圈50 CIRCLIP 50 GB/T893.1
36201100054 滤芯总成 FILTER ELEMENT ASSEMBLY LGX833VA.03.01

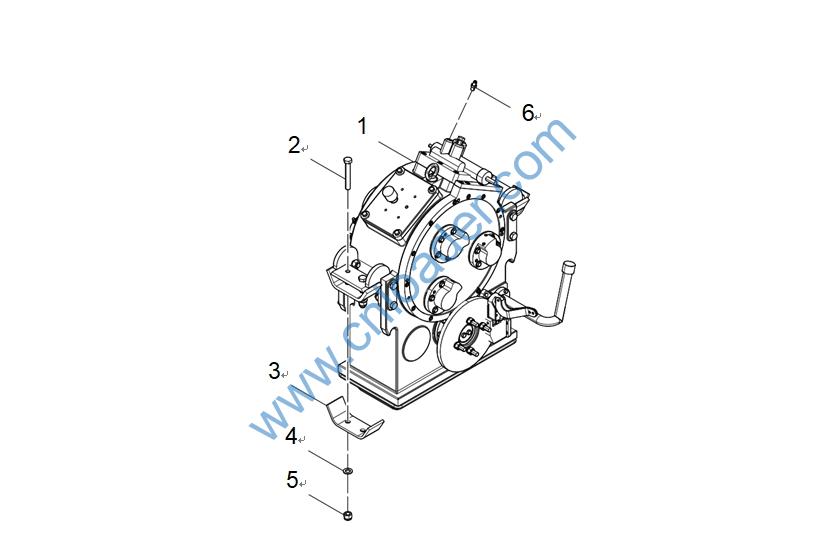

16280303020 变速箱总成 TRANSMISSION ASSEMBLY LGX833VA.03D
51203132714 螺栓M16×110 BOLT M16×110 GB/T5782
30803100058 橡胶垫 RUBBER SHIM LG30F.03Ⅲ-001
51421130115 垫圈16 WASHER 16 GB/T97.1
51341000919 螺母M16 NUT M16 GB/T889.1
30801100970 测压接头 CONNECTOR, MANOMETRY LG853.01-002

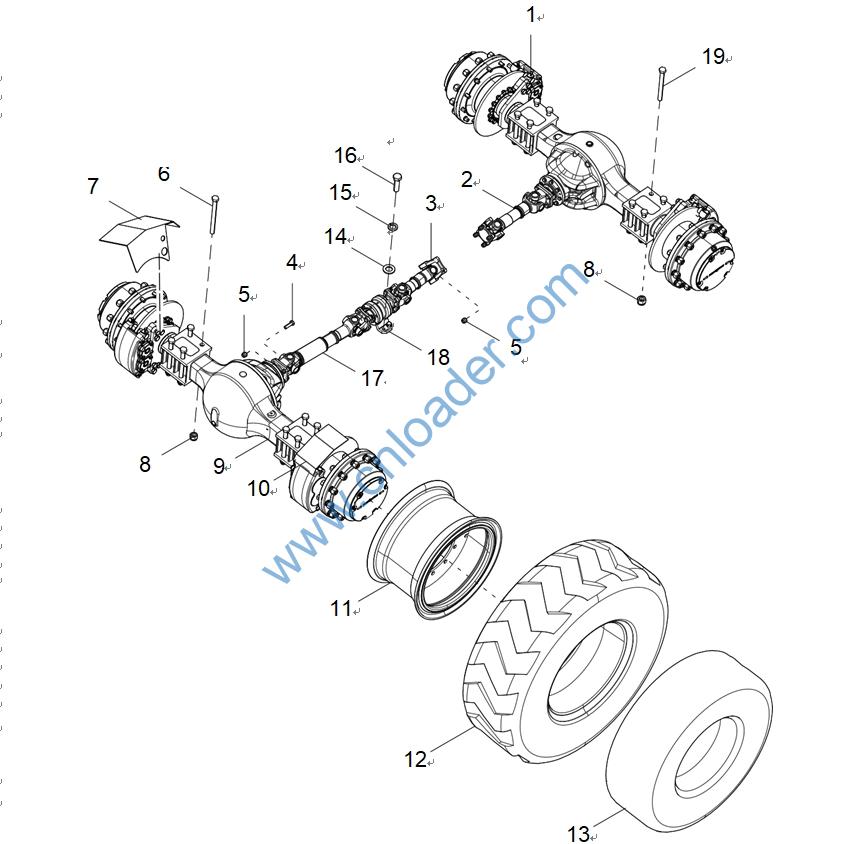

16480302570 后驱动桥总成(灰色) LGQ835NLH
17403000032 中传动轴总成 INTERMEDIATE DRIVE SHAFT
ASSEMB LY LG833NGⅨ.04.02
17409000004 中/后传动轴总成 DRIVE SHAFT ASSEMBLY,
INTERMEDI ATE/REAR LG30F.04Ⅰ.04
51207123118 螺栓M14×1.5×42 BOLT M14×1.5×42 GB/T5786
61100000195 尼龙螺母M14×1.5×13 NYLON NUT M14×1.5×13 LG30F.04Ⅰ-001
51202000012 螺栓M24×270 GB/T5782
30804000054 制动器左保护板焊合 LG833NTⅡ.04.02
51341001119 螺母M24 NUT M24 GB/T889.1
16480303170 前驱动桥总成(灰色) LGQ835ALH
30804000053 制动器右保护板焊合 LG833NTⅡ.04.01
60200010115 轮辋总成 LG30F.04Ⅱ.07(SHL)
60205000005 17.5-25轮胎E-3/L-3 TIRE 17.5-25 E-3/L-3 GB/T2980
60205000059 内胎 INNER TIRE ZL30F(17.5-25)
51421130115 垫圈16 WASHER 16 GB/T97.1
51401130107 垫圈16 WASHER 16 GB/T93
51204133714 螺栓M16×40 BOLT M16×40 GB/T5783
17401000020 前传动轴总成 DRIVE SHAFT ASSEMBLY, FRONT LG30F.04Ⅰ.02
17402000001 中间支承总成 INTERMEDIATE SUPPORT
ASSEMBLY CDM833.04.03
51209153014 螺栓M24×240 BOLT M24×240 GB/T5784
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1

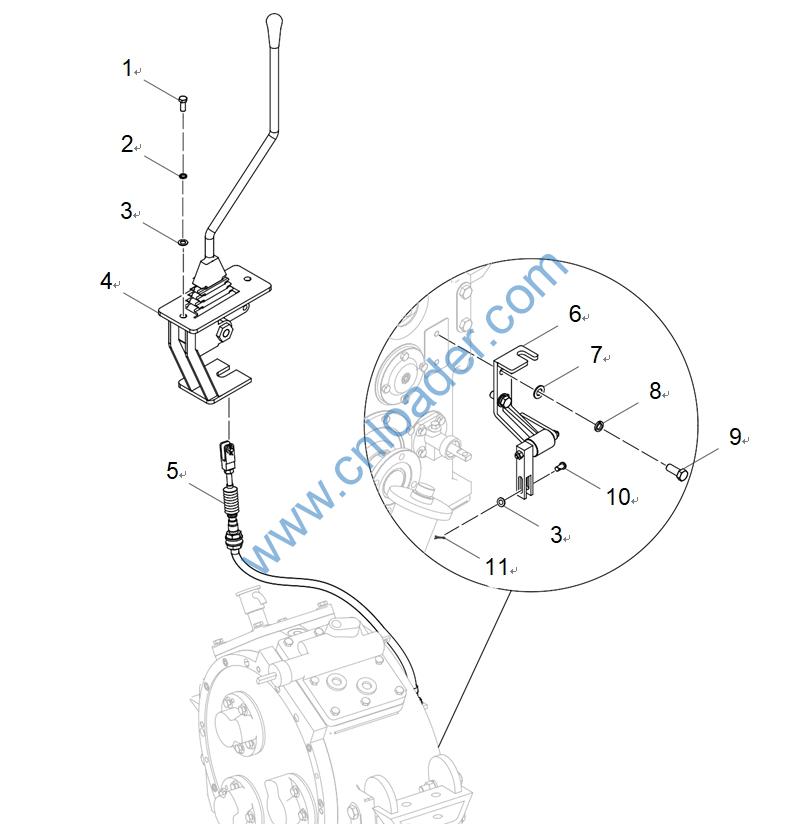

30805013082 操纵机构总成 CONTROL MECHANISM ASSEMBLY LG833NGⅩⅩⅥ.05.02.01
30805013083 操纵软轴总成 CONTROL CABLE ASSEMBLY LG833NGⅩⅩⅥ.05.02.02
30805000081 支架总成 BRACKET ASSEMBLY LG833B.05Ⅵ.02.04
51421110115 垫圈12 WASHER 12 GB/T97.1
51401110107 垫圈12 WASHER 12 GB/T93
51204111114 螺栓M12×25 BOLT M12×25 GB/T5783
51511061504 销B10×35 PIN B10×35 GB/T882
51512170101 销3×30 PIN 3×30 GB/T91
