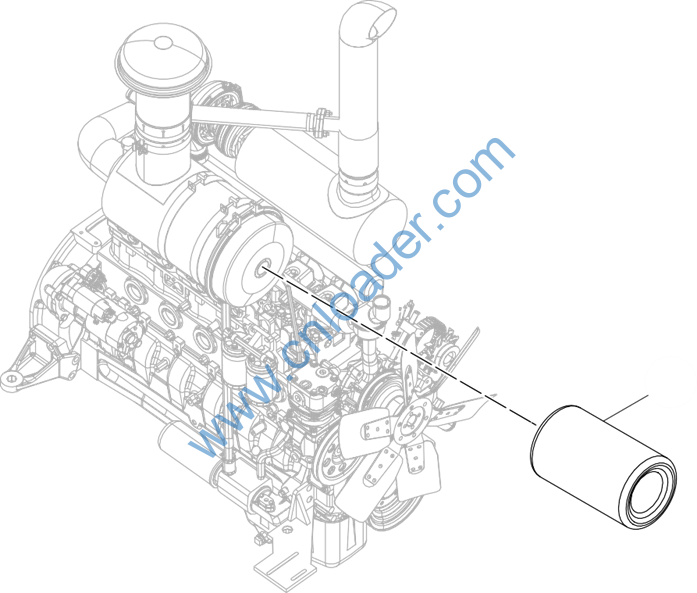

进气系统 (30801900161)
| 60101100202 | 空气滤芯(TD226B-6) | AIT FILTER ELEMENT(TD226B-6) |
51204161714 螺栓M22×55 BOLT M22×55 GB/T5783
51421160115 垫圈22 WASHER 22 GB/T97.1
51204121414 螺栓M14×40 BOLT M14×40 GB/T5783
51401120107 垫圈14 WASHER 14 GB/T93
51421120115 垫圈14 WASHER 14 GB/T97.1
60101100717 发动机前减震器(EA-220) SHOCK ABSORBER, ENGINE,
FRONT LG30F.01Ⅰ.08
30801100970 测压接头 CONNECTOR, MANOMETRY LG853.01-002
60100001544 柴油机总成 DIESEL ENGINE ASSEMBLY LG833B.01Ⅰ.03(S)
51307000819 螺母M6 NUT M6 GB/T6170
51401080107 垫圈6 WASHER 6 GB/T93
51421080115 垫圈6 WASHER 6 GB/T97.1
30801100145 油门软轴支架 BRACKET, THROTTLE CABLE LG30F.01Ⅰ.06-001
51204081014 螺栓M6×20 BOLT M6×20 GB/T5783
30801000006 油门踏板总成 THROTTLE PEDAL ASSEMBLY LG853.01.06.02
60101100716 发动机后减震器(EA-300) SHOCK ABSORBER, ENGINE,
REAR LG30F.01Ⅰ.07
51421170115 垫圈24 WASHER 24 GB/T97.1
51204171814 螺栓M24×60 BOLT M24×60 GB/T5783
17601001267 过渡接头 TRANTITION CONNECTOR LG30F.01Ⅰ-002

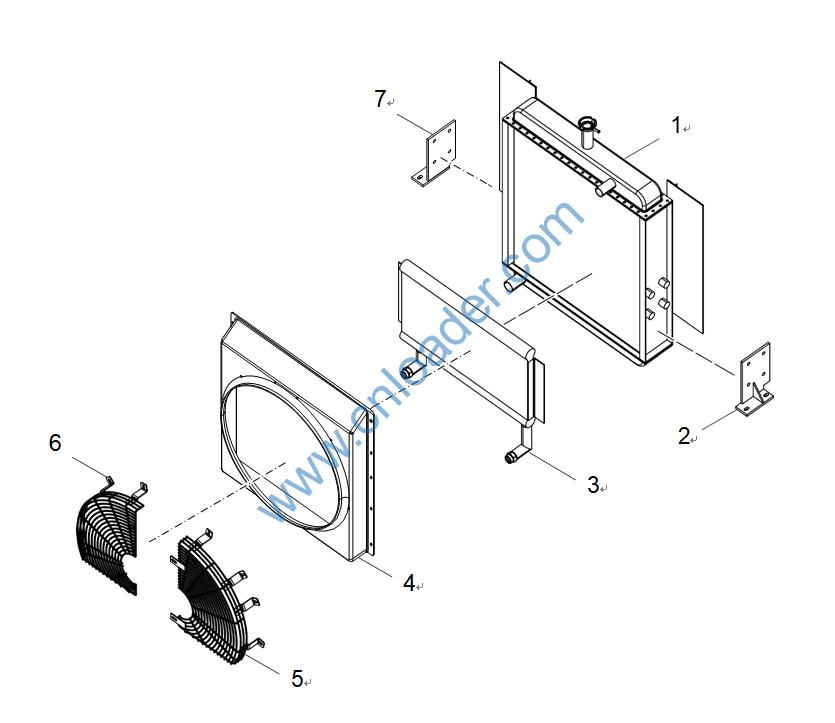

散热器总成 (17101000583) RADIATOR ASSEMBLY
37117000399 水散热器总成 WATER RADIATOR ASSEMBLY LG833B.01Ⅰ.04(A1).37T2
37105000075 右支架焊合 BRACKET, R.H. LG835BⅠ.01.04-00-002
37119000068 油散热器总成 OIL COOLER ASSEMBLY LG833BG.01Ⅸ.04.36L1
37108000093 导风罩 HOOD, WIND GUIDE LG833B.01Ⅰ.04-00-010(L) ( B)
37111000182 左防护网焊合 PROTECTION SCREEN, L.H. LG833B.01Ⅰ.04-00-020(L) ( B)
37111000181 右防护网焊合 PROTECTION SCREEN, R.H. LG833B.01Ⅰ.04-00-030(L) ( B)
37105000074 左支架焊合 BRACKET, L.H. LG835BⅠ.01.04-00-001

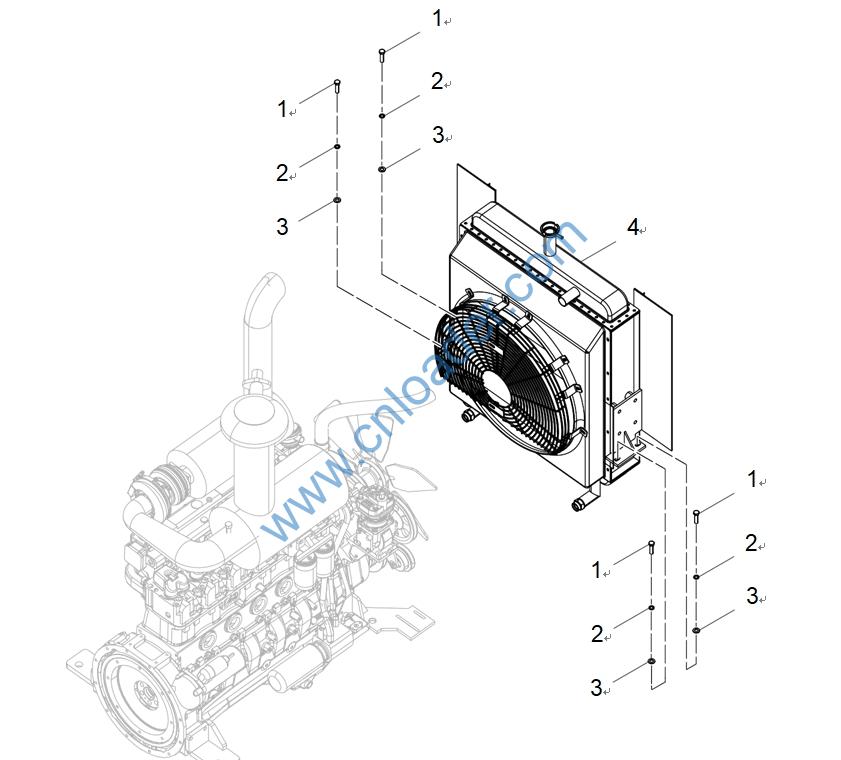

散热器组件 (30801900161) RADIATOR ASSEMBLY
51204111514 螺栓M12×45 BOLT M12×45 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
17101000583 散热器总成 RADIATOR ASSEMBLY LG833BG.01Ⅸ.04

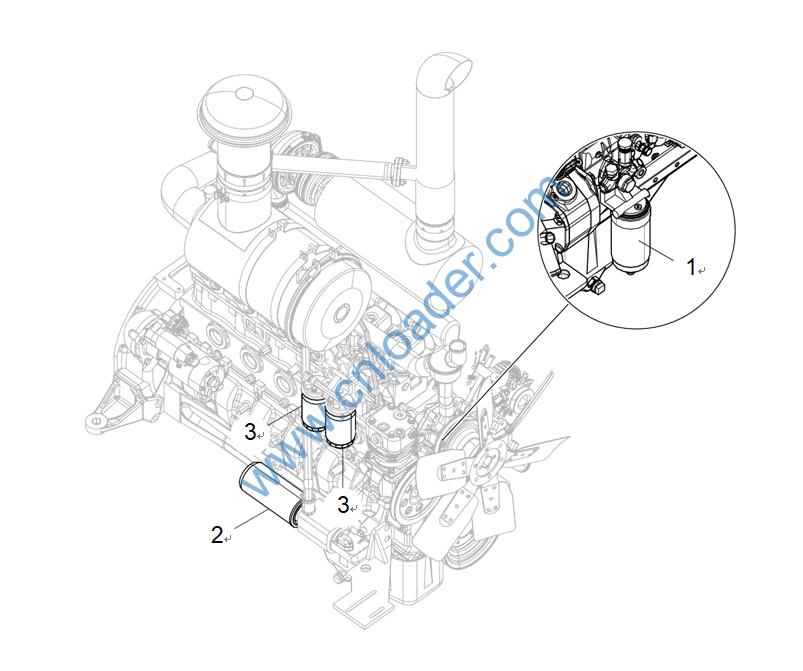

滤芯组件 (60100001544) FILTER ELEMEN
60101100322 燃油粗滤器(出口机) FUEL PRE FILTER
60101100396 旋装式滤清器 ROTATION OIL FILTER
60101100329 燃油滤清器 FUEL FILTER

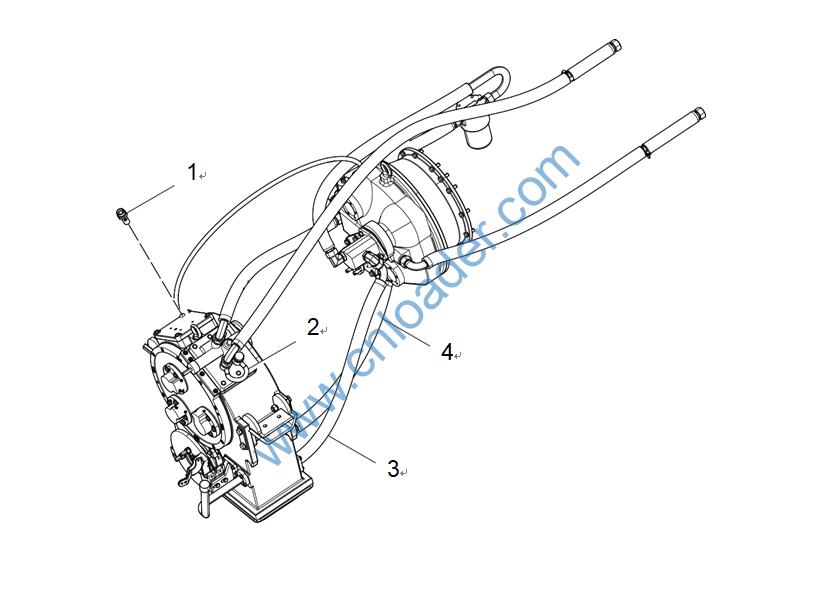

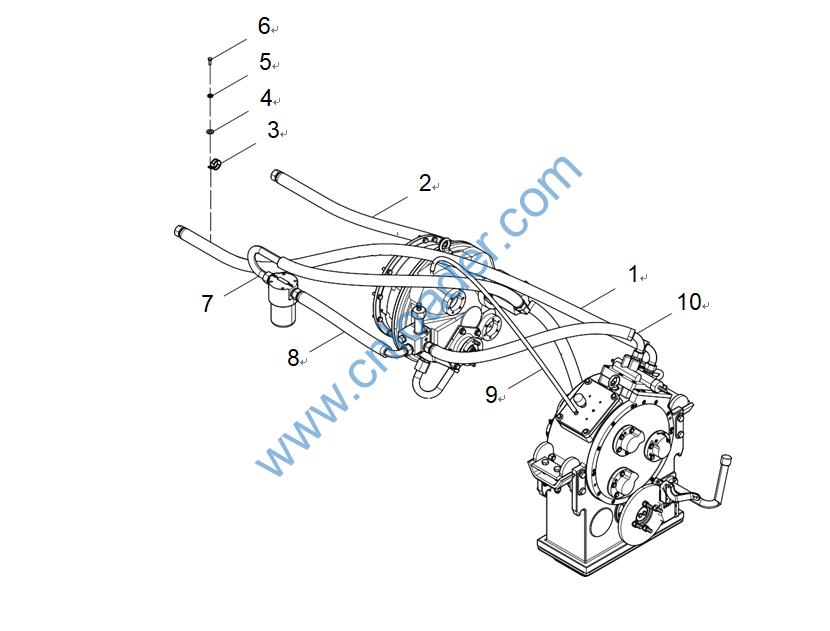

变矩器系统接头装配 (30802900088) TORQUE CONVERTER CONNECTOR FIXING
17601000016 过渡接头 TRANTITION CONNECTOR L1CH-30-22
56901000401 垫圈22 WASHER 22 JB/T966
30893000003 铰接式接头焊合 CONNECTOR LG30F.02Ⅰ.02.03
51258224801 铰接螺栓M22×1.5×48 BOLT M22×1.5×48 JB/T999
30893100363 铰接螺栓接头 CONNECTOR, BOLT LG30F.02Ⅰ.02-010
17601000270 过渡接头 TRANTITION CONNECTOR L1CH-36-27D
17601000261 过渡接头 TRANTITION CONNECTOR L1CH-30-24
51401100107 垫圈10 WASHER 10 GB/T93
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
17601000477 过渡接头 TRANTITION CONNECTOR L1DT-16-06SP
17272012827 胶管总成 HOSE ASSEMBLY 20511-16T1W05350
17272000838 胶管总成 HOSE ASSEMBLY 20411-36T/20491-36T*2N16
*800
17272000839 胶管总成 HOSE ASSEMBLY 20411-36T/20491-36T*2N16
*800+RC300
16804040001 齿轮泵 GEAR PUMP LGCBF040
30802100016 密封垫片 SEAL SHIM LG30F.02Ⅰ.02-008
51139220405 螺钉M10×30 SCREW M10×30 GB/T70.1
51401100107 垫圈10 WASHER 10 GB/T93
30802100014 变速泵连接板 CONNECTING PLATE,
TRANSMISSION PUMP LG30F.02Ⅰ.02-007
60202010001 变矩器总成 TORQUE CONVERTER ASSEMBLY LG831G.02.01
51204101014 螺栓M10×20 BOLT M10×20 GB/T5783
51421100115 垫圈10 WASHER 10 GB/T97.1
60101100519 滤油器YL-180A OIL FILTER YL-180A LG831G.02.02.01
17601000043 过渡接头 TRANTITION CONNECTOR L1CH-30D
17601000018 过渡接头 TRANTITION CONNECTOR L1CH-36-30D
60308000048 滤油器滤芯 OIL FILTER ELEMENT YL-180A-100
51401110107 垫圈12 WASHER 12 GB/T93
51204111314 螺栓M12×35 BOLT M12×35 GB/T5783
17601000397 过渡接头 TRANTITION CONNECTOR L1CT-30-12SP
17601000400 过渡接头 TRANTITION CONNECTOR L1CT-36-16SP
30893000073 钢管焊合 PIPE FABRICATE LG30F.02Ⅰ.02.01
17601000395 过渡接头 TRANTITION CONNECTOR L1CT-30-06SP
51341000719 螺母M12 NUT M12 GB/T889.1
51204111414 螺栓M12×40 BOLT M12×40 GB/T5783
17405000007 上传动轴总成 DRIVE SHAFT ASSEMBLY, UPPER LG30F.02Ⅰ.03
17601000307 过渡接头 TRANTITION CONNECTOR LG0060DT.10B.04.08
17601000312 过渡接头 TRANTITION CONNECTOR L1CH9-36-33OG
30802100020 密封垫片 SEAL SHIM LG30F.02Ⅰ.02-012
17272000820 胶管总成 HOSE ASSEMBLY 20411-30/20491-302W142
650
17272012228 胶管总成 HOSE ASSEMBLY 20411-30/20491-30H1002W 141600
60911013717 线夹40 HARNESS CLIP 40 LG855BⅡ.15Ⅰ.16
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
17272000822 胶管总成 HOSE ASSEMBLY 20401-36Ta180°/20411-30*
1W161600 17272012116 胶管总成 HOSE ASSEMBLY 20411-30/20491-302W147 50 17272000271 胶管总成 HOSE ASSEMBLY 20511-16T/20591-16T1W05
1000 17272000834 胶管总成 HOSE ASSEMBLY 20411-30/20491-302W14*1
000

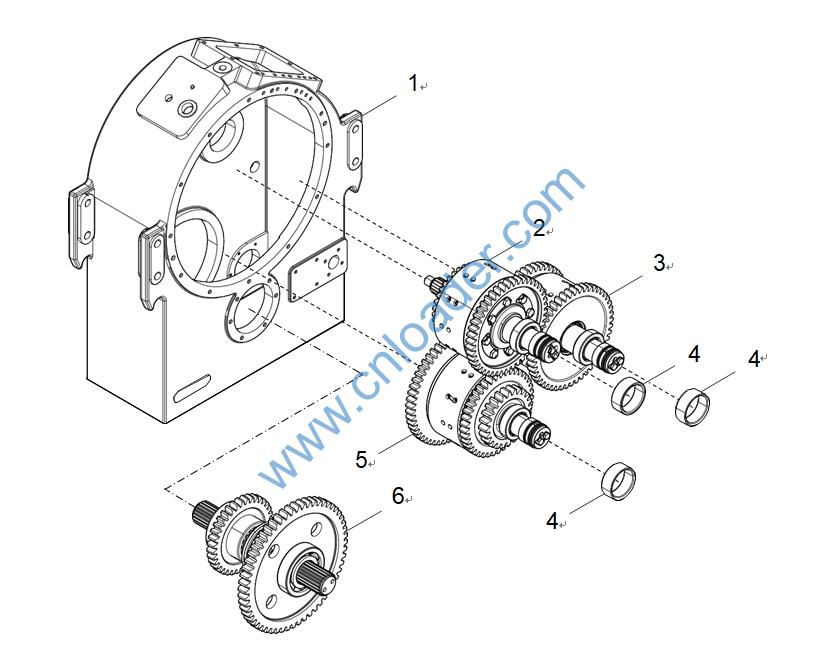

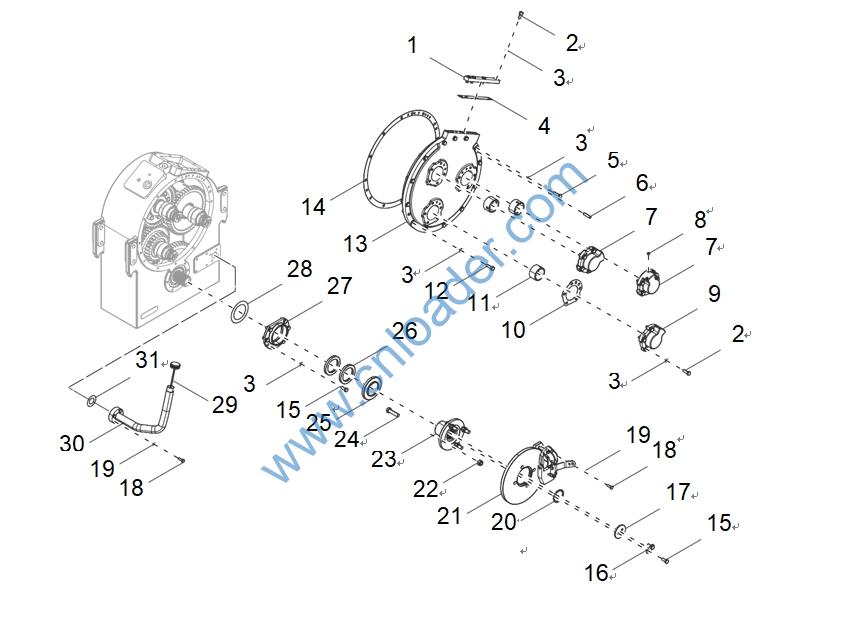

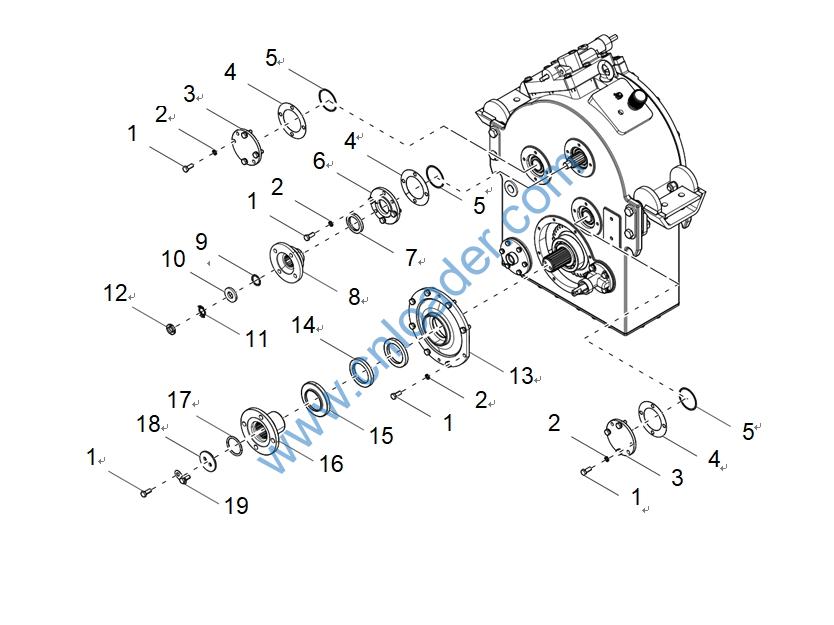

36206100001 凸缘 FLANGE ZL30.03.09-001
36206100002 护罩 GUARD HOOD ZL30.03.09-002
36200100225 箱体 CASE LGX833VA.03-004
36207000007 输入轴总成 INPUT SHAFT ASSEMBLY LGX833VA.03.03
36210000000 倒档轴总成 SHAFT ASSEMBLY, REVERSE
GEAR LGX833VA.03.06
36200100032 轴套 SLEEVE ZL30.03-032
36209000000 中间轴总成 INTERMEDIATE SHAFT ASSEMBLY LGX833VA.03.05
36208000002 输出轴总成 OUTPUT SHAFT ASSEMBLY LGX833VA.03.04
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
36200100016 端盖 END COVER ZL30.03-016
36200100009 纸垫 GASKET ZL30.03-009
36200100011 调整垫片 ADJUSTING SHIM ZL30.03-011-4
36200100012 输入轴端盖 END COVER, INPUT SHAFT ZL30.03-012
56177005201 密封圈FB45×62×8 SEAL RING FB45×62×8 GB/T13871.1
36206000001 凸缘总成 FLANCH ZL30.03.09
56145028501 O形圈28×5.3 O-RING 28×5.3 GB/T3452.1
36200100010 垫圈20 WASHER 20 ZL30.03-010
51439150105 垫圈20 WASHER 20 GB/T858
51363000603 螺母M20×1.5 NUT M20×1.5 GB/T810
36200100226 输出轴后端盖 END COVER, OUTPUT SHAFT,
REAR LGX833VA.03-005
56177006802 密封圈FB65×90×10 SEAL RING FB65×90×10 GB/T13871.1
36200100024 防尘罩 DUSTHOOD ZL30.03-024
36200100023 输出轴法兰 FLANGE, OUTPUT SHAFT ZL30.03-023
56146014601 O形圈52×5.7 O-RING 52×5.7 GB/T1235
36200100021 压板 PLATE ZL30.03-021
36200100022 止动垫 THRUST SHIM ZL30.03-022
36200100349 端盖压板 PRES PLATE, END COVER LGX833VA.03D-011
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
36200100350 端盖压板纸垫 GASKET, END COVER FLANGE LGX833VA.03D-012
51204101415 螺栓M10×40 BOLT M10×40 GB/T5783
51513132002 销10×40 PIN 10×40 GB/T119.1
36200100229 进油端盖Ⅱ END COVER 2, OIL INLET LGX833VA.03-008
60201100330 丝堵(1/8) PIPE PLUG ZL30E.5.1-9
36200100227 进油端盖Ⅰ END COVER 1, OIL INLET LGX833VA.03-006
36200100228 进油端盖纸垫 GASKET, OIL INLET COVER LGX833VA.03-007
36200100030 外封轴套 SHAFT SLEEVE, OUTER ZL30.03-030
51204101314 螺栓M10×35 BOLT M10×35 GB/T5783
36200100230 大端盖 BIG END COVER LGX833VA.03-009
36200100034 大端盖纸垫 GASKET, BIG END COVER ZL30.03-034
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
36200100022 止动垫 THRUST SHIM ZL30.03-022
36200100021 压板 PLATE ZL30.03-021
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
56146014601 O形圈52×5.7 O-RING 52×5.7 GB/T1235
60208000050 30手制动器 PARKING BRAKE CALIPER ZL30.03.06
51309000619 螺母M14×1.5 NUT M14×1.5 GB/T6171
36200100023 输出轴法兰 FLANGE, OUTPUT SHAFT ZL30.03-023
51207121718 螺栓M14×1.5×55 BOLT M14×1.5×55 GB/T5786
36200100024 防尘罩 DUSTHOOD ZL30.03-024
56177006802 密封圈FB65×90×10 SEAL RING FB65×90×10 GB/T13871.1
36200100028 前输出轴封油盖 OIL SEAL COVER, FRONT OUTPUT
SH AFT ZL30.03-028
36200100027 调整垫片(0.1mm) ADJUSTING SHIM 0.1mm ZL30.03-027-1
36280000006 加油盖 ADJUSTING SHIM 0.1mm ZL30.03.05
36220000002 加油管总成 FEEDING PIPE ASSEMBLY ZL30.03.07
56145008801 O形圈32.5×3.55 O-RING 32.5×3.55 GB/T3452.1
