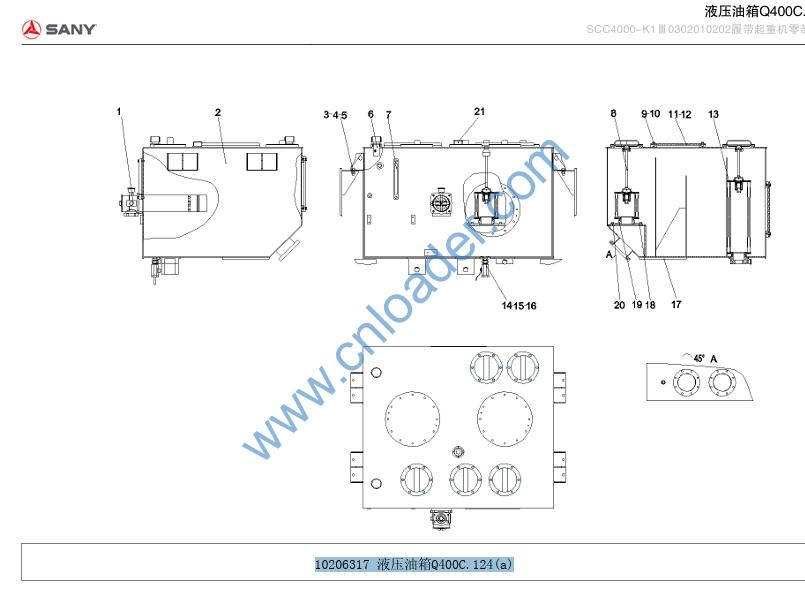

10206317 Hydraulic oil tank Q400C.124(a)

10206317 Hydraulic oil tank Q400C.124(a)

1 A222100000591 Return oil filter 0
2 10206320 Fuel tank welding Q400C.124(a).1 0
3 A210111000106 bolt M16×45GB5783 10.9 level 0
4 A210401000004 Washer 16GB93 0
5 A210307000040 Nut M16GB6170 0
6 A222100000593 air filter 0
7 A250100000110 Liquid Level Thermometer 0
8 A222100000594 filter 0
9 A210111000101 bolt M12×25GB5783 10.9 level 0
10 A210401000002 Washer 12GB93 0
11 10513914 Cleaning hole cover 350 0
12 A210609000325 O-ring 0
13 A222100000592 filter 0
14 A220400000004 ball valve 0
15 21002965 Pipe joint 0
16 21010723 plug 0
17 10206318 Rubber pad 0
18 10206319 Gasket 0
19 21014203 cover 0
20 A210111000197 bolt M10×25GB5783 10.9 level 0
21 10265171 Oil level sensor protective cover 0

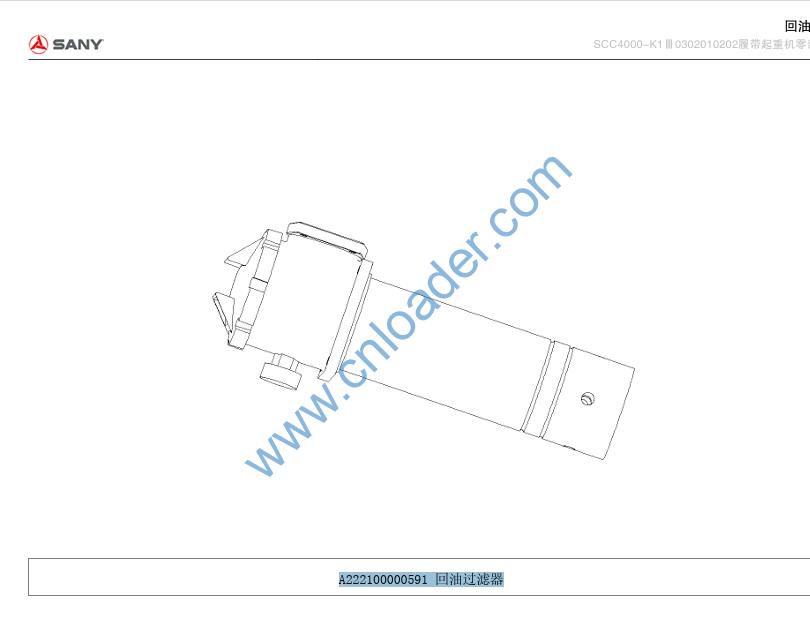

A222100000591 回油过滤器

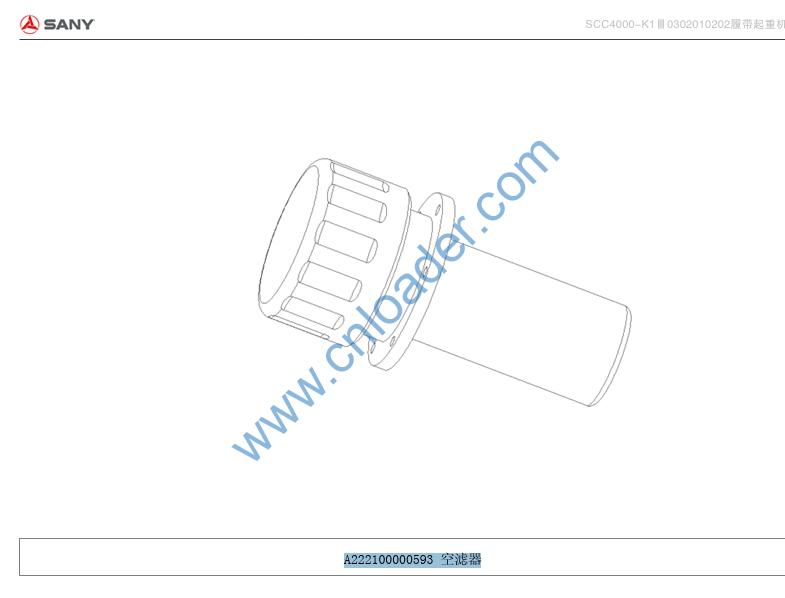

A222100000593 空滤器
