LONKING forklift spare parts AO

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600022910	LGG035SP300B-LH	左起升油缸 Left lift cylinder	1
B	16600022920	LGG035SP300B-RH	右起升油缸 Right lift cylinder	1
1	56193000501		防尘圈50×62×7 Dust ring 50X62X7	2
2	56187006601		轴用密封圈50×60×7 Seal ring 50X60X7	2
3	36600021030	LGG035SP300B-LH-01	导向套 Guide sleeve	2
4	56900009202	AS568	O形圈63.17×2.62O O-ring 63.17X2.62	2
5	52500003101		钢背轴承50×55×40 Steel -backed bearing	2
6	36600041510	LGG035SP300LH-04	活塞杆 Piston rod	2
7	36600021120	LGG035SP300LH-06	活塞 Piston	2
8	51466070219	GB/T895.1	挡圈30 Snap ring 30	2
9	36600071120	LGG035SP300LH-05	间隔套 Spacer	2
10	56194010701	EKM	O形圈50×3 O-ring 50X3	2
11	56199008901		支承环58×63×20 Pivot ring 58X63X20	2
12	56192015401		挡圈53×63×3 Snap ring 53X63X3	2
13	56191004001		活塞密封圈63×53×7 Seal ring 63X53X7	2
14	36600017871	LGG035SP300B-LH.01	左缸体 Left cylinder	2
	36600017881	LGG035SP300B-RH.01	右缸体 Right cylinder	2
15	36600330010	LGG035SP300RH-07	滑阀 Sliding valve	1	右缸
16	36600191010	LGG035SP300RH-08	弹簧 Spring	1	右缸
17	51513131502	GB/T119.1	圆柱销 Cylindrical pin	2
18	30082154804	LG0035D.10-001	调整垫 Adjustable gasket	2
19	51401150107	GB/T93	垫圈20 Washer 20	2
20	51204151514	GB/T5783	螺栓M20×45 Bolt M20X45	2
21	30082135101	LG0030D.10-009	轴套 Bushing	2
22	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12X1.25X35	2
23	51401110107	GB/T93	垫圈12 Washer 12	2
24	51421110115	GB/T97.1	垫圈12 Washer 12	2
25	30082109603	LG0035DⅢ.10-002	卡箍 Clamp	2
26	51401100107	GB/T93	垫圈10 Washer 10	4
27	51421100115	GB/T97.1	垫圈10 Washer 10	4
28	51309000319	GB/T6171	螺母M10×1.25 Nut M10X1.25	4
29	30082185000	LG0030D.10-012	箍座 Clamp seat	2
30	30082113900	LG0030D.10-013	橡胶垫 Rubber gasket	2
31	51309000519	GB/T6171	螺母M12×1.25 Bolt M12X1.25X50	2
32	51207115614	GB/T5786	螺栓M12×1.25×50 Nut M12X1.25	2

起升高度 Lifting height	左缸编码 Cylinder code(L)	右缸编码 Cylinder code(R)	左缸体 Left cylinder body	右缸体 Right cylinder body	活塞杆 Rod,piston	备注 Remark
2000	16600079020	16600079110	36600018950	36600018850	36600042000
2500	16600079030	16600079120	36600018960	36600018880	36600042090
2700	16600079040	16600079130	36600018970	36600018890	36600042100
3000	16600022910	16600022920	36600017871	36600017881	36600041510
3300	16600079050	16600079140	36600018980	36600018900	36600041520	标准
3500	16600022930	16600022940	3600018041	36600018051	36600041530
3700	16600079060	16600079150	36600018990	36600018910	36600041540
4000	16600022950	16600022960	36600018061	36600018071	36600041550
4250	16600079070	16600079160	36600019000	36600018930	36600041560
4500	16600022970	16600022980	36600018101	36600018930	36600041570
4750	16600079080	16600079170	36600019010	36600018930	36600041580
5000	16600079010	16600022990	36600018300	36600018290	36600041590
5500	16600079090	16600079180	36600019020	36600018940	36600041600
6000	16600079100	16600079190	36600018861	36600018871	36600041610

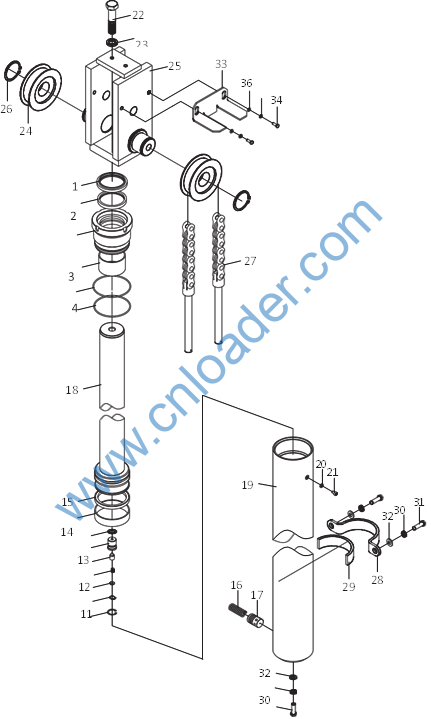

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600406010	LG0030D.10A.02.02	前起升缸 Front lift cylinder	1
1	56193000701		防尘圈60X74X8 Dust ring 60×74×8	1
2	56187020201		轴用密封圈60X70X9 Seal ring 60×70×9	1
3	36600031140	LGG030SL300FH-01	导向套 Guide?sleeve	1
4	52500000601		钢背轴承60X65X40 Steel- backed bearing	1
5	56194002101	EKM	O形圈86X3 O-ring 86×3	1
6	56908002204	JISB2401	O形圈79.4X3.1 O-ring 79.4×3.1	1
7	51451220107	GB/T893.1	挡圈22 Snap?ring?22	1
8	51451120107	GB/T893.1	挡圈12 Snap?ring?12	1
9	36600351010	LGG030SL300FH-06	单向阀挡环 One way valve collar	1
10	36600194010	LGG030SL300FH-05	单向阀弹簧 One way valve spring	1
11	36600341010	LGG030SL300FH-04	单向阀阀芯 One way valve valve core	1
12	36600203010	LGG030SL300FH-03	单向阀阀体 One way valve body	1
13	56908008004	JISB2401	O形圈15.8X2.4 O-ring 15.8×2.4	1
14	56199009501		支承环80X85X20 Pivot ring 80×85×20	1
15	56189002401		活塞密封圈85X70X7.5 Seal ring 85×70×7.5	1
16	36600191010	LGG035SP300RH-08	弹簧 Spring	1
17	36600331030	LGG030SL300FH-07	滑阀 Slide valve	1
18	36600042080	LGG030SL300FH.02	活塞组件 Piston and piston rod	1
19	36600011560	LGG030SL300FH.01	缸体 Cylinder	1
20	56196000101		垫圈10X6X2 Washer	1
21	51139170106	GB/T70.1	螺钉M5X8 Screw M5×8	1
22	51204132514	GB/T5783	螺栓M16×35 Bolt M16×35	1
23	51401130107	GB/T93	垫圈16 Washer 16	1
24	30082185700	LG0030D.10-014	链轮 Chain wheel	2
25	30082079900	LG0030D.10B.04	缸头焊合 Cylinder head weldment	1
26	51453350107	GB/T894.1	挡圈40 Snap ring 40	2
27	30082080200	LG0025BⅢ.10A.06	链条总成LH1234(71节) Chain assembly	2	2-2.5T
	30082080328	LG0030DⅢ.10A.02.04	链条总成LH1623 Chain assembly	2	3t
28	30082144100	LG0030D.10A.02-002	固定夹 Fixed clip of front cylinder	1
29	30082113901	LG0030D.10A.02-003	橡胶垫 Rubber gasket	1
30	51401110107	GB/T93	垫圈12 Washer 12	3	2-2.5T2个
31	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12×1.25×35	3	2-2.5T2个
32	51421110115	GB/T97.1	垫圈12 Washer 12	3	2-2.5T2个
33	30082180208	LG0030D.10B-001	挡链板 Chain guide plate	2
34	51204091014	GB/T5783	螺栓M8×20 Bolt M8×20	4
35	51401090107	GB/T93	垫圈8 Washer 8	4
36	51421090115	GB/T97.1	垫圈8 Washer 8	4	3T

前起升油缸(二级全自由)参数/Front lift cylinder (full free 2-stage mast)

2– 2. 5T
油缸编码 Code ,cyinder	起升高度 Lifting height	活塞杆 Piston rod	缸体 Cylinder body		链条编码 Code,chain	链条节点 Leaf,chain	备注 Remark
16600147330	2000	36600043300	36600011510		30082080215	61
16600403010	2500	36600043320	36600011530		30080080210	73
16600404010	2700	36600043330	36600011540		30080080211	79
16600406010	3000	36600043350	36600011560		30080080213	87	标准
16600409010	3300	36600043370	36600011580		30080080218	95
16600410010	3500	36600043380	36600011590		30080080215	101
16600412010	3750	36600043410	36600011610		30080080223	107
16600421100	4000	36600043420	36600011630		30080080220	115
16600415010	4500	36600043440	36600011650		30080080224	129







3T
油缸编码 Code ,cyinder	起升高度 Lifting height	活塞杆 Piston rod	缸体 Cylinder body		链条编码 Code,chain	链条节点 Leaf,chain	备注 Remark
16600147330	2000	36600043300	3660001	1510	30082080215	xx
16600403010	2500	36600043320	36600011530		30080080210
16600404010	2700	36600043330	3660001	1540	30080080211
16600406010	3000	36600043350	36600011560		30080080213		标准
16600409010	3300	36600043370	3660001	1580	30080080218
16600410010	3500	36600043380	36600011590		30080080215
16600412010	3750	36600043410	3660001	1610	30080080223
16600421100	4000	36600043420	36600011630		30080080220
16600415010	4500	36600043440	3660001	1650	30080080224





		170

3.5T

前起升油缸(二级全自由)/Front lift cylinder (full free 2-stage mast)

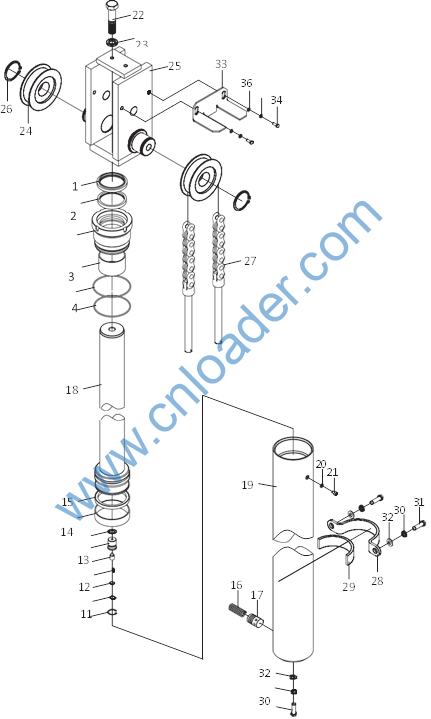

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600271140	LGG035SL200FH	前起升缸 Front lift cylinder	1
1	56193000701		防尘圈60×74×8 Dust ring 60×74×8	1
2	56187020201		轴用密封圈60×70×9 Seal ring 60×70×9	1
3	36600030150	LGG035SS450FH-01	导向套 Guide sleeve	1
4	52500000601		钢背轴承60×65×40 Steel- backed bearing	1
5	56145047304	GB/T3452.1	O形圈95×3.55 O-ring	1
6	56908001404	JISB2401	O形圈89.4×3.1 O-ring	1
7	51451220107	GB/T893.1	挡圈22 Snap ring 22	1
8	51451120107	GB/T893.1	挡圈12 Snap ring12	1
9	36600351010	LGG030SL300FH-06	单向阀挡环 One way valve collar	1
10	36600194010	LGG030SL300FH-05	单向阀弹簧 One way valve spring	1
11	36600341010	LGG030SL300FH-04	单向阀阀芯 One way valve valve core	1
12	36600203010	LGG030SL300FH-03	单向阀阀体 One way valve body	1
13	56908008004	JISB2401	O形圈15.8×2.4 O-ring 15.8×2.4	1
14	56199015301		支承环90×95×20 Pivot ring	1
15	56189010001		活塞密封圈95×80×7.3 Seal ring	1
16	36600191010	LGG035SP300RH-08	弹簧 Spring	1
17	36600330010	LGG035SP300RH-07	滑阀 Slide valve	1
18	36600047770	LGG035SL200FH-02	活塞、活塞杆组件 Piston and piston rod	1
19	36600018620	LGG035SL200FH.01	缸体 Cylinder	1
20	56196000101		垫圈10×6×2 Washer	1
21	51139170106	GB/T70.1	螺钉M5×8 Screw M5×8	1
22	51204132514	GB/T5783	螺栓M16×35 Bolt M16×35	1
23	51401130107	GB/T93	垫圈16 Washer 16	1
24	30082185702	LG0035D.10-003	链轮 Chain wheel	2
25	30082079901	LG0035DⅢ.10A.04	缸头焊合 Cylinder head weldment	1
26	51453350107	GB/T894.1	挡圈40 Snap ring 40	2
27	30082080417	LG0035DⅢ.10A.05	链条总成LH1634 Chain assembly	2
28	30082144101	LG0035D.10A-002	固定夹 Fixed clip of front cylinder	1
29	30082113901	LG0030D.10A.02-003	橡胶垫 Rubber gasket	1
30	51401110107	GB/T93	垫圈12 Washer 12	3
31	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12×1.25×35	3
32	51421110115	GB/T97.1	垫圈12 Washer 12	3
33	30082180208	LG0030D.10B-001	挡链板 Chain guide plate	2
34	51204091014	GB/T5783	螺栓M8×20 Bolt M8×20	4
35	51401090107	GB/T93	垫圈8 Washer 8	4
36	51421090115	GB/T97.1	垫圈8 Washer 8	4

油缸编码 Code ,cyinder	起升高度 Lifting height	活塞杆 Piston rod	缸体 Cylinder body	链条编码 Code,chain	链条节点 Leaf,chain	备注 Remark
16600271140	2000	36600047770	36600018620	30082080429	43
16600271150	2250	36600047780	36600018630	–	–
16600271160	2500	36600047790	36600018640	30082080415	53
16600271170	2700	36600047800	36600018650	30082080428	57
16600271180	2750	36600047810	36600018660	–	–
16600271190	3000	36600042320	36600014020	30082080417	63	标准
16600271200	3250	36600047820	36600018670	–	–
16600271210	3300	36600047830	36600018680	30082080401	69
16600271220	3500	36600047840	36600018690	30082080402	73
16600271230	3660	36600047850	36600018700	–	–
16600271240	3700	36600047860	36600018710	30082080425	77
16600271250	3750	36600047870	36600018720	–	–
16600271100	4000	36600042380	36600014080	30082080419	83
16600271270	4250	36600047880	36600018730	–	–
16600271280	4500	36600047890	36600018740	30086080403	95
16600271290	4750	36600047900	36600018750	–	–
16600271300	5000	36600047910	36600018760	–	–
16600271310	5500	36600047920	36600018770	–	–
16600271320	6000	36600047930	36600018780	–	–

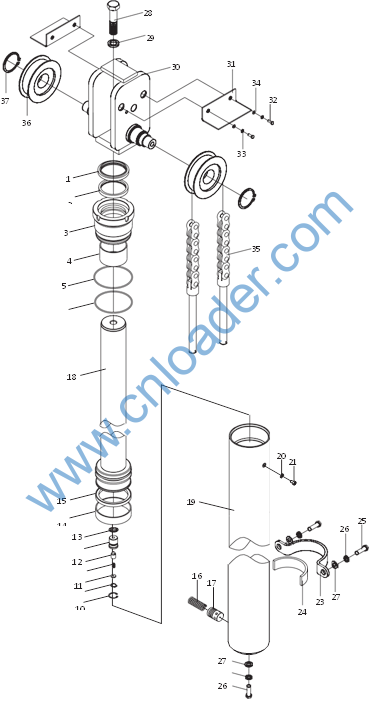

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600421050	LG0030D.10B.02.01	油缸Φ85/Φ60 Lift cylinder	1	包含1 – 22项
1	56193000701		防尘圈60×74×8 Dust ring 60×74×8	1
2	56187020201		轴用密封圈60×70×9 Seal ring 60×70×9	1
3	36600031140	LGG030SL300FH-01	导向套 Guide sleeve	1
4	52500003001		钢背轴承60×65×35 Steel-backed bearing	1
5	56194002101	EKM	O形圈86×3 O-ring 86×3	1
6	56908002207	JISB2401	O形圈79.4×3.1 O-ring 79.4×3.1	1
7	51451220107	GB/T893.1	挡圈22 Snap ring 22	1
8	51451120107	GB/T893.1	挡圈12 Snap ring 12	1
9	36600351010	LGG030SL300FH-06	单向阀挡环 One way valve collar	1
10	36600194010	LGG030SL300FH-05	单向阀弹簧 Spring	1
11	36600341010	LGG030SL300FH-04	单向阀阀芯 One way valve core	1
12	36600203010	LGG030SL300FH-03	单向阀阀体 One way valve body	1
13	56909000301	JISB2402	O形圈15.8×2.4 O-ring 15.8×2.4	1
14	56199009501		支承环80×85×20 Pivot ring 80×85×20	1
15	56189002401		活塞密封圈85×70×7.5 Seal ring 85×70×7.5	1
16	36600191010	LGG035SP300RH-08	弹簧 Spring	1
17	36600331030	LGG030SL300FH-07	滑阀 Sliding valve	1
18	36600043650	LGG030SS450FH-02	活塞杆 Piston	1
19	36600042080	LGG030SL300FH.02	活塞组件 Piston rod element	1
20	36600011730	LGG030SS450FH.01	缸体 Cylinder	1
21	56196000101		垫圈10×6×2 Washer	1
22	51139170106	GB/T70.1	螺钉M5×8 Screw M5×8	1
23	30082144100	LG0030D.10A.02-002	固定夹 Fixed clip	1
24	30082113901	LG0030D.10A.02-003	橡胶垫 Rubber gasket	1
25	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12×1.25×35	2
26	51401110107	GB/T93	垫圈12 Washer 12	3
27	51421110115	GB/T97.1	垫圈12 Washer 12	2
28	51204132514	GB/T5783	螺栓M16×35 Bolt M16×35	1
29	51401130107	GB/T93	垫圈16 Washer 16	1
30	30082079900	LG0030D.10B.04	缸头焊合 Cylinder head weldment	1
31	30082180208	LG0030D.10B-001	挡链板 Chain guide plate	2
32	51204091014	GB/T5783	螺栓M8×20 Bolt M8×20	4
33	51401090107	GB/T93	垫圈8 Washer 8	4
34	30082080213	LG0025BⅢ.10B.05	链条总成LH1234 Chain assembly	2
35	30082185700	LG0030D.10-014	链轮 Chain wheel	2
36	51453350107	GB/T894.1	挡圈40 Snap ring 40	2
37	51207115214	GB/T5786	螺栓M12×1.25×30 Bolt M12×1.25×30	1

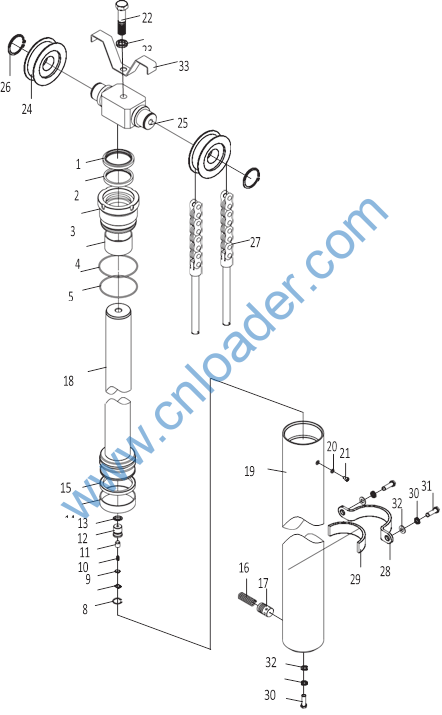

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600421040	LG0030D.10B.02.01	油缸Φ85/Φ60 Lift cylinder	1	包含1 – 22项
1	56193000701		防尘圈60×74×8 Dust ring 60×74×8	1
2	56187020201		轴用密封圈60×70×9 Seal ring 60×70×9	1
3	36600031140	LGG030SL300FH-01	导向套 Guide sleeve	1
4	52500003001		钢背轴承60×65×35 Steel-backed bearing	1
5	56194002101	EKM	O形圈86×3 O-ring 86×3	1
6	56908002207	JISB2401	O形圈79.4×3.1 O-ring 79.4×3.1	1
7	51451220107	GB/T893.1	挡圈22 Snap ring 22	1
8	51451120107	GB/T893.1	挡圈12 Snap ring 12	1
9	36600351010	LGG030SL300FH-06	单向阀挡环 One way valve collar	1
10	36600194010	LGG030SL300FH-05	单向阀弹簧 Spring	1
11	36600341010	LGG030SL300FH-04	单向阀阀芯 One way valve core	1
12	36600203010	LGG030SL300FH-03	单向阀阀体 One way valve body	1
13	56909000301	JISB2402	O形圈15.8×2.4 O-ring 15.8×2.4	1
14	56199009501		支承环80×85×20 Pivot ring 80×85×20	1
15	56189002401		活塞密封圈85×70×7.5 Seal ring 85×70×7.5	1
16	36600191010	LGG035SP300RH-08	弹簧 Spring	1
17	36600331030	LGG030SL300FH-07	滑阀 Sliding valve	1
18	36600043650	LGG030SS450FH-02	活塞杆 Piston	1
19	36600042080	LGG030SL300FH.02	活塞组件 Piston rod element	1
20	36600011730	LGG030SS450FH.01	缸体 Cylinder	1
21	56196000101		垫圈10×6×2 Washer	1
22	51139170106	GB/T70.1	螺钉M5×8 Screw M5×8	1
23	30082144100	LG0030D.10A.02-002	固定夹 Fixed clip	1
24	30082113901	LG0030D.10A.02-003	橡胶垫 Rubber gasket	1
25	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12×1.25×35	3
26	51401110107	GB/T93	垫圈12 Washer 12	3
27	51421110115	GB/T97.1	垫圈12 Washer 12	3
28	51204132514	GB/T5783	螺栓M16×35 Bolt M16×35	1
29	51401130107	GB/T93	垫圈16 Washer 16	1
30	30082079900	LG0030D.10B.04	缸头焊合 Cylinder head weldment	1
31	30082180208	LG0030D.10B-001	挡链板 Chain guide plate	2
32	51204091014	GB/T5783	螺栓M8×20 Bolt M8×20	4
33	51401090107	GB/T93	垫圈8 Washer 8	4
34	51421090115	GB/T97.1	垫圈8 Washer 8	4
35	30082080302	LG0030D.10B.05	链条总成LH1623 Chain assembly	2
36	30082185700	LG0030D.10-014	链轮 Chain wheel	2
37	51453350107	GB/T894.1	挡圈40 Snap ring 40	2

2– 2. 5T
油缸编码 Code ,cyinder	起升高度 Lifting height	活塞杆 Piston rod	缸体 Cylinder body	链条编码 Code,chain	链条节点 Leaf,chain	备注 Remark
16600421020	4000	36600043630	36600011710	30080080216	77
16600421030	4350	36600043640	36600011720	30082080201	83
16600421040	4500	36600043650	36600011730	30080080213	87	标准
16600421060	4800	36600043670	36600011750	30080080203	91
16600421070	5000	36600043680	36600011760	30082080203	97
16600421080	5400	36600043690	36600011770	30080080204	103
16600421100	6000	36600043710	36600011790	30080080218	95
16600421110	6500	36600043720	36600011800	30080080223	107

油缸编码 Code ,cyinder	起升高度 Lifting height	活塞杆 Piston rod	缸体 Cylinder body	链条编码 Code,chain	链条节点 Leaf,chain	备注 Remark
16600421020	4000	36600043630	36600011710	30082080109	57
16600421030	4350	36600043640	36600011720	30082080318	61
16600421040	4500	36600043650	36600011730	30082080302	65	标准
16600421050	4700	36600043660	36600011740	30082080302	65
16600421060	4800	36600043670	36600011750	30082080319	67
16600421070	5000	36600043680	36600011760	30082080320	71
16600421080	5400	36600043690	36600011770	30082080304	75
16600421090	5500	36600043700	36600011780	30082080321	77
16600421100	6000	36600043710	36600011790	30082080306	85
16600421110	6500	36600043720	36600011800	30082080330	93

3.5T

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600271190	LGG035SS450FH	全自由前起升缸 Front lift cylinder	1
1	56193000701		防尘圈60×74×8 Dust ring 60×74×8	1
2	56187020201		轴用密封圈60×70×9 Seal ring 60×70×9	1
3	36600030150	LGG035SS450FH-01	导向套 Guide sleeve	1
4	52500000601		钢背轴承60×65×40 Steel- backed bearing	1
5	56145047304	GB/T3452.1	O形圈95×3.55 O-ring	1
6	56908001404	JISB2401	O形圈89.4×3.1 O-ring	1
7	51451220107	GB/T893.1	挡圈22 Snap ring 22	1
8	51451120107	GB/T893.1	挡圈12 Snap ring12	1
9	36600351010	LGG030SL300FH-06	单向阀挡环 One way valve collar	1
10	36600194010	LGG030SL300FH-05	单向阀弹簧 One way valve spring	1
11	36600341010	LGG030SL300FH-04	单向阀阀芯 One way valve valve core	1
12	36600203010	LGG030SL300FH-03	单向阀阀体 One way valve body	1
13	56908008004	JISB2401	O形圈15.8×2.4 O-ring 15.8×2.4	1
14	56199015301		支承环90×95×20 Pivot ring	1
15	56189010001		活塞密封圈95×80×7.3 Seal ring	1
16	36600191010	LGG035SP300RH-08	弹簧 Spring	1
17	36600330010	LGG035SP300RH-07	滑阀 Slide valve	1
18	36600042320	LGG035SS450FH-02	活塞、活塞杆组件 Piston and piston rod	1
19	36600014020	LGG035SS450FH.01	缸体 Cylinder	1
20	56196000101		垫圈10×6×2 Washer	1
21	51139170106	GB/T70.1	螺钉M5×8 Screw M5×8	1
22	51204134314	GB/T5783	螺栓M16×65 Bolt M16×35	1
23	51401130107	GB/T93	垫圈16 Washer 16	1
24	30082185702	LG0035D.10-003	链轮 Chain wheel	2
25	30086079901	LG0040D.10AI.03	缸头焊合 Cylinder head weldment	1
26	51453370107	GB/T894.1	挡圈45 Snap ring 40	2
27	30082080417	LG0040D.10BI.05	链条总成LH1634 Chain assembly	2
28	30082144101	LG0035D.10A-002	固定夹 Fixed clip of front cylinder	1
29	30082113901	LG0030D.10A.02-003	橡胶垫 Rubber gasket	1
30	51401110107	GB/T93	垫圈12 Washer 12	3
31	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12×1.25×35	3
32	51421110115	GB/T97.1	垫圈12 Washer 12	3
33	30086180209	LG0040D.10AI-001	挡链板 Chain guide plate	1

前起升油缸(三级全自由)参数/Front lift cylinder (full free 3-stage mast)

油缸编码 Code ,cyinder	起升高度 Lifting height	活塞杆 Piston rod	缸体 Cylinder body	链条编码 Code,chain	链条节点 Leaf,chain	备注 Remark
16600271010	3600	36600042290	36600013990	30082080421	49
16600271020	4000	36600042300	36600014000	30082080423	55
16600271030	4350	36600042310	36600014010	30082080400	59
16600271190	4500	36600042320	36600014020	30082080417	63	标准
16600271050	4700	36600042330	36600014030	30082080417	63
16600271060	4800	36600042340	36600014040	30086080400	65
16600271070	5000	36600042350	36600014050	30082080402	69
16600271080	5400	36600042360	36600014060	30086080401	75
16600271090	5500	36600042370	36600014070	30086080401	75
16600271100	6000	36600042380	36600014080	30082080419	83
16600271110	6500	36600042390	36600014090	30086080402	91

起升油缸(二级全自由)/Lift cylinder (full free 2-stage mast)

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600400110	LG0030D.10A.02.06	左起升缸 Left lift cylinder	1
B	16600400120	LG0030D.10A.02.08	右起升缸 Right lift cylinder	1
1	56193000301		防尘圈40X52X7 Dust ring 40×52×7	2
2	56192015001		挡圈40X55X3 Snap ring 40×55×3	2
3	56187020101		轴用密封圈40X55X10 Seal ring 40×55×10	2
4	36600031130	LGG030SL300LH-03	导向套 Guide sleeve	2
5	56192015501		挡圈55X60.4X1.5 Snap ring 55×60.4×1.5	2
6	51106211007	GB/T77	螺钉M8X8 Screw M8×8	4
7	36600321010	LGG030SP300H-02	锁紧垫 Lock gasket	4
8	52500000201		钢背轴承40X44X30 Steel- backed bearing	2
9	56900004603	AS568	O形圈53.57X3.53 O-ring 53.57×3.53	2
10	36600043160	LGG030SL300LH-02	活塞杆 Piston rod	1
11	36600041960	LGG030SL300RH-01	活塞杆 Piston rod	1
12	36600081020	LGG030SL300LH-06	环 Ring	2
13	56199009401		支承环45X50X15 Pivot ring 45×50×15	2
14	51103111105	GB/T73	螺钉M4X6 Screw M4×6	2
15	36600021180	LGG030SL300LH-05	活塞 Piston	2
16	51467160119	GB/T895.2	挡圈18 Snap ring 18	2
17	36600202010	LGG030SL300LH-08	弹簧座 Spring seat	2
18	36600193010	LGG030SL300LH-07	缓冲弹簧 Buffer spring	2
19	36600013500	LGG030SL300RH.01	右缸体 Right cylinder	1
20	36600012500	LGG030SL300LH.01	左缸体 Left cylinder	1
21	36600331020	LGG030SL300RH-03	滑阀 Slide valve	1
22	36600192010	LGG030SL300RH-02	滑阀弹簧 Slide valve spring	1
23	36600071180	LGG030SL300LH-04	间隔套 Spacer	2	2000≤高度≤3300
	36600071190	LGG030SL350LH-04	间隔套 Spacer	2	3500≤高度≤3750
	36600071200	LGG030SL400LH-04	间隔套 Spacer	2	4000≤高度≤4750
	36600071210	LGG030SL500LH-04	间隔套 Spacer	2	高度5000
	36600071350	LGG030SL550LH-04	间隔套 Spacer	2	高度5500/6000
24	56145077904	GB/T3452.1	O形圈40X1.8 O-ring 40×1.8	2
25	51513131502	GB/T119.1	圆柱销6X26 Pin 6×26	2
26	36600242020	LGG030SL300LH-01	拉杆头 Pull rod head	1
27	56900002303	AS568	O形圈23.47X2.95 O-ring 23.47×2.95	1
28	30082135101	LG0030D.10-009	轴套 Sleeve	2
29	51207115314	GB/T5786	螺栓M12X1.25X35 Bolt M12×1.25×35	2
30	51401110107	GB/T93	垫圈12 Washer 12	2

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
31	51421110115	GB/T97.1	垫圈12 Washer 12	2
32	30082054806	LG0030D.10A.02.10	调整垫 Adjustable gasket	2
33	51204132514	GB/T5783	螺栓M16X35 Bolt M16×35	2
34	51401130107	GB/T93	垫圈16 Washer 16	2
35	30082109601	LG0030D.10-011	卡箍 Clamp	2
36	30082185000	LG0030D.10-012	箍座 Support	2
37	30082113900	LG0030D.10-013	橡胶垫 Rubber gasket	2
38	51207115614	GB/T5786	螺栓M12X1.25X50 Bolt M12×1.25×50	2
39	51309000519	GB/T6171	螺母M12X1.25 Nut M12×1.25	2
40	51309000319	GB/T6171	螺母M10X1.25 Nut M10×1.25	4
41	51401100107	GB/T93	垫圈10 Washer 10	4
42	51421100115	GB/T97.1	垫圈10 Washer 10	4

起升油缸(二级全自由)参数/Lift cylinder(full free 2-stage mast)

左缸 Left lift cylinder	右缸 Right lift cyinder	起升高度 Lifting height	左活塞杆 Piston rod,left	右活塞杆 Piston rod,right	左缸体 Left cylinder body	右缸体 Right cylinder body
16600400010	16600400020	2000	36600043110	36600041910	36600012450	36600013450
16600400030	16600400040	2250	36600043120	36600041920	36600012460	36600013460
16600400050	16600400060	2500	36600043130	36600041930	36600012470	36600013470
16600400070	16600400080	2700	36600043140	36600041940	36600012480	36600013480
16600400090	16600400100	2750	36600043150	36600041950	36600012490	36600013490
16600400110	16600400120	3000	36600043160	36600041960	36600012500	36600013500
16600400130	16600400140	3250	36600043170	36600041970	36600012510	36600013510
16600400150	16600400160	3300	36600043180	36600041980	36600012520	36600013520
16600400170	16600400180	3500	36600043190	36600041990	36600012530	36600013530
16600400190	16600400200	3660	36600043200	36600043010	36600012540	36600013540
16600400210	16600400220	3700	36600043210	36600043020	36600012550	36600013550
16600400230	16600400240	3750	36600043220	36600043030	36600012560	36600013560
16600400250	16600400260	4000	36600043230	36600043040	36600012570	36600013570
16600400270	16600400280	4250	36600043240	36600043050	36600012580	36600013580
16600400290	16600400300	4500	36600043250	36600043060	36600012590	36600013590

后起升油缸(二级全自由)/Lift cylinder (full free 2-stage mast)

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600401440	LGG035SL300LH-00	左后起升缸 Left lift cylinder	2
B	16600401440	LGG035SL300RH-00	右后起升缸 Right lift cylinder	2
1	56193001701		防尘圈45×57×7 Dust ring	2
2	56192022601		挡圈45×55×3 Snap ring	2
3	56187010501		轴用密封圈45×55×7 Seal ring	2
4	36600030160	LGG035SL300LH-03	缸盖 Cylinder cover	2
5	36600320010	LGG035SL300LH-05	锁紧垫 Lock gasket	4
6	51106191507	GB/T77	螺钉M6×8 Screw M6×8	6
7	56194000801	EKM	O形圈63×3 O-ring	4
8	52500002801		钢背轴承45×50×30 Steel- backed bearing	2
9	36600370010	LGG035SL300LH-04	支撑套 Support bushing	1
10	36600042660	LGG035SL300RH-02	活塞杆 Piston rod	1	右缸
11	36600042470	LGG035SL300LH-02	活塞杆 Piston rod	1	左缸
12	56145011401	GB/T3452.1	O形圈43.7×2.65 O-ring	2
13	36600070500	LGG035SL300LH-06	间隔套 Spacer	2
14	56199008201		支承环51×56×20 Pivot ring	2
15	36600020190	LGG035SL300LH-08	活塞 Piston	2
16	51106191407	GB/T77	螺钉M6×6 Screw M6×6	2
17	51467200119	GB/T895.2	挡圈20 Snap ring 20	2
18	36600080040	LGG035SL300LH-09	挡环 Buffer spring	2
19	36600190060	LGG035SL300LH-10	弹簧 Spring	2
20	36600200050	LGG035SL300LH-07	弹簧座 Spring seat	2
21	36600014360	LGG035SL300RH.01	缸体 Right cylinder	1	右缸
22	36600014170	LGG035SL300LH.01	缸体 Left cylinder	1	左缸
23	51513131502	GB/T119.1A型	圆柱销10m6×26 Cylindrical pin	2
24	36600331020	LGG030SL300RH-03	滑阀 Slide valve	1
25	36600192010	LGG030SL300RH-02	滑阀弹簧 Slide valve spring	1
26	56900002307	AS568	O形圈23.47×2.95 O-ring	1
27	36600242020	LGG030SL300LH-01	拉杆头 Pull rod head	1
28	30082135101	LG0030D.10-009	轴套 Shaft sleeve	2
29	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12×1.25×35	2
30	51401110107	GB/T93	垫圈12 Washer 12	2
31	51421110115	GB/T97.1	垫圈12 Washer 12	2
32	30082109601	LG0030D.10-011	卡箍 Clamp	2
33	30082185000	LG0030D.10-012	箍座 Clamp seat	2
34	30082113900	LG0030D.10-013	橡胶垫 Rubber gasket	2
