LONKING forklift spare parts AP

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
35	51309000319	GB/T6171	螺母M10×1.25 Nut M10×1.25	4
36	51401100107	GB/T93	垫圈10 Washer 10	4
37	51421100115	GB/T97.1	垫圈10 Washer 10	4
38	51207115614	GB/T5786	螺栓M12×1.25×50 Bolt M12×1.25×50	2
39	51309000519	GB/T6171	螺母M12×1.25 Nut M12×1.25	2
40	30082154803	LG0030D.10A.02-004	调整垫 Adjustment gasket	2
41	51204132514	GB/T5783	螺栓M16×35 Bolt M16×35	2
42	51401130107	GB/T93	垫圈16 Washer 16	2

左缸 Left lift cylinder	右缸 Right lift cyinder	起升高度 Lifting height	左活塞杆 Piston rod,left	右活塞杆 Piston rod,right	左缸体 Left cylinder body	右缸体 Right cylinder body
16600400010	16600400020	2000	36600043110	36600041910	36600012450	36600013450
16600400030	16600400040	2250	36600043120	36600041920	36600012460	36600013460
16600400050	16600400060	2500	36600043130	36600041930	36600012470	36600013470
16600400070	16600400080	2700	36600043140	36600041940	36600012480	36600013480
16600400090	16600400100	2750	36600043150	36600041950	36600012490	36600013490
16600400110	16600400120	3000	36600043160	36600041960	36600012500	36600013500
16600400130	16600400140	3250	36600043170	36600041970	36600012510	36600013510
16600400150	16600400160	3300	36600043180	36600041980	36600012520	36600013520
16600400170	16600400180	3500	36600043190	36600041990	36600012530	36600013530
16600400190	16600400200	3660	36600043200	36600043010	36600012540	36600013540
16600400210	16600400220	3700	36600043210	36600043020	36600012550	36600013550
16600400230	16600400240	3750	36600043220	36600043030	36600012560	36600013560
16600400250	16600400260	4000	36600043230	36600043040	36600012570	36600013570
16600400270	16600400280	4250	36600043240	36600043050	36600012580	36600013580
16600400290	16600400300	4500	36600043250	36600043060	36600012590	36600013590

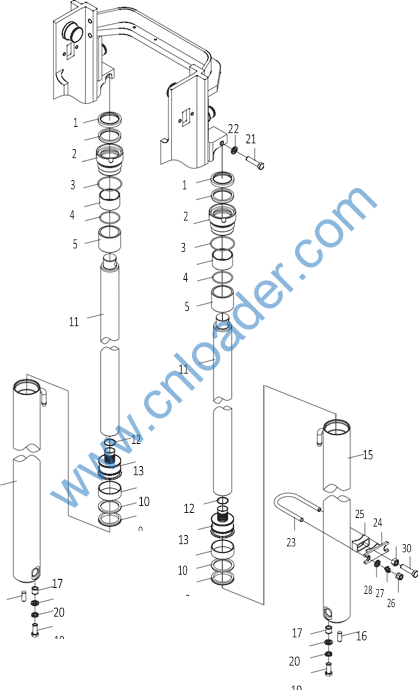

序号 Item No	编码 Code	图号 Part No	零部件名称 Description		数量 Q’ty	备注 Remark
A	16600015650	LG0030D.10B.02.05	左起升缸	Left lift cylinder	1
B	16600015660	LG0030D.10B.02.10	右起升缸	Right lift cylinder	1
1	56193001701		防尘圈45X57X7	Dust ring 45×57×7	2
2	56187010501		轴用密封圈45X55X7	Seal ring 45X57X7	2
3	36600031150	LGG030SS450H-02	导向套	Guide sleeve	2
4	56900009103	AS568	O形圈55.25X2.62	O-ring 55.25×2.62	2
5	52500002801		钢背轴承45X50X30	Steel-backed bearing	2
6	56145011401	GB/T3452.1	O形圈43.7X2.65	O-ring 43.7×2.65	2
7	36600071250	LGG030SS450H-03	间隔套	Spacer	2
8	56191003901		活塞密封圈56X45X8	Seal ring 56X45X8	2
9	56192015101		挡圈45X56X3	Snap ring 45×56×3	2
10	56199008201		支承环51X56X20	Pivot ring 51×56×20	2
11	36600043520	LGG030SS450H-01	活塞杆	Piston rod	2
12	51466240119	GB/T895.1	挡圈25	Snap ring 25	2
13	36600021200	LGG030SS450H-04	活塞	Piston	2
14	36600013670	LGG030SS450RH.01	右缸体	Right cylinder	1
15	36600012670	LGG030SS450LH.01	左缸体	Left cylinder	1
	36600061010	LGG030SS450H-05	缓冲套	Buffering sleeve	2
	51466230119	GB/T895.1	挡圈24	Snap ring 24	2
16	51513131502	GB/T119.1	圆柱销6X26	Cylindrical pin 6X26	2
17	30082135101	LG0030D.10-009	轴套	Sleeve	2
18	51207115214	GB/T5786	螺栓M12×1.25×30	Bolt M12×1.25×30	2
19	51401110107	GB/T93	垫圈12	Washer 12	2
20	51421110115	GB/T97.1	垫圈12	Washer 12	2
21	51210120215	GB/T5785	螺栓M14×1.5×50	Bolt M14×1.5×50	2
22	51401120107	GB/T93	垫圈14	Washer 14	2
23	30082109601	LG0030D.10-011	卡箍	Clamp	2
24	30082185000	LG0030D.10-012	箍座	Clamp seat	2
25	30082113900	LG0030D.10-013	橡胶垫	Rubber gasket	2
26	51309000319	GB/T6171	螺母M10×1.25	Nut M10×1.25	4
27	51401100107	GB/T93	垫圈10	Washer 10	4
28	51421100115	GB/T97.1	垫圈10	Washer 10	4
29	51309000519	GB/T6171	螺母M12×1.25	Nut M10×1.25	2
30	51207115614	GB/T5786	螺栓M12×1.25×50	Bolt M12×1.25×50	2

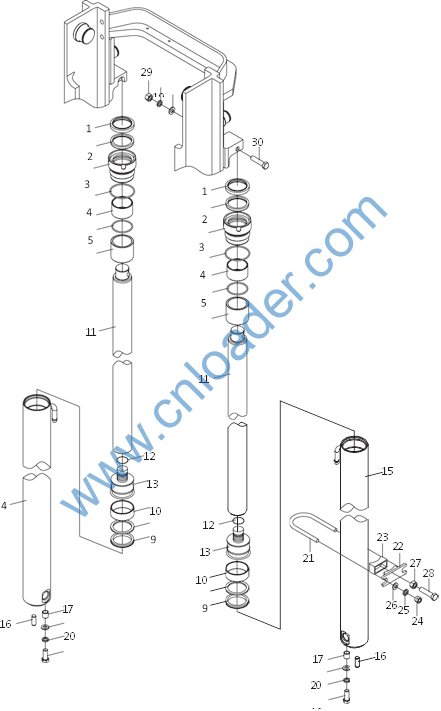

序号 Item No	编码 Code	图号 Part No	零部件名称 Description		数量 Q’ty	备注 Remark
A	16600015650	LG0030D.10B.02.05	左起升缸	Left lift cylinder	1
B	16600015660	LG0030D.10B.02.10	右起升缸	Right lift cylinder	1
1	56193001701		防尘圈45X57X7	Dust ring 45×57×7	2
2	56187010501		轴用密封圈45X55X7	Seal ring 45X57X7	2
3	36600031150	LGG030SS450H-02	导向套	Guide sleeve	2
4	56900009103	AS568	O形圈55.25X2.62	O-ring 55.25×2.62	2
5	52500002801		钢背轴承45X50X30	Steel-backed bearing	2
6	56145011401	GB/T3452.1	O形圈43.7X2.65	O-ring 43.7×2.65	2
7	36600071250	LGG030SS450H-03	间隔套	Spacer	2
8	56191003901		活塞密封圈56X45X8	Seal ring 56X45X8	2
9	56192015101		挡圈45X56X3	Snap ring 45×56×3	2
10	56199008201		支承环51X56X20	Pivot ring 51×56×20	2
11	36600043520	LGG030SS450H-01	活塞杆	Piston rod	2
12	51466240119	GB/T895.1	挡圈25	Snap ring 25	2
13	36600021200	LGG030SS450H-04	活塞	Piston	2
14	36600013670	LGG030SS450RH.01	右缸体	Right cylinder	1
15	36600012670	LGG030SS450LH.01	左缸体	Left cylinder	1
	36600061010	LGG030SS450H-05	缓冲套	Buffering sleeve	2
	51466230119	GB/T895.1	挡圈24	Snap ring 24	2
16	51513131502	GB/T119.1	圆柱销6X26	Cylindrical pin 6X26	2
17	30082135101	LG0030D.10-009	轴套	Sleeve	2
18	51207115314	GB/T5786	螺栓M12×1.25×35	Bolt M12×1.25×35	2
19	51401110107	GB/T93	垫圈12	Washer 12	4
20	51421110115	GB/T97.1	垫圈12	Washer 12	4
21	30082109601	LG0030D.10-011	卡箍	Clamp	2
22	30082185000	LG0030D.10-012	箍座	Clamp seat	2
23	30082113900	LG0030D.10-013	橡胶垫	Rubber gasket	2
24	51309000319	GB/T6171	螺母M10×1.25	Nut M10×1.25	4
25	51401100107	GB/T93	垫圈10	Washer 10	4
26	51421100115	GB/T97.1	垫圈10	Washer 10	4
27	51309000519	GB/T6171	螺母M12×1.25	Nut M10×1.25	2
28	51207115614	GB/T5786	螺栓M12×1.25×50	Bolt M12×1.25×50	2
29	51307001119	GB/T6170	螺母M12	NutM12	2
30	30014111102	30D-1400006	螺栓	Bolt	2

左缸 Left lift cylinder	右缸 Right lift cylinder	起升高度 Height	活塞杆 Piston rod	左缸体 Left cylinder body	右缸体 Right cylinder body	间隔套 Spacer
16600015590	16600015600	3600	36600043490	36600012640	36600013640	36600071220
16600015610	16600015620	4000	36600043500	36600012650	36600013650	36600071230
16600015630	16600015640	4350	36600043510	36600012660	36600013660	36600071240
16600015650	16600015660	4500	36600043520	36600012670	36600013670	36600071250
16600015670	16600015680	4700	36600043530	36600012680	36600013680	36600071260
16600015690	16600015700	4800	36600043540	36600012690	36600013690	36600071270
16600015710	16600015720	5000	36600043550	36600012700	36600013700	36600071280
16600015730	16600015740	5400	36600043560	36600012710	36600013710	36600071290
16600015750	16600015760	5500	36600043570	36600012720	36600013720	36600071300
16600015770	16600015780	6000	36600043580	36600012730	36600013730	36600071310
16600015790	16600015800	6500	36600043590	36600012740	36600013740	36600071320

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
A	16600087050	LGG035SS450LH	起升缸 Lift cylinder	1
B	16600087180	LGG035SS450RH	起升缸 Lift cylinder	1
1	56193001701		防尘圈45×57×7 Dust ring 45×57×7	2
2	56187010501		轴用密封圈45×55×7 Seal ring 45×55×7	2
3	36600030170	LGG035SS450H-02	导向套 Guide sleeve	2
4	56908025404	AS568	O形圈55.6×2.4 O-ring	2
5	52500002801		钢背轴承45×50×30 Steel-backed bearing	2
6	56145011401	GB/T3452.1	O形圈43.7×2.65 O-ring 43.7×2.65	2
7	36600070560	LGG035SS450H-03	间隔套 Spacer	2
8	56191005601		活塞密封圈60×50×7 Seal ring	2
9	56192040901		挡圈 50×60×3 Snap ring	2
10	56199017001		支承环55×60×15 Pivot ring	2
11	36600042830	LGG035SS450H-01	活塞杆 Piston rod	2
	36600020200	LGG035SS450H-04	活塞 Piston	2
12	36600012670	LGG030SS450LH.01	左缸体 Left cylinder	1	左缸体
	36600013670	LGG030SS450RH.01	右缸体 Right cylinder	1	右缸体
13	51513131502	GB/T119.1	圆柱销10×26 Cylindrical pin 10×26	2
14	30082135101	LG0030D.10-009	轴套 Shaft sleeve	2
15	51207115314	GB/T5786	螺栓M12×1.25×35 Bolt M12×1.25×35	2
16	51401110107	GB/T93	垫圈12 Washer 12	4
17	51421110115	GB/T97.1	垫圈12 Washer 12	4
18	30082109603	LG0035DIII.10-002	卡箍 Clamp	2
19	30082185000	LG0030D.10-012	箍座 Clamp seat	2
20	30082113900	LG0030D.10-013	橡胶垫 Rubber gasket	2
21	51309000319	GB/T6171	螺母M10×1.25 Nut M10×1.25	4
22	51401100107	GB/T93	垫圈10 Washer 10	4
23	51421100115	GB/T97.1	垫圈10 Washer 10	4
24	51309000519	GB/T6171	螺母M12×1.25 Nut M12×1.25	2
25	51207115614	GB/T5786	螺栓M12×1.25×50 Bolt M12×1.25×50	2
26	51307001119	GB/T6170	螺母M12 Nut M12	2
27	30014111102	30D-1400006	螺栓 Bolt	2

起升油缸(三级全自由)参数/Lift cylinder type (full free 3-stage mast)

左缸 Left lift cylinder	右缸 Right lift cyinder	起升高度 Height	活塞杆 Piston rod	左缸体 Left cylinder body	右缸体 Right cylinder body
16600087010	16600087140	3600	36600042800	36600014500	36600014630
16600087020	16600087150	4000	36600042810	36600014510	36600014640
16600087030	16600087160	4350	36600042820	36600014520	36600014650
16600087040	16600087170	4500	36600042830	36600014530	36600014660
16600087050	16600087180	4700	36600042840	36600014540	36600014670
16600087060	16600087190	4800	36600042850	36600014550	36600014680
16600087070	16600087200	5000	36600042860	36600014560	36600014690
16600087080	16600087210	5400	36600042870	36600014570	36600014700
16600087090	16600087220	5500	36600042880	36600014580	36600014710
16600087100	16600087230	6000	36600042890	36600014590	36600014720
16600087110	16600087240	6500	36600042900	36600014600	36600014730
16600087120	16600087250	7000	36600042910	36600014610	36600014740
16600087130	16600087260	7500	36600042920	36600014620	36600014750

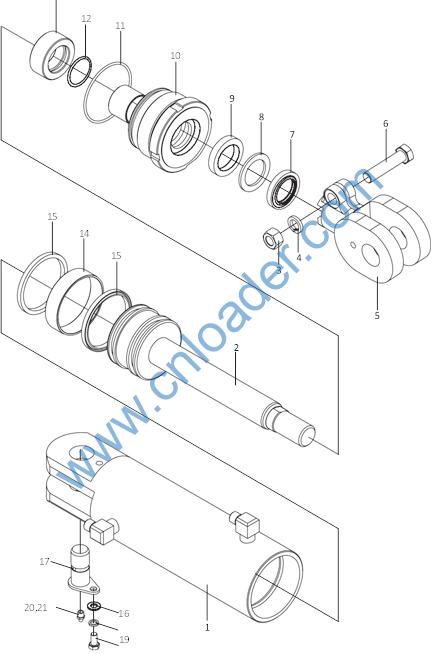

倾斜油缸总成/ Tilt cylinder assembly

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty
A	16600149270	LGG030IIIX6/12LH	3T左倾斜油缸6°/12° Left tilt cylinder	1	6°/12°
B	16600149280	LGG030IIIX6/12RH	3T右倾斜油缸6°/12° Right tilt cylinder	1	6°/12°
1	36600016421	LGG030IIIX6/12LH.01	左缸体 Left cylinder	1
	36600016431	LGG030IIIX6/12RH.01	右缸体 Right cylinder	1
2	36600045871	LGG030IIIX6/12H.02	活塞杆组件 Piston rod	2	6°/12°
3	51309000619	GB/T6171	螺母M14X1.5 Nut M14×1.5	2
4	51401120107	GB/T93	垫圈14 Washer 14	2
5	36600241010	LGG020X6/12H-04	杆头 Rod head	2
6	51210120314	GB/T5785	螺栓M14X1.5X55 Bolt M14×1.5×55	2
7	56193001801		防尘圈35X47X7 Dust ring 35×47×7	2
8	56192014801		挡圈35X45X3 Snap ring 35×45×3	2
9	56187019901		轴用密封圈35X45X9 Seal ring 35×45×9	2
10	36600031100	LGG035X6/12H-04	导向套 Guide sleeve	2
11	56908001204	JISB2401	O形圈74.4X3.1 O-ring 74.4×3.1	2
12	56908003104	JISB2401	O形圈34.4X3.1 O-ring 34.4×3.1	2	只3°/6°有
13	36600070750	LG0030DIII.10.08C-03	间隔套 Spacer	2	只3°/6°有
14	56199021001		支承环75X80X20 Pivot ring 75×80×20	2
15	56191001501		活塞密封圈80X70X7 Seal ring 80×70×7	4
16	51421090115	GB/T97.1	垫圈8 Washer 8	2
17	30080025001	LG0020D.10.03	销轴焊合 Pin shaft weldment	2
18	51204091014	GB/T5783	螺栓M8×20 Bolt M8×20	2
19	51401090107	GB/T93	垫圈8 Washer 8	2
20	56201000301	JB/T7940.1	油杯M10X1 Oil cup	2
21	60980005823	LG0030D.10-021	红色保护套 Red sheath	2

倾斜油缸参数/ Tilt cylinder Parameter

左缸 Left cylinder	右缸 Right cylinder	前/后倾角 Tilt angle	活塞杆组件 Piston	调整套 Adjusted spacer	备注 Remark
16600149270	16600149280	6º-12º	36600045871		2 – 2 . 5 T
16600149290	16600149300	6º-6º	36600047012	36600070352	3-3.5T
16600149310	16600149320	3º-6º	36600047012	36600071002

门架侧移管路(基本型)/Mast sideshift pipe(normal mast)

2– 2. 5T通用

高度 Lifting height	2000	2500	2750	3000	3300	3500	3750
序号7胶管 Hose,NO.7	XXXXXXXXX
高度 Lifting height	4000	4250	4500	5000	5500	6000
序号7胶管 Hose,NO.7
备注 Remark

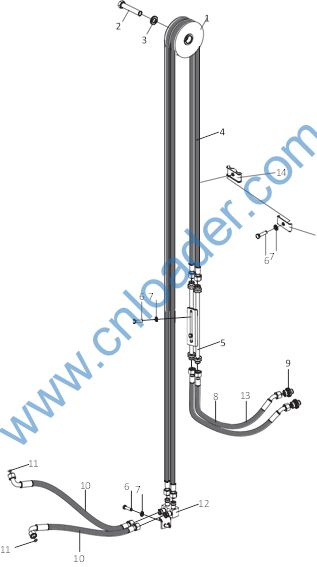

门架侧移管路(基本型)/Mast sideshift pipe(normal mast)

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
1	60700000379	LG0030D.10.13-005	滑轮 Pulley	2
2	51210132414	GB/T5785	螺栓M16×1.5×90 Bolt M16×1.5×90	1
3	51421130115	GB/T97.1	垫圈16 Washer 16	1
4	17272008562	20411-16T1K052630	胶管总成(L2630) Hose assembly	2
5	30082013340	LG0030DⅢ.10.10.03	钢管总成 Steel tube assembly	2
6	51204091214	GB/T5783	螺栓M8×30 Bolt M8×30	4	高度≥4m时5个
7	51401090107	GB/T93	垫圈8 Washer 8	4	高度≥4m时5个
8	17272007637	LG0030DⅢ.10.10.04	胶管总成 Hose assembly	2	多路阀在机罩处
9	30082008303	LG0030D.10B.11.06	过渡接头 Transition connector	2
10	17272005485	LG0030D.10A.03.06	胶管总成 Hose assembly	2
11	56145077501	GB/T3452.1	O形圈8×2.65 O-ring 8×2.65	2
12	30082071706	LG0025BⅢ.10.09.03	接头焊合 Connector weldment	1
13	17272006944	LG0030D.10B.11.15	胶管总成 Hose assembly	2	多路阀在前横板处
14	30012115000	LG0030D.10.13-004	支架 Hose assembly	1	高度≥4m
15	30082107802	LG0030D.10.13-003	管夹 Clip	1	高度≥4m

高度 Lifting height	3700	4000	4300	4500	4700	4800	5000
序号9胶管 Hose,NO.9	17272008722	17272008720	17272009217	17272009218	17272008726	17272008726	17272008557
高度 Lifting height	5250	5500	6000	6500	6700	7000	7500
序号9胶管 Hose,NO.9	17272008558	17272009219	17272008562	17272007667	17272007649	17272007650	17272009273
高度 Lifting height	8000	8500	9000
序号9胶管 Hose,NO.9	17272009633	17272008735	17272008736

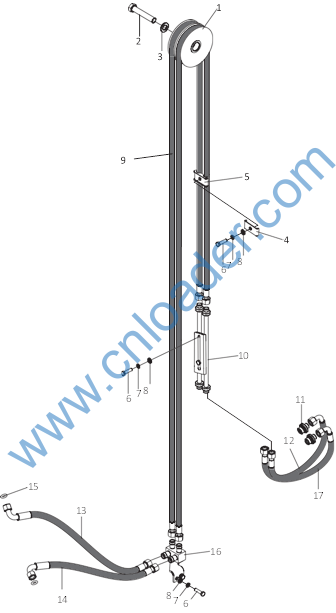

门架侧移管路(基本型)/Mast sideshift pipe(normal mast)

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
1	60700000379	LG0030D.10.13-005	滑轮总成 Pulley assembly	1
2	51210132414	GB/T5785	螺栓M16×1.5×90 Bolt M16×1.5×90	1
3	51421130115	GB/T97.1	垫圈16 Washer 16	1
4	30012115000	LG0030D.10.13-004	支架 Bracket	1	高度≥4m时
5	30082107802	LG0030D.10.13-003	管夹 Clip	1	高度≥4m时
6	51204091214	GB/T5783	螺栓M8×30 Bolt M8×30	4	高度≥4m时5个
7	51401090107	GB/T93	垫圈8 Washer 8	4	高度≥4m时5个
8	51421090115	GB/T97.1	垫圈8 Washer 8	4	高度≥4m时5个
9	17272008562	LG0030DⅢ.10.10.01	胶管总成(L2630) Hose assembly	2
10	30082013340	LG0030DⅢ.10.10.03	钢管总成 Steel tube assembly	1
11	30082008303	LG0030D.10B.11.06	过渡接头 Transition connector	2
12	17272007637	LG0030DⅢ.10.10.04	胶管总成 Hose assembly	2
13	17272005350	LG0025D.10.08.03	胶管总成 Hose assembly	1	多路阀在机罩处
14	17272008103	LG0025D.10.08.12	胶管总成 Hose assembly	1
15	56145077501	GB/T3452.1	O形圈8×2.65 O-ring 8×2.65	2
16	30082071704	LG0030DⅢ.10.10.05	接头焊合 Connector weldment	1
17	17272006944	LG0030D.10B.11.15	胶管总成 Hose assembly	2	多路阀在前横板处

门架侧移管路系统(基本型)/Side shifting pipeline system (Normal mast)

3.5T

高度 Lifting height	3200	3600	4000	4350	4500	4800	5000	5400
序号9胶管 Hose,NO.9	17272009121	17272008633	17272009173	17272009174	17272008635	17272008636	17272008637	17272009179
高度 Lifting height	6000	6500
序号9胶管 Hose,NO.9	17272009175	17272009176

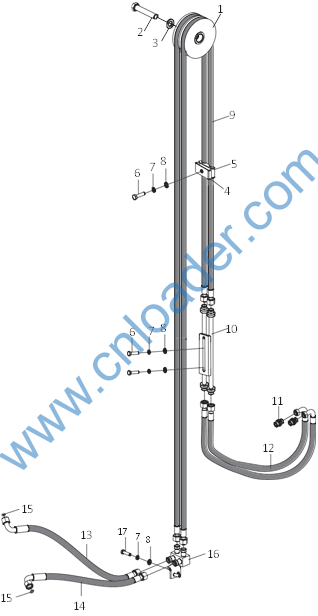

门架侧移管路系统(基本型)/Side shifting pipeline system (Normal mast)

序号 Item No	编码 Code	图号 Part No	零部件名称 Description	数量 Q’ty	备注 Remark
1	60700000379	LG0030D.10.13-005	滑轮总成 Pulley assembly	1
2	51210132414	GB/T5785	螺栓M16×1.5×90 Bolt M16×1.5×90	1
3	51421130115	GB/T97.1	垫圈16 Washer 16	1
4	30012115000	LG0030D.10.13-004	支架 Bracket	1	高度≥4m
5	30082107802	LG0030D.10.13-003	管夹 Clip	1	高度≥4m
6	51204091214	GB/T5783	螺栓M8×30 Bolt M8×30	2	高度≥4m时3个
7	51401090107	GB/T93	垫圈8 Washer 8	4	高度≥4m时5个
8	51421090115	GB/T97.1	垫圈8 Washer 8	4	高度≥4m时5个
9	17272008635	LG0035DⅢ.10.06.01	胶管总成(L2750) Hose assembly	2
10	30082013300	LG0030D.10.13.02	钢管总成 Steel tube assembly	2
11	17601000221	LG0030D.10A.03-001	过渡接头 Transition connector	2
12	17272005537	LG0025D.10.08.05	胶管总成 Hose assembly	2
13	17272005350	LG0025D.10.08.03	胶管总成 Hose assembly	1
14	17272008103	LG0025D.10.08.12	胶管总成 Hose assembly	1
15	56145077501	GB/T3452.1	O形圈8×2.65 O-ring 8×2.65	2
16	30088071700	LG0100DT.10.10.07	接头焊合 Connector weldment	1
17	51204091014	GB/T5783	螺栓M8×20 Bolt M8×20	2

高度 Lifting height	2000	2500	2750	3000	3300	3500	3750
序号6导向槽 Guide slot,NO.6	30082185429	30082185431	30082185433	30082185428	30082185435	30082185436	30082185439
序号9胶管 Hose,NO.9	17272009633	17272009634	17201000012	17272009635	17201000013	17272009402	17272009402
序号10导向槽 Guide slot,NO.10	30082185448	30082185450	30082185452	30082185447	30082185454	30082185455	30082185458
高度 Lifting height	4000	4250	4500
序号6导向槽 Guide slot,NO.6	30082185440	30082185441	30082185442
序号9胶管 Hose,NO.9	17272009609	17272009610	17272009610
序号10导向槽 Guide slot,NO.10	30082185459	30082185460	30082185461

序号 Item No	编码 Code	图号 Part No	零部件名称 Description		数量 Q’ty	备注 Remark
1	30082071701	LG0030D.10B.11.01	接头焊合	Connector weldment	1
2	51139210305	GB/T70.1	螺钉M8×16	Screw M8×16	2
3	51401090107	GB/T93	垫圈8	Washer 8	8
4	17272005485	LG0030D.10A.03.06	胶管总成	Hose assembly	2
5	56145077501	GB/T3452.1	O形圈8×2.65	O-ring 8×2.65	2
6	30082185428	LG0025BⅢ.10A.04-003	导向槽	Guide slot	1
7	51204091014	GB/T5783	螺栓M8×20	Bolt M8×20	6
8	51421090115	GB/T97.1	垫圈8	Washer 8	6
9	17272009635	LG0025BⅢ.10A.04.02	胶管总成	Hose assembly	2
10	30082185447	LG0025BⅢ.10A.04-004	导向槽	Guide slot	1
11	30082185208	LG0030D.10B.11-002	滑轮	Pulley	2
12	30082120202	LG0030D.10B.11.02-002	轴	Shaft	1
13	51204091214	GB/T5783	螺栓M8×30	Bolt M8×30	3
14	51420100121	GB/T96.1	垫圈10	Washer 10	3
15	51307000919	GB/T6170	螺母M8	Nut M8	3
16	30082086400	LG0025BⅢ.10A.04.03	管夹	Clip	2
17	30082150900	LG0030D.10B.11-005	连杆	Linkage	2
18	51312000719	GB/T6173	螺母M16×1.5	Nut M16×1.5	4
19	17272007637	LG0030DⅢ.10.10.04	胶管总成	Hose assembly	2	多路阀安装在机罩处
20	30082008303	LG0030D.10B.11.06	过渡接头	Transition connector	2
21	17272006944	LG0030D.10B.11.15	胶管总成	Hose assembly	2	多路阀安装在前横板处

高度 Lifting height	2000	2500	3000	3300	3500	3750	4000
序号6导向槽 Guide slot,NO.6	30082083857	30082083858	30082083859	30082083860	30082083861	30082083862	30082083863
序号13胶管 Hose,NO.13	17272009214	17272009215	17272009216	17272009217	17272009218	17272008727	17272009219
序号18导向槽 Guide slot,NO.18	30082185414	30082185415	30082185416	30082185417	30082185418	30082185419	30082185420
序号19胶管 Hose,NO.19	17272009228	17272009229	17272009230	17272009231	17272009231	17272009232	17272009232
序号27胶管 Hose,NO.27	17272009220	17272009221	17272009222	17272009223	17272009223	17272009224	17272009224

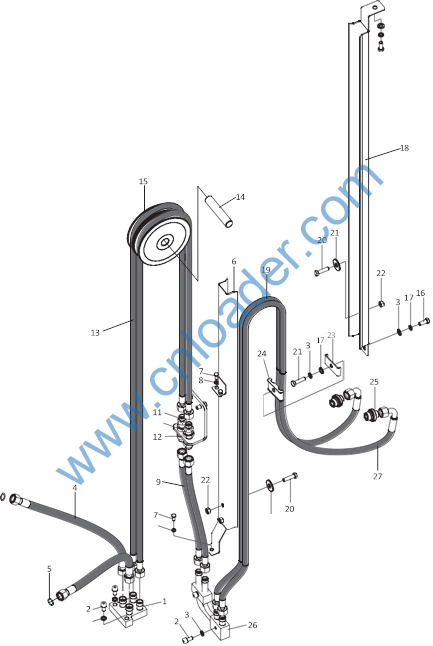

序号 Item No	编码 Code	图号 Part No	零部件名称 Description		数量 Q’ty	备注 Remark
1	30082071701	LG0030D.10B.11.01	接头焊合	Connector weldment	1
2	51139210405	GB/T70.1	螺钉M8×20	Screw M8×16	4
3	51401090107	GB/T93	垫圈8	Washer 8	9
4	17272005485	LG0030D.10A.03.06	胶管总成	Hose assembly	2
5	56145077501	GB/T3452.1	O形圈8×2.65	O-ring 8×2.65	2
6	30082083859	LG0030DIII.10A.03.03	导向槽焊合	Guide slot	1
7	51204080814	GB/T5783	螺栓M6×12	Bolt M6×12	3
8	51401080107	GB/T93	垫圈6	Washer 6	3
9	17272006938	LG0030D.10B.11.10	胶管总成	Hose assembly	2
10	30082107644	LG0030D.10B.11-001	固定板	Plate	1
11	30082150900	LG0030D.10B.11-005	连杆	Lever	2
12	51312000719	GB/T6173	螺母M16×1.5	Nut M16×1.5	4
13	17272009216	LG0030DIII.10A.03.01	胶管总成	Hose assembly	2
14	30082120202	LG0030D.10B.11.02-002	轴	Shaft	1
15	30082185208	LG0030D.10B.11-002	滑轮	Pulley	2
16	51204091014	GB/T5783	螺栓M8×20	Bolt M8×20	4
17	51421090115	GB/T97.1	垫圈8	Washer 8	5
18	30082185416	LG0030DIII.10A.03.02	导向槽	Guide slot	1
19	17272009230	LG0030DIII.10A.03.08	胶管总成	Hose assembly	2
20	51204091314	GB/T5783	螺栓M8×35	Bolt M8×35	4
21	51420100121	GB/T96.1	垫圈10	Washer 10	3
22	51307000919	GB/T6170	螺母M8	Nut M8	3
23	30012115000	LG0030D.10.13-004	支架	Bracket	1
24	30082107802	LG0030D.10.13-003	管夹	Clip	1
25	30082008303	LG0030D.10B.11.06	过渡接头	Transition connector	2
26	30082013347	LG0030DⅢ.10A.03.05	钢管总成	Steel tube assembly	1
27	17272009222	LG0030DⅢ.10A.03.04	胶管总成(L2900)	Hose assembly	2
