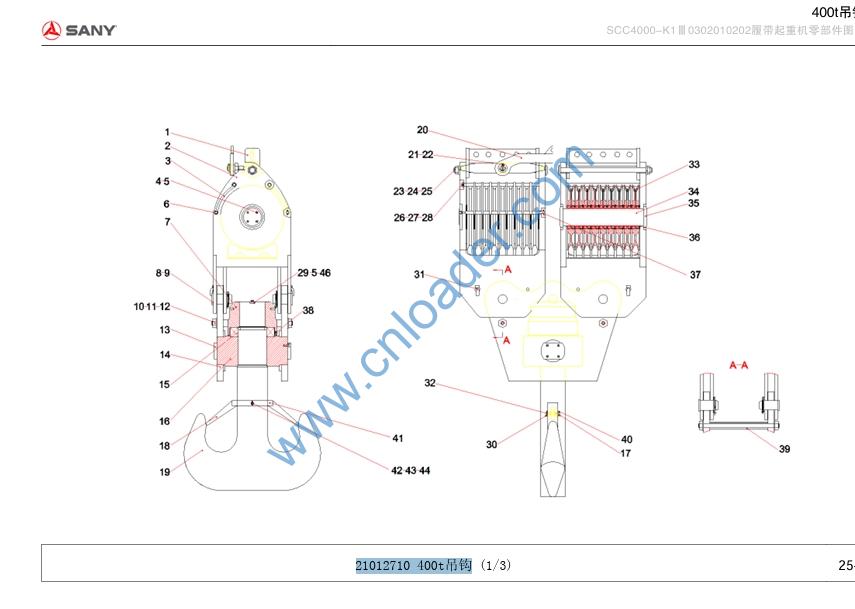

21012710 400t hook

21012710 400t hook

1 21012385 hanging board 2
2 21012388 Pulley rack 2
3 21012395 rope block 4
4 A210204000198 screw M16×35GB70.1 10.9 level 24
5 A210401000004 gasket 16GB93 26
6 21012369 Casing 4
7 21012370 Nut 1
8 21012371 Pin 4
9 21012138 Pin Pin 4
10 21012372 Stud M42 2
11 A210307000011 Nut M42GB6170 Level 10 4
12 A210401000014 Washer 42GB93 4
13 21012373 Hook shaft end cover 2
14 21012396 Hook pull plate 2
15 60031394 rolling bearing 89356 (GB4663) 1
16 21012374 Hook pulling block 1
17 21012375 spring 2
18 21012376 Baffle 2
19 21012377 Hook (400t) 1
20 10425157 shoulder pole 1
21 10425187 Gasket 2
22 A210491000029 pin 8×90GB91 2

23 10426327 Stud M48 2
24 A210307000039 Nut M48GB6170 Level 10 2
25 A210401000038 Washer 48GB93 2
26 21012379Stud M24 4
27 A210307000030 nut M24GB6170 8
28 A210401000008 Washer 24GB93 8
29 10990565 pressure plate 1
30 A210491000019 pin 5×40GB91 12
31 21012399Latch 4
32 21012381 Baffle pin 2
33 21012342 Pulley assembly 18
34 21012382 Pulley shaft 2
35 21012318 Pulley shaft end cover 4
36 21012383 sleeve 4
37 21020636 round steel 4
38 A210804000002 oil cup 1
39 21012384 Casing 2
40 21006383 pin 2
41 10770411 Anti-decoupling device 2
42 A210111000119 bolt M12×45GB5783 10.9 level 2
43 A210405000001 Washer 12GB97.1 2
44 A210307000031 Nut M12GB6170 Level 10 2
