STC800S Truck Crane TC2080BH2776 SANY DP

admin 2024-08-03

Item No.	Part No.	Description	Qty.	Remark

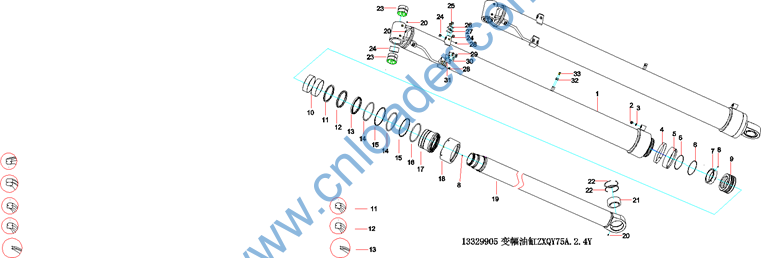

1	13784193	Barrel Assembly	1
2	A210333000013	Plug, Screw	1
3	A210434000013	Washer 27JB982	1
4	A880803040015	Ring, Wear	1
5	13789194	Seal	1
6	A210609000260	O-ring 190×5.3GB3452.1	2
7	12492302	Nut	1
8	A210208000008	Screw	2
9	13784190	Piston	1
10	13537241	Bushing	2
11	13599593	Seal, GSJ	1
12	60319805	Seal	1
13	60319802	Seal, Dust	1
14	A210609000219	O-ring	2
15	10882547	Ring, Snap	2
16	60012339	O-ring	1
17	13784187	Sleeve, Guide	1
18	13784191	Nut	1
19	10882563	Rod Assembly	1
20	A210804000002	Fitting, Grease	3
21	A210612000027	Bearing	1
22	A210416000013	Ring, Snap	2

Item No.	Part No.	Description	Qty.	Remark
23	13329780	Bearing	2
24	13784254	Bushing, Spacer	1
25	B210780000799	Plug, Screw	2
26	A210111000125	Bolt	4
27	10198388	Plate, Guard	1
28	10198389	Cushion, Guard	1
29	B210780000164	Plug, screw	2
30	A880801020006	Bolt	4
31	11596549	Plate, Guard	1
32	11596541	Cushion, Guard	1
33	A210204000162	Screw	2

Item No.	Part No.	Description	Qty.	Remark

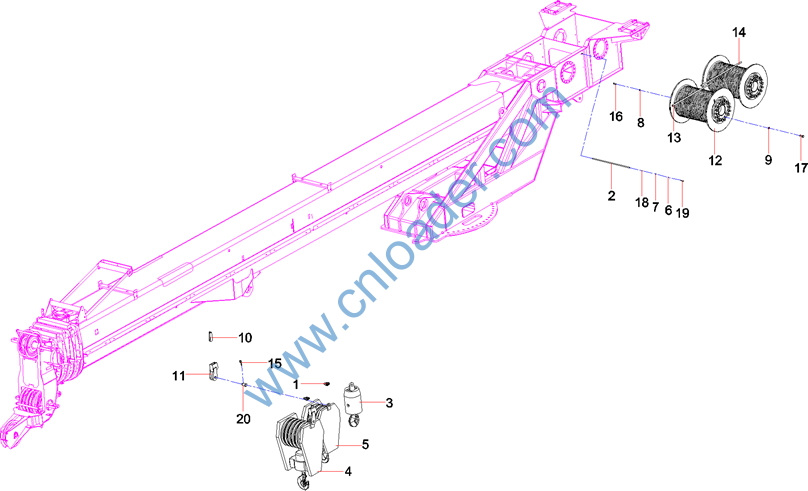

1	A219900000037	Clamp	2
2	13835789	Bar, Tie	2
3	11140142	Overhaul Ball	1
4	10663947	Hook Block	1
5	10680651	Hook block GP	1
6	A210401000017	Washer	4
7	A210405000007	Washer	4
8	A210401000002	Washer	12
9	A210401000006	Washer	32
10	21006584	Wedge	2
11	21006591	Socket, Wedge	2
12	60012675	Hoist Drive Assembly	2
13	13371484	Wire Rope	1
14	13371516	Wire Rope	1
15	A829900002661	Clip	2
16	A210111000204	Bolt	12
17	A210111000061	Bolt	32
18	A210307000012	Nut	4
19	A210111000095	Bolt	4
20	13339647	Pin, A0	2

Item No.	Part No.	Description	Qty.	Remark

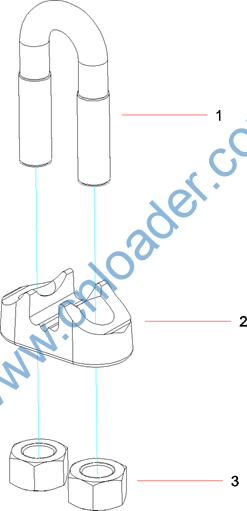

1	10351919	Bolt, U-type	1
2	10351920	Retainer	1
3	A210307000004	Nut	2

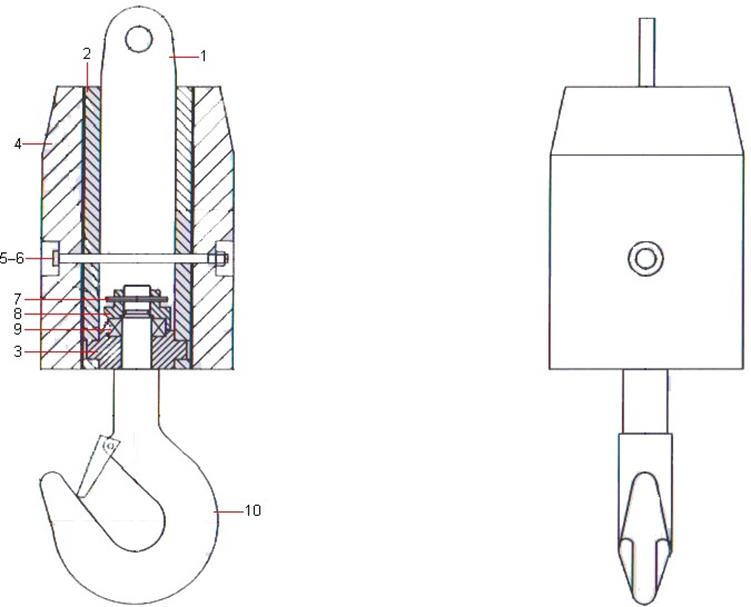

Item No.	Part No.	Description	Qty.	Remark
1	60167915	Plate, hanging	1
2	60167930	Riser	1
3	60167924	Beam, cross	1
4	60168075	Counterweight	1
5	60168071	Bolt	1
6	A210307000005	Nut	1
7	A210501000015	Pin	1
8	10137989	Nut	1
9	A210651000026	Bearing, Roller	1
10	10137968	Hook Assembly, Ball	1

Item No.	Part No.	Description	Qty.	Remark

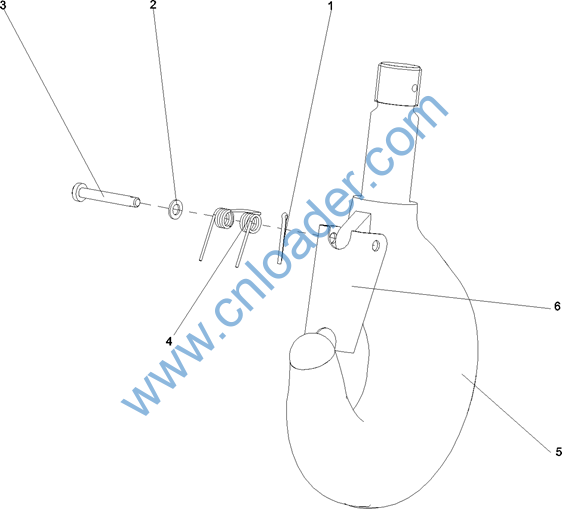

1	A210501000035	Pin	1
2	A210405000007	Washer	1
3	10137962	Pin	1
4	10137956	Spring	1
5	10009334	Hook	1
6	10009336	Latch	1

Item No.	Part No.	Description	Qty.	Remark
1	A210804000002	Fitting, Grease	3
2	21026568	Bearing	1
3	24000618	Washer	4
4	A210301000011	Nut	4
5	A210401000002	Washer	13
6	A210111000040	Bolt	12
7	60159841	Bearing	12
8	A210416000011	Ring, Snap	6
9	A210307000001	Nut	1
10	60159834	Hook	1
11	60159869	Plate, Right Side	1
12	60159854	Lock Plate	4
13	60159837	Housing, Main Hook	1
14	60159871	Nut	1
15	60159865	Sleeve	4
16	60159855	Sheave	6
17	60159851	Spacer Ring	5
18	60159858	Pin	1
19	60159850	Spacer Ring	2
20	60159846	Lug, Lifting	1
21	60159879	Plate, Left Side	1
22	60159875	Bolt	1

Item No.	Part No.	Description	Qty.	Remark
23	60159876	Bolt	4
24	60159840	Spacing Ring	1
25	60159882	Nameplate	1
26	60159860	Lock Plate	2

Item No.	Part No.	Description	Qty.	Remark

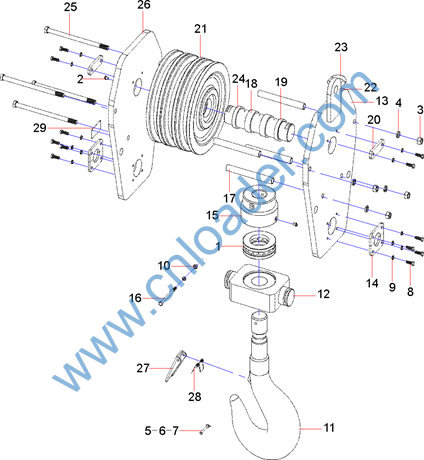

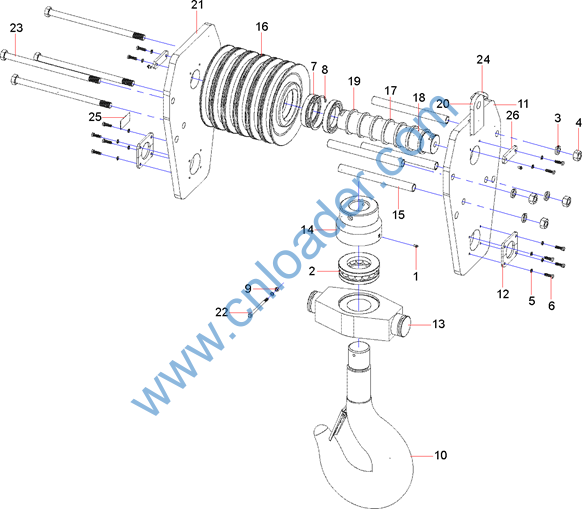

1	A210605000046	Bearing	1
2	A210804000002	Fitting, Grease	2
3	A210307000005	Nut	4
4	A210401000006	Washer	4
5	A210491000014	Pin 3.2×20GB91	1
6	60159866	Pin	1
7	A210405000007	Washer	1
8	A210111000039	Bolt	12
9	A210401000002	Washer	13
10	A210307000001	Nut	1
11	60159833	Hook	1
12	60159835	Housing, Main Hook	1
13	60159867	Plate, Right Side	1
14	60159852	Lock Plate	4
15	60159870	Nut	1
16	60159873	Bolt	1
17	60159863	Sleeve	4
18	60159848	Separating Collar	2
19	60159856	Pin	1
20	60159859	Lock Plate	2
21	60159861	Sheave Assembly	3
22	60159844	Lug, Lifting	1

Item No.	Part No.	Description	Qty.	Remark
23	60159838	Guide, Wire Rope	1
24	60159847	Separating Collar	2
25	60159872	Bolt	4
26	60159877	Plate, Left Side	1
27	60159843	Baffle	1
28	60159842	Spring	1
29	60159880	Nameplate	1

Item No.	Part No.	Description	Qty.	Remark

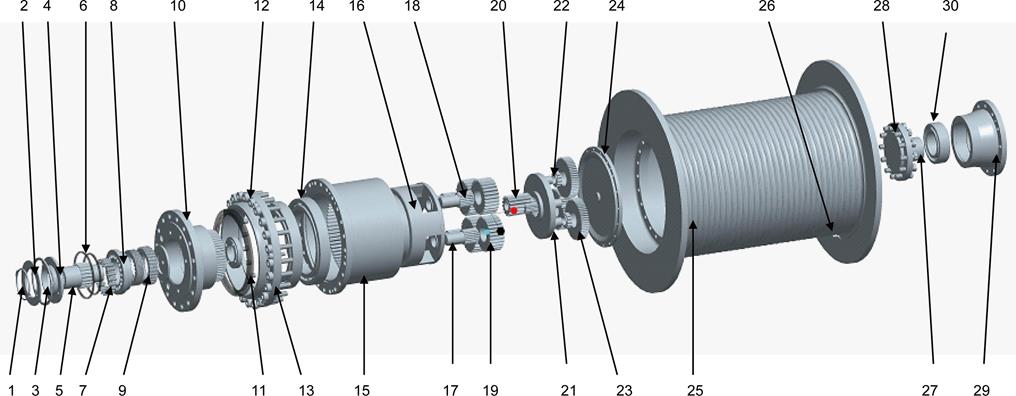

1	60275680	Baffle	1
2	60275662	Pressure Cover	1
3	60275681	Hole Baffle	1
4	60275661	Block Plate	1
5	60275659	Adapter, Spline	1
6	60275664	Seal	1
7	60275665	Spring	1
8	60275660	Piston,Engine	1
9	60275663	Friction Plate	1
10	60275674	Left Bearing	1
11	60275682	Seal	1
12	60275683	Bolt	1
13	60275673	Bearing Support	1
14	60275685	Bearing	1
15	60275667	Gear Ring	1
16	60275668	Big Planetary Carrier	1
17	60275672	Planetary Shaft	1
18	60275686	Bearing	1
19	60275670	Gear, Planet	1
20	60275666	Centre Gear	1
21	60275669	Small Planetary Carrier	1
22	60275687	Bearing	1

Item No.	Part No.	Description	Qty.	Remark
23	60275671	Gear, Planet	1
24	60275675	Cover	1
25	60275678	Roller	1
26	60275679	Rope Wedge	1
27	60275676	Bearing Shaft	1
28	60275684	Bolt	1
29	60275688	Bearing	1
30	60275677	Bearing Holder	1

Item No.	Part No.	Description	Qty.	Remark

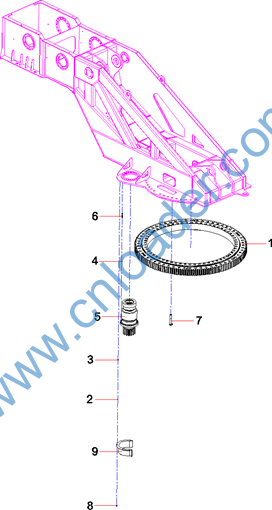

1	12677144	Slewing ringSSm1700/60CHH	1
2	A210401000017	Washer	3
3	A210405000007	Washer	3
4	A210401000002	Washer	24
5	12291235	Swing Drive Assembly	1
6	A210204000027	Screw M12×70GB70.1	24
7	A210110000196	Bolt	59
8	A210111000088	Bolt	3
9	10663895	Guard, Pinion	1

Item No.	Part No.	Description	Qty.	Remark

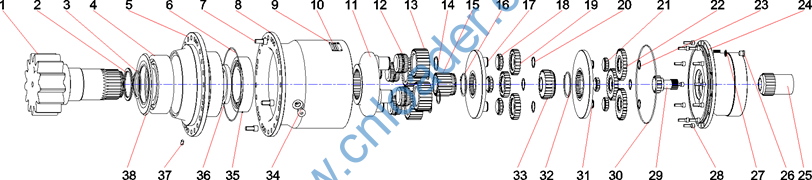

1	11399325	Shaft, Gear, Output	1
2	11399332	Ring, Retainer	1
3	A210414000009	Ring, Snap	1
4	60064297	Bearing, Roller	1
5	12929329	Flange	1
6	60024971	O-ring	1
7	A210204000167	Screw	4
8	11399330	Gear, Ring	1
9	12498088	Rivet	4
10	12295416	Name plate	1
11	12929511	Carrier , Planet	1
12	60058816	Bearing	4
13	11399334	Gear , Planet	4
14	A210414000029	Ring, Snap	4
15	11399333	Gear , Sun	1
16	A210414000065	Ring, Retainer	1
17	11399547	Carrier Ⅱ, Planet	1
18	60064295	Bearing	3
19	11399336	Gear Ⅱ, Planet	3
20	A210414000006	Ring, Snap	3
21	60064296	Bearing	3
22	11665431	Gear Ⅰ, Planet	3

Item No.	Part No.	Description	Qty.	Remark
23	A210414000104	Ring, Retainer	3
24	12291280	Brake Assembly	1
25	12291275	Adapter, Spline	1
26	24003146	Plug, Screw	1
27	A210434000007	Washer	1
28	A210204000341	Screw	12
29	11665547	Gear Ⅰ, Sun	1
30	60024972	O-ring	1
31	11665419	Carrier Ⅰ, Planet	1
32	A210414000102	Ring, Retainer	1
33	11399335	Gear Ⅱ, Sun	1
34	B210399000005	Plug, Screw	2
35	60115997	Bearing	1
36	B230101000449	Seal, Oil	1
37	A210206000004	Screw	1
38	11399328	Retainer Ring, Dust	1

Item No.	Part No.	Description	Qty.	Remark

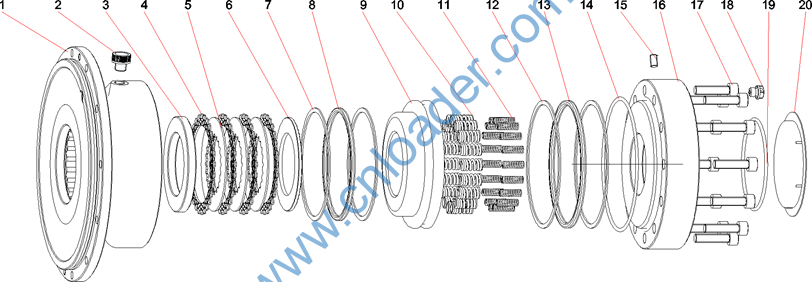

1	12929349	Housing, Brake	1
2	12702519	Plug	1
3	11352810	Spacer	1
4	11352811	Disc, Friction	4
5	11352812	Disc, Friction	3
6	11352813	Shim	1
7	60206087	Ring, Retainer	2
8	60206086	Seal	1
9	11352814	Piston	1
10	A820209010113	Spring	18
11	A820209010114	Spring	18
12	60061369	Ring, Retainer	2
13	B230101001818	Seal	1
14	A31C214500355	O-ring	1
15	A210206000004	Screw	1
16	12291272	Cap	1
17	A210204000355	Screw	12
18	60210955	Cap, Breather	1
19	24000548	O-ring	1
20	12392108	Cap, Dust	1

Item No.	Part No.	Description	Qty.	Remark

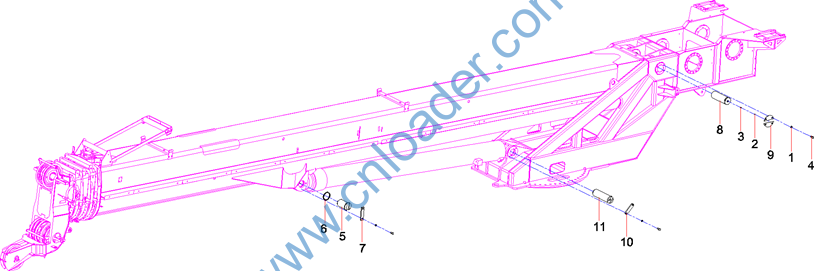

1	A210401000006	Washer	14
2	A290000001564	Cap, Grease Fitting	2
3	A210804000002	Fitting, Grease	2
4	A210111000220	Bolt	14
5	13335436	Pin, F0	1
6	A820202003976	Spacer Ring	2
7	13399684	Lock Plate	1
8	13338254	Pin, E2	2
9	11086846	Lock Plate	4
10	11167411	Lock Plate	2
11	13404444	Pin, E1	1

Item No.	Part No.	Description	Qty.	Remark

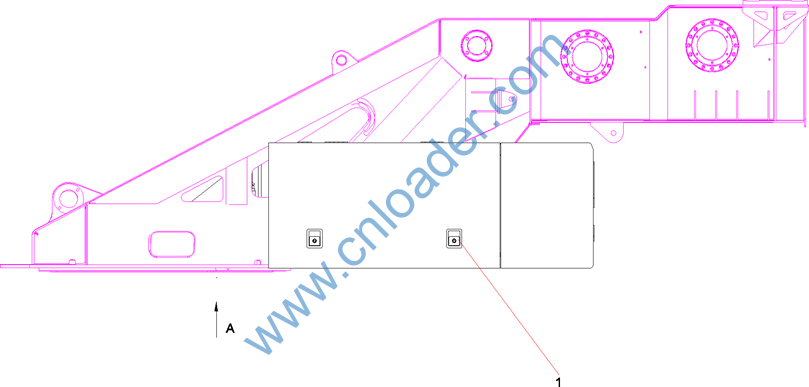

1	A222200000042	Latch, cover	4

Item No.	Part No.	Description	Qty.	Remark

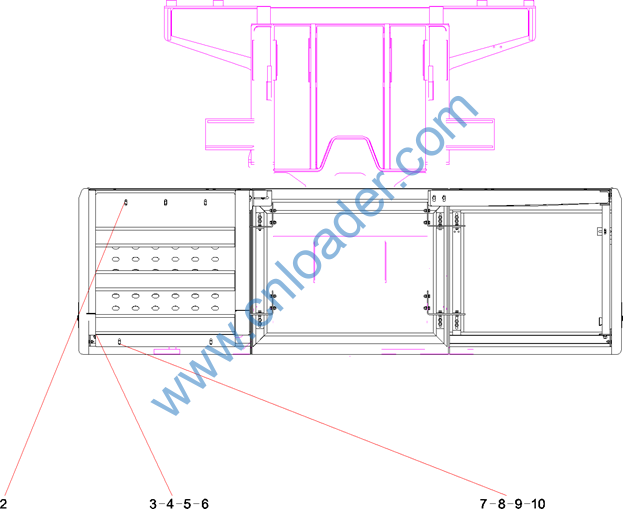

2	A210111000092	Bolt	3
3	A210401000017	Washer	50
4	A210307000012	Nut	50
5	A210111000090	Bolt	47
6	A210405000007	Washer	100
7	A210401000001	Washer	18
8	A210405000011	Washer	36
9	A210111000018	Bolt	18
10	A210307000017	Nut	18

Item No.	Part No.	Description	Qty.	Remark

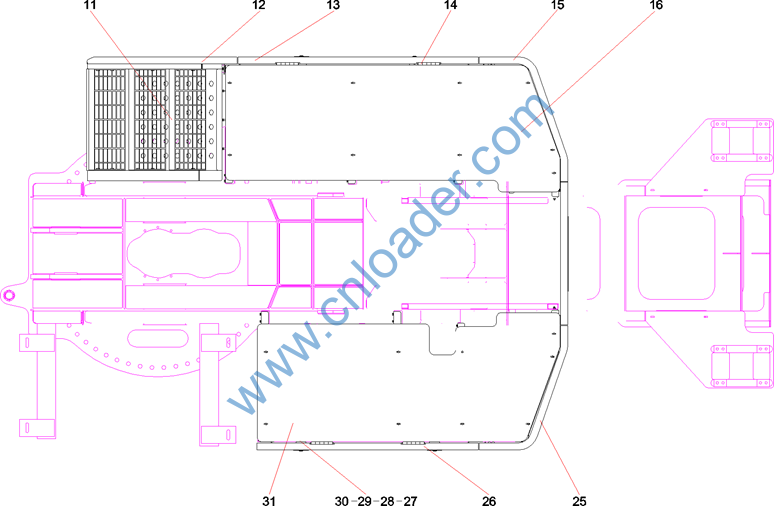

11	12445424	Main tower ladderA1103.2.8.5	1
12	12445436	Footstep side sealing board componentA11	1
13	12445441	Right middle brattice componentA1103.2.8	1
14	10037154	Hinge GP	6
15	12445447	Right back brattice componentA1103.2.8.8	1
16	12622022	Right Upper Cover Plate	1
25	12445389	Left back brattice componentA1103.2.8.10	1
26	12445395	Left brattice componentA1103.2.8.11	1
27	A210405000006	Washer	52
28	A210401000016	Washer	26
29	A210111000081	Bolt	26
30	A210307000016	Nut	26
31	12622023	Left Upper Cover Plate	1

Item No.	Part No.	Description	Qty.	Remark

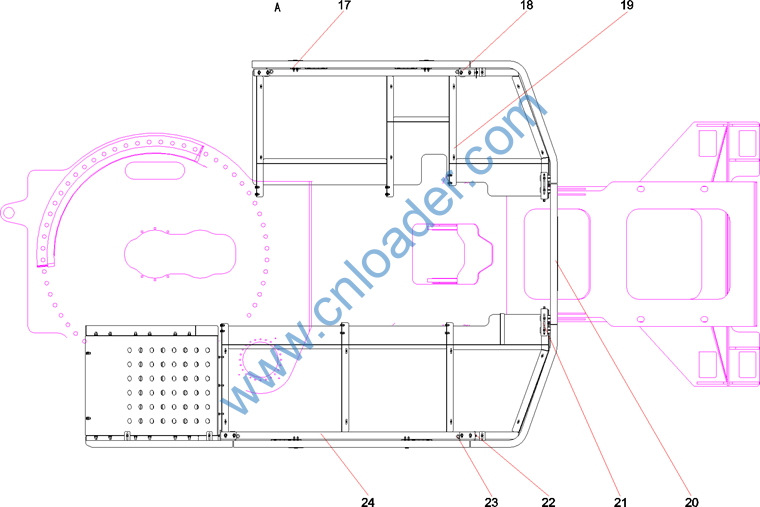

17	12445380	Locker A1103.2.8-3	4
18	12445407	Support component2A1103.2.8.2	2
19	12445415	Left cover plate support componentA1103.	1
20	12445455	Back brattice componentA1103.2.8.9	1
21	12274904	Rear brattice stay	4
22	12445387	Support component1 A1103.2.8.1	2
23	60193903	Power support	4
24	12445422	Right cover plate support componentA110	1

Item No.	Part No.	Description	Qty.	Remark

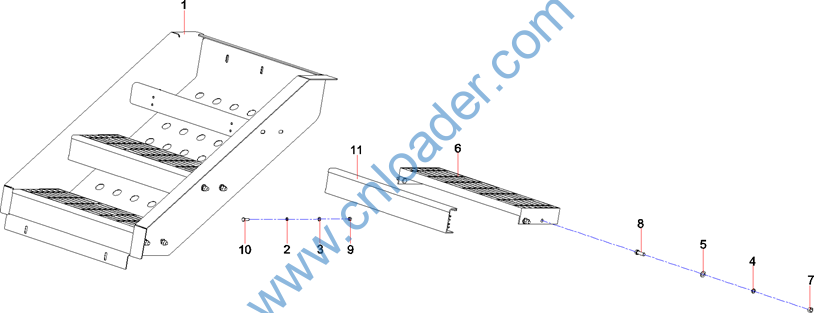

1	12445429	Main tower frameA1103.2.8.5.1	1
2	A210401000017	Washer	12
3	A210405000007	Washer	12
4	A210401000002	Washer	12
5	A210405000001	Washer	12
6	12445423	Aluminum alloy grid plateA1103.2.8.5-1	3
7	A210307000001	Nut	12
8	A210111000039	Bolt	12
9	A210307000012	Nut	12
10	A210111000090	Bolt	12
11	10125838	Channel, Bar, Aluminum	3

Item No.	Part No.	Description	Qty.	Remark

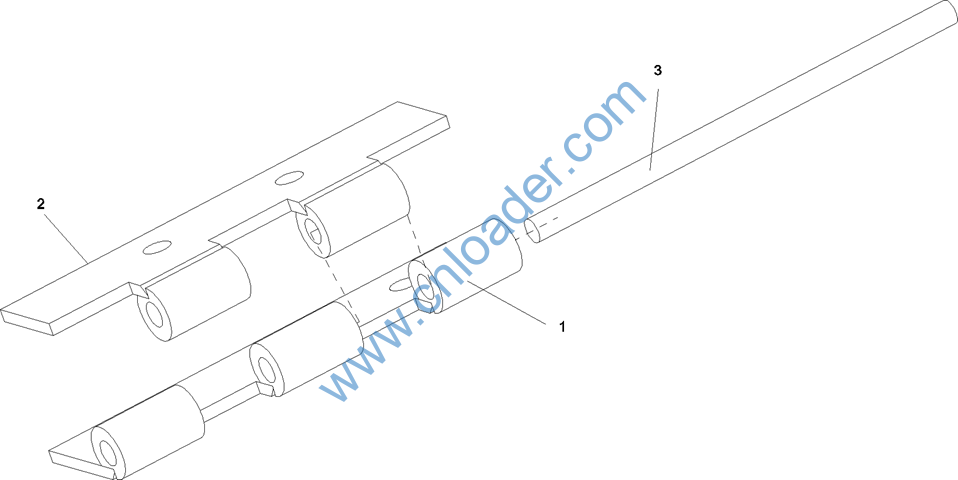

1	10037149	Large hinge GP	1
2	10037151	Small hinge GP	1
3	10037152	Shaft, pin	1

Item No.	Part No.	Description	Qty.	Remark

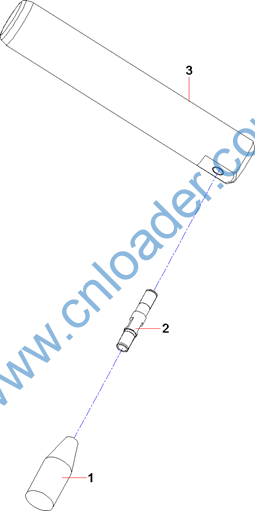

1	A219900000089	Knob	1
2	10138909	Stud	1
3	13000760	turntable locking boltSTC750S.2.3-1	1

Item No.	Part No.	Description	Qty.	Remark

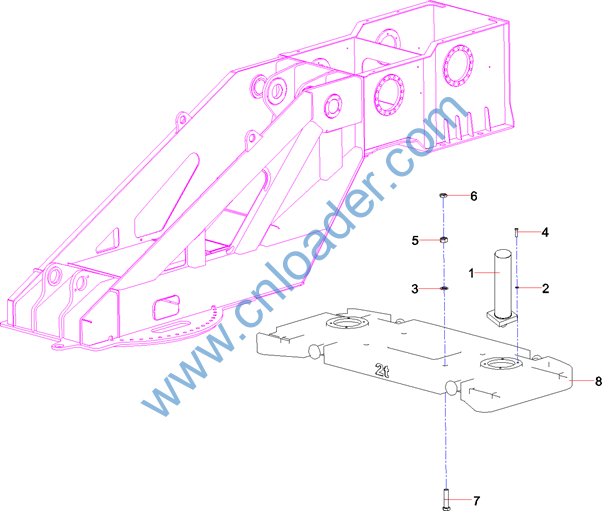

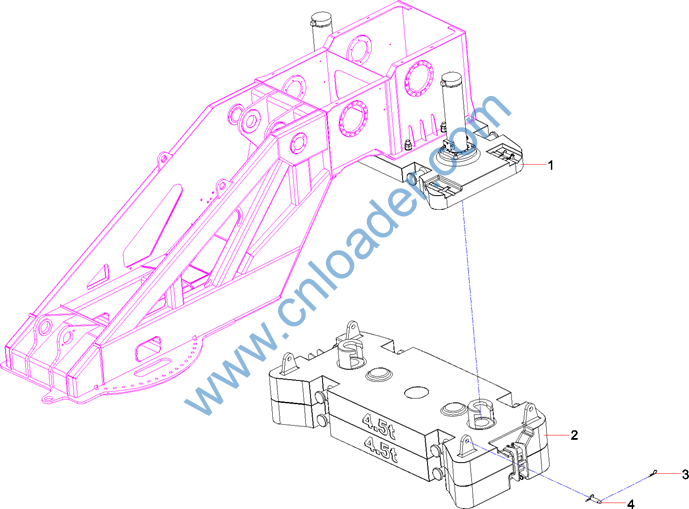

1	13503744	Fixed counterweight assembly STC800S-D2C	1
2	13502539	additional counterweight STC800S-D2C.2.4	1
3	10137517	Clip	8
4	13337293	Pin XZ30X100.D12	4
