Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A210401000001 |
Washer |
2 |
|
|
2 |
A210405000011 |
Washer |
4 |
|
|
3 |
60333703 |
Motor, Gear |
1 |
|
|
4 |
B210780000036 |
Fitting, adapter |
1 |
|
|
5 |
B210780000131 |
Fitting, Adapter |
2 |
|
|
6 |
A210111000028 |
Bolt |
2 |
|
|
7 |
A210319000001 |
Nut |
2 |
|

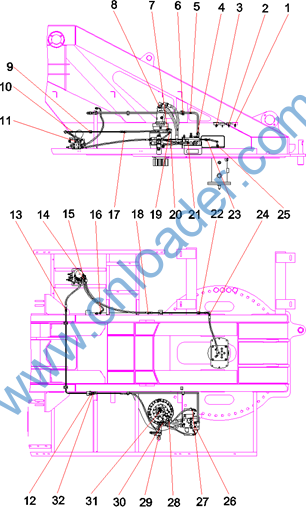

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B250100000110 |
Gauge, Hydrauilc Pressure |
1 |
|
|
2 |
B250100000109 |
Gauge, Hydrauilc Pressure |
2 |
|
|
3 |
B250100000108 |
Gauge, Hydrauilc Pressure |
1 |
|
|
4 |
B210780000028 |
Fitting, Elbow |
4 |
|
|
5 |
13460851 |
Steel tube assembly STC750S-D5.4.4.2 |
1 |
|
|
6 |
A229900002420 |
Clamp, Tube, Single |
3 |
|
|
7 |
B210780001286 |
Fitting, adapter |
2 |
|
|
8 |
A229900002581 |
Fitting, Adapter |
2 |
|
|
9 |
A229900002415 |
Clamp, Tube, Single |
3 |
|
|
10 |
13460821 |
steel tube assembly STC750S-D5.4.4.1 |
1 |
|
|
11 |
11179961 |
Valve Assembly, Pilot, Control |
1 |
|
|
12 |
60202487 |
Nut |
96 |
|
|
13 |
24004634 |
Fitting, Adapter |
2 |
|
|
14 |
B210780000015 |
Fitting, Tee |
2 |
|
|
15 |
60029802 |
Hose Assembly, Pressure Measure |
2 |
|
|
16 |
B230103000481 |
Rubber hose 2SN8-DKOL-DKOL90-850 |
1 |
|
|
17 |
B230103000122 |
Hose Assembly |
1 |
|
|
18 |
B230103000463 |
Rubber hose 2SN08-DKOL-DKOL90-1100 |
1 |
|
|
19 |
B230103001462 |
Hose Assembly |
1 |
|
|
20 |
13460720 |
Steel tube assembly STC750S-D5.4.2.3 |
1 |
|
|
21 |
B230103000473 |
Hose Assembly 2SN8-DKOL-DKOL90-500 Q/SY |
1 |
|
|
22 |
B210851000001 |
Clamp, Tube, Single |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
21008727 |
Fitting, Adapter |
2 |
|
|
24 |
B210780000636 |
Fitting, elbow |
1 |
|
|
25 |
B210780000036 |
Fitting, adapter |
1 |
|
|
26 |
13331432 |
Swing control valve |
1 |
|
|
27 |
B230103000474 |
Rubber hose 2SN08-DKOL-DKOL90-550 |
3 |
|
|
28 |
B230103001377 |
Hose Assembly |
1 |
|
|
29 |
12393903 |
Block Assembly, Swing Control |
1 |
|
|
30 |
B230103001193 |
Hose Assembly |
1 |
|
|
31 |
11550766 |
Motor Assembly, Piston |
1 |
|
|
32 |
24004578 |
Connector |
1 |
|

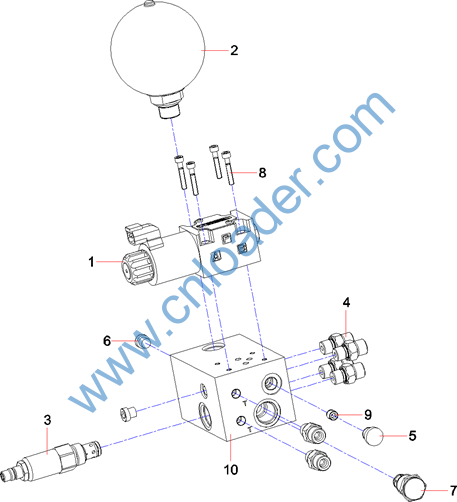

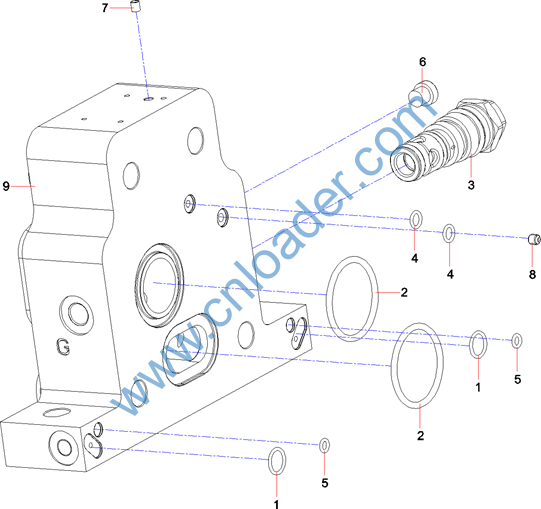

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60275748 |
Valve Assembly, Solenoid |
1 |
|
|
2 |
60265303 |
Accumulator |
1 |
|
|
3 |
60211890 |
Relief Valve |
1 |
|
|
4 |
A229900002544 |
Fitting, Adapter |
6 |
|
|
5 |
A229900002547 |
Plug |
1 |
|
|
6 |
A229900002606 |
Plug |
2 |
|
|
7 |
B220401000045 |
Valve, Check |
1 |
|
|
8 |
A210204000119 |
Screw M5×30GB70.1 |
4 |
|
|
9 |
10890177 |
Orifice |
1 |
|
|
10 |
13517503 |
Block, Valve, Pilot Control |
1 |
|

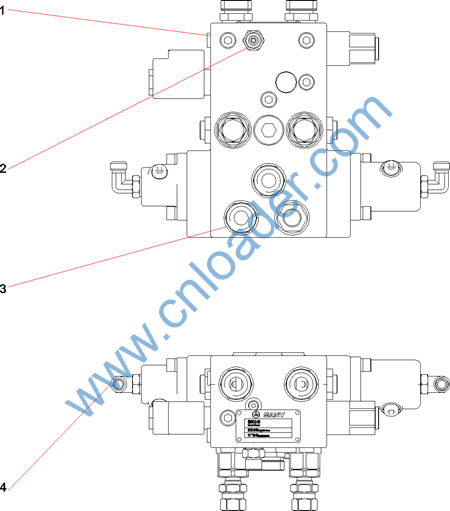

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
13037436 |
Valve Assembly, Swing Control |
1 |
|
|
2 |
A229900002544 |
Fitting, Adapter |
1 |
|
|
3 |
A229900002814 |
Fitting, Adapter |
4 |
|
|
4 |
A229900002568 |
Fitting, Elbow |
2 |
|

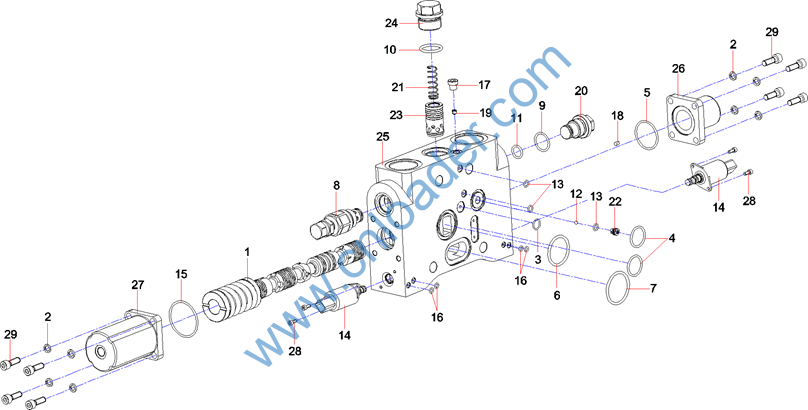

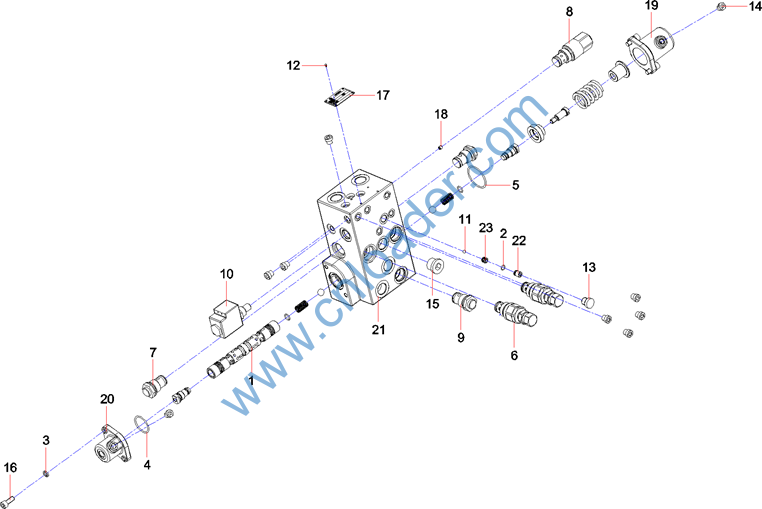

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
13036993 |
Spool Assembly, Swing Control Valve |
1 |
|
|
2 |
60267000 |
O-ring |
1 |
|
|
3 |
A210401000017 |
Washer |
4 |
|
|
4 |
A210609000046 |
O-ring |
1 |
|
|
5 |
A210609000057 |
O-ring |
1 |
|
|
6 |
60024941 |
Relief Valve |
2 |
|
|
7 |
60209457 |
Valve, Check |
2 |
|
|
8 |
60209459 |
Relief Valve |
1 |
|
|
9 |
60216859 |
Valve, Check |
1 |
|
|
10 |
60241300 |
Valve Assembly, Solenoid |
1 |
|
|
11 |
A210661000016 |
Ball, Steel |
1 |
|
|
12 |
A210510000007 |
Rivet |
4 |
|
|
13 |
B210780000201 |
Plug VSTI14×1.5EDA3C |
1 |
|
|
14 |
B210399000003 |
Plug, Screw |
12 |
|
|
15 |
B210780001395 |
Plug |
1 |
|
|
16 |
A210204000147 |
Screw |
4 |
|
|
17 |
13429053 |
Nameplate |
1 |
|
|
18 |
12855527 |
Orifice |
1 |
|
|
19 |
12631881 |
Cover |
1 |
|
|
20 |
12631888 |
Cover |
1 |
|
|
21 |
13010715 |
Block, Swing Control Valve |
1 |
|
|
22 |
11259970 |
Cartridge, Check Valve |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
11259973 |
Cartridge, Check Valve |
1 |
|

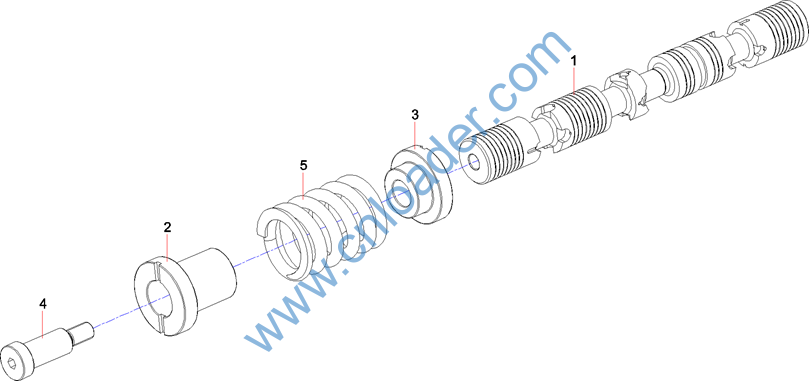

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60122620 |
Ball, Steel |
2 |
|
|
2 |
60246793 |
O-ring |
2 |
|
|
3 |
13434286 |
Plug |
1 |
|
|
4 |
12890296 |
Retainer, Spring |
1 |
|
|
5 |
12890313 |
Retainer, Spring |
1 |
|
|
6 |
12890286 |
Plug, Spool |
2 |
|
|
7 |
12638674 |
Spring |
1 |
|
|
8 |
12880841 |
Spring |
2 |
|
|
9 |
13036948 |
Spool, Swing Control Valve |
1 |
|

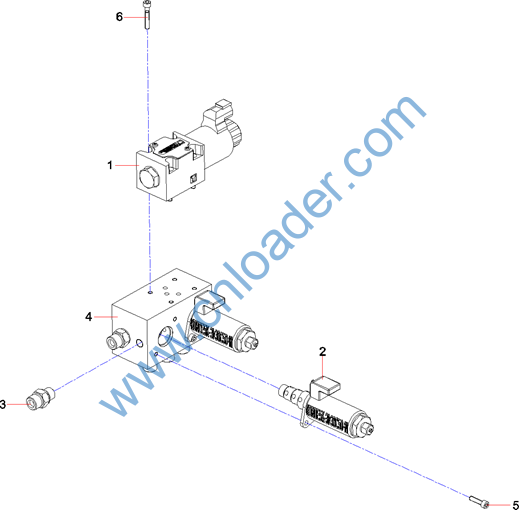

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60275748 |
Valve Assembly, Solenoid |
1 |
|
|
2 |
60065222 |
Valve, Pressure Reducing |
2 |
|
|
3 |
A229900002544 |
Fitting, Adapter |
5 |
|
|
4 |
12393644 |
Block, Swing Control |
1 |
|
|
5 |
A210204000116 |
Screw M5×16GB70.1 |
4 |
|
|
6 |
A210204000119 |
Screw M5×30GB70.1 |
4 |
|

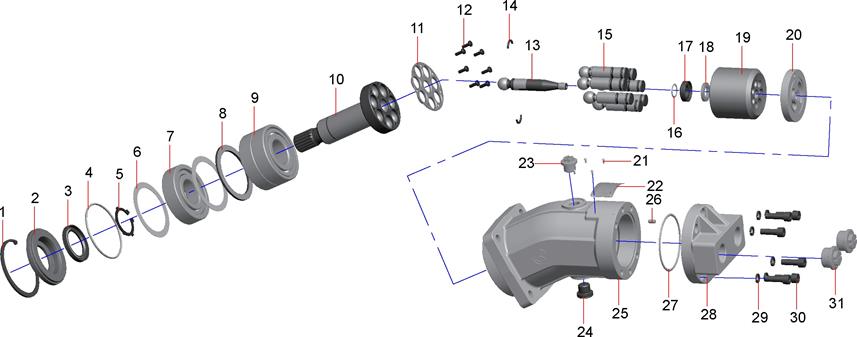

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A210416000023 |
Ring, Snap |
1 |
|
|
2 |
11579264 |
Cover, Seal |
1 |
|
|
3 |
60068928 |
Seal, Oil |
1 |
|
|
4 |
24004514 |
O-ring |
1 |
|
|
5 |
11579278 |
Ring, Snap |
1 |
|
|
6 |
11579269 |
Shim |
4 |
|
|
7 |
B221500000148 |
Bearing |
3 |
|
|
8 |
11579275 |
Washer, Thrust |
1 |
|
|
9 |
60087524 |
Bearing |
2 |
|
|
10 |
11579274 |
Shaft, Main |
1 |
|
|
11 |
11579276 |
Disk, Thrust |
1 |
|
|
12 |
60068698 |
Screw |
7 |
|
|
13 |
11579277 |
Piston, Pump |
1 |
|
|
14 |
11579268 |
Ring, Snap |
2 |
|
|
15 |
11579282 |
Piston Group |
7 |
|
|
16 |
11579267 |
Washer, Thrust |
1 |
|
|
17 |
11579265 |
Retainer, Spring |
1 |
|
|
18 |
11579266 |
Spring, Disk |
4 |
|
|
19 |
11579286 |
Cylinder |
1 |
|
|
20 |
11579289 |
Disc, Oil Distribution |
1 |
|
|
21 |
A210510000010 |
Rivet |
4 |
|
|
22 |
11494166 |
Nameplate |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
60086261 |
Plug |
1 |
|
|
24 |
B210399000002 |
Plug, Screw |
1 |
|
|
25 |
11579270 |
Housing |
1 |
|
|
26 |
60075647 |
Pin |
1 |
|
|
27 |
60069461 |
O-ring |
1 |
|
|
28 |
11579272 |
Cap |
1 |
|
|
29 |
A210401000017 |
Washer |
6 |
|
|
30 |
60068701 |
Screw |
6 |
|
|
31 |
60086262 |
Plug |
2 |
|

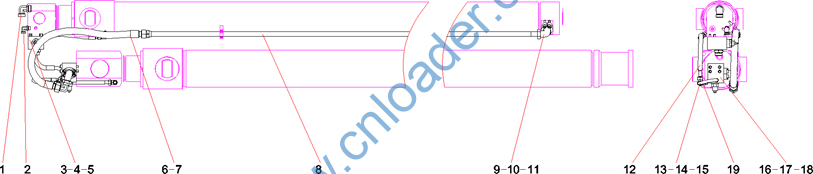

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A229900002816 |
Fitting, Elbow |
1 |
|
|
2 |
B210780000131 |
Fitting, Adapter |
3 |
|
|
3 |
60147102 |
Valve Assembly, Counterbalance, Telescope Cylinder |
1 |
|
|
4 |
A210204000029 |
Screw |
6 |
|
|
5 |
A229900006484 |
Fitting, Adapter |
1 |
|
|
6 |
B230103003583 |
Hose Assembly |
1 |
|
|
7 |
B210780001241 |
Fitting, Elbow |
1 |
|
|
8 |
13460377 |
steel tube assembly STC750S-D5.4.6.2 |
1 |
|
|
9 |
A229900003567 |
Fitting, Elbow |
2 |
|
|
10 |
B210780000004 |
Flange, Split |
4 |
|
|
11 |
A210204000024 |
Screw |
8 |
|
|
12 |
B230103000394 |
Hose Assembly 2SN16-DKOL-DKOL90-650 Q/S |
1 |
|
|
13 |
A229900002928 |
Fitting, Tee |
1 |
|
|
14 |
B230103000445 |
Rubber hose 2SN08-DKOL-300 |
1 |
|
|
15 |
11301846 |
Tube Assembly |
1 |
|
|
16 |
B220401001201 |
Valve Assembly, Counterbalance |
1 |
|
|
17 |
A210204000302 |
Screw |
4 |
|
|
18 |
B210780000733 |
Fitting, Adapter |
1 |
|
|
19 |
B210780001310 |
Fitting, Elbow |
3 |
|

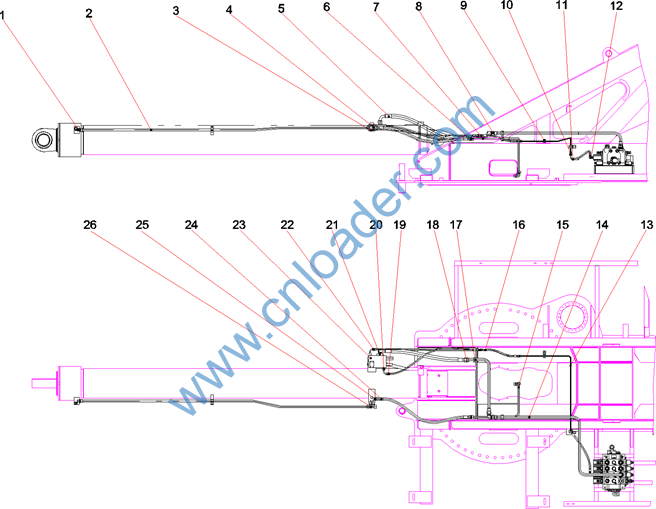

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B230103000475 |
Hose, rubber |
1 |
|
|
2 |
24004634 |
Fitting, Adapter |
3 |
|
|
3 |
A229900002415 |
Clamp, Tube, Single |
3 |
|
|
4 |
B230103000463 |
Rubber hose 2SN08-DKOL-DKOL90-1100 |
1 |
|
|
5 |
21004041 |
Rubber Hose |
1 |
|
|
6 |
14078925 |
steel tube assembly |
1 |
|
|
7 |
14078929 |
steel tube assembly |
1 |
|
|
8 |
14078927 |
steel tube assembly |
1 |
|
|
9 |
B230103003667 |
Rubber Hose |
1 |
|
|
10 |
60202487 |
Nut |
10 |
|
|
11 |
21016826 |
Clamp, Tube, Single |
1 |
|
|
12 |
14078931 |
steel tube assembly |
1 |
|
|
13 |
B230103004313 |
Rubber Hose |
1 |
|
|
14 |
21011137 |
Fitting, Elbow |
2 |
|
|
15 |
B210780001241 |
Fitting, Elbow |
3 |
|
|
16 |
A229900002040 |
Clamp, Tube, Single |
1 |
|
|
17 |
60165334 |
Clamp, tube, single |
1 |
|
|
18 |
13460630 |
steel tube assembly STC750S-D5.4.3.6 |
1 |
|
|
19 |
13460653 |
steel tube assembly STC750S-D5.4.3.1 |
1 |
|
|
20 |
12229817 |
Relief Valve Assembly |
1 |
|
|
21 |
13460609 |
steel tube assembly STC750S-D5.4.3.5 |
1 |
|
|
22 |
B210780000636 |
Fitting, elbow |
5 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
13460606 |
steel tube assembly STC750S-D5.4.3.4 |
1 |
|
|
24 |
B210780000015 |
Fitting, Tee |
1 |
|
|
25 |
13023927 |
Valve Assembly, Sequence, Telescope |
1 |
|
|
26 |
B230103003349 |
Rubber Hose 4SP25-DKOS-1300 |
1 |
|

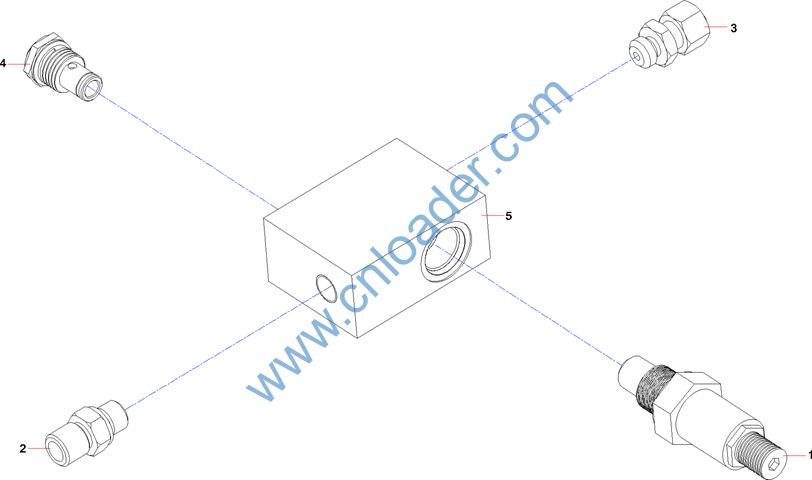

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B220401000105 |
Valve, overflow |
1 |
|
|
2 |
A229900002495 |
Fitting, Adapter |
1 |
|
|
3 |
A229900002585 |
Fitting, Adapter |
1 |
|
|
4 |
B220400000072 |
Valve, Check |
1 |
|
|
5 |
12229663 |
Valve Block, Relief |
1 |
|

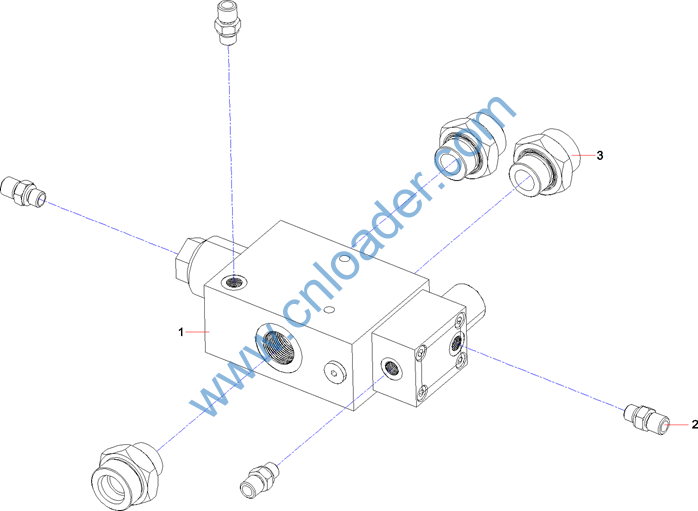

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60212019 |
Valve, Reverse Control |
1 |
|
|
2 |
A229900002495 |
Fitting, Adapter |
4 |
|
|
3 |
A229900006484 |
Fitting, Adapter |
3 |
|

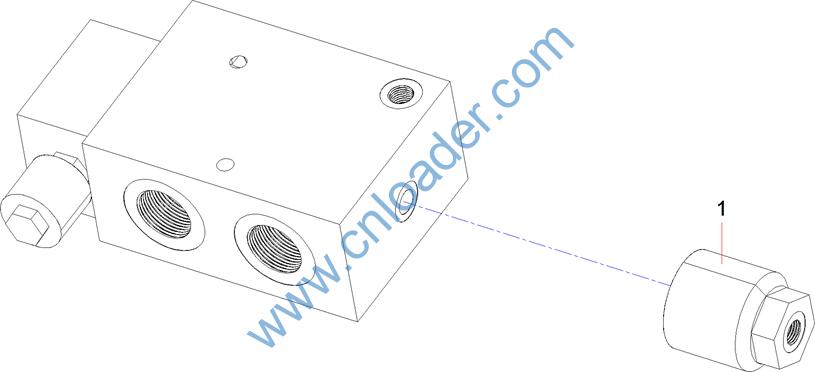

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60256011 |
Coil, Solenoid |
1 |
|

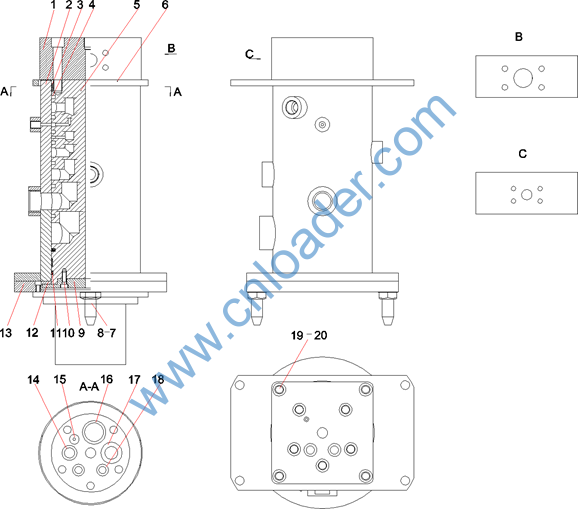

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
13426913 |
End Cover STC750S-D.4.8-2 |
1 |
|
|
2 |
13426911 |
Center Rotate Body STC750S-D.4.9 |
1 |
|
|
3 |
B230101001054 |
Ring, Wear |
2 |
|
|
4 |
60023928 |
Seal, Oil |
8 |
|
|
5 |
10229910 |
Core, center joint |
1 |
|
|
6 |
12995348 |
flange |
1 |
|
|
7 |
12977077 |
Stud |
2 |
|
|
8 |
A210401000008 |
Washer 24GB93 |
2 |
|
|
9 |
10015140 |
Cap |
1 |
|
|
10 |
A210204000162 |
Screw |
4 |
|
|
11 |
60018184 |
Seal |
1 |
|
|
12 |
10044529 |
Ring, Copper |
1 |
|
|
13 |
10023186 |
Plate, Mounting |
1 |
|
|
14 |
A210609000032 |
O-ring |
1 |
|
|
15 |
A210609000287 |
O-ring |
1 |
|
|
16 |
A210609000220 |
O-ring |
1 |
|
|
17 |
A210609000317 |
O-ring |
1 |
|
|
18 |
A210609000268 |
O-ring |
2 |
|
|
19 |
A210204000043 |
Screw |
9 |
|
|
20 |
A210401000004 |
Washer |
4 |
|

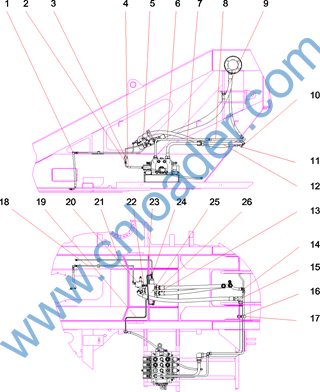

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B210780000047 |
Fitting, Adapter |
1 |
|
|
2 |
12290429 |
Steel tube assembly |
1 |
|
|
3 |
A210204000215 |
Screw |
4 |
|
|
4 |
B210780000007 |
Flange, Split |
4 |
|
|
5 |
B230103003627 |
Hose Assembly |
1 |
|
|
6 |
21008728 |
Fitting, Adapter |
1 |
|
|
7 |
13460484 |
Steel tube assembly STC750S-D5.4.2.2 |
1 |
|
|
8 |
23000177 |
Connector |
1 |
|
|
9 |
A229900002415 |
Clamp, Tube, Single |
2 |
|
|
10 |
24004634 |
Fitting, Adapter |
2 |
|
|
11 |
B230103000474 |
Rubber hose 2SN08-DKOL-DKOL90-550 |
1 |
|
|
12 |
B210780000636 |
Fitting, elbow |
1 |
|
|
13 |
13460497 |
steel tube assembly STC750S-D5.4.2.4 |
1 |
|
|
14 |
13460464 |
Steel tube assembly STC750S-D5.4.2.1 |
1 |
|
|
15 |
13460521 |
steel tube assembly STC750S-D5.4.2.5 |
1 |
|
|
16 |
B230103000448 |
Hose Assembly |
1 |
|
|
17 |
B210780000647 |
Fitting, Bulkhead Connector |
2 |
|
|
18 |
A229900002039 |
Clamp, Tube, Single |
2 |
|
|
19 |
B230103000463 |
Rubber hose 2SN08-DKOL-DKOL90-1100 |
1 |
|
|
20 |
B210780000733 |
Fitting, Adapter |
2 |
|
|
21 |
A229900002752 |
Fitting, Elbow |
1 |
|
|
22 |
B230103000467 |
Hose, rubber |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
60033557 |
Valve, Counterbalance, Lift Cylinder |
1 |
|
|
24 |
B230103004200 |
Hose Assembly |
1 |
|
|
25 |
A210770000631 |
Fitting, Adapter |
1 |
|
|
26 |
21002923 |
Fitting, Elbow |
1 |
|

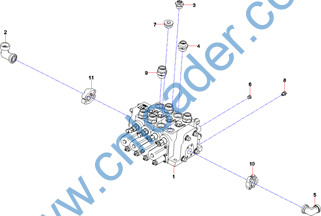

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
13446829 |
Multi-Valve M28C105 |
1 |
|
|
2 |
21015725 |
Fitting, Elbow |
1 |
|
|
3 |
B210780000052 |
Fitting, Adapter GELM33-LM36 |
1 |
|
|
4 |
A229900003027 |
Fitting, Adapter |
1 |
|
|
5 |
A210770000614 |
Fitting, Elbow |
1 |
|
|
6 |
A229900002547 |
Plug |
7 |
|
|
7 |
23000678 |
Plug |
1 |
|
|
8 |
B210780000036 |
Fitting, adapter |
5 |
|
|
9 |
B210780000053 |
Fitting, Adapter |
5 |
|
|
10 |
B210780000217 |
Flange, Split |
2 |
|
|
11 |
B210780000693 |
Split flange FHS65CFX |
2 |
|

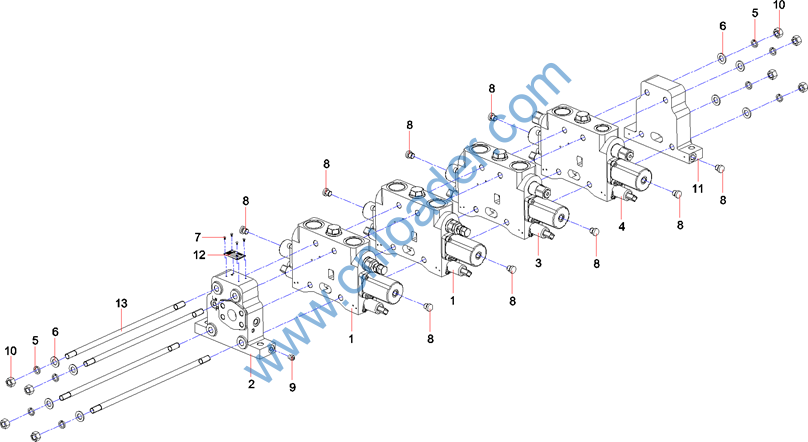

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
13099966 |
Valve Assembly, Hoist Section, Main Control |
2 |
|
|
2 |
13100097 |
Valve Assembly, Manifold |
1 |
|
|
3 |
13446789 |
luffing combination M28C105.2 |
1 |
|
|
4 |
13446808 |
Telescopic combination M28C105.3 |
1 |
|
|
5 |
A210401000003 |
Washer |
8 |
|
|
6 |
A210405000002 |
Washer |
8 |
|
|
7 |
A210510000007 |
Rivet |
4 |
|
|
8 |
B210780000201 |
Plug VSTI14×1.5EDA3C |
9 |
|
|
9 |
B210399000003 |
Plug, Screw |
1 |
|
|
10 |
A210307000025 |
Nut |
8 |
|
|
11 |
13099707 |
oil-in and oil-return valve M28C104-2 |
1 |
|
|
12 |
13429053 |
Nameplate |
1 |
|
|
13 |
13088689 |
Bolt |
4 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
13869889 |
Spool Assembly, Hoist Valve |
1 |
|
|
2 |
A210401000017 |
Washer |
8 |
|
|
3 |
A210609000097 |
O-ring |
1 |
|
|
4 |
A210609000042 |
O-ring |
2 |
|
|
5 |
A31C203870265 |
O-ring 38.7×2.65GB3452.1 |
1 |
|
|
6 |
A210609000051 |
O-ring |
1 |
|
|
7 |
A210609000138 |
O-ring |
1 |
|
|
8 |
60024941 |
Relief Valve |
1 |
|
|
9 |
60246790 |
O-ring |
1 |
|
|
10 |
60246791 |
O-ring |
1 |
|
|
11 |
60246792 |
O-ring |
1 |
|
|
12 |
A210661000016 |
Ball, Steel |
1 |
|
|
13 |
60267000 |
O-ring |
3 |
|
|
14 |
60277823 |
Valve Assembly, Solenoid |
2 |
|
|
15 |
A210609000065 |
O-ring |
1 |
|
|
16 |
A31C200500100 |
O-ring |
4 |
|
|
17 |
B210399000003 |
Plug, Screw |
1 |
|
|
18 |
A229900010656 |
Plug |
1 |
|
|
19 |
12616957 |
Orifice |
1 |
|
|
20 |
11259982 |
Plug |
1 |
|
|
21 |
11987646 |
Spring |
1 |
|
|
22 |
13066945 |
Cartridge, Check Valve |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
13066915 |
Cartridge, Valve |
1 |
|
|
24 |
13066918 |
Plug |
1 |
|
|
25 |
13099827 |
Valve Body, Section, Main Control Valve |
1 |
|
|
26 |
12983263 |
Cover, Front End |
1 |
|
|
27 |
12983219 |
Housing |
1 |
|
|
28 |
A210204000318 |
Screw |
4 |
|
|
29 |
A210204000162 |
Screw |
8 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|

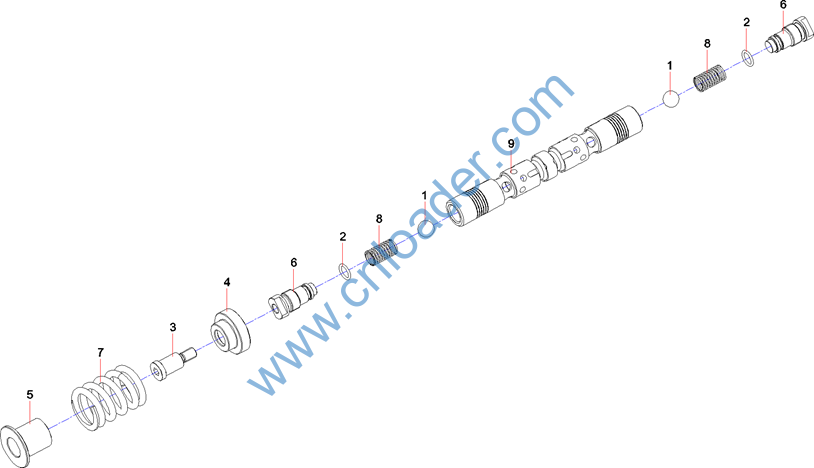

1 |
13225272 |
Spool, Hoist Valve |
1 |
|
|
2 |
12986560 |
Retainer, Spring |
1 |
|
|
3 |
12986569 |
Retainer, Spring |
1 |
|
|
4 |
12986577 |
Cap |
1 |
|
|
5 |
12981268 |
Spring, Return |
1 |
