STC800S Truck Crane TC2080BH2776 SANY DO

Item No.

Part No.

Description

Qty.

Remark

1

11257453

Support

1

2

11247810

Reinforcement, Hinge, Door, Operator’s Cab

1

3

11247809

Reinforcement, Lock, Door, Operator’s Cab

1

4

11255471

Reinforcement Assembly, Inner Handle, Door, Operator’s cab

1

5

11255470

Reinforcement Assembly, Inner, Door, Operator’s Cab

1

6

11247808

Plate, Inner, Door, Operator’s Cab

1

7

11372931

Plate Assembly, Nut

2

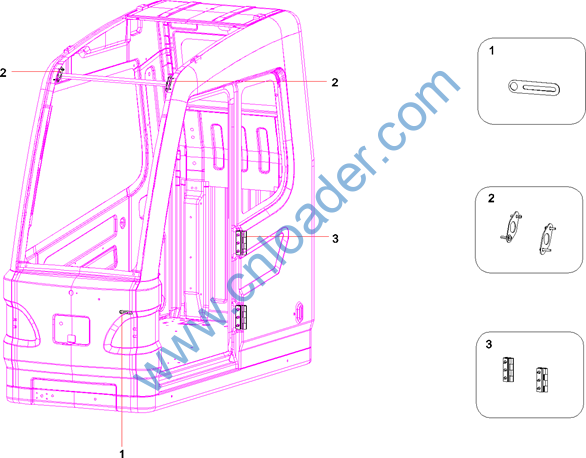

Item No.

Part No.

Description

Qty.

Remark

1

A230200000170

Clip

1

2

12986461

Cover Pate Assembly, Operator’s Cab

2

3

12931614

Door Hinge Assembly, Operator’s Cab

1

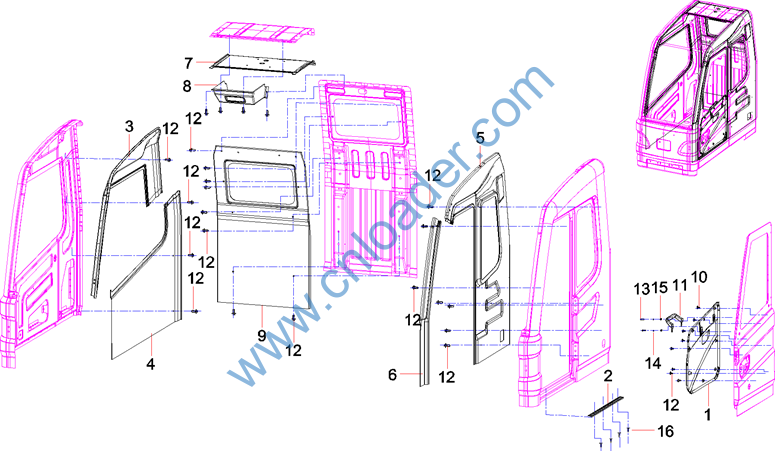

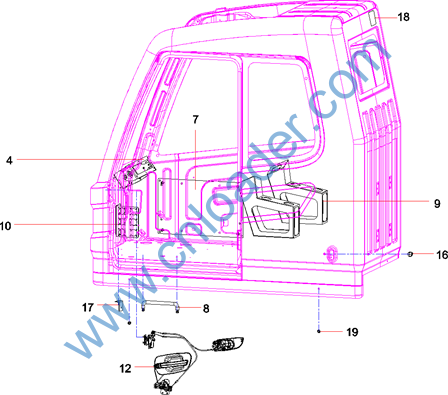

Item No.

Part No.

Description

Qty.

Remark

4

12938958

Assembly, screen shellSJC62Ⅱ100EB3.8200

1

7

12938898

Mounting board assembly, circuitSJC62Ⅱ1

1

8

12938921

Handrail Installation, Grab, Aluminum

1

9

12940319

Assembly, armrest boxSJC62Ⅱ100EB3.8200.

1

10

12938926

Support Installation, Mounting

1

12

12938936

Latch Installation, Door, Operator’s Cab

1

16

12938947

Block Installation, Rubber

1

17

11375976

Mount, Buzzer

1

18

11270627

Nameplate

1

19

60042056

Plug

3

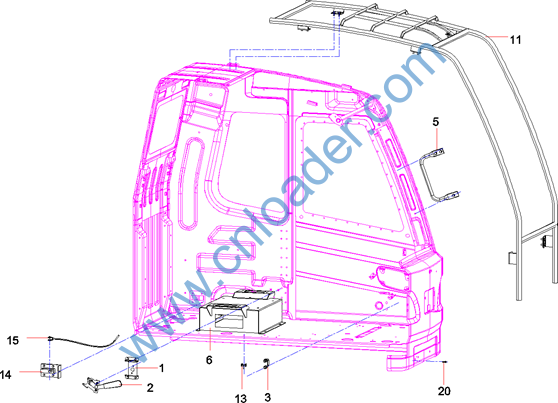

Item No.

Part No.

Description

Qty.

Remark

1

12938882

Mount Installation, Handle, Lock

1

2

12938884

Handle Installation, Inner, Lock

1

3

12938885

Latch Installation, Outer, Door

1

5

12938889

Handrail Installation, Grab, Operator’s Cab

1

6

12938893

Mount Installation, Seat

1

11

12938928

Guard Installation, Skylight, Operator’s Cab

1

13

12938937

Clip Installation

8

14

12938939

Door Lock Assembly, Operator’s Cab

1

15

12938941

Control Cable Assembly, Door Lock, Operator’s Cab

1

20

11115687

Screw, Socket Head QY50CA.3.1-43

4

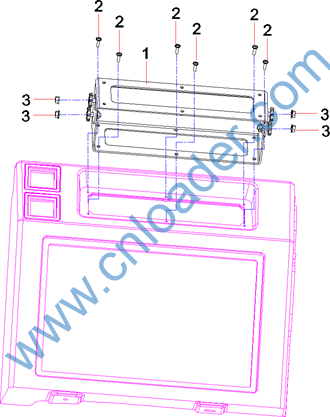

Item No.

Part No.

Description

Qty.

Remark

1

12830094

Mounting assembly, screen shell SJC72Ⅱ5

1

2

11115687

Screw, Socket Head QY50CA.3.1-43

6

3

60144926

Nut

4

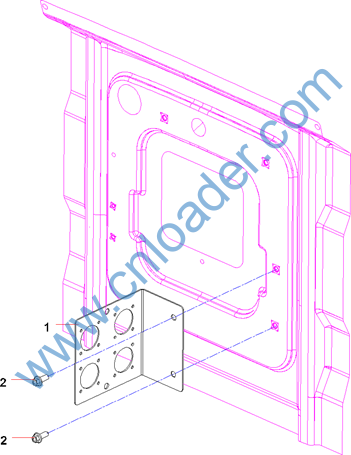

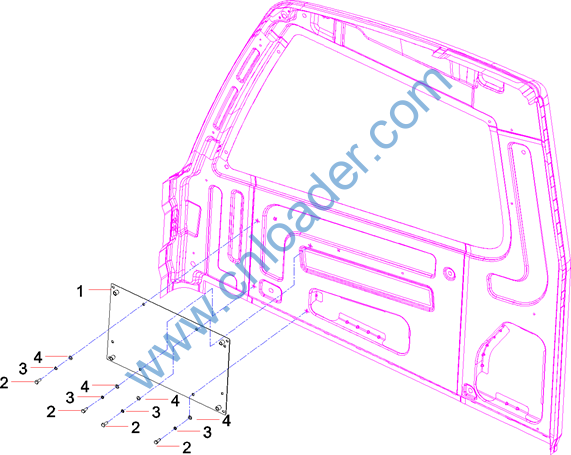

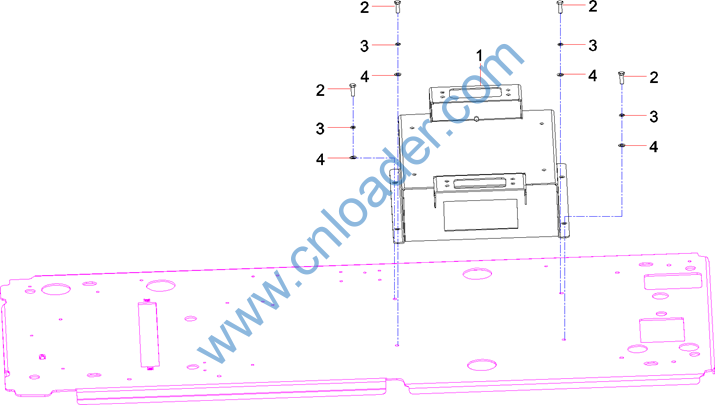

Item No.

Part No.

Description

Qty.

Remark

1

11725653

Circuit mounting board assembly

1

2

A210111000089

Bolt

4

3

A210405000007

Washer

4

4

A210401000017

Washer

4

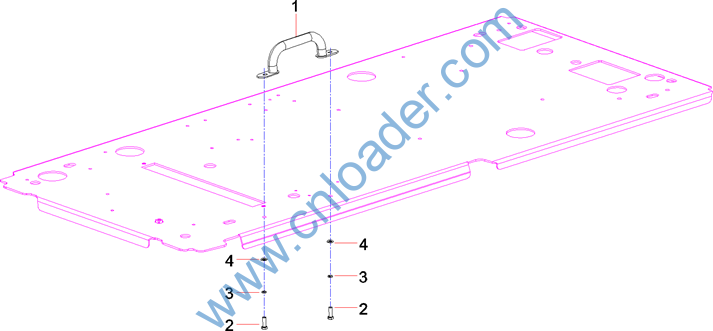

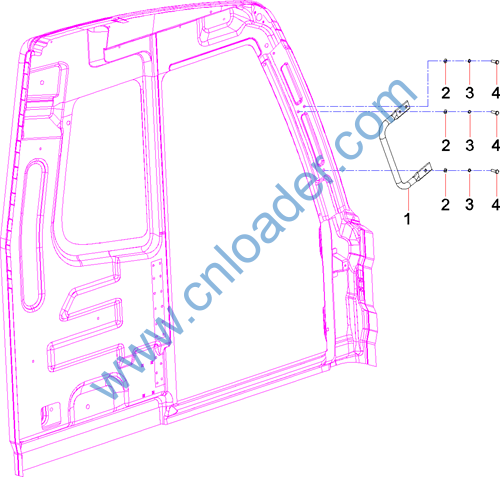

Item No.

Part No.

Description

Qty.

Remark

1

12967975

Handrail, Grab

1

2

A210111000090

Bolt

2

3

A210405000007

Washer

2

4

A210401000017

Washer

2

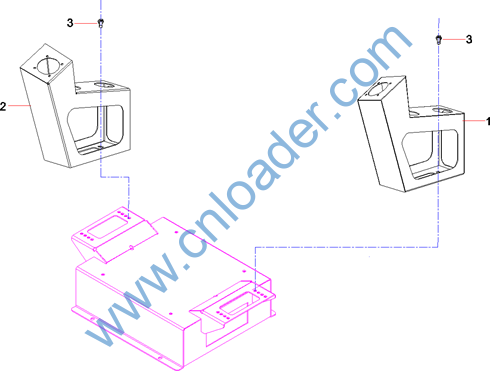

Item No.

Part No.

Description

Qty.

Remark

1

12822899

Assembly, armrest box, LH, 750S SJC62

7

1

2

12822901

Assembly, armrest box, RH, 750S SJC62

7

1

3

60144917

Bolt

8

Item No.

Part No.

Description

Qty.

Remark

1

11858839

Support, Mounting

1

2

60144917

Bolt

2

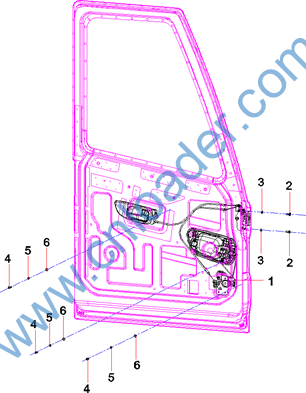

Item No.

Part No.

Description

Qty.

Remark

1

60120262

Latch, Cab Door

1

2

A210211000007

Screw

4

3

60120957

Washer

4

4

A210210000008

Screw

7

5

A210401000016

Washer

7

6

A210405000006

Washer

7

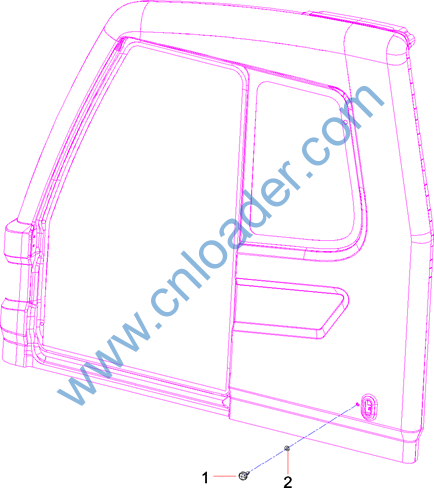

Item No.

Part No.

Description

Qty.

Remark

1

11910642

Block, Rubber

1

2

A210405000011

Washer

1

Item No.

Part No.

Description

Qty.

Remark

1

12331456

Mount Assembly, Handle, Lock

1

2

A210111000080

Bolt

4

3

A210405000006

Washer

4

4

A210401000016

Washer

4

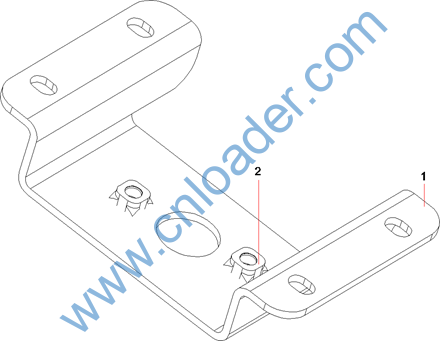

Item No.

Part No.

Description

Qty.

Remark

1

12331314

Mount, Handle, Lock

1

2

60040336

Nut

1

Item No.

Part No.

Description

Qty.

Remark

1

60117742

Handle, Inner, Lock

1

2

60144905

Bolt

2

Item No.

Part No.

Description

Qty.

Remark

1

10138053

Latch, Outer, Door

1

2

A210307000017

Nut

4

3

A210405000011

Washer

4

4

A210401000001

Washer

2

Item No.

Part No.

Description

Qty.

Remark

1

12681130

Handrail, Grab, Operator’s Cab

1

2

A210111000090

Bolt

3

3

A210405000007

Washer

3

4

A210401000017

Washer

3

Item No.

Part No.

Description

Qty.

Remark

1

11703558

Mount Assembly, Seat

1

2

A210111000090

Bolt

4

3

A210405000007

Washer

4

4

A210401000017

Washer

4

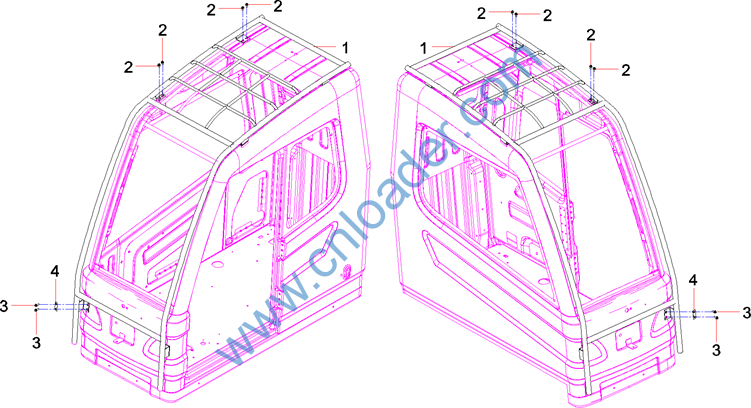

Item No.

Part No.

Description

Qty.

Remark

1

11383403

Guard Assembly, Skylight, Operator’s Cab

1

2

60144913

Bolt

8

3

60144917

Bolt

4

4

60042060

Washer, Rubber

2

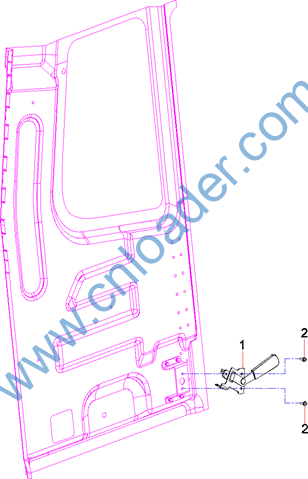

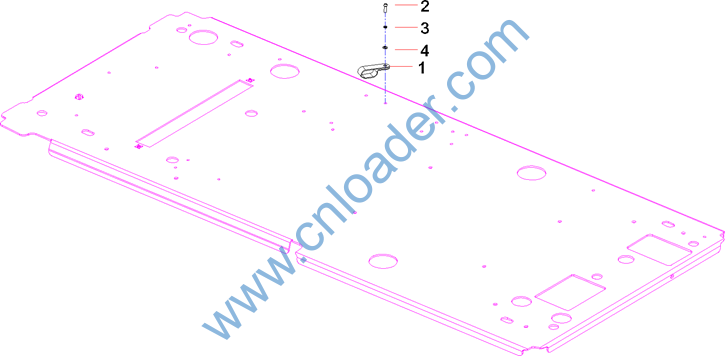

Item No.

Part No.

Description

Qty.

Remark

1

A230200000170

Clip

1

2

A210210000017

Screw

1

3

A210405000006

Washer

1

4

A210401000016

Washer

1

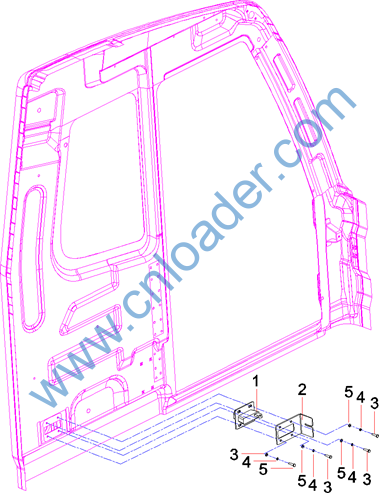

Item No.

Part No.

Description

Qty.

Remark

1

A222200000149

Latch

1

2

12316632

Bracket

1

3

A210111000081

Bolt

4

4

A210405000006

Washer

4

5

A210401000016

Washer

4

Item No.

Part No.

Description

Qty.

Remark

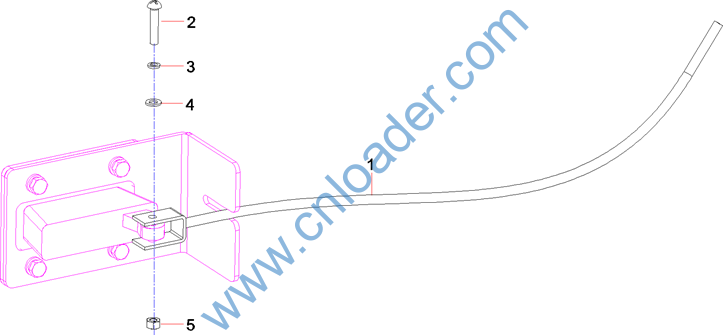

1

60117741

Cable

1

2

A210210000011

Screw

1

3

A210307000015

Nut

1

4

A210405000005

Washer

1

5

A210401000015

Washer

1

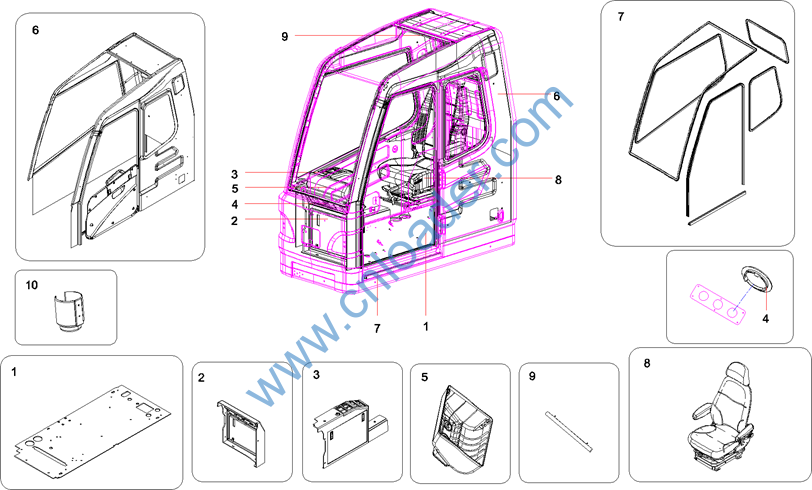

Item No.

Part No.

Description

Qty.

Remark

1

12183078

carpet(75t)SJC62 75PW4.5109-3

1

2

11694908

Front Instruments panel assembly

1

3

11708903

Console GP,right

1

4

11371983

Plug

4

5

12934765

Assembly, Display-cover, BigSJC62100EB3.

1

6

11694930

Plate Installation, Guard, Interior Trim

1

7

11696050

Seal Group

1

8

11287380

Seat Installation

1

9

12934223

Sunshade Assembly, Operator’s Cab

1

10

10742202

Bracket, Cup Holder

1

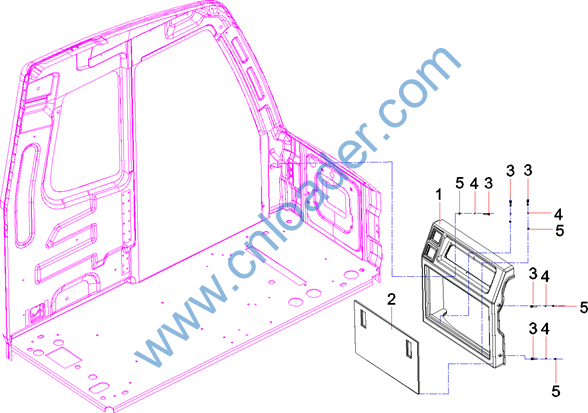

Item No.

Part No.

Description

Qty.

Remark

1

11621163

IP（narrow）

1

2

11606074

Front overhaul cap

1

3

A210204000133

Bolt

5

4

A210404000009

Washer

5

5

A210401000016

Washer

5

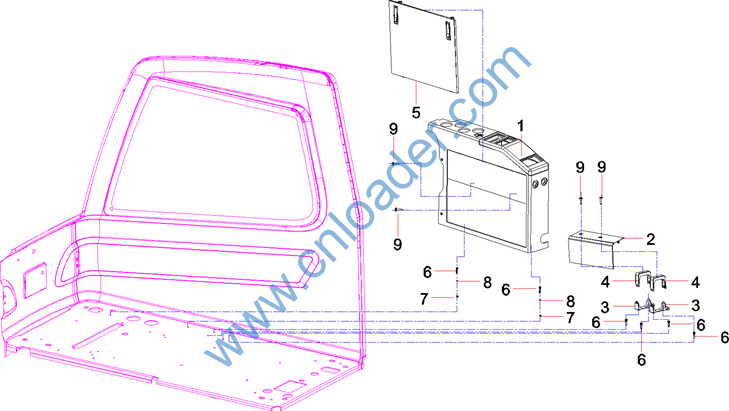

Item No.

Part No.

Description

Qty.

Remark

1

11483436

Body,console,right

1

2

12076621

Cover, protective, tube, air

1

3

12076657

Bracket, inner

2

4

12076678

Bracket, outer

2

5

11606076

Overhaul cap,right

1

6

A210204000135

Screw

6

7

A210404000009

Washer

2

8

A210401000016

Washer

2

9

11115686

Tapping, bolt

4

Item No.

Part No.

Description

Qty.

Remark

1

11613931

Cover,screen,display,tonnage,big

1

2

11115687

Screw, Socket Head QY50CA.3.1-43

6

3

A210405000006

Washer

6
