识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-109-1 |
1 |
60038820 |
4 |
O形圈 |
O-ring |
|
4-109-2 |
2 |
60237080 |
4 |
弹簧座 |
Seat, spring |
|
4-109-3 |
3 |
60038221 |
4 |
弹簧 |
Spring, large |
|
4-109-4 |
4 |
60008594 |
4 |
弹簧 |
Spring, small |
|
4-109-5 |
5 |
60008589 |
4 |
垫圈 |
Washer |
|
4-109-6 |
6 |
60008597 |
4 |
垫圈 |
Washer |
|
4-109-7 |
7 |
60273528 |
4 |
阀芯 |
Spool |
|
4-109-8 |
8 |
60038727 |
2 |
O形圈 |
O-ring |
|
4-109-9 |
9 |
60273523 |
1 |
壳体 |
Valve, travel, pilot |
|
4-109-10 |
10 |
60038139 |
2 |
轴承钢珠 |
Bearing, ball |
|
4-109-11 |
11 |
60319781 |
2 |
座 |
Seat |
|
4-109-12 |
12 |
60319782 |
2 |
螺塞 |
Plug |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-111-1 |
1 |
60008795 |
1 |
壳体 |
Housing |
|
4-111-2 |
2 |
60008810 |
1 |
油口接板 |
Plate, connecting |
|
4-111-3 |
3 |
60008598 |
2 |
密封垫圈 |
Washer, seal |
|
4-111-4 |
4 |
60008799 |
1 |
O形圈 |
O-ring |
|
4-111-5 |
5 |
60008786 |
2 |
内六角螺钉 |
Bolt, socket head |
|
4-111-6 |
6 |
60038259 |
1 |
弹簧销 |
Pin, spring |
|
4-111-7 |
7 |
60008806 |
1 |
衬套 |
Sleeve |
|
4-111-8 |
8 |
60037936 |
1 |
板 |
Plate |
|
4-111-9 |
9 |
60008760 |
4 |
滑轴 |
SPOOL |
|
4-111-10 |
10 |
60221602 |
4 |
堵头 |
Plug |
|
4-111-11 |
11 |
60008599 |
4 |
推动杆 |
Rod |
|
4-111-12 |
12 |
60230199 |
4 |
密封圈 |
SEAL |
|
4-111-13 |
13 |
60221603 |
4 |
O形圈 |
O-ring |
|
4-111-14 |
14 |
60008758 |
4 |
弹簧座 |
Seat, spring |
|
4-111-15 |
15 |
60008597 |
4 |
垫圈 |
Washer |
|
4-111-16 |
16 |
60008774 |
4 |
弹簧 |
Spring, large |
|
4-111-17 |
17 |
60008775 |
4 |
弹簧 |
Spring |
|
4-111-18 |
18 |
60008602 |
1 |
接头 |
Shaft |
|
4-111-19 |
19 |
60008809 |
1 |
圆板 |
Plate, circular |
|
4-111-20 |
20 |
60038479 |
1 |
螺母 |
Nut |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
4-113-21 |
21 |
60192531 |
1 |
橡胶罩 Cover, rubber |
|
4-113-22 |
22 |
60340388 |
1 |
先导阀维修包 Pilot Valve repair kit |
|

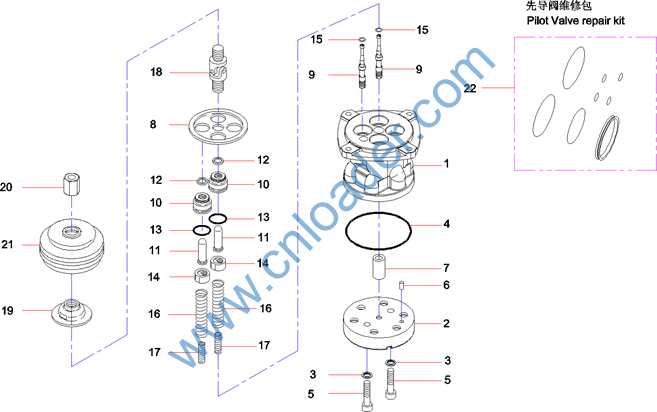

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

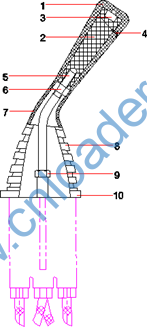

4-115-1 |
1 |
B229900001613 |
1 |
左手柄 |
Joystick , left |
|
4-115-2 |
2 |
A229900006438 |
1 |
插入件 |
Insert, switch |
|
4-115-3 |
3 |
60046659 |
1 |
按钮开关 |
Button Switch |
|
4-115-4 |
4 |
A210264000022 |
1 |
自攻螺钉 |
Screw, self-tapping |
|
4-115-5 |
5 |
11050165 |
1 |
手柄 |
Handle, grip |
|
4-115-6 |
6 |
A210308000006 |
1 |
螺母 |
Nut |
|
4-115-7 |
7 |
A229900006446 |
1 |
罩 |
Joystick, rubber cover |
|
4-115-8 |
8 |
A229900001028 |
1 |
罩 |
Joystick, rubber cover |
|
4-115-9 |
9 |
变更或见其他配置 |
1 |
螺母 |
Nut |
|
4-115-10 |
10 |
A229900001027 |
1 |
板 |
Plate |
|

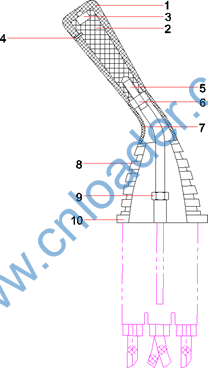

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-117-1 |
1 |
B229900001614 |
1 |
右手柄 |
Joystick, right |
|
4-117-2 |
2 |
A229900006438 |
1 |
插入件 |
Insert, switch |
|
4-117-3 |
3 |
60046659 |
1 |
按钮开关 |
Button Switch |
|
4-117-4 |
4 |
A210264000022 |
1 |
自攻螺钉 |
Screw, self-tapping |
|
4-117-5 |
5 |
11050165 |
1 |
手柄 |
Handle, grip |
|
4-117-6 |
6 |
A210308000006 |
1 |
螺母 |
Nut |
|
4-117-7 |
7 |
A229900006446 |
1 |
罩 |
Joystick, rubber cover |
|
4-117-8 |
8 |
A229900001028 |
1 |
罩 |
Joystick, rubber cover |
|
4-117-9 |
9 |
A210307000002 |
1 |
螺母 |
Nut |
|
4-117-10 |
10 |
A229900001027 |
1 |
板 |
Plate |
|

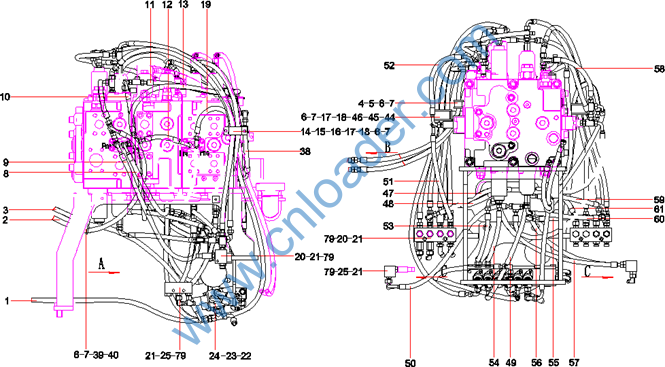

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-119-1 |
1 |
B230103006298 |
1 |
胶管 |
Rubber Hose |
|
4-119-2 |
2 |
B230103000610 |
1 |
胶管 |
Rubber hose |
|
4-119-3 |
3 |
B230103001524 |
1 |
胶管 |
Hose Assembly |
|
4-119-4 |
4 |
13306939 |
1 |
三胶管管夹 |
Clamp of Three Rubber Hose |
|
4-119-5 |
5 |
13306940 |
1 |
三胶管胶套 |
Rubber pad of Three Rubber Hose |
|
4-119-6 |
6 |
A210111000343 |
8 |
螺栓M8×20GB5783 10.9级 |
Bolt |
|
4-119-7 |
7 |
24000633 |
16 |
垫圈8GB97.1 达克锈 |
Washer |
|
4-119-8 |
8 |
B230103001234 |
1 |
胶管 |
Rubber Hose |
|
4-119-9 |
9 |
B230103002376 |
1 |
胶管 |
Hose Assembly |
|
4-119-10 |
10 |
B230103001885 |
1 |
胶管 |
Hose Assembly |
|
4-119-11 |
11 |
B230103003137 |
1 |
胶管 |
Hose Assembly |
|
4-119-12 |
12 |
60171474 |
1 |
胶管 |
Rubber Hose |
|
4-119-13 |
13 |
B230103003138 |
1 |
胶管 |
Hose Assembly |
|
4-119-14 |
14 |
13306870 |
1 |
左支架 |
Left Bracket |
|
4-119-15 |
15 |
13306941 |
1 |
左橡胶护套 |
Protective sleeve |
|
4-119-16 |
16 |
13306942 |
1 |
左管卡 |
Pipe Clip |
|
4-119-17 |
17 |
24003229 |
3 |
螺栓M20×35GB5783 10.9级 |
|
|
4-119-18 |
18 |
A210491000132 |
3 |
垫圈 |
Washer |
|
4-119-19 |
19 |
60183223 |
1 |
胶管 |
rubber hose |
|
4-119-20 |
20 |
13304217 |
2 |
过渡块 |
transitional block |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-121-21 |
21 |
23000063 |
8 |
螺钉 |
Screw |
|
4-121-22 |
22 |
60243482 |
1 |
电磁换向阀 |
Electromagnetic Reversing Valve |
|
4-121-23 |
23 |
60265303 |
1 |
隔膜式蓄能器 |
Accumulator |
|
4-121-24 |
24 |
A210204000345 |
2 |
螺钉M10×70GB70.1 10.9级 |
Bolt |
|
4-121-25 |
25 |
13304227 |
2 |
过渡块 |
transitional block |
|
4-121-38 |
38 |
B230103003611 |
1 |
胶管 |
Hose Assembly |
|
4-121-39 |
39 |
13306943 |
2 |
双胶管管夹 |
Clamp of Double Rubber Hose |
|
4-121-40 |
40 |
13306944 |
2 |
双胶管胶套 |
Rubber pad of Double Rubber |
|
4-121-44 |
44 |
13306875 |
1 |
右支架 |
Right Bracket |
|
4-121-45 |
45 |
13306937 |
1 |
右橡胶护套 |
Protective Sleeve |
|
4-121-46 |
46 |
13306938 |
1 |
右管卡 |
Right Pipe Clip |
|
4-121-47 |
47 |
B230103001233 |
1 |
胶管 |
Hose Assembly |
|
4-121-48 |
48 |
B230103003611 |
1 |
胶管 |
Hose Assembly |
|
4-121-49 |
49 |
B230103001215 |
1 |
胶管 |
Hose Assembly |
|
4-121-50 |
50 |
B230103001215 |
1 |
胶管 |
Hose Assembly |
|
4-121-51 |
51 |
B230103001215 |
1 |
胶管 |
Hose Assembly |
|
4-121-52 |
52 |
A831313035000 |
1 |
胶管 |
Hose Assembly |
|
4-121-53 |
53 |
B230103001213 |
1 |
胶管 |
Hose Assembly |
|
4-121-54 |
54 |
B230103001213 |
1 |
胶管 |
Hose Assembly |
|
4-121-55 |
55 |
B230103003815 |
1 |
胶管 |
Hose Assembly |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-123-56 |
56 |
B230103003145 |
1 |
胶管 |
Rubber Hose 1SN8-DKOL-550 |
|
4-123-57 |
57 |
60211155 |
1 |
胶管 |
rubber hose |
|
4-123-58 |
58 |
B230103003611 |
1 |
胶管 |
Hose Assembly |
|
4-123-59 |
59 |
B230103001889 |
1 |
胶管 |
Hose Assembly |
|
4-123-60 |
60 |
A831311025000 |
1 |
胶管 |
Rubber Hose |
|
4-123-61 |
61 |
B230103001214 |
1 |
胶管 |
Hose Assembly |
|
4-123-79 |
79 |
24000511 |
10 |
垫圈8GB93 达克锈 |
Washer |
|

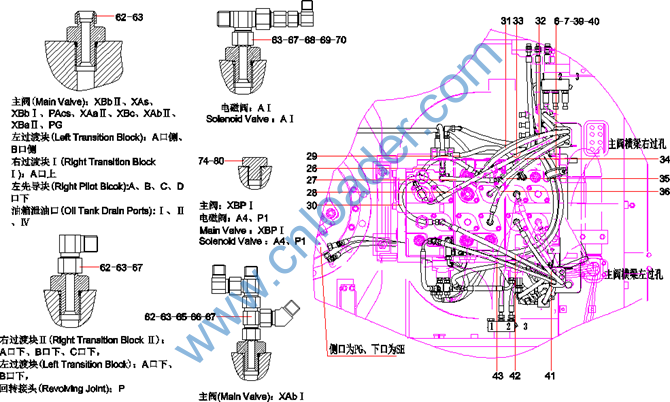

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-125-6 |
6 |
A210111000343 |
8 |
螺栓M8×20GB5783 10.9级 |
Bolt |
|
4-125-7 |
7 |
24000633 |
16 |
垫圈8GB97.1 达克锈 |
Washer |
|
4-125-26 |
26 |
B230103003611 |
1 |
胶管 |
Hose Assembly |
|
4-125-27 |
27 |
B230103003819 |
1 |
胶管 |
Rubber Hose 1SN8-DKOL-320 |
|
4-125-28 |
28 |
B230103000610 |
1 |
胶管 |
Rubber hose |
|
4-125-29 |
29 |
A831313035000 |
1 |
胶管 |
Hose Assembly |
|
4-125-30 |
30 |
B230103001233 |
1 |
胶管 |
Hose Assembly |
|
4-125-31 |
31 |
B230103000855 |
1 |
胶管 |
Rubber hose |
|
4-125-32 |
32 |
21020624 |
1 |
胶管 |
Hose Assembly |
|
4-125-33 |
33 |
B230103000189 |
1 |
胶管 |
Hose Assembly |
|
4-125-34 |
34 |
B230103000979 |
1 |
胶管 |
Hose Assembly |
|
4-125-35 |
35 |
B230103001216 |
1 |
胶管 |
Rubber hose |
|
4-125-36 |
36 |
B230103000855 |
1 |
胶管 |
Rubber hose |
|
4-125-39 |
39 |
13306943 |
2 |
双胶管管夹 |
Clamp of Double Rubber Hose |
|
4-125-40 |
40 |
13306944 |
2 |
双胶管胶套 |
Rubber pad of Double Rubber |
|
4-125-41 |
41 |
B230103001216 |
1 |
胶管 |
Rubber hose |
|
4-125-42 |
42 |
B230103002372 |
1 |
胶管 |
Hose Assembly |
|
4-125-43 |
43 |
B230103004127 |
1 |
胶管 |
Hose Assembly |
|

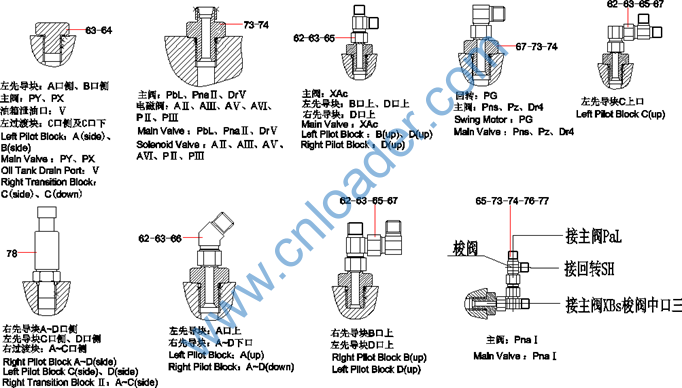

4-125-62 |
62 |
11287446 |
47 |
G3/8-M16接头 |
Connector |
|
4-125-63 |
63 |
B230101000049 |
61 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-127-65 |
65 |
B210780000015 |
21 |
三通组合L型接头 |
Fitting, Tee |
|
4-127-66 |
66 |
B210780001658 |
10 |
管接头 |
Pipe connector |
|
4-127-67 |
67 |
B210780000636 |
22 |
直角组合接头 |
Fitting, Elbow |
|
4-127-68 |
68 |
A820205000961 |
2 |
G3/8-M18接头 |
Connector |
|
4-127-69 |
69 |
B210780000019 |
1 |
管接头 |
Swivel Elbow Connector-T |
|
4-127-70 |
70 |
B210780000683 |
1 |
对接式变径接头 |
Fitting, Adapter |
|
4-127-74 |
74 |
B230101000047 |
23 |
O形圈 |
O-Ring-10.8 |
|
4-127-80 |
80 |
A820205001771 |
3 |
堵头 |
Screw Plug |
|

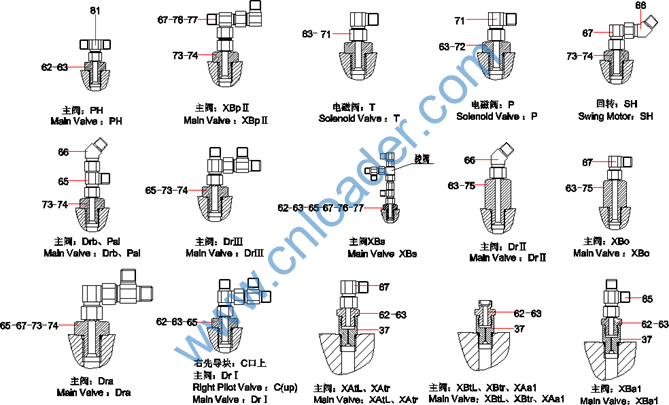

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-129-37 |
37 |
A220401000593 |
6 |
单向节流阀 |
One-Way Throttle |
|
4-129-62 |
62 |
11287446 |
47 |
G3/8-M16接头 |
Connector |
|
4-129-63 |
63 |
B230101000049 |
61 |
O形圈 |
O-ring |
|
4-129-65 |
65 |
B210780000015 |
21 |
三通组合L型接头 |
Fitting, Tee |
|
4-129-66 |
66 |
B210780001658 |
10 |
管接头 |
Pipe connector |
|
4-129-67 |
67 |
B210780000636 |
22 |
直角组合接头 |
Fitting, Elbow |
|
4-129-71 |
71 |
B210780000024 |
3 |
直角组合接头 |
Fitting, Elbow |
|
4-129-72 |
72 |
12395992 |
1 |
G3/8-M18过滤接头 |
Filter joint |
|
4-129-73 |
73 |
A820205002445 |
20 |
G1/4-M16接头 |
G1/4-M16connector |
|
4-129-74 |
74 |
B230101000047 |
23 |
O形圈 |
O-Ring-10.8 |
|
4-129-75 |
75 |
11816259 |
2 |
管接头 |
connector |
|
4-129-76 |
76 |
B210780001404 |
3 |
直通组合接头 |
Fitting, Elbow |
|
4-129-77 |
77 |
B220401000316 |
3 |
三通梭阀 |
Three-way shuttle valve |
|
4-129-81 |
81 |
B210780000631 |
1 |
三通组合T型接头 |
Fitting, Tee |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-131-62 |
62 |
11287446 |
47 |
G3/8-M16接头 |
Connector |
|
4-131-63 |
63 |
B230101000049 |
61 |
O形圈 |
O-ring |
|
4-131-64 |
64 |
A820205000947 |
7 |
堵头 |
G3/8 jam-SY200A.1.4.3-5 |
|
4-131-65 |
65 |
B210780000015 |
21 |
三通组合L型接头 |
Fitting, Tee |
|
4-131-66 |
66 |
B210780001658 |
10 |
管接头 |
Pipe connector |
|
4-131-67 |
67 |
B210780000636 |
22 |
直角组合接头 |
Fitting, Elbow |
|
4-131-73 |
73 |
A820205002445 |
20 |
G1/4-M16接头 |
G1/4-M16connector |
|
4-131-74 |
74 |
B230101000047 |
23 |
O形圈 |
O-Ring-10.8 |
|
4-131-76 |
76 |
B210780001404 |
3 |
直通组合接头 |
Fitting, Elbow |
|
4-131-77 |
77 |
B220401000316 |
3 |
三通梭阀 |
Three-way shuttle valve |
|
4-131-78 |
78 |
60217141 |
9 |
压力传感器 |
Sensor, pressure |
|

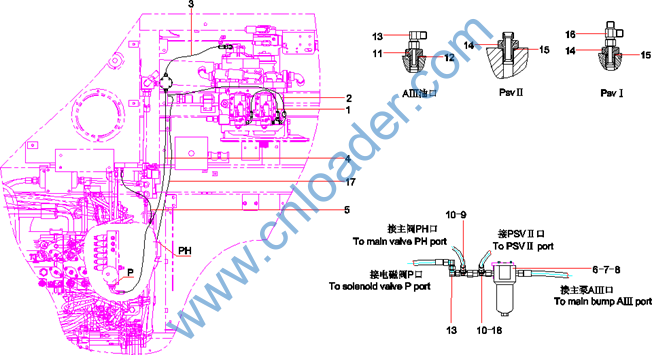

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-133-1 |
1 |
21018549 |
1 |
胶管 |
Rubber Hose |
|
4-133-2 |
2 |
60187384 |
1 |
胶管 |
rubber hose |
|
4-133-3 |
3 |
60101296 |
1 |
胶管 |
Rubber Hose2SN10-DKOL- |
|
4-133-4 |
4 |
B230103002712 |
1 |
胶管 |
Rubber hose |
|
4-133-5 |
5 |
B230103001428 |
1 |
胶管 |
Rubber Hose |
|
4-133-6 |
6 |
B229900000063 |
1 |
液压油过滤器 |
Filter, pilot AS |
|
4-133-7 |
7 |
A210111000343 |
4 |
螺栓M8×20GB5783 10.9级 |
Bolt |
|
4-133-8 |
8 |
24000633 |
4 |
垫圈8GB97.1 达克锈 |
Washer |
|
4-133-9 |
9 |
B210780000827 |
1 |
管接头 |
Fitting |
|
4-133-10 |
10 |
B210780000016 |
2 |
三通组合L型接头 |
Fitting, Tee |
|
4-133-11 |
11 |
A820205000941 |
1 |
接头 |
Connector, straight |
|
4-133-12 |
12 |
B230101000090 |
1 |
O形圈 |
O-ring |
|
4-133-13 |
13 |
B210780000024 |
3 |
直角组合接头 |
Fitting, Elbow |
|
4-133-14 |
14 |
60020078 |
2 |
过滤接头 |
Fitting, screen |
|
4-133-15 |
15 |
B230101000047 |
2 |
O形圈 |
O-Ring-10.8 |
|
4-133-16 |
16 |
B210780000170 |
1 |
管接头 |
Fitting |
|
4-133-17 |
17 |
B230103003320 |
1 |
胶管 |
Rubber Hose |
|
4-133-18 |
18 |
B210780000683 |
1 |
对接式变径接头 |
Fitting, Adapter |
|

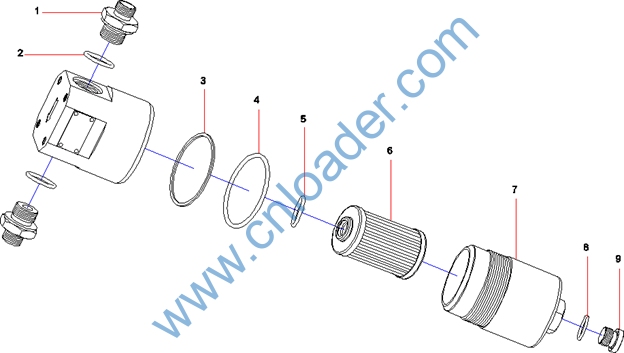

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-135-1 |
1 |
60294881 |
2 |
管接头 |
Fitting |
|
4-135-2 |
2 |
29010015 |
2 |
O形圈 |
O-ring |
|
4-135-3 |
3 |
60294882 |
1 |
密封垫 |
Ring, back up |
|
4-135-4 |
4 |
A230101000563 |
1 |
O形密封圈 |
O-ring |
|
4-135-5 |
5 |
24002612 |
1 |
O形圈 |
O-ring |
|
4-135-6 |
6 |
A222100000119 |
1 |
先导滤芯 |
Filter, pilot |
|
4-135-7 |
7 |
60294883 |
1 |
壳体 |
Housing |
|
4-135-8 |
8 |
21000077 |
1 |
O形圈 |
O-ring |
|
4-135-9 |
9 |
60294884 |
1 |
螺塞 |
Plug |
|

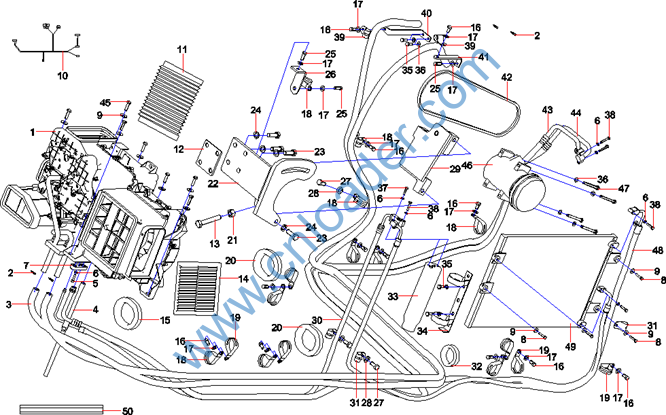

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-137-1 |
1 |
60168171 |
1 |
空调单元总成 |
Assembly, air conditioner |
|
4-137-2 |
2 |
60134354 |
4 |
喉箍 |
Hose clamps |
|
4-137-3 |
3 |
13377479 |
2 |
蒸汽胶管 |
Rubber Hose |
|
4-137-4 |
4 |
60213359 |
1 |
排水管 |
Drainage pipe |
|
4-137-5 |
5 |
24002251 |
1 |
螺钉M6×25GB70.1 10.9级 |
Screw M6×25GB70.1 Grade 10.9 |
|
4-137-6 |
6 |
24000632 |
7 |
垫圈6GB97.1 达克锈 |
washer |
|
4-137-7 |
7 |
60250668 |
1 |
压板接头 |
Plate |
|
4-137-8 |
8 |
A210111000293 |
4 |
螺栓 |
Bolt |
|
4-137-9 |
9 |
60060565 |
11 |
垫圈8GB96.1 达克锈 |
Washer |
|
4-137-10 |
10 |
10473304 |
1 |

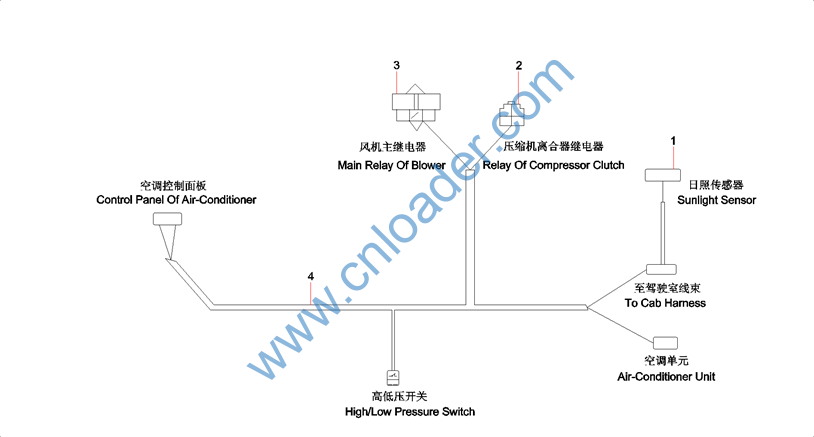

空调电气系统 |
Electric system of air conditioner |
|
4-137-11 |
11 |
B222100000711 |
1 |
内气过滤器 |
Inner air filter |
|
4-137-12 |
12 |
13251493 |
1 |
方垫 |
Cushion |
|
4-137-13 |
13 |
A210111000347 |
1 |
螺栓M16×90GB5783 10.9级 |
Bolt |
|
4-137-14 |
14 |
60250669 |
1 |
外气过滤器 |
Filter |
|
4-137-15 |
15 |
11648716 |
1 |
护套 |
Protective sleeve |
|
4-137-16 |
16 |
A210111000195 |
12 |
螺栓 |
Bolt |
|
4-137-17 |
17 |
变更或见其他配置 |
17 |
垫圈10GB97.1 达克锈 |
Washer |
|
4-137-18 |
18 |
变更或见其他配置 |
14 |
线束固定夹 |
Clamp |
|
4-137-19 |
19 |
60086357 |
10 |
线束固定夹 |
Clamp |
|
4-137-20 |
20 |
11169935 |
2 |
橡胶护套 |
Rubber protective sleeve |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-139-21 |
21 |
A210307000028 |
1 |
螺母 |
Nut |
|
4-139-22 |
22 |
13278016 |
1 |
压缩机支架 |
Compressor fixed Bracket |
|
4-139-23 |
23 |
A210111000208 |
5 |
螺栓 |
Bolt |
|
4-139-24 |
24 |
A210444000001 |
5 |
垫圈 |
Washer |
|
4-139-25 |
25 |
A210111000197 |
3 |
螺栓 |
Bolt |
|
4-139-26 |
26 |
13277347 |
1 |
固定支架 |
Fixed bracket |
|
4-139-27 |
27 |
A210111000101 |
5 |
螺栓M12×25GB5783 10.9级 |
Bolt |
|
4-139-28 |
28 |
变更或见其他配置 |
2 |
垫圈12GB97.1 达克锈 |
Washer |
|
4-139-29 |
29 |
10143993 |
1 |
调整板 |
Adjusting Plate SY230C6B.1.8.2A |
|
4-139-30 |
30 |
60250667 |
1 |
液体胶管 |
Liquid rubber hose |
|
4-139-31 |
31 |
变更或见其他配置 |
1 |
线束固定夹 |
Clamp |
|
4-139-32 |
32 |
11133774 |
1 |
护套 |
Protective sleeve |
|
4-139-33 |
33 |
B229900005141 |
1 |
储液器 |
Dryer |
|
4-139-34 |
34 |
A229900008784 |
1 |
储液器支架 |
Bracker, dryer clamp |
|
4-139-35 |
35 |
A210111000343 |
4 |
螺栓M8×20GB5783 10.9级 |
Bolt |
|
4-139-36 |
36 |
24000633 |
8 |
垫圈8GB97.1 达克锈 |
Washer |
|
4-139-37 |
37 |
A210111000081 |
4 |
螺栓 |
Bolt |
|
4-139-38 |
38 |
A210111000082 |
2 |
螺栓 |
Bolt |
|
4-139-39 |
39 |
60086355 |
3 |
线束固定夹 |
the fixity of line |
|
4-139-40 |
40 |
13277351 |
1 |
固定支架 |
Fixed bracket |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-141-41 |
41 |
13277349 |
1 |
固定支架 |
Fixed bracketⅡ |
|
4-141-42 |
42 |
B230106000058 |
1 |
V带 |
Triangular Belt |
|
4-141-43 |
43 |
60250665 |
1 |
排气胶管 |
Exhaust hose |
|
4-141-44 |
44 |
60250664 |
1 |
吸气胶管 |
Suction rubber tube |
|
4-141-45 |
45 |
变更或见其他配置 |
2 |
螺栓 |
Bolt |
|
4-141-46 |
46 |
B220203000007 |
1 |
压缩机 |
Compressor |
|
4-141-47 |
47 |
A210111000097 |
4 |
螺栓 |
Bolt |
|
4-141-48 |
48 |
60250666 |
1 |
液体胶管 |
Liquid rubber hose |
|
4-141-49 |
49 |
A220700000028 |
1 |
冷凝器总成 |
Condenser |
|
4-141-50 |
50 |
11133754 |
1 |
护套 |
Protective sleeve |
|

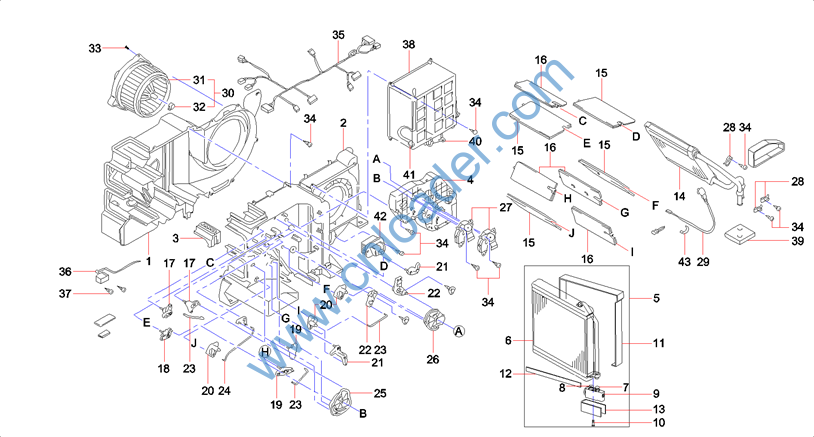

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-143-1 |
1 |
60153212 |
1 |
冷却机组外壳 |
Housing, main, rear |
|
4-143-2 |
2 |
60153213 |
1 |
冷却机组外壳 |
Housing, main, front |
|
4-143-3 |
3 |
60153195 |
1 |
片 |
Acuators |
|
4-143-4 |
4 |
60153196 |
1 |
片 |
Acuators |
|
4-143-5 |
5 |
60153202 |
1 |
带部件蒸发器总成 |
Evaporator AS |
|
4-143-6 |
6 |
60153218 |
1 |
蒸发器分总成 |
Evaporator |
|
4-143-7 |
7 |
60153192 |
1 |
O型环 |
O-ring |
|
4-143-8 |
8 |
60153193 |
1 |
O型环 |
O-ring |
|
4-143-9 |
9 |
60153197 |
1 |
膨胀阀 |
Valve, expansion |
|
4-143-10 |
10 |
60153215 |
2 |
螺栓 |
Bolt |
|
4-143-11 |
11 |
60153203 |
1 |
隔热密封垫 |
Seal, insulation |
|
4-143-12 |
12 |
60153205 |
3 |
隔热密封垫 |
Seal, insulation |
|
4-143-13 |
13 |
60153204 |
1 |
隔热密封垫 |
Seal, insulation |
|
4-143-14 |
14 |
60153242 |
1 |
加热器芯分总成 |
Core, heater |
|
4-143-15 |
15 |
60049962 |
4 |
门分总成 |
Damper |
|
4-143-16 |
16 |
60153216 |
4 |
门分总成 |
Damper |
|
4-143-17 |
17 |
60049956 |
2 |
连杆分总成 |
Linkage, cam |
|
4-143-18 |
18 |
60049957 |
1 |
连杆分总成 |
Linkage, cam |
|
4-143-19 |
19 |
60049958 |
2 |
连杆分总成 |
Linkage, cam |
|
4-143-20 |
20 |
60049959 |
3 |
连杆分总成 |
Linkage, cam |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-145-21 |
21 |
60049941 |
2 |
杆 |
Linkage, lever |
|
4-145-22 |
22 |
60049960 |
2 |
连杆分总成 |
Linkage, cam |
|
4-145-23 |
23 |
60049963 |
3 |
轴 |
Linkage, lever |
|
4-145-24 |
24 |
60049964 |
1 |
轴 |
Linkage, lever |
|
4-145-25 |
25 |
60049943 |
1 |
片 |
Acuators |
|
4-145-26 |
26 |
60049944 |
1 |
片 |
Acuators |
|
4-145-27 |
27 |
60049947 |
2 |
伺服电机总成 |
Motor AS, servo |
|
4-145-28 |
28 |
60049955 |
3 |
夹具 |
Clamp |
|
4-145-29 |
29 |
60033039 |
1 |
水温传感器 |
Sensor, coolant temperature |
|
4-145-30 |
30 |
60153199 |
1 |
鼓风电机 |
Motor AS |
|
4-145-31 |
31 |
60049951 |
1 |
风扇叶 |
Fan |
|
4-145-32 |
32 |
60049954 |
1 |
夹具 |
Clamp |
|
4-145-33 |
33 |
60049950 |
3 |
带垫圈自攻螺钉 |
Screw, self tapping with washer |
|
4-145-34 |
34 |
60049965 |
32 |
自攻螺钉 |
Screw, self-tapping |
|
4-145-35 |
35 |
60049948 |
1 |
空调机电束总成 |
Harness AS, blower housing |
|
4-145-36 |
36 |
60049966 |
1 |
防结霜传感器 |
Sensor, anti-frost |
|
4-145-37 |
37 |
60049949 |
2 |
带垫圈螺钉 |
Screw, with washer |
|
4-145-38 |
38 |
60049942 |
1 |
盒分总成 |
Cover |
|
4-145-39 |
39 |
60049953 |
1 |
隔热密封垫 |
Seal, insulation |
|
4-145-40 |
40 |
60049945 |
1 |
带附件伺服电机总成 |
Motor AS, servo |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
4-147-41 |
41 |
60153240 |
1 |
内气传感器 Sensor, fresh air temperature |
|
4-147-42 |
42 |
60049968 |
1 |
调速电阻 Transistor AS |
|
4-147-43 |
43 |
60049952 |
1 |
感温包零件支架 Bracket |
