识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-103-1 |
1 |
60320125 |
1 |
发动机控制器 |
Control unit; eng |
|
6-103-2 |
2 |
60311884 |
1 |
启动马达继电器 |
Starter relay |
|
6-103-3 |
3 |
60250936 |
1 |
41.88894460-7061 |
glow relay |
|
6-103-4 |
4 |
60065525 |
1 |
传感器 |
SENSOR; MAP |
|
6-103-5 |
5 |
60250930 |
1 |
空气温度传感器 |
Inlet air temperature sensor |
|
6-103-6 |
6 |
B229900004794 |
3 |
螺母 |
Nut |
|
6-103-7 |
7 |
60319951 |
3 |
启动器垫圈 |
Washer; lk, starter |
|
6-103-8 |
8 |
60320056 |
1 |
启动器接地电缆 |
Cable; starter earth |
|
6-103-9 |
9 |
60320052 |
1 |
启动器总成 |
Starter asm |
|
6-103-10 |
10 |
60319944 |
1 |
发电机支架螺栓 |
Bolt; gen brkt |
|
6-103-11 |
11 |
60319947 |
1 |
发电机支架螺栓 |
Bolt; gen brkt |
|
6-103-12 |
12 |
60320050 |
1 |
传感器 |
Sensor |
|
6-103-13 |
13 |
60097276 |
2 |
主继电器 |
MAIN RELAY |
|
6-103-14 |
14 |
60320107 |
1 |
水温传感器 |
Sensor; water temp |
|

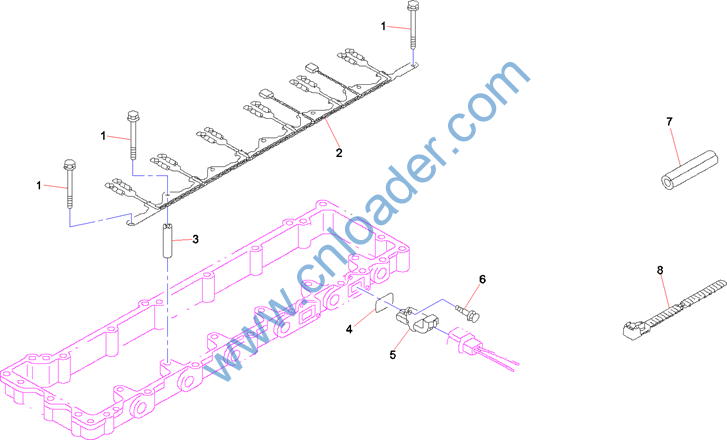

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-105-1 |
1 |
B229900004857 |
7 |
螺栓 M8×70凸缘 |
Bolt 028050-8700 M8×70 flange |
|
6-105-2 |
2 |
60320055 |
1 |
喷油器导线 |
Harness; injector |
|
6-105-3 |
3 |
60319982 |
5 |
线束撑杆 |
Spacer; harness |
|
6-105-4 |
4 |
60311890 |
2 |
垫片 |
Gasket |
|
6-105-5 |
5 |
60311888 |
2 |
连接器 |
Connector |
|
6-105-6 |
6 |
B229900004849 |
4 |
螺栓 M8×12凸缘 |
Bolt 028050-8120 M8×12 flange |
|
6-105-7 |
7 |
B230103007487 |
1 |
橡胶管 |
Hose, Rubber |
|
6-105-8 |
8 |
60320380 |
2 |
通风管扎带 |
Clip;rubber hose |
|

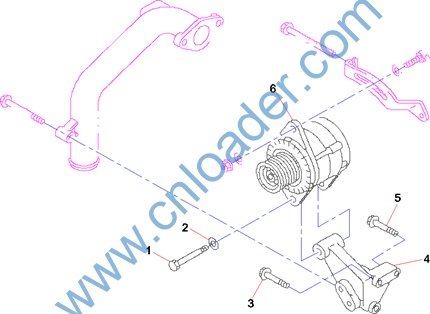

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-107-1 |
1 |
60319952 |
1 |
发电机螺栓 |
Bolt; gen |
|
6-107-2 |
2 |
B229900004582 |
1 |
垫圈 |
Washer |
|
6-107-3 |
3 |
60319944 |
1 |
发电机支架螺栓 |
Bolt; gen brkt |
|
6-107-4 |
4 |
60320037 |
1 |
发电机支架 |
Bracket; gen |
|
6-107-5 |
5 |
60319947 |
1 |
发电机支架螺栓 |
Bolt; gen brkt |
|
6-107-6 |
6 |
60320054 |
1 |
发电机总成 |
Generator asm |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-109-1 |
1 |
60016664 |
1 |
蓄电池继电器 Battery relay |
|

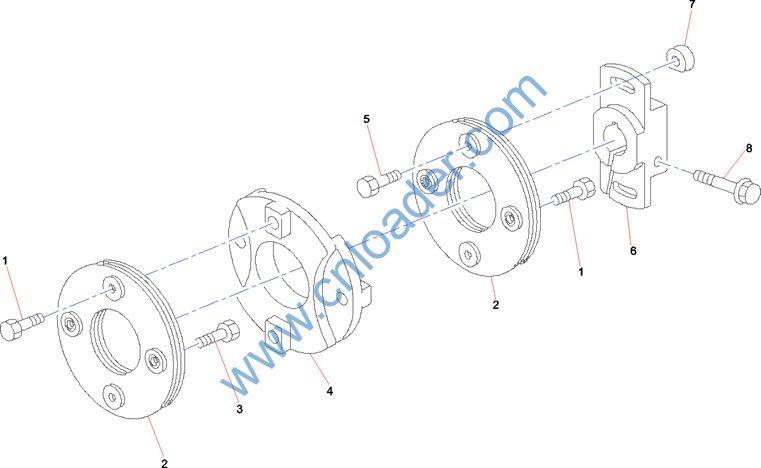

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-111-1 |
1 |
60320023 |
4 |
螺栓 |
Bolt |
|
6-111-2 |
2 |
60320021 |
2 |
连接器平板 |
Plate;coupling, coupling side |
|
6-111-3 |
3 |
60320026 |
2 |
喷油泵连接器螺栓 |
Bolt; coupling to inj pump |
|
6-111-4 |
4 |
60320020 |
1 |
喷油泵过渡连接器 |
Coupling; cross, inj pump drive |
|
6-111-5 |
5 |
60320022 |
2 |
喷油泵连接板螺栓 |
Bolt; plate to coupling; inj pump |
|
6-111-6 |
6 |
60320019 |
1 |
喷油泵连接器 |
Coupling; inj pump drive |
|
6-111-7 |
7 |
60320025 |
2 |
喷油泵连接板螺母 |
Nut; plate to coupling; inj pump |
|
6-111-8 |
8 |
60320024 |
1 |
喷油泵连接器固定螺栓 |
Bolt; coupling fix, inj pump |
|

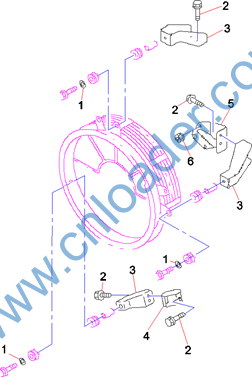

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-113-1 |
1 |
B229900004583 |
3 |
垫圈 |
Washer |
|
6-113-2 |
2 |
B229900004900 |
8 |
螺栓 M10×20凸缘 |
Bolt |
|
6-113-3 |
3 |
B229900004462 |
3 |
支柱 |
Bracket |
|
6-113-4 |
4 |
B229900005094 |
1 |
支架 |
Bracket |
|
6-113-5 |
5 |
60320039 |
1 |
支架 |
Bracket |
|
6-113-6 |
6 |
B229900004800 |
2 |
螺母 M10凸缘 |
Nut 091180-1100 M10 flange |
|

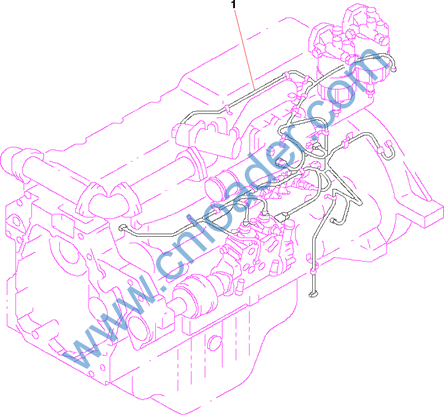

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-115-1 |
1 |
60320116 |
1 |
发动机线束 Harness; eng |
|

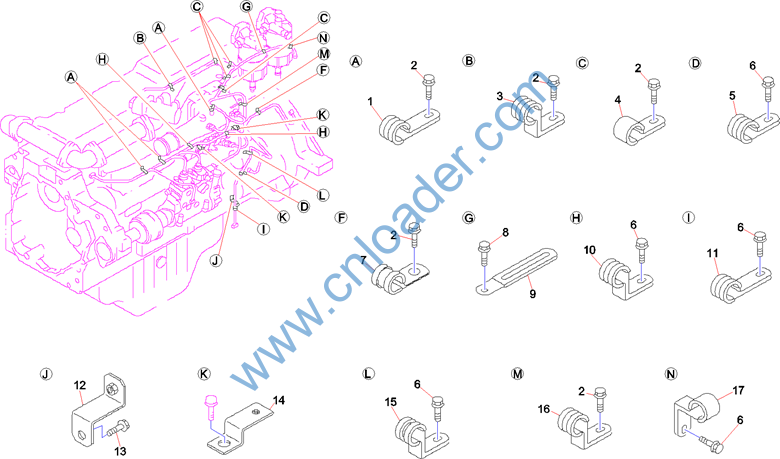

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-117-1 |
1 |
60319967 |
3 |
线夹 |
Clip; harness |
|
6-117-2 |
2 |
B229900004850 |
10 |
螺栓 |
Bolt |
|
6-117-3 |
3 |
60319970 |
1 |
线夹 |
Clip; harness |
|
6-117-4 |
4 |
60320416 |
2 |
软管卡箍 |
Clip;water pipe(c) |
|
6-117-5 |
5 |
60320379 |
1 |
通风管管夹 |
Clip;rubber hose,ventilation |
|
6-117-6 |
6 |
B229900004851 |
7 |
螺栓 |
Bolt 028050-8200 M8×20 flange |
|
6-117-7 |
7 |
60320059 |
2 |
线夹 |
Clip; harness |
|
6-117-8 |
8 |
B229900004886 |
1 |
螺栓 M10×20凸缘 |
Bolt,flange |
|
6-117-9 |
9 |
60320064 |
1 |
线夹 |
Clip; harness |
|
6-117-10 |
10 |
60115377 |
2 |
发动机线固定夹子 |
Cable Clip – Engine |
|
6-117-11 |
11 |
60319973 |
1 |
线夹 |
Clip; harness |
|
6-117-12 |
12 |
60320049 |
1 |
线束支架 |
Bracket; harness |
|
6-117-13 |
13 |
B229900004885 |
1 |
螺栓 |
Bolt 028151-0160 M10×16 flange |
|
6-117-14 |
14 |
60320048 |
2 |
线束支架 |
Bracket; harness |
|
6-117-15 |
15 |
60319972 |
1 |
线夹 |
Clip; harness |
|
6-117-16 |
16 |
60319971 |
1 |
线夹 |
Clip; harness |
|
6-117-17 |
17 |
60319969 |
3 |
线夹 |
Clip; harness |
|

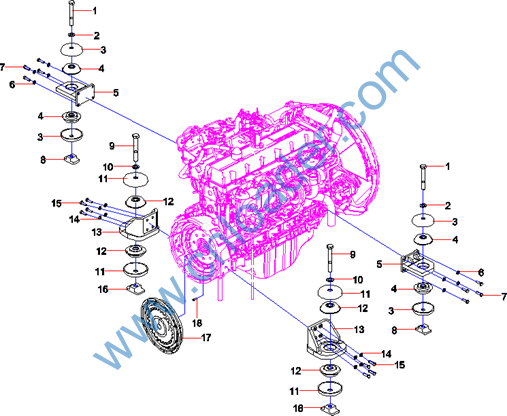

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-119-1 |
1 |
A210110000456 |
2 |
螺栓GB5782 10.9级 |
Bolt M27×180GB5782 Grade 10.9 |
|
6-119-2 |
2 |
A210444000004 |
2 |
垫圈 |
High-strength steel washer- |
|
6-119-3 |
3 |
11686108 |
4 |
挡板 |
stopper |
|
6-119-4 |
4 |
60008208 |
4 |
减震垫 |
cushion |
|
6-119-5 |
5 |
12833149 |
2 |
发动机前支腿 |
Engine Front Outrigger |
|
6-119-6 |
6 |
A210444000001 |
8 |
垫圈 |
Washer |
|
6-119-7 |
7 |
A210111000209 |
8 |
螺栓M14×45GB5783 10.9级 |
Bolt M14×45GB5783-00 Class |
|
6-119-8 |
8 |
13297295 |
2 |
防松螺纹块 |
Lock nut SY485C1I3KH.1.3.1-2 |
|
6-119-9 |
9 |
A210110000246 |
2 |
螺栓M30×200GB5782 10.9级 |
Bolt M30×200GB5782 Grade 10.9 |
|
6-119-10 |
10 |
A210444000003 |
2 |
垫圈 |
Washer |
|
6-119-11 |
11 |
11686109 |
4 |
挡板 |
stopper |
|
6-119-12 |
12 |
60008209 |
4 |
减震垫 |
cushion |
|
6-119-13 |
13 |
11749352 |
2 |
发动机后支腿 |
Engine rear support leg |
|
6-119-14 |
14 |
A210491000118 |
8 |
垫圈 |
High-strength steel washer |
|
6-119-15 |
15 |
A210111000243 |
8 |
螺栓 |
Bolt |
|
6-119-16 |
16 |
13289490 |
2 |
防松螺纹块 |
Lock nut SY485C1I3KH.1.3.1-1 |
|
6-119-17 |
17 |
60352558 |
1 |
法兰联轴器 |
Flanging coupling |
|
6-119-18 |
18 |
A210204000355 |
16 |
螺钉M10×40GB70.1 10.9级 |
Screw |
|

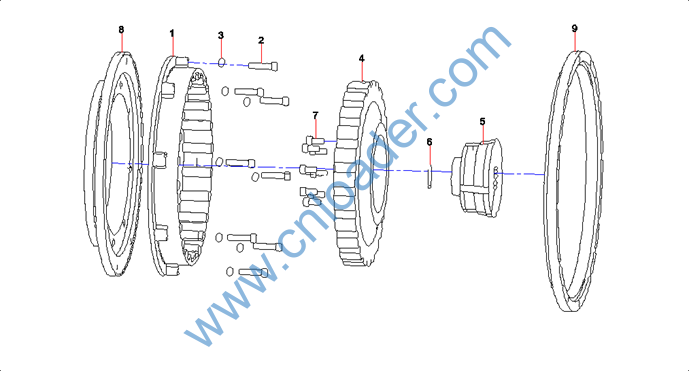

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-121-1 |
1 |
61003620 |
1 |
铝法兰 |
Flange |
|
6-121-2 |
2 |
A210204000025 |
8 |
螺钉 |
Screw |
|
6-121-3 |
3 |
60186442 |
8 |
垫圈 |
Small gasket |
|
6-121-4 |
4 |
61003634 |
1 |
弹性体 |
Elastic body |
|
6-121-5 |
5 |
61003635 |
1 |
轴套 |
Shaft sleeve |
|
6-121-6 |
6 |
A210416000026 |
1 |
挡圈 |
Ring, Retainer |
|
6-121-7 |
7 |
A210204000167 |
8 |
螺钉M12×25GB70.1 10.9级 |
Screw |
|
6-121-8 |
8 |
60340523 |
1 |
法兰 |
Flange |
|
6-121-9 |
9 |
61003636 |
1 |
泵盖板 |
Pump cover plate |
|

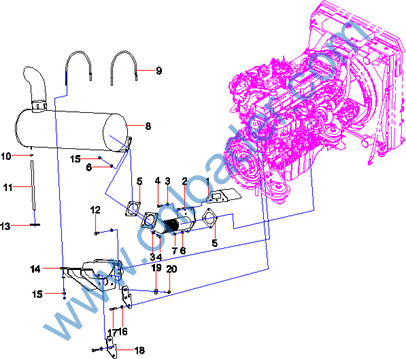

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-123-1 |
1 |
13300963 |
1 |
防雨罩总成 |
waterproof SY485C1I3KH.1.3.2.3 |
|
6-123-2 |
2 |
13294815 |
1 |
排气接管 |
Gas pipe SY485C1I3KH.1.3.2.2 |
|
6-123-3 |
3 |
A210491000121 |
11 |
垫圈 |
Washer |
|
6-123-4 |
4 |
A210111000204 |
7 |
螺栓 |
Bolt |
|
6-123-5 |
5 |
60250933 |
2 |
排气垫片 |
Casket EXH DUCT |
|
6-123-6 |
6 |
60250934 |
8 |
排气垫圈 |
Washer, dish,exh ,duct |
|
6-123-7 |
7 |
60250935 |
4 |
排气螺母 |
Nut,exh,duct |
|
6-123-8 |
8 |
60250310 |
1 |
消声器 |
Muffler |
|
6-123-9 |
9 |
13632605 |
2 |
消音器抱箍 |
silencer bracket |
|
6-123-10 |
10 |
A210855000003 |
1 |
喉箍 |
Clamp |
|
6-123-11 |
11 |
10250095 |
1 |
排水管 |
Drainage pipe |
|
6-123-12 |
12 |
A210110000437 |
4 |
螺栓M12×65GB5782 10.9级 |
Bolt M12×65GB5782 Grade 10.9 |
|
6-123-13 |
13 |
12215066 |
1 |
橡胶垫 |
rubber pad |
|
6-123-14 |
14 |
13285648 |
1 |
消音器支架 |
Bracket |
|
6-123-15 |
15 |
A210307000031 |
12 |
螺母M12GB6170 10级 |
Nut M12 |
|
6-123-16 |
16 |
A210444000001 |
8 |
垫圈 |
Washer |
|
6-123-17 |
17 |
A210111000205 |
4 |
螺栓M14×30GB5783 10.9级 |
Bolt M14×30GB5783 Grade 10.9 |
|
6-123-18 |
18 |
11450892 |
2 |
连接板 |
Connecting plate |
|
6-123-19 |
19 |
60060550 |
4 |
垫圈14GB96.1 达克锈 |
Washer |
|
6-123-20 |
20 |
A210111000208 |
4 |
螺栓 |
Bolt |
|

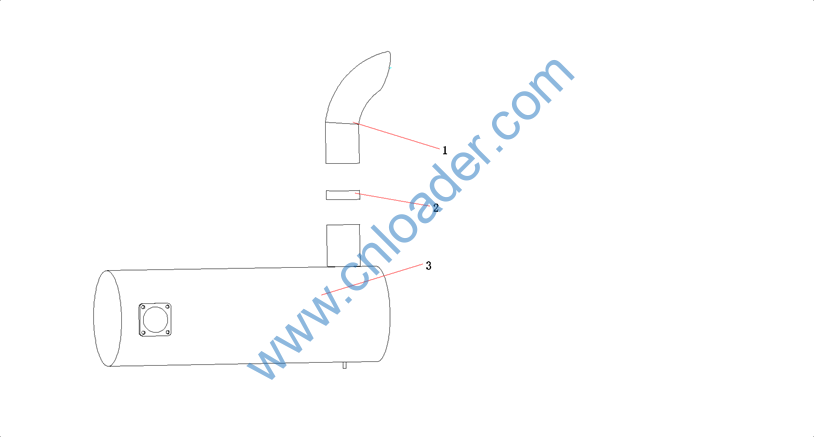

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-125-1 |
1 |
60310022 |
1 |
尾管 pipe |
|
6-125-2 |
2 |
60310023 |
1 |
固定夹 fit |
|
6-125-3 |
3 |
60310024 |
1 |
筒体 body |
|

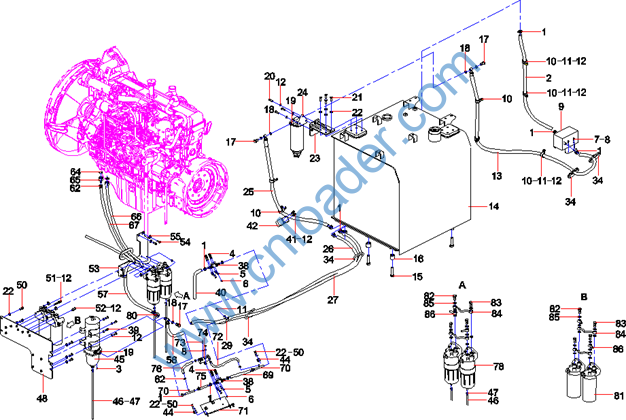

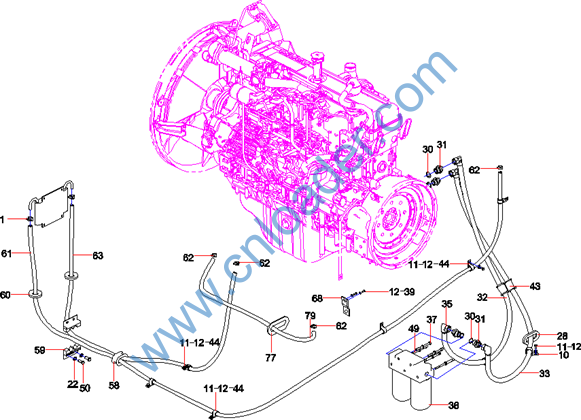

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-127-1 |
1 |
60134354 |
13 |
喉箍 |
Hose clamps |
|
6-127-2 |
2 |
13288172 |
1 |
循环泵出油管 |
Fuel Pipe |
|
6-127-3 |
3 |
A240600000260 |
1 |
水传感器 |
Water sensor RK30880Parker |
|
6-127-4 |
4 |
10578844 |
4 |
U形螺栓 |
U type bolt |
|
6-127-5 |
5 |
24000633 |
8 |
垫圈8GB97.1 达克锈 |
Washer |
|
6-127-6 |
6 |
A210307000055 |
8 |
螺母M8GB6170 10级 |
Nut |
|
6-127-7 |
7 |
A210111000079 |
4 |
螺栓 |
Bolt |
|
6-127-8 |
8 |
60238783 |
6 |
垫圈6GB96.1 达克锈 |
Washer |
|
6-127-9 |
9 |
60248975 |
1 |
循环泵 |
PUMP |
|
6-127-10 |
10 |
60086357 |
7 |
线束固定夹 |
Clamp |
|
6-127-11 |
11 |
A210111000195 |
7 |
螺栓 |
Bolt |
|
6-127-12 |
12 |
A210491000120 |
36 |
垫圈 |
washer |
|
6-127-13 |
13 |
14159300 |
1 |
循环泵进油管 |
Fuel Pipe |
|
6-127-14 |
14 |
13548761 |
1 |
燃油箱总成 |
Fuel tank SY485C1I3KH.1.3.5.1C |
|
6-127-15 |
15 |
A210110000201 |
6 |
螺栓M20×80GB5783 10.9级 |
Bolt |
|
6-127-16 |
16 |
11450168 |
6 |
间隔套 |
Spacer Sleeve |
|
6-127-17 |
17 |
A210199004057 |
3 |
铰接螺栓 |
Articulating Bolt |
|
6-127-18 |
18 |
A210434000009 |
6 |
垫圈 |
Washer |
|
6-127-19 |
19 |
10442581 |
3 |
粗滤接头 |
Connector |
|
6-127-20 |
20 |
A210111000026 |
3 |
螺栓 |
Bolt |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-129-21 |
21 |
A210111000203 |
4 |
螺栓 |
Bolt |
|
6-129-22 |
22 |
A210491000121 |
13 |
垫圈 |
Washer |
|
6-129-23 |
23 |
13290936 |
1 |
支架总成 |
Bracket SY485C1I3KH.1.3.5.13 |
|
6-129-24 |
24 |
60205949 |
1 |
柴油滤清器 |
Diesel Fuel Cleaner |
|
6-129-25 |
25 |
13288054 |
1 |
燃油箱粗滤进油管 |
Fuel Pipe |
|
6-129-26 |
26 |
13288197 |
1 |
放油管 |
Fuel Pipe |
|
6-129-27 |
27 |
13807104 |
1 |
粗滤进油管 |
Fuel Pipe |
|
6-129-29 |
29 |
60208141 |
1 |
线束固定夹 |
the fixity of line |
|
6-129-34 |
34 |
11133736 |
4 |
护套 |
Protective sleeve |
|
6-129-38 |
38 |
60203209 |
2 |
球阀总成 |
Ball value assembly |
|
6-129-39 |
39 |
A210111000197 |
5 |
螺栓 |
Bolt |
|
6-129-40 |
40 |
13288242 |
1 |
放油管 |
Fuel Pipe |
|
6-129-41 |
41 |
A210110000447 |
2 |
螺栓M10×55GB5782 10.9级 |
Bolt |
|
6-129-42 |
42 |
13630332 |
1 |
上固定座 |
bracket |
|
6-129-44 |
44 |
60149605 |
3 |
线束固定夹 |
The Fixity Of Line |
|
6-129-45 |
45 |
60249071 |
1 |
柴油滤清器 |
Fuel filter |
|
6-129-46 |
46 |
10949800 |
3 |
放水管 |
Drainage tube |
|
6-129-47 |
47 |
A229900001345 |
3 |
软管环箍 |
Clamp |
|
6-129-48 |
48 |
13291518 |
1 |
柴滤固定支架 |
Bracket of fuel filter |
|
6-129-50 |
50 |
A210111000202 |
9 |
螺栓 |
Bolt |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-131-51 |
51 |
A210111000295 |
4 |
螺栓 |
Bolt |
|
6-131-52 |
52 |
21005186 |
8 |
螺栓 |
Bolt |
|
6-131-53 |
53 |
13291554 |
1 |
滤清器器支架 |
Bracket of Fuel filter |
|
6-131-54 |
54 |
A210111000024 |
4 |
螺栓 |
Bolt |
|
6-131-55 |
55 |
60060546 |
4 |
垫圈10GB96.1 达克锈 |
Washer |
|
6-131-56 |
56 |
13288038 |
1 |
粗滤连接管 |
Fuel Pipe |
|
6-131-57 |
57 |
13288031 |
1 |
粗滤出油管 |
Fuel Pipe |
|
6-131-62 |
62 |
60202896 |
10 |
软管环箍 |
Hose ring hoop |
|
6-131-64 |
64 |
B230101000356 |
2 |
O形圈 |
O-Ring-23.7 |
|
6-131-65 |
65 |
13291588 |
2 |
管接头 |
Pipe connector |
|
6-131-66 |
66 |
13287706 |
1 |
进油管 |
Fuel hose |
|
6-131-67 |
67 |
13287950 |
1 |
精滤出油管 |
Fuel Pipe 4 |
|
6-131-69 |
69 |
13807107 |
1 |
粗滤进油管 |
Fuel Pipe |
|
6-131-70 |
70 |
13807156 |
2 |
三通接头 |
T-Joint |
|
6-131-71 |
71 |
13807113 |
1 |
支架总成 |
Bracket assembly |
|
6-131-72 |
72 |
13807109 |
1 |
电磁泵进油管 |
Fuel hose of pump |
|
6-131-73 |
73 |
A210111000082 |
2 |
螺栓 |
Bolt |
|
6-131-74 |
74 |
60018583 |
1 |
燃油泵总成 |
Fuel pump |
|
6-131-75 |
75 |
13807108 |
1 |
粗滤进油管 |
Fuel Pipe |
|
6-131-76 |
76 |
13807110 |
1 |
电磁泵出油管 |
Fuel hose of pump |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-133-78 |
78 |
60064763 |
2 |
燃油粗滤器 |
Diesel Fuel Cleaner |
|
6-133-80 |
80 |
13291147 |
1 |
接头 |
Joint |
|
6-133-81 |
81 |
60250940 |
2 |
燃油主滤 |
Fule filter |
|
6-133-82 |
82 |
60250939 |
4 |
双孔铰接螺栓 |
Joint pipe |
|
6-133-83 |
83 |
60064766 |
4 |
铰接螺栓 |
Articulating Bolt |
|
6-133-84 |
84 |
60250938 |
4 |
并联接管 |
Pipe |
|
6-133-85 |
85 |
B229900004534 |
20 |
垫片 |
Spacer |
|
6-133-86 |
86 |
60273596 |
4 |
燃油管接头 |
Pipe connector |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-135-1 |
1 |
60134354 |
2 |
喉箍 Hose clamps |
|
6-135-10 |
10 |
60086357 |
2 |
线束固定夹 Clamp |
|
6-135-11 |
11 |
A210111000195 |
9 |
螺栓 Bolt |
|
6-135-12 |
12 |
A210491000120 |
16 |
垫圈 washer |
|
6-135-22 |
22 |
A210491000121 |
4 |
垫圈 Washer |
|
6-135-28 |
28 |
13285390 |
1 |
橡胶套 Rubber pad |
|
6-135-30 |
30 |
B230101000050 |
4 |
O形圈 O-ring |
|
6-135-31 |
31 |
A820205000945 |
4 |
G1-M30接头 Connector |
|
6-135-32 |
32 |
60027557 |
1 |
机油胶管1SN20-DKOL-DKOL90- Rubber Hose |
|
6-135-33 |
33 |
60029555 |
1 |
机油胶管1SN20-DKOL-DKOL90- Rubber Hose |
|
6-135-35 |
35 |
B210780000028 |
2 |
直角组合接头 Fitting, Elbow |
|
6-135-36 |
36 |
60250932 |
1 |
机油滤清器 oil filter |
|
6-135-37 |
37 |
A210204000477 |
2 |
螺钉M10×110GB70.1 10.9级 Bolt |
|
6-135-39 |
39 |
A210111000197 |
2 |
螺栓 Bolt |
|
6-135-43 |
43 |
A820606020470 |
2 |
φ34胶垫 Φ34 rubber cushion SY420.13.1- |
|
6-135-44 |
44 |
60149605 |
7 |
线束固定夹 The Fixity Of Line |
|
6-135-49 |
49 |
21008534 |
3 |
螺钉 Screw |
|
6-135-50 |
50 |
A210111000202 |
4 |
螺栓 Bolt |
|
6-135-58 |
58 |
13285524 |
2 |
护套 Rubber pad |
|
6-135-59 |
59 |
12020025 |
2 |
管夹 Pipe Clamp |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-137-60 |
60 |
13285399 |
2 |
护套 |
Protective sleeve |
|
6-137-61 |
61 |
13285207 |
1 |
回油管 |
Pipe of reture oil |
|
6-137-62 |
62 |
60202896 |
4 |
软管环箍 |
Hose ring hoop |
|
6-137-63 |
63 |
13284401 |
1 |
回油管 |
Pipe of return oil |
|
6-137-68 |
68 |
14135986 |
1 |
安装座 |
support |
|
6-137-77 |
77 |
13285543 |
1 |
护套 |
Rubber pad |
|
6-137-79 |
79 |
13807111 |
1 |
燃油管 |
Fuel Pipe |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

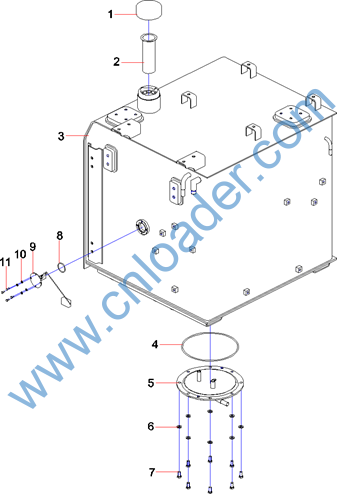

6-139-1 |
1 |
A290000002193 |
1 |
燃油箱锁盖 |
Cover, Lock, Fuel Tank |
|
6-139-2 |
2 |
60117826 |
1 |
燃油箱滤网 |
Strainer AS, fuel |
|
6-139-3 |
3 |
13548774 |
1 |
燃油箱 |
Fuel tank SY485C1I3KH.1.3.5.1C.1 |
|
6-139-4 |
4 |
A210609000307 |
1 |
O形圈 |
O-ring |
|
6-139-5 |
5 |
13548775 |
1 |
底盖板 |
Bottom cover plate |
|
6-139-6 |
6 |
24000639 |
8 |
垫圈12GB97.1 达克锈 |
Washer |
|
6-139-7 |
7 |
A210111000101 |
8 |
螺栓M12×25GB5783 10.9级 |
Bolt |
|
6-139-8 |
8 |
B230101000457 |
1 |
O形圈 |
O-ring |
|
6-139-9 |
9 |
60029642 |
1 |
液位传感器 |
Sensor GP, fuel level |
|
6-139-10 |
10 |
24000632 |
4 |
垫圈6GB97.1 达克锈 |
washer |
|
6-139-11 |
11 |
A210111000078 |
4 |
螺栓 |
Bolt |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

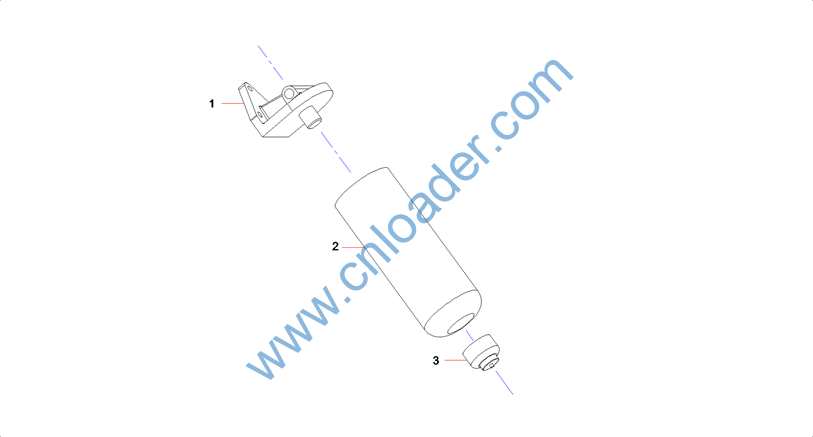

6-141-1 |
1 |
60205741 |
1 |
滤芯安装座 Coaster, element, filter |
|
6-141-2 |
2 |
60206017 |
1 |
柴油滤清器滤芯 Element, fuel filter |
|
6-141-3 |
3 |
60205740 |
1 |
集水杯 Cup, water collection |
