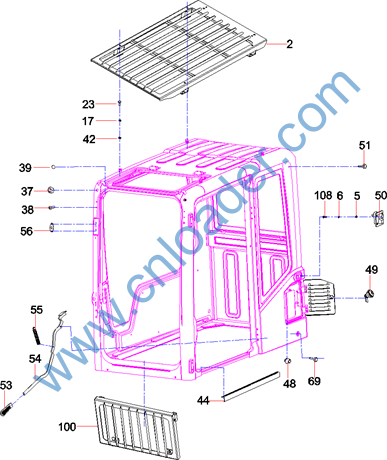

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-15-2 |
2 |
13134552 |
1 |
顶护网总成 |
Top protective network assembly |
|
7-15-5 |
5 |
A210405000007 |
9 |
垫圈 |
Washer |
|
7-15-6 |
6 |
A210401000017 |
19 |
垫圈 |
Washer |
|
7-15-17 |
17 |
A210401000004 |
4 |
垫圈 |
Washer |
|
7-15-23 |
23 |
A210111000100 |
4 |
螺栓 |
Bolt |
|
7-15-37 |
37 |
10473271 |
2 |
线束密封块 |
Sealing block, cluster |
|
7-15-38 |
38 |
10473291 |
4 |
塑料螺钉 |
Plastic bolt |
|
7-15-39 |
39 |
11676657 |
2 |
滚轮防撞块 |
Block, anti-collision, side |
|
7-15-42 |
42 |
A210405000003 |
4 |
垫圈 |
Washer |
|
7-15-44 |
44 |
10138044 |
1 |
脚踏板 |
Pedal |
|
7-15-48 |
48 |
10128903 |
2 |
橡胶块 |
Block, rubberTJ06.2221.1-17 |
|
7-15-49 |
49 |
A222200000148 |
1 |
车窗锁 |
Windshield lock assembly |
|
7-15-50 |
50 |
A222200000149 |
1 |
门锁 |
Latch |
|
7-15-51 |
51 |
10128902 |
1 |
防撞块 |
Block, anti-collisionTJ06.2221.1- |
|
7-15-53 |
53 |
10128920 |
1 |
把手套 |
Handle sleeve |
|
7-15-54 |
54 |
10137641 |
1 |
后部门锁把手总成 |
Handle assembly, rear door lock |
|
7-15-55 |
55 |
10125192 |
1 |
弹簧 |
Spring |
|
7-15-56 |
56 |
10684108 |
1 |
洗涤器垫片 |
Washer, wiper motorTJ06.2221.1- |
|
7-15-69 |
69 |
11910642 |
1 |
短防撞块 |
Block, Rubber |
|
7-15-100 |
100 |
13437754 |
1 |
前下护网总成 |
Front lower protective network |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
7-17-108 |
108 |
A210111000090 |
10 |
螺栓 Bolt |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

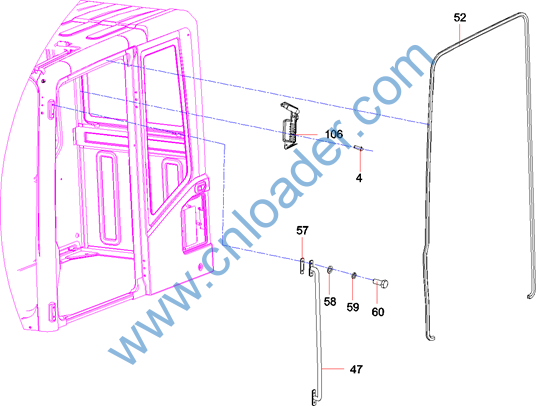

7-19-4 |
4 |
A210210000023 |
2 |
螺钉 |
Screw |
|
7-19-47 |
47 |
10137644 |
1 |
前侧外把手 |
Front side external knob |
|
7-19-52 |
52 |
10128913 |
1 |
门橡胶条 |
Door rubber strip |
|
7-19-57 |
57 |
11308196 |
2 |
外扶手垫片 |
Spacer of outer |
|
7-19-58 |
58 |
A210405000011 |
17 |
垫圈 |
Washer |
|
7-19-59 |
59 |
A210401000001 |
17 |
垫圈 |
Washer |
|
7-19-60 |
60 |
A210111000023 |
8 |
螺栓 |
Bolt |
|
7-19-106 |
106 |
60001291 |
1 |
豪华型安全锤 |
Hammer, emergency |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

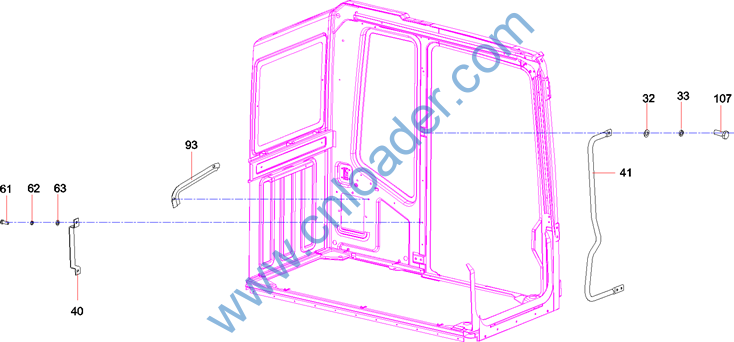

7-21-32 |
32 |
A210405000001 |
15 |
垫圈 |
Washer |
|
7-21-33 |
33 |
A210401000002 |
11 |
垫圈 |
Washer |
|
7-21-40 |
40 |
10138029 |
1 |
把手限位块 |
Handle limiting stopper |
|
7-21-41 |
41 |
10138032 |
1 |
车身内扶手 |
Inner handrail, truck body |
|
7-21-61 |
61 |
A210210000010 |
2 |
螺钉 |
Screw |
|
7-21-62 |
62 |
A210401000016 |
20 |
垫圈 |
Washer |
|
7-21-63 |
63 |
A210405000006 |
11 |
垫圈 |
Washer |
|
7-21-93 |
93 |
12889550 |
1 |
风道上固定板 |
Upper fixed plate of air |
|
7-21-107 |
107 |
A210111000036 |
3 |
螺栓 |
Bolt M12×20(GB5783) |
|

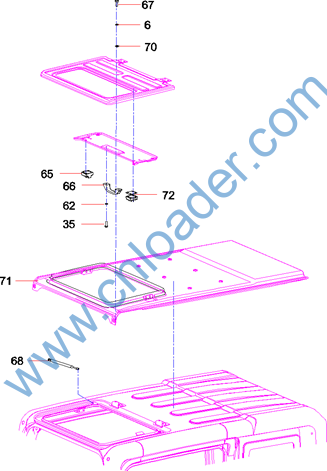

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-23-6 |
6 |
A210401000017 |
19 |
垫圈 |
Washer |
|
7-23-35 |
35 |
A210210000008 |
37 |
螺钉 |
Screw |
|
7-23-62 |
62 |
A210401000016 |
20 |
垫圈 |
Washer |
|
7-23-65 |
65 |
A222200000153 |
2 |
车窗锁 |
Lock AS, roof window |
|
7-23-66 |
66 |
60001290 |
1 |
塑料把手 |
Handhold, plastic |
|
7-23-67 |
67 |
A210111000089 |
14 |
螺栓 |
Bolt |
|
7-23-68 |
68 |
10128857 |
2 |
天窗撑杆 |
Supporting rod， skylight |
|
7-23-70 |
70 |
A210404000005 |
4 |
垫圈 |
Washer |
|
7-23-71 |
71 |
11141306 |
1 |
天窗密封条 |
Sealing strip, skylight |
|
7-23-72 |
72 |
11308294 |
2 |
天窗锁垫片 |
Spacer, skylight lockTJ06.2221.1- |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

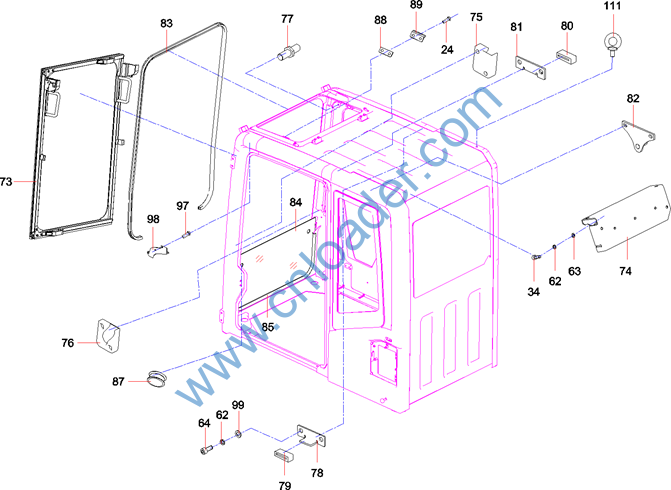

7-25-24 |
24 |
A210211000010 |
4 |
螺钉 |
Screw |
|
7-25-34 |
34 |
A210210000007 |
2 |
螺钉 |
Screw |
|
7-25-62 |
62 |
A210401000016 |
20 |
垫圈 |
Washer |
|
7-25-63 |
63 |
A210405000006 |
11 |
垫圈 |
Washer |
|
7-25-64 |
64 |
A210111000080 |
4 |
螺栓 |
Bolt |
|
7-25-73 |
73 |
11181278 |
1 |
前窗总成 |
Front window assembly |
|
7-25-74 |
74 |
A229900008232 |
1 |
弹簧平衡器 |
Balancer, spring |
|
7-25-75 |
75 |
A229900008235 |
1 |
导轨左侧限位块 |
Stopper, left, guide rail |
|
7-25-76 |
76 |
A229900008233 |
1 |
导轨右侧限位块 |
Stopper, right, guide rail |
|
7-25-77 |
77 |
10138035 |
2 |
前窗前锁扣 |
Front window front locker |
|
7-25-78 |
78 |
11462329 |
1 |
右缓冲块 |
|
|
7-25-79 |
79 |
11593196 |
1 |
前窗右固定块 |
Front window Right fixed block |
|
7-25-80 |
80 |
11462351 |
1 |
左缓冲块 |
|
|
7-25-81 |
81 |
11462138 |
1 |
前窗左固定块 |
Front window Left fixed block |
|
7-25-82 |
82 |
A222200000150 |
2 |
前窗后锁扣 |
Lock catch, rear, front window |
|
7-25-83 |
83 |
11141364 |
1 |
前窗密封条 |
Front window sealing strip |
|
7-25-84 |
84 |
11093782 |
1 |
前下玻璃 |
Front lower glass |
|
7-25-85 |
85 |
11139289 |
1 |
前窗下玻璃密封条 |
Strip, sealing, front window down |
|
7-25-87 |
87 |
A229900008238 |
2 |
前下玻璃把手总成 |
Assembly of front lower glass |
|
7-25-88 |
88 |
11324927 |
2 |
螺母板 |
Plate, nut |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-27-89 |
89 |
10138038 |
2 |
天窗锁扣 |
Locker， skylight |
|
7-27-97 |
97 |
A210204000134 |
2 |
螺钉 |
Screw M6×35GB70.1 |
|
7-27-98 |
98 |
60090897 |
1 |
转弯角 |
Corner, rotary |
|
7-27-99 |
99 |
A210404000009 |
9 |
垫圈 |
Washer |
|
7-27-111 |
111 |
A210214000002 |
4 |
螺钉 |
Screw M16GB825 |
|

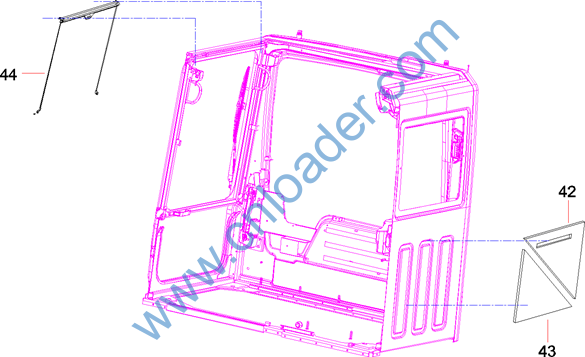

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

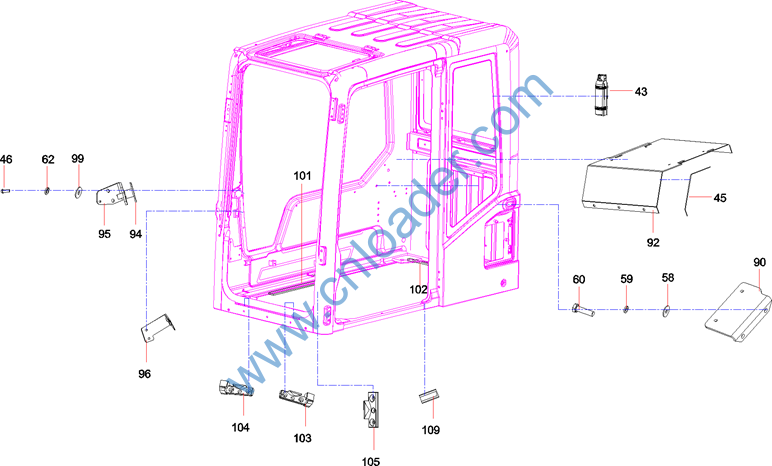

7-29-43 |
43 |
60001289 |
1 |
简易式ABC干粉灭火器 |
Fire Extinguisher |
|
7-29-45 |
45 |
60045595 |
1 |
装饰条 |
Strip, decorative |
|
7-29-46 |
46 |
A210204000131 |
6 |
螺钉 |
Screw |
|
7-29-58 |
58 |
A210405000011 |
17 |
垫圈 |
Washer |
|
7-29-59 |
59 |
A210401000001 |
17 |
垫圈 |
Washer |
|
7-29-60 |
60 |
A210111000023 |
8 |
螺栓 |
Bolt |
|
7-29-62 |
62 |
A210401000016 |
20 |
垫圈 |
Washer |
|
7-29-90 |
90 |
10465291 |
2 |
空调罩左支架总成 |
A/C Cover left Bracket |
|
7-29-92 |
92 |
11762934 |
1 |
空调盖板总成 |
Cover plate of air-conditioner |
|
7-29-94 |
94 |
12048863 |
1 |
显示屏支架 |
Display ScreenInstallation |
|
7-29-95 |
95 |
11648652 |
1 |
显示器安装板 |
Display mounting plate |
|
7-29-96 |
96 |
11764044 |
1 |
前控箱上支架总成 |
Front Control Box Upper bracket |
|
7-29-99 |
99 |
A210404000009 |
9 |
垫圈 |
Washer |
|
7-29-101 |
101 |
11277865 |
2 |
防风海绵一 |
Wind protection sponge, I |
|
7-29-102 |
102 |
11277867 |
3 |
防风海绵三 |
Wind protection sponge, III |
|
7-29-103 |
103 |
A229900008231 |
1 |
左下固定块 |
Block, fixing, lower left |
|
7-29-104 |
104 |
A229900008230 |
1 |
右下固定块 |
Block, fixing, lower right |
|
7-29-105 |
105 |
A229900008229 |
2 |
侧固定块 |
Block, fixed, side |
|
7-29-109 |
109 |
11574210 |
2 |
密封条堵头 |
Sprue, sealing strip |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

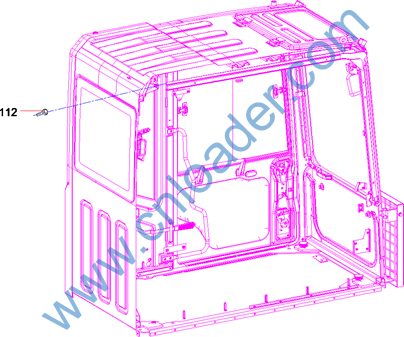

7-31-112 |
112 |
12768399 |
2 |
前窗防撞块 Stop, front window |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

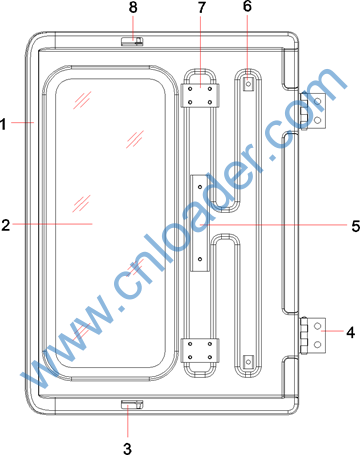

7-33-1 |
1 |
11162037 |
1 |
天窗壳体 |
Shell, skylightTJ06.2221.1A.2-1 |
|
7-33-2 |
2 |
11094587 |
1 |
天窗玻璃 |
Glass, skylightTJ06.2221.1A.2-2 |
|
7-33-3 |
3 |
10137596 |
1 |
天窗撑杆右支座总成 |
Bearer assembly, skylight |
|
7-33-4 |
4 |
10125144 |
2 |
天窗铰链总成 |
Skylight hinge assembly |
|
7-33-5 |
5 |
10137586 |
1 |
天窗把手固定板总成 |
Fixed plate assembly, skylight |
|
7-33-6 |
6 |
10465869 |
2 |
安装板 |
Mounting plateTJ06.2221.1.2-3 |
|
7-33-7 |
7 |
10137581 |
2 |
天窗锁固定板总成 |
Fixed plate assembly, skylight |
|
7-33-8 |
8 |
10137591 |
1 |
天窗撑杆左支座总成 |
Bearer assembly, skylight |
|

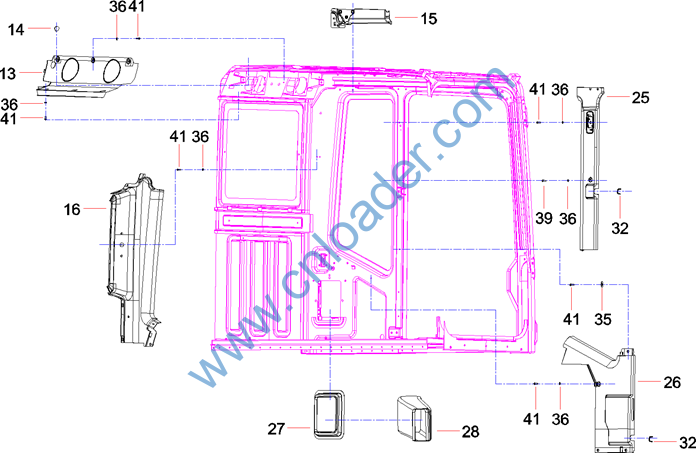

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

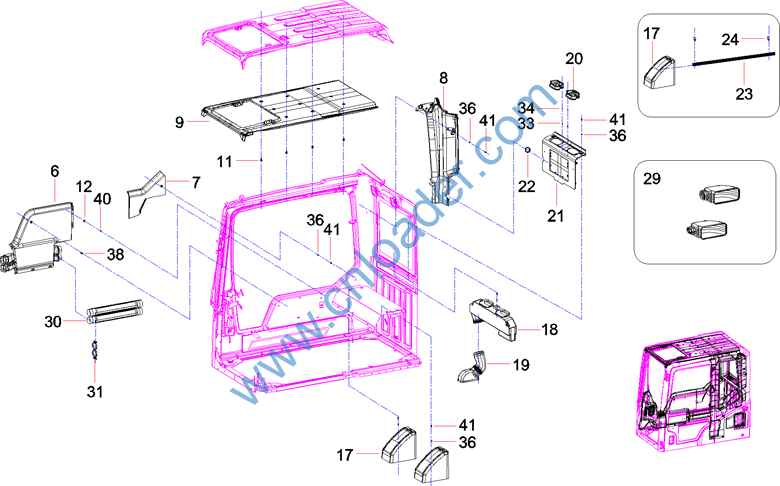

7-35-6 |
6 |
11334874 |
1 |
右侧围总成 |
Right-hand, wall, |
|
7-35-7 |
7 |
11334865 |
1 |
右侧围后饰板总成 |
Right-hand, wall, |
|
7-35-8 |
8 |
10640038 |
1 |
右后立柱板 |
Right, rear, upright, column |
|
7-35-9 |
9 |
11169629 |
1 |
顶棚 |
CeilingTJ06.2221.1A.18-1 |
|
7-35-11 |
11 |
11334708 |
11 |
顶棚卡扣 |
Bayonet catch, top |
|
7-35-12 |
12 |
11209482 |
1 |
方形膨胀卡扣 |
Square Clip |
|
7-35-17 |
17 |
10639298 |
2 |
工具箱 |
Tool, boxTJ06.2221.1.18.2 |
|
7-35-18 |
18 |
11169633 |
1 |
储风管 |
Air, reservior |
|
7-35-19 |
19 |
11573808 |
1 |
后部风管接头总成 |
Connecting, pipe, of, rear, air, |
|
7-35-20 |
20 |
10640138 |
2 |
出风口 |
air outlet |
|
7-35-21 |
21 |
11169632 |
1 |
空调罩 |
A/C Cover |
|
7-35-22 |
22 |
11334721 |
1 |
杂物盒冷藏通风管保护套 |
Glove, case, cold, ventilation, |
|
7-35-23 |
23 |
12921517 |
1 |
杂物盒风管 |
Glove case blowing |
|
7-35-24 |
24 |
A229900002962 |
2 |
软管环箍 |
Hoop, hose |
|
7-35-29 |
29 |
11551410 |
2 |
右侧风口接头 |
Connecting, pipe, of, rear, air, |
|
7-35-30 |
30 |
11551411 |
2 |
波纹连接管 |
Rear, corrugated, tube |
|
7-35-31 |
31 |
A210855000012 |
1 |
喉箍 |
Clamp |
|
7-35-33 |
33 |
A210218000022 |
7 |
自攻螺钉 |
Screw |
|
7-35-34 |
34 |
A210405000004 |
4 |
垫圈 |
Washer |
|
7-35-36 |
36 |
A210405000006 |
22 |
垫圈 |
Washer |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
7-37-38 |
38 |
A210211000007 |
2 |
螺钉 Screw |
|
7-37-40 |
40 |
11326706 |
3 |
自攻螺钉 Screw |
|
7-37-41 |
41 |
A210210000008 |
31 |
螺钉 Screw |
|

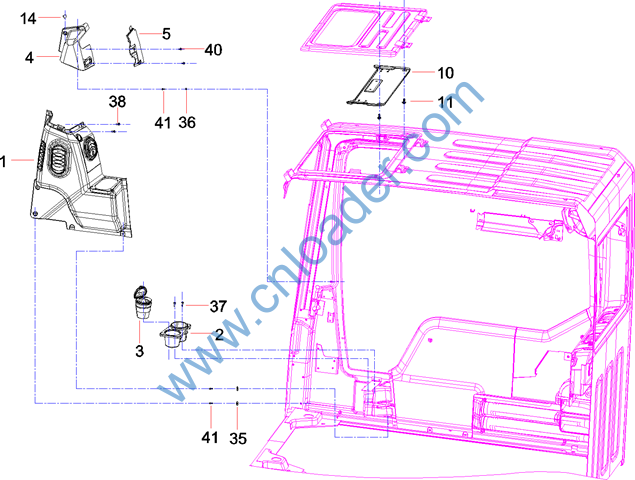

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-39-1 |
1 |
11334877 |
1 |
前控箱总成 |
Front, control, box, assy |
|
7-39-2 |
2 |
11334825 |
1 |
水杯托 |
SaucerTJ06.2221.1.18.6 |
|
7-39-3 |
3 |
60202124 |
1 |
烟灰缸 |
Ash Tray |
|
7-39-4 |
4 |
11334843 |
1 |
前控箱上护罩总成 |
Front, control, box, upper, guar, |
|
7-39-5 |
5 |
11334218 |
1 |
前控箱上护罩盖板 |
Front, controlling, box, upper, |
|
7-39-10 |
10 |
11169628 |
1 |
天窗内饰 |
Sunroof, trimTJ06.2221.1A.18-24 |
|
7-39-14 |
14 |
10640709 |
12 |
装饰扣 |
Trimming, clipTJ06.2221.1.18-23 |
|
7-39-35 |
35 |
A210404000009 |
9 |
垫圈 |
Washer |
|
7-39-37 |
37 |
11115687 |
2 |
内六角大盖 |
Screw, Socket Head |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-41-13 |
13 |
11169630 |
1 |
扬声器罩 |
Speaker, coverTJ06.2221.1A.18-4 |
|
7-41-15 |
15 |
10640105 |
1 |
左上柱 |
Left, upper, column |
|
7-41-16 |
16 |
10640091 |
1 |
左后立柱板 |
Left, rear, upright, |
|
7-41-25 |
25 |
10640108 |
1 |
左中柱 |
Left-middle, |
|
7-41-26 |
26 |
10640127 |
1 |
左侧围 |
Left, side, wallTJ06.2221.1.18-8 |
|
7-41-27 |
27 |
10640698 |
1 |
空调进风接口 |
A/C, air, duct, |
|
7-41-28 |
28 |
11169634 |
1 |
空调进风接管 |
A/C, air, tube |
|
7-41-32 |
32 |
12354368 |
2 |
U型装饰条 |
U Decorative stripTJ06.2221.1.18- |
|
7-41-39 |
39 |
A210210000010 |
1 |
螺钉 |
Screw |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
7-43-42 |
42 |
13032699 |
1 |
后部吸音海绵一 Sound-absorbing, sponge, I, rear |
|
7-43-43 |
43 |
13032763 |
1 |
后部吸音海绵二 Sound-absorbing, sponge, Ⅱ, rear |
|
7-43-44 |
44 |
13016100 |
1 |
止回式遮阳帘 Aisor,check typeTJ06.2221.1.18- |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

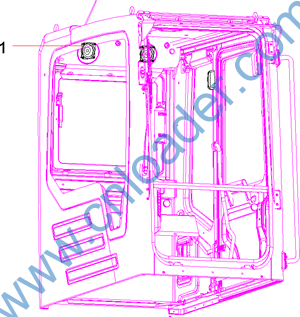

7-45-1 |
1 |
13036476 |
1 |
中挖驾驶室GPS电气附件装置总成 Electric system,cab |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

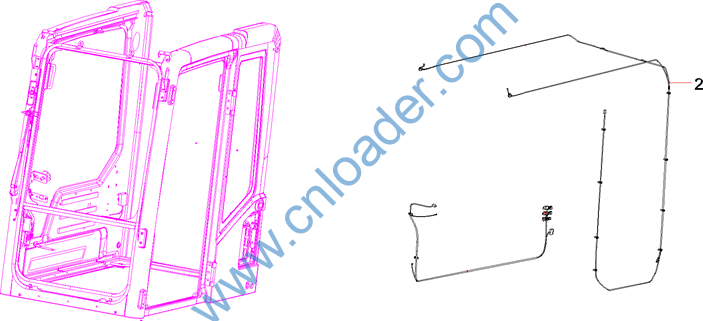

7-47-2 |
2 |
13471739 |
1 |
大挖线束装配总成 harness system JWDW04.4.1 |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

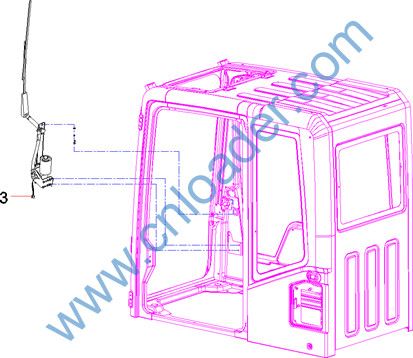

7-49-3 |
3 |
13110902 |
1 |
大挖雨刮洗涤装配总成 Electric system, cabJWDW01.4.2 |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

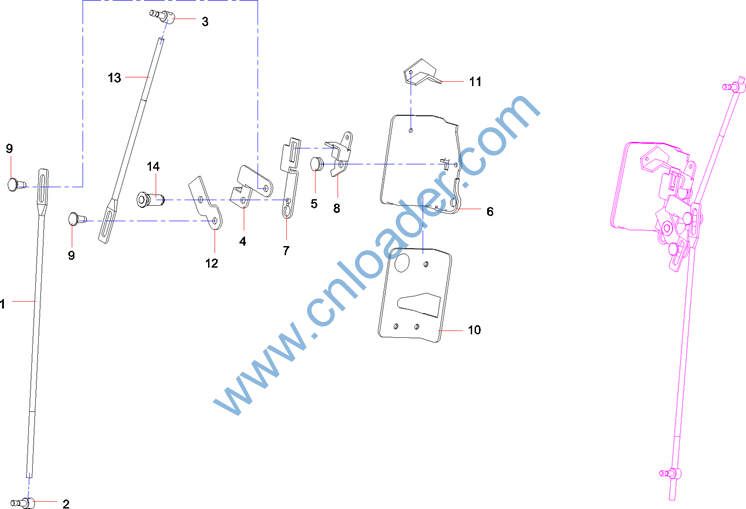

7-51-1 |
1 |
10708367 |
1 |
推拉杆 |
Bar, sliding |
|
7-51-2 |
2 |
10708368 |
1 |
推拉杆 |
Bar, sliding |
|
7-51-3 |
3 |
10708369 |
1 |
固定销 |
Pin, fixing |
|
7-51-4 |
4 |
10708373 |
1 |
推拉块 |
Block, sliding |
|
7-51-5 |
5 |
10708376 |
1 |
销 |
Pin |
|
7-51-6 |
6 |
10708370 |
1 |
锁止机构 |
Lock mechanism |
|
7-51-7 |
7 |
10708375 |
1 |
推拉块 |
Block, sliding |
|
7-51-8 |
8 |
10708377 |
1 |
固定座 |
Braket |
|
7-51-9 |
9 |
10708365 |
2 |
固定销 |
Pin, fixing |
|
7-51-10 |
10 |
10708364 |
1 |
车门锁固定底板 |
Fixed base plate, cab door lock |
|
7-51-11 |
11 |
10708371 |
1 |
车门锁固定座 |
Braket, cab door lock |
|
7-51-12 |
12 |
10708374 |
1 |
推拉块 |
Block, sliding |
|
7-51-13 |
13 |
10708366 |
1 |
推拉杆 |
Bar, sliding |
|
7-51-14 |
14 |
10708372 |
1 |
销 |
Pin |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

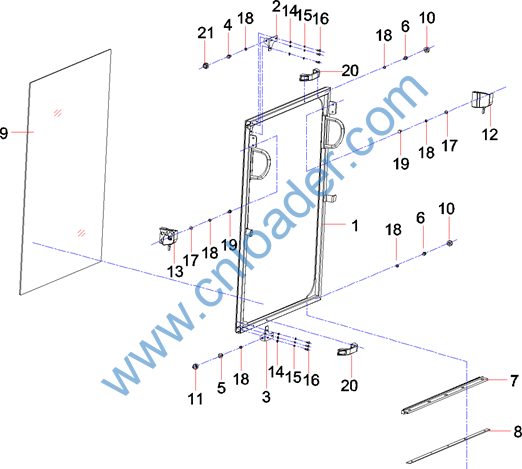

7-53-1 |
1 |
11139442 |
1 |
前窗框总成 |
Frame assembly, front window |
|
7-53-2 |
2 |
10137698 |
1 |
前窗上滚轮支架总成 |
Support assembly, upper contact |
|
7-53-3 |
3 |
10137702 |
1 |
前窗下滚轮支架总成 |
Support assembly, down roller, |
|
7-53-4 |
4 |
10137704 |
1 |
前窗左上转轴 |
Rotating shaft, top left, front |
|
7-53-5 |
5 |
10137706 |
1 |
前窗左下转轴 |
Rotating shaft, lower left, front |
|
7-53-6 |
6 |
10137707 |
2 |
前窗右侧转轴 |
Rotating shaft, right side, front |
|
7-53-7 |
7 |
13031942 |
1 |
前窗下密封条 |
Sealing strip, front window, down |
|
7-53-8 |
8 |
11151198 |
1 |
前窗下固定条 |
Strip, down fixed, front window |
|
7-53-9 |
9 |
11094593 |
1 |
前窗玻璃 |
Glass， front window |
|
7-53-10 |
10 |
10137712 |
2 |
前窗右侧滚轮 |
Front window right side roller |
|
7-53-11 |
11 |
10137713 |
1 |
前窗左侧滚轮 |
Front window left side roller |
|
7-53-12 |
12 |
A222200000151 |
1 |
车窗锁 |
Lock |
|
7-53-13 |
13 |
A222200000152 |
1 |
车窗锁 |
Lock |
|
7-53-14 |
14 |
A210404000009 |
6 |
垫圈 |
Washer |
|
7-53-15 |
15 |
A210401000016 |
10 |
垫圈 |
Washer |
|
7-53-16 |
16 |
60220104 |
6 |
螺钉 |
Screw |
|
7-53-17 |
17 |
A210404000005 |
8 |
垫圈 |
Washer |
|
7-53-18 |
18 |
A210401000017 |
8 |
垫圈 |
Washer |
|
7-53-19 |
19 |
A210111000088 |
4 |
螺栓 |
Bolt |
|
7-53-20 |
20 |
60001290 |
2 |
塑料把手 |
Handhold, plastic |
