识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-149-1 |
1 |
B240600000334 |
1 |
日照传感器 |
Sensor, sunlight |
|
4-149-2 |
2 |
B240700000473 |
1 |
继电器 |
Relay |
|
4-149-3 |
3 |
B240700000472 |
1 |
电器 |
Relay |
|
4-149-4 |
4 |
10448933 |
1 |
空调连接线 |
Harness, air conditioner |
|

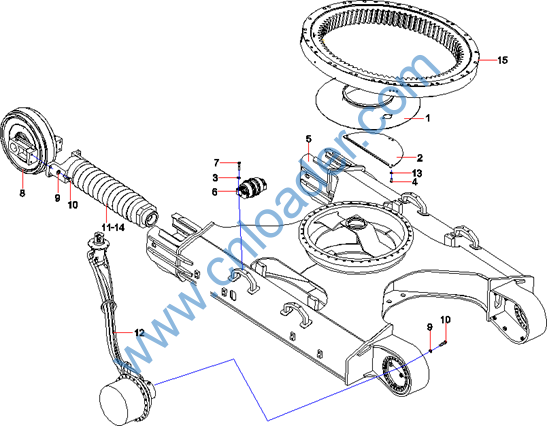

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-3-1 |
1 |
11163607 |
1 |
黄油池 |
seal moduleSY425C1M2K.2.3 |
|
5-3-2 |
2 |
13305995 |
2 |
盖板 |
cover plate SY485C1I3KH.2.8 |
|
5-3-3 |
3 |
A210491000118 |
16 |
垫圈 |
High-strength steel washer |
|
5-3-4 |
4 |
A210111000212 |
8 |
螺栓M16×35GB5783 10.9级 |
bolt |
|
5-3-5 |
5 |
13947764 |
1 |
行走架 |
Running carrier |
|
5-3-6 |
6 |
13227207 |
4 |
托链轮总成 |
Carrier Roller SWT228A |
|
5-3-7 |
7 |
A210110000272 |
16 |
螺栓M16×80GB5782 10.9级 |
Bolt |
|
5-3-8 |
8 |
60247185 |
2 |
引导轮 |
Track idler |
|
5-3-9 |
9 |
A210491000122 |
62 |
垫圈 |
Washer |
|
5-3-10 |
10 |
A210110000427 |
62 |
螺栓M24×90GB5782 10.9级 |
Bolt |
|
5-3-11 |
11 |
60246966 |
2 |
张紧装置 |
Tensioning Equipment |
|
5-3-12 |
12 |
13301522 |
1 |
下车液压系统 |
Undercarriage hydraulic system |
|
5-3-13 |
13 |
13587109 |
8 |
加厚垫片 |
Thickening Washer |
|
5-3-14 |
14 |
变更或见其他配置 |
2 |
张紧装置 |
Tensioning equipment |
|
5-3-15 |
15 |
13294690 |
1 |
回转机构 |
Swing mechanism |
|

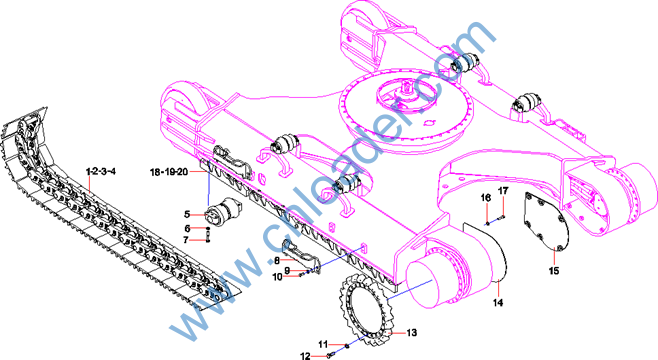

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-5-1 |
1 |
变更或见其他配置 |
2 |
履带总成 |
crawler assembly |
|
5-5-2 |
2 |
13734866 |
2 |
履带总成 两齿 |
chain track assy. STB228MC-6050 |
|
5-5-3 |
3 |
变更或见其他配置 |
2 |
履带总成 |
crawler assembly STC228MC- |
|
5-5-4 |
4 |
变更或见其他配置 |
2 |
履带总成 |
14125208 |
|
5-5-5 |
5 |
13465919 |
18 |
支重轮总成 |
Track Roller Assembly SWZ228C |
|
5-5-6 |
6 |
A210444000002 |
72 |
垫圈 |
High-strength steel washer |
|
5-5-7 |
7 |
A210110000434 |
72 |
螺栓M22×120GB5782 10.9级 |
Bolt M22×120GB5782 Grade 10.9 |
|
5-5-8 |
8 |
11073932 |
4 |
梯架 |
Ladder frameSY650.2.13 |
|
5-5-9 |
9 |
A210491000132 |
16 |
垫圈 |
Washer |
|
5-5-10 |
10 |
A210111000289 |
16 |
螺栓M20×45GB5783 10.9级 |
Bolt |
|
5-5-11 |
11 |
A210491000122 |
48 |
垫圈 |
Washer |
|
5-5-12 |
12 |
A210111000321 |
48 |
螺栓M24×80GB5783 10.9级 |
Bolt |
|
5-5-13 |
13 |
14023005 |
2 |
驱动轮 |
Driving wheel SY485C1I3KH.2-1A |
|
5-5-14 |
14 |
13291120 |
1 |
左马达盖板 |
left motor cover SY485C1I3KH.2.2 |
|
5-5-15 |
15 |
13291121 |
1 |
右马达盖板 |
right motor cover |
|
5-5-16 |
16 |
24000514 |
12 |
垫圈16GB93 达克锈 |
Washer |
|
5-5-17 |
17 |
A210111000212 |
12 |
螺栓M16×35GB5783 10.9级 |
bolt |
|
5-5-18 |
18 |
14125656 |
1 |
履带护板安装 |
crawler guard board installing |
|
5-5-19 |
19 |
变更或见其他配置 |
1 |
履带护板安装 |
crawler guard board installing |
|
5-5-20 |
20 |
变更或见其他配置 |
1 |
履带护板安装 |
crawler guard board installing |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

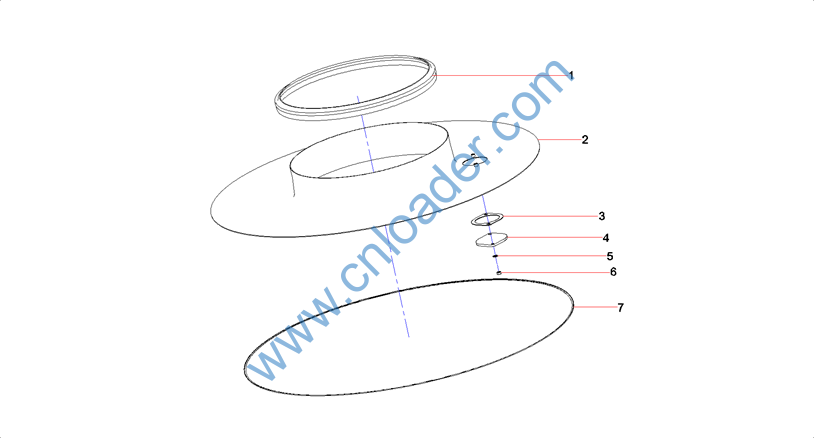

5-7-1 |
1 |
A820606020168 |
1 |
上密封圈 |
Ring, sealing |
|
5-7-2 |
2 |
11163609 |
1 |
护圈 |
Guard RingSY425C1M2K.2.3.1 |
|
5-7-3 |
3 |
A820606020170 |
1 |
橡胶垫 |
Block, rubber |
|
5-7-4 |
4 |
A820101210192 |
1 |
密封板 |
Plate, sealing |
|
5-7-5 |
5 |
A210405000011 |
2 |
垫圈 |
Washer |
|
5-7-6 |
6 |
A210307000017 |
2 |
螺母 |
Nut |
|
5-7-7 |
7 |
11163606 |
1 |
下密封圈 |
Lower sealing ring |
|

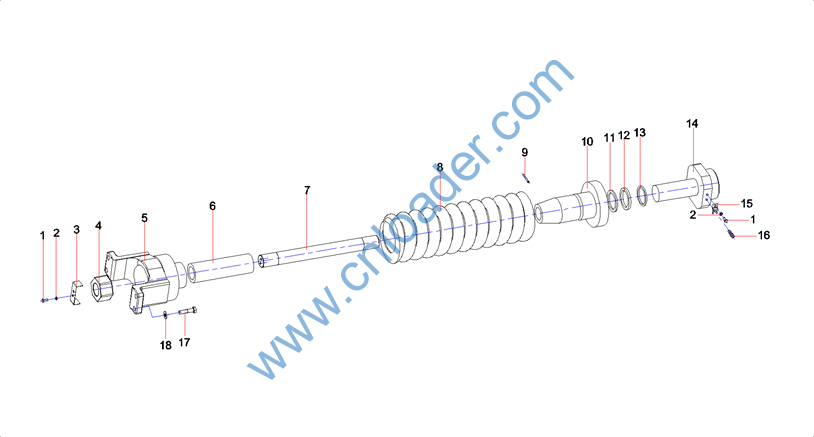

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-9-1 |
1 |
A210111000101 |
3 |
螺栓M12×25GB5783 10.9级 |
Bolt |
|
5-9-2 |
2 |
24000639 |
3 |
垫圈12GB97.1 达克锈 |
Washer |
|
5-9-3 |
3 |
60300587 |
1 |
锁片 |
lock plate |
|
5-9-4 |
4 |
60300588 |
1 |
螺母 |
nut |
|
5-9-5 |
5 |
60300589 |
1 |
叉环 |
fork |
|
5-9-6 |
6 |
60300590 |
1 |
套 |
bush |
|
5-9-7 |
7 |
60300591 |
1 |
拉杆 |
bar |
|
5-9-8 |
8 |
60300592 |
1 |
弹簧 |
spring |
|
5-9-9 |
9 |
60300593 |
1 |
销 |
pin |
|
5-9-10 |
10 |
60300594 |
1 |
油缸 |
cylinder |
|
5-9-11 |
11 |
60300595 |
1 |
密封圈 |
seal ring |
|
5-9-12 |
12 |
60300596 |
1 |
支承环 |
ring |
|
5-9-13 |
13 |
60300597 |
1 |
防尘圈 |
dust ring |
|
5-9-14 |
14 |
60300598 |
1 |
轴 |
shaft |
|
5-9-15 |
15 |
A820101010372 |
1 |
支板 |
Shoe, triple grouser |
|
5-9-16 |
16 |
B229900000862 |
1 |
黄油阀 |
Grease Valve |
|
5-9-17 |
17 |
A210110000427 |
4 |
螺栓M24×90GB5782 10.9级 |
Bolt |
|
5-9-18 |
18 |
A210491000122 |
4 |
垫圈 |
Washer |
|

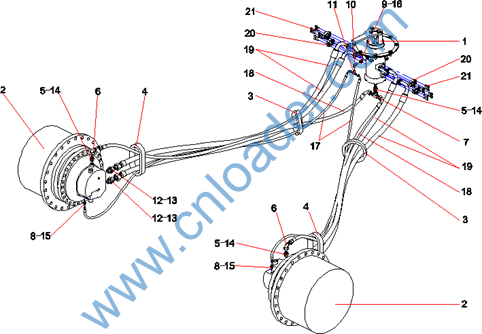

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-11-1 |
1 |
13301120 |
1 |
回转接头安装 |
Rotary joint installation |
|
5-11-2 |
2 |
B229900005472 |
2 |
减速机总成 |
Reducer assembly |
|
5-11-3 |
3 |
A820606030424 |
2 |
护套 |
Protective sleeveSY300.2-2 |
|
5-11-4 |
4 |
13299342 |
2 |
橡胶护套 |
Protective sleeve |
|
5-11-5 |
5 |
A820205002385 |
3 |
接头 |
Connector |
|
5-11-6 |
6 |
B210780001310 |
2 |
直角组合接头 |
Fitting, Elbow |
|
5-11-7 |
7 |
B210780001363 |
1 |
三通组合T型接头 |
Swivel Elbow Connector-T |
|
5-11-8 |
8 |
A820205000844 |
2 |
接头 |
Fitting |
|
5-11-9 |
9 |
13131456 |
1 |
G3/8-M14接头 |
G3/8-M14 adaptor |
|
5-11-10 |
10 |
B210780000418 |
1 |
管接头 |
Fitting |
|
5-11-11 |
11 |
B210780000172 |
1 |
管接头 |
Fitting |
|
5-11-12 |
12 |
A820205001334 |
4 |
G1-M42接头 |
Connector |
|
5-11-13 |
13 |
B230101000050 |
4 |
O形圈 |
O-ring |
|
5-11-14 |
14 |
B230101000090 |
3 |
O形圈 |
O-ring |
|
5-11-15 |
15 |
A210608000022 |
2 |
O形圈 |
O-ring |
|
5-11-16 |
16 |
B230101000049 |
1 |
O形圈 |
O-ring |
|
5-11-17 |
17 |
B230103002035 |
2 |
胶管 |
hose |
|
5-11-18 |
18 |
B230103004698 |
2 |
胶管 |
Rubber Hose |
|
5-11-19 |
19 |
60253580 |
4 |
胶管 |
Rubber Hose |
|
5-11-20 |
20 |
B210780000244 |
8 |
对开法兰 |
Flange, Split |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

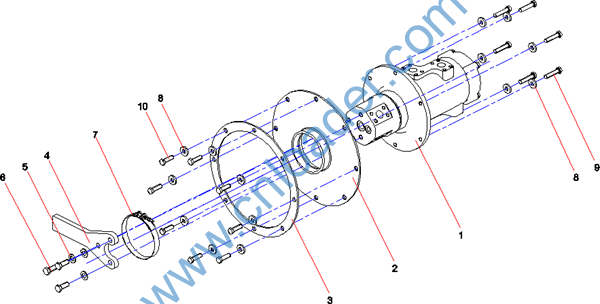

5-13-21 |
21 |
A210204000354 |
16 |
螺钉 M10×30GB70.1 10.9级 Screw |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-15-1 |
1 |
60249405 |
1 |
回转接头 |
swing joint |
|
5-15-2 |
2 |
13282913 |
1 |
胶垫总成 |
Rubber Cushion Assembly |
|
5-15-3 |
3 |
13299433 |
1 |
拨叉 |
Shift Fork SY485C1I3KH.2.6.1-2 |
|
5-15-4 |
4 |
13299434 |
1 |
压板 |
Pressure Plate |
|
5-15-5 |
5 |
A210444000001 |
3 |
垫圈 |
Washer |
|
5-15-6 |
6 |
A210111000442 |
3 |
螺栓 |
Bolt |
|
5-15-7 |
7 |
60258935 |
1 |
T型抱箍φ134-φ141 进口 |
T-type Anchor Ear |
|
5-15-8 |
8 |
13300896 |
14 |
加厚垫片 |
Thickening Washer |
|
5-15-9 |
9 |
A210111000118 |
6 |
螺栓M12×55GB5783-00 |
Bolt |
|
5-15-10 |
10 |
A210111000204 |
8 |
螺栓 |
Bolt |
|

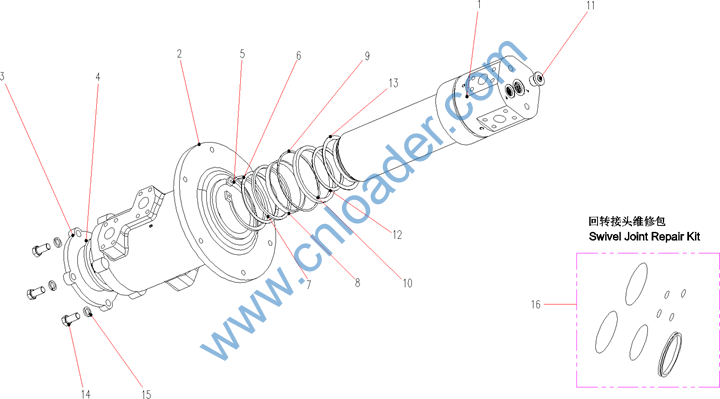

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-17-1 |
1 |
60306089 |
1 |
回转轴 |
Rotary shaft |
|
5-17-2 |
2 |
60306090 |
1 |
回转体 |
Revolving body |
|
5-17-3 |
3 |
60306091 |
1 |
端盖 |
End cover |
|
5-17-4 |
4 |
60306092 |
1 |
挡板 |
Baffle |
|
5-17-5 |
5 |
60306093 |
1 |
轴用弹性挡圈 |
Flexible baffle ring for shaft |
|
5-17-6 |
6 |
60306094 |
1 |
O形圈 |
o-ring |
|
5-17-7 |
7 |
60306095 |
6 |
旋转密封圈 |
Rotary sealing ring |
|
5-17-8 |
8 |
60306096 |
2 |
耐磨环 |
Wear-proof rong |
|
5-17-9 |
9 |
60306097 |
1 |
O形圈 |
o-ring |
|
5-17-10 |
10 |
60306098 |
1 |
骨架防尘圈 |
Metal Clad Wiper |
|
5-17-11 |
11 |
60306099 |
4 |
锥堵 |
Conical plug |
|
5-17-12 |
12 |
60306100 |
1 |
垫片 |
washer |
|
5-17-13 |
13 |
60306101 |
1 |
垫片 |
washer |
|
5-17-14 |
14 |
60306102 |
4 |
六角头螺栓 |
Hexagon bolt |
|
5-17-15 |
15 |
60306103 |
4 |
标准型弹簧垫圈 |
Spring washer |
|
5-17-16 |
16 |
60306104 |
1 |
回转接头维修包 |
Swivel Joint Repair Kit |
|

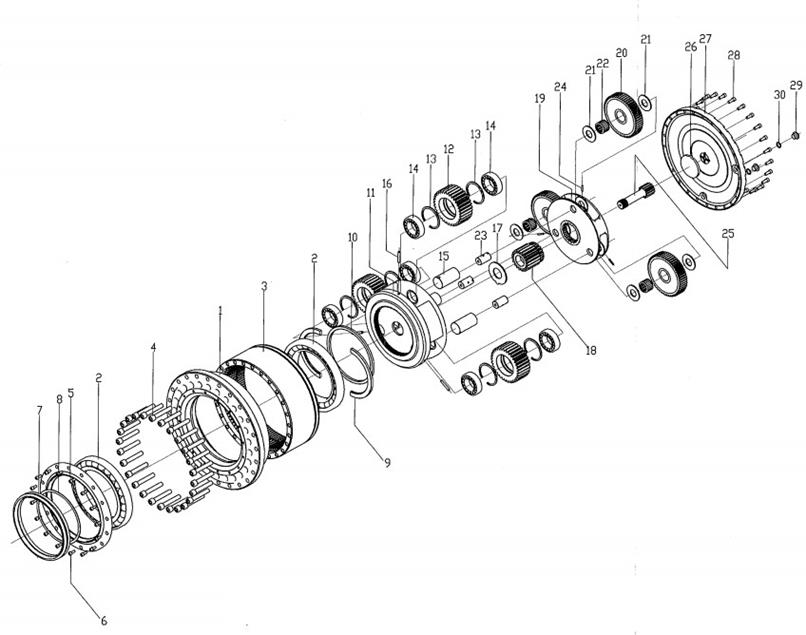

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-19-1 |
1 |
60307470 |
1 |
固定架 |
Housing |
|
5-19-2 |
2 |
60307471 |
2 |
轴承 |
Bearing |
|
5-19-3 |
3 |
60307472 |
1 |
齿圈 |
Ring gear |
|
5-19-4 |
4 |
60307473 |
26 |
内六角螺钉 |
Hex.socket head bolt |
|
5-19-5 |
5 |
60307474 |
1 |
油封座 |
Seal Ccver |
|
5-19-6 |
6 |
60307475 |
16 |
内六角螺钉 |
Hex.socket head bolt |
|
5-19-7 |
7 |
60307476 |
1 |
浮动油封 |
Floating seal kit |
|
5-19-8 |
8 |
60307477 |
1 |
垫片 |
Shim |
|
5-19-9 |
9 |
60307478 |
2 |
锁紧垫圈 |
Lock washer |
|
5-19-10 |
10 |
60307479 |
1 |
支撑环 |
Support ring |
|
5-19-11 |
11 |
60307480 |
1 |
行星架 |
Carrier |
|
5-19-12 |
12 |
60307481 |
3 |
行星轮 |
Planetaty gear |
|
5-19-13 |
13 |
60307482 |
6 |
C型挡圈 |
Retaining ring C-type |
|
5-19-14 |
14 |
60307483 |
6 |
轴承 |
Bearing |
|
5-19-15 |
15 |
60307484 |
3 |
行星架 |
Carrier pin |
|
5-19-16 |
16 |
60307485 |
3 |
弹簧销 |
Spring pin |
|
5-19-17 |
17 |
60307486 |
1 |
隔套 |
Spacer |
|
5-19-18 |
18 |
60307487 |
1 |
太阳轮 |
Sun gear |
|
5-19-19 |
19 |
60307488 |
1 |
行星架 |
Carrier |
|
5-19-20 |
20 |
60307489 |
3 |
行星轮 |
Planetaty gear |
|

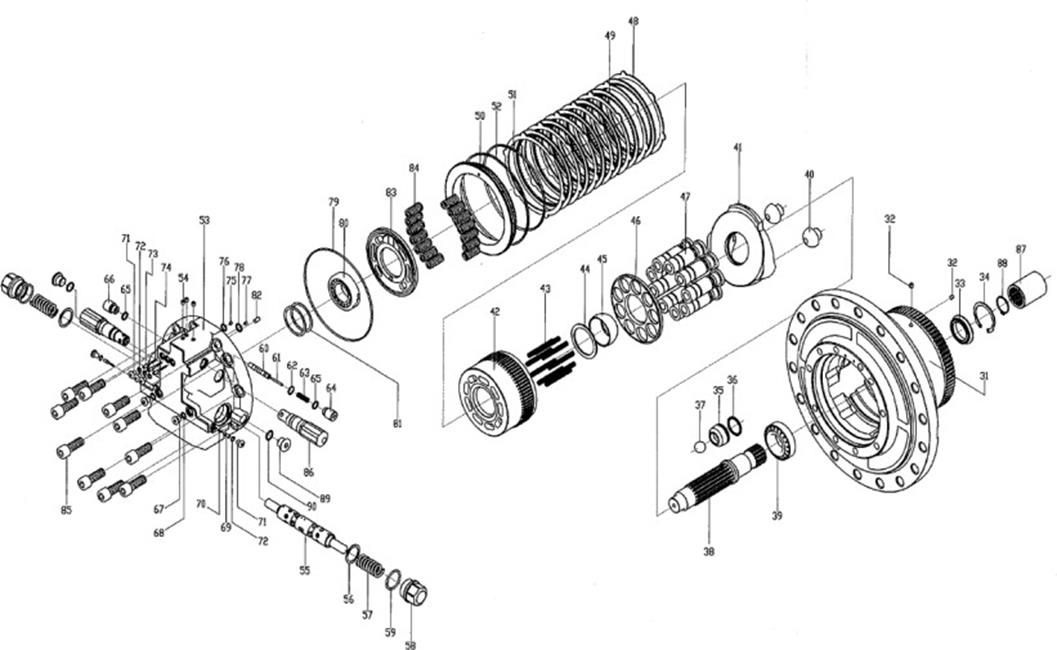

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-21-21 |
21 |
60307490 |
6 |
止推垫圈 |
Thrust washer |
|
5-21-22 |
22 |
60075398 |
3 |
滚针轴承 |
needle bearing |
|
5-21-23 |
23 |
60114375 |
3 |
销架 |
Pin Rack |
|
5-21-24 |
24 |
60307491 |
3 |
弹簧销 |
Spring pin |
|
5-21-25 |
25 |
60307492 |
1 |
太阳轮 |
Sun gear |
|
5-21-26 |
26 |
60075471 |
1 |
止推板 |
Plate – Thrust |
|
5-21-27 |
27 |
60307493 |
1 |
端盖 |
Cover |
|
5-21-28 |
28 |
60081973 |
25 |
螺钉 |
Hex.Socket Head Bolt |
|
5-21-29 |
29 |
60114365 |
2 |
堵头 |
Plug |
|
5-21-30 |
30 |
60258133 |
2 |
O形圈 |
O RING |
|
5-21-31 |
31 |
60307495 |
1 |
固定座 |
Casing |
|
5-21-32 |
32 |
60075442 |
2 |
螺塞 |
Plug |
|
5-21-33 |
33 |
60307496 |
1 |
油封 |
Oil seal |
|
5-21-34 |
34 |
60307497 |
1 |
定位环 |
Retaining ring |
|
5-21-35 |
35 |
60114381 |
1 |
转换活塞 |
Shifter Piston |
|
5-21-36 |
36 |
60114391 |
1 |
活塞油封 |
Piston Seal |
|
5-21-37 |
37 |
60075388 |
1 |
钢球 |
Ball |
|
5-21-38 |
38 |
60307498 |
1 |
轴 |
Shaft |
|
5-21-39 |
39 |
60307499 |
1 |
轴承 |
Bearing |
|
5-21-40 |
40 |
60075454 |
2 |
枢轴 |
Pivot |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-23-41 |
41 |
60114377 |
1 |
斜盘 |
Plate – Swash |
|
5-23-42 |
42 |
60114380 |
1 |
柱塞缸 |
Cylinder Block |
|
5-23-43 |
43 |
60075468 |
9 |
缸弹簧 |
cylinder srping |
|
5-23-44 |
44 |
60075419 |
1 |
弹簧座 |
Seat – Spring |
|
5-23-45 |
45 |
60075451 |
1 |
球接头 |
ball joint |
|
5-23-46 |
46 |
60075421 |
1 |
挡圈 |
Ring – Retaining |
|
5-23-47 |
47 |
60307500 |
9 |
活塞总成 |
Piston Ass |
|
5-23-48 |
48 |
60015760 |
7 |
制动片 |
Catch |
|
5-23-49 |
49 |
60015810 |
6 |
摩擦片 |
Plate – Friction |
|
5-23-50 |
50 |
60075434 |
1 |
活塞制动片 |
Brake Piston |
|
5-23-51 |
51 |
60075463 |
1 |
小弹簧 |
Spring – Small |
|
5-23-52 |
52 |
60075412 |
1 |
大弹簧 |
Spring – Big |
|
5-23-53 |
53 |
60114371 |
1 |
马达后盖 |
Rear Cover |
|
5-23-54 |
54 |
60075443 |
14 |
螺塞 |
Plug – Screw |
|
5-23-55 |
55 |
60114343 |
14 |
阀芯组件 |
Spool GP – Valve |
|
5-23-56 |
56 |
60114354 |
2 |
弹簧盘 |
Plate – Spring |
|
5-23-57 |
57 |
60114353 |
2 |
弹簧 |
Spring |
|
5-23-58 |
58 |
60114339 |
2 |
盖 |
Cover |
|
5-23-59 |
59 |
60307501 |
2 |
O形圈 |
O ring |
|
5-23-60 |
60 |
60114342 |
1 |
阀芯 |
Spool |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-25-61 |
61 |
60114374 |
1 |
销 |
Pin |
|
5-25-62 |
62 |
60114355 |
1 |
弹簧盘 |
Plate – Spring |
|
5-25-63 |
63 |
60114352 |
1 |
弹簧 |
Spring |
|
5-25-64 |
64 |
60114361 |
1 |
堵头 |
Plug |
|
5-25-65 |
65 |
60306351 |
2 |
O型圈 |
O RING |
|
5-25-66 |
66 |
60114392 |
1 |
连接器 |
Connector |
|
5-25-67 |
67 |
60114360 |
2 |
堵头 |
Plug |
|
5-25-68 |
68 |
60306353 |
2 |
O型圈 |
O RING |
|
5-25-69 |
69 |
60114393 |
2 |
限流器 |
Limiter |
|
5-25-70 |
70 |
60114351 |
2 |
弹簧 |
Spring |
|
5-25-71 |
71 |
60114363 |
5 |
堵头 |
Plug |
|
5-25-72 |
72 |
60038808 |
5 |
O形圈 |
O-ring |
|
5-25-73 |
73 |
60114341 |
3 |
单向阀 |
Valve – Check |
|
5-25-74 |
74 |
60114350 |
3 |
单向阀弹簧 |
Check Valve Spring |
|
5-25-75 |
75 |
60075457 |
2 |
限制器 |
Stop |
|
5-25-76 |
76 |
60307502 |
1 |
O形圈 |
O ring |
|
5-25-77 |
77 |
60075458 |
1 |
限制器 |
Stop |
|
5-25-78 |
78 |
60307503 |
1 |
O形圈 |
O ring |
|
5-25-79 |
79 |
60114390 |
1 |
O形圈 |
Seal – O – Ring |
|
5-25-80 |
80 |
60075400 |
1 |
滚针轴承 |
needle bearing |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-27-81 |
81 |
60114394 |
1 |
垫片 |
Gasket |
|
5-27-82 |
82 |
60307504 |
1 |
平行销 |
Parallel pin |
|
5-27-83 |
83 |
60307505 |
1 |
阀板 |
Valve plate |
|
5-27-84 |
84 |
60075474 |
14 |
制动弹簧 |
Spring – Stop |
|
5-27-85 |
85 |
60307506 |
10 |
内六角螺钉 |
Hex.socket head bolt |
|
5-27-86 |
86 |
60075396 |
2 |
溢流阀 |
Valve – Relief |
|
5-27-87 |
87 |
60307507 |
1 |
花键套 |
Coupling |
|
5-27-88 |
88 |
60307508 |
1 |
C型挡圈 |
Retaining ring C-type |
|
5-27-89 |
89 |
60114363 |
2 |
堵头 |
Plug |
|
5-27-90 |
90 |
60306309 |
2 |
O型圈 |
O-ring |
|

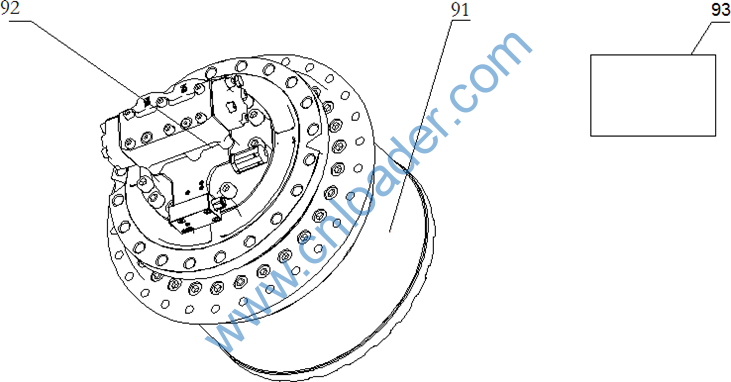

5-27-91 |
91 |
60307469 |
1 |
减速机 |
R/G Ass |
|
5-27-92 |
92 |
60307494 |
1 |
马达 |
Motor Ass |
|
5-27-93 |
93 |
60083951 |
1 |
减速机总成维修包 |
Kit,repair,gearbox GP |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-29-1 |
1 |
60307470 |
1 |
固定架 |
Housing |
|
5-29-2 |
2 |
60307471 |
2 |
轴承 |
Bearing |
|
5-29-3 |
3 |
60307472 |
1 |
齿圈 |
Ring gear |
|
5-29-4 |
4 |
60307473 |
26 |
内六角螺钉 |
Hex.socket head bolt |
|
5-29-5 |
5 |
60307474 |
1 |
油封座 |
Seal Ccver |
|
5-29-6 |
6 |
60307475 |
16 |
内六角螺钉 |
Hex.socket head bolt |
|
5-29-7 |
7 |
60307476 |
1 |
浮动油封 |
Floating seal kit |
|
5-29-8 |
8 |
60307477 |
1 |
垫片 |
Shim |
|
5-29-9 |
9 |
60307478 |
2 |
锁紧垫圈 |
Lock washer |
|
5-29-10 |
10 |
60307479 |
1 |
支撑环 |
Support ring |
|
5-29-11 |
11 |
60307480 |
1 |
行星架 |
Carrier |
|
5-29-12 |
12 |
60307481 |
3 |
行星轮 |
Planetaty gear |
|
5-29-13 |
13 |
60307482 |
6 |
C型挡圈 |
Retaining ring C-type |
|
5-29-14 |
14 |
60307483 |
6 |
轴承 |
Bearing |
|
5-29-15 |
15 |
60307484 |
3 |
行星架 |
Carrier pin |
|
5-29-16 |
16 |
60307485 |
3 |
弹簧销 |
Spring pin |
|
5-29-17 |
17 |
60307486 |
1 |
隔套 |
Spacer |
|
5-29-18 |
18 |
60307487 |
1 |
太阳轮 |
Sun gear |
|
5-29-19 |
19 |
60307488 |
1 |
行星架 |
Carrier |
|
5-29-20 |
20 |
60307489 |
3 |
行星轮 |
Planetaty gear |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-31-21 |
21 |
60307490 |
6 |
止推垫圈 |
Thrust washer |
|
5-31-22 |
22 |
60075398 |
3 |
滚针轴承 |
needle bearing |
|
5-31-23 |
23 |
60114375 |
3 |
销架 |
Pin Rack |
|
5-31-24 |
24 |
60307491 |
3 |
弹簧销 |
Spring pin |
|
5-31-25 |
25 |
60307492 |
1 |
太阳轮 |
Sun gear |
|
5-31-26 |
26 |
60075471 |
1 |
止推板 |
Plate – Thrust |
|
5-31-27 |
27 |
60307493 |
1 |
端盖 |
Cover |
|
5-31-28 |
28 |
60081973 |
25 |
螺钉 |
Hex.Socket Head Bolt |
|
5-31-29 |
29 |
60114365 |
2 |
堵头 |
Plug |
|
5-31-30 |
30 |
60258133 |
2 |
O形圈 |
O RING |
|
5-31-31 |
31 |
60307495 |
1 |
固定座 |
Casing |
|
5-31-32 |
32 |
60075442 |
2 |
螺塞 |
Plug |
|
5-31-33 |
33 |
60307496 |
1 |
油封 |
Oil seal |
|
5-31-34 |
34 |
60307497 |
1 |
定位环 |
Retaining ring |
|
5-31-35 |
35 |
60114381 |
1 |
转换活塞 |
Shifter Piston |
|
5-31-36 |
36 |
60114391 |
1 |
活塞油封 |
Piston Seal |
|
5-31-37 |
37 |
60075388 |
1 |
钢球 |
Ball |
|
5-31-38 |
38 |
60307498 |
1 |
轴 |
Shaft |
|
5-31-39 |
39 |
60307499 |
1 |
轴承 |
Bearing |
|
5-31-40 |
40 |
60075454 |
2 |
枢轴 |
Pivot |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-33-41 |
41 |
60114377 |
1 |
斜盘 |
Plate – Swash |
|
5-33-42 |
42 |
60114380 |
1 |
柱塞缸 |
Cylinder Block |
|
5-33-43 |
43 |
60075468 |
9 |
缸弹簧 |
cylinder srping |
|
5-33-44 |
44 |
60075419 |
1 |
弹簧座 |
Seat – Spring |
|
5-33-45 |
45 |
60075451 |
1 |
球接头 |
ball joint |
|
5-33-46 |
46 |
60075421 |
1 |
挡圈 |
Ring – Retaining |
|
5-33-47 |
47 |
60307500 |
9 |
活塞总成 |
Piston Ass |
|
5-33-48 |
48 |
60015760 |
7 |
制动片 |
Catch |
|
5-33-49 |
49 |
60015810 |
6 |
摩擦片 |
Plate – Friction |
|
5-33-50 |
50 |
60075434 |
1 |
活塞制动片 |
Brake Piston |
|
5-33-51 |
51 |
60075463 |
1 |
小弹簧 |
Spring – Small |
|
5-33-52 |
52 |
60075412 |
1 |
大弹簧 |
Spring – Big |
|
5-33-53 |
53 |
60114371 |
1 |
马达后盖 |
Rear Cover |
|
5-33-54 |
54 |
60075443 |
14 |
螺塞 |
Plug – Screw |
|
5-33-55 |
55 |
60114343 |
14 |
阀芯组件 |
Spool GP – Valve |
|
5-33-56 |
56 |
60114354 |
2 |
弹簧盘 |
Plate – Spring |
|
5-33-57 |
57 |
60114353 |
2 |
弹簧 |
Spring |
|
5-33-58 |
58 |
60114339 |
2 |
盖 |
Cover |
|
5-33-59 |
59 |
60307501 |
2 |
O形圈 |
O ring |
|
5-33-60 |
60 |
60114342 |
1 |
阀芯 |
Spool |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-35-61 |
61 |
60114374 |
1 |
销 |
Pin |
|
5-35-62 |
62 |
60114355 |
1 |
弹簧盘 |
Plate – Spring |
|
5-35-63 |
63 |
60114352 |
1 |
弹簧 |
Spring |
|
5-35-64 |
64 |
60114361 |
1 |
堵头 |
Plug |
|
5-35-65 |
65 |
60306351 |
2 |
O型圈 |
O RING |
|
5-35-66 |
66 |
60114392 |
1 |
连接器 |
Connector |
|
5-35-67 |
67 |
60114360 |
2 |
堵头 |
Plug |
|
5-35-68 |
68 |
60306353 |
2 |
O型圈 |
O RING |
|
5-35-69 |
69 |
60114393 |
2 |
限流器 |
Limiter |
|
5-35-70 |
70 |
60114351 |
2 |
弹簧 |
Spring |
|
5-35-71 |
71 |
60114363 |
5 |
堵头 |
Plug |
|
5-35-72 |
72 |
60038808 |
5 |
O形圈 |
O-ring |
|
5-35-73 |
73 |
60114341 |
3 |
单向阀 |
Valve – Check |
|
5-35-74 |
74 |
60114350 |
3 |
单向阀弹簧 |
Check Valve Spring |
|
5-35-75 |
75 |
60075457 |
2 |
限制器 |
Stop |
|
5-35-76 |
76 |
60307502 |
1 |
O形圈 |
O ring |
|
5-35-77 |
77 |
60075458 |
1 |
限制器 |
Stop |
|
5-35-78 |
78 |
60307503 |
1 |
O形圈 |
O ring |
|
5-35-79 |
79 |
60114390 |
1 |
O形圈 |
Seal – O – Ring |
|
5-35-80 |
80 |
60075400 |
1 |
滚针轴承 |
needle bearing |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-37-81 |
81 |
60114394 |
1 |
垫片 |
Gasket |
|
5-37-82 |
82 |
60307504 |
1 |
平行销 |
Parallel pin |
|
5-37-83 |
83 |
60307505 |
1 |
阀板 |
Valve plate |
|
5-37-84 |
84 |
60075474 |
14 |
制动弹簧 |
Spring – Stop |
|
5-37-85 |
85 |
60307506 |
10 |
内六角螺钉 |
Hex.socket head bolt |
|
5-37-86 |
86 |
60075396 |
2 |
溢流阀 |
Valve – Relief |
|
5-37-87 |
87 |
60307507 |
1 |
花键套 |
Coupling |
|
5-37-88 |
88 |
60307508 |
1 |
C型挡圈 |
Retaining ring C-type |
|
5-37-89 |
89 |
60114363 |
2 |
堵头 |
Plug |
|
5-37-90 |
90 |
60306309 |
2 |
O型圈 |
O-ring |
|
5-37-91 |
91 |
60307469 |
1 |
减速机 |
R/G Ass |
|
5-37-92 |
92 |
60307494 |
1 |
马达 |
Motor Ass |
|
5-37-93 |
93 |
60083951 |
1 |
减速机总成维修包 |
Kit,repair,gearbox GP |
