识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-69-168 |
168 |
60221658 |
3 |
O形圈 |
O-ring |
|
4-69-169 |
169 |
60312651 |
10 |
O-RINGOORBP14 |
O-RING |
|
4-69-201 |
201 |
60075555 |
9 |
阀盖 |
Cover, valve |
|
4-69-202 |
202 |
60100506 |
2 |
弹簧盖 |
Cap, pilot |
|
4-69-203 |
203 |
60075556 |
9 |
阀盖 |
Cover, valve |
|
4-69-204 |
204 |
60292567 |
1 |
阀盖 |
Cover |
|
4-69-205 |
205 |
60292568 |
1 |
阀盖 |
Cover |
|
4-69-211 |
211 |
60292569 |
1 |
板 |
Plate |
|
4-69-213 |
213 |
60075554 |
2 |
阀盖 |
Valve bonnet |
|
4-69-214 |
214 |
60319527 |
1 |
单向阀板 |
Cover load check |
|
4-69-215 |
215 |
60075552 |
1 |
阀盖 |
Valve bonnet |
|
4-69-216 |
216 |
60292570 |
1 |
法兰 |
Flange |
|
4-69-252 |
252 |
60292571 |
2 |
锁阀 |
lock valve selector |
|
4-69-253 |
253 |
60271302 |
1 |
斗杆1逻辑阀 |
logic valve of Arm 1 |
|
4-69-254 |
254 |
60319528 |
1 |
回转逻辑阀部件 |
ASSY logic poppet |
|
4-69-255 |
255 |
60205667 |
2 |
逻辑控制阀 |
Logic control valve |
|
4-69-257 |
257 |
60271306 |
1 |
斗杆再生切断阀 |
cutoff Spool of Arm Regeneration |
|
4-69-261 |
261 |
60319529 |
11 |
O形圈 |
O-Ring |
|
4-69-262 |
262 |
60100514 |
2 |
O形圈 |
O-ring |
|
4-69-263 |
263 |
60319530 |
9 |
O形圈 |
O-Ring |
|

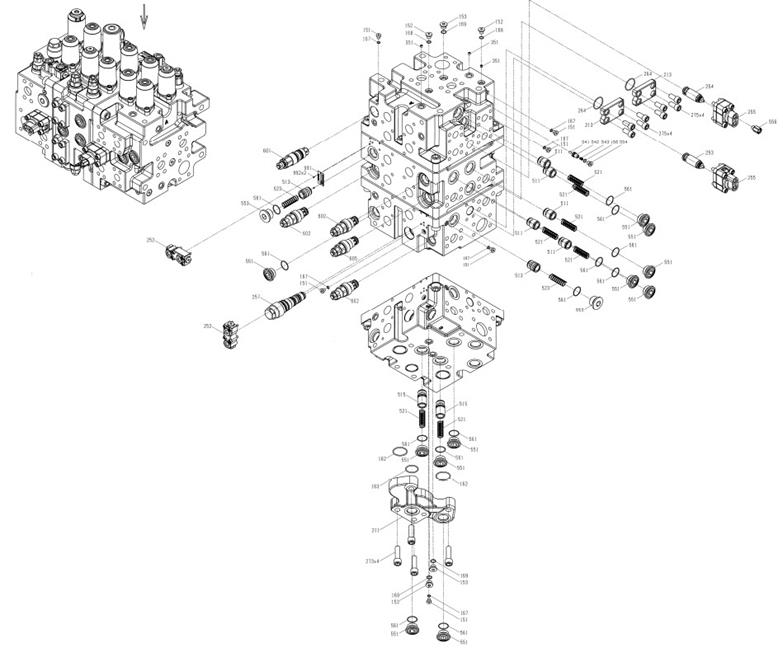

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-71-264 |
264 |
60319531 |
3 |
O形圈 |
O-Ring |
|
4-71-267 |
267 |
60319532 |
1 |
O形圈 |
O-Ring |
|
4-71-271 |
271 |
60319533 |
40 |
内六角螺钉 |
Screw hex S.H.C. |
|
4-71-272 |
272 |
60008721 |
4 |
内六角螺钉 |
Bolt, socket head |
|
4-71-273 |
273 |
60319534 |
4 |
内六角螺钉 |
Screw hex S.H.C. |
|
4-71-275 |
275 |
60319535 |
12 |
内六角螺钉 |
Screw hex S.H.C. |
|
4-71-277 |
277 |
60100512 |
4 |
内六角螺钉 |
Screw, socket head |
|
4-71-341 |
341 |
60292586 |
1 |
堵 |
Plug |
|
4-71-342 |
342 |
60271305 |
1 |
铲斗限位阀芯 |
Limit Spool of Bucket |
|
4-71-351 |
351 |
60292587 |
3 |
节流 |
Orifice |
|
4-71-511 |
511 |
60075548 |
10 |
单向阀 |
One-Way Valve |
|
4-71-512 |
512 |
60292590 |
2 |
节流阀 |
Poppet |
|
4-71-513 |
513 |
60075549 |
2 |
单向阀 |
One-Way Valve |
|
4-71-514 |
514 |
60271304 |
1 |
BP阀芯 |
BP Spool |
|
4-71-515 |
515 |
60292591 |
2 |
节流阀 |
Poppet |
|
4-71-521 |
521 |
60075591 |
12 |
弹簧 |
Spring |
|
4-71-522 |
522 |
60008817 |
2 |
弹簧 |
Spring |
|
4-71-523 |
523 |
60075589 |
2 |
弹簧 |
Spring |
|
4-71-541 |
541 |
60075545 |
1 |
球 |
Ball |
|
4-71-542 |
542 |
60307532 |
1 |
弹簧座 |
Seat, spring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-73-543 |
543 |
60075592 |
1 |
弹簧 |
Spring |
|
4-73-551 |
551 |
60075542 |
17 |
堵 |
Plug |
|
4-73-552 |
552 |
60008715 |
2 |
堵 |
Plug |
|
4-73-553 |
553 |
60075540 |
2 |
堵 |
Plug |
|
4-73-554 |
554 |
60008714 |
1 |
堵 |
Plug |
|
4-73-555 |
555 |
60039401 |
1 |
油塞 |
Plug, oil |
|
4-73-556 |
556 |
60242320 |
1 |
节流接头 |
plug |
|
4-73-561 |
561 |
60312647 |
19 |
O-RINGOORBP29 |
O-RING |
|
4-73-562 |
562 |
60008705 |
2 |
O形圈 |
O-ring |
|
4-73-563 |
563 |
60100516 |
1 |
O形圈 |
O-ring |
|
4-73-601 |
601 |
60319545 |
1 |
主溢流阀 |
Assy main rellef valve |
|
4-73-602 |
602 |
60205669 |
6 |
接口溢流阀 |
Port relief valve |
|
4-73-605 |
605 |
60205670 |
2 |
接口溢流阀 |
Port relief valve |
|

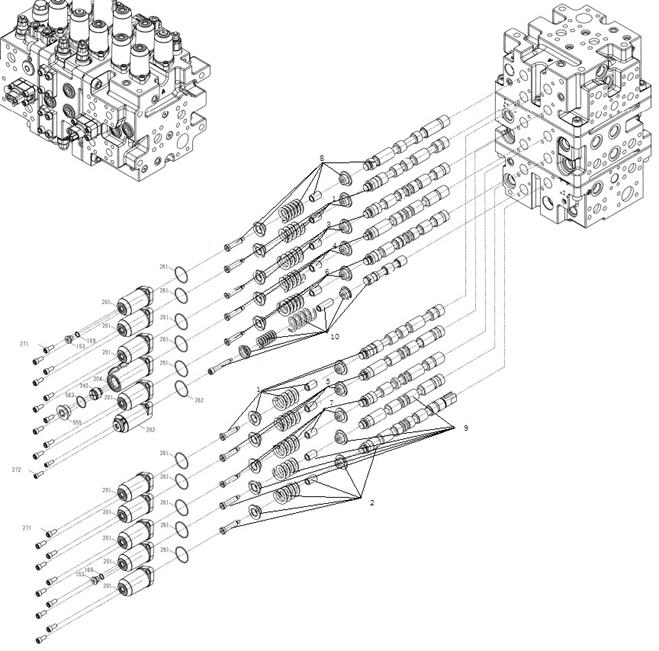

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-75-1 |
1 |
60319536 |
2 |
行走阀芯 |
Spool travel |
|
4-75-2 |
2 |
60319537 |
1 |
斗杆1阀芯组件 |
Sub-assy arm1 spool |
|
4-75-3 |
3 |
60319538 |
1 |
动臂1阀芯组件 |
SUB-ASSY boom1 spool |
|
4-75-4 |
4 |
60319539 |
1 |
铲斗阀芯 |
Splool buchet |
|
4-75-5 |
5 |
60319540 |
1 |
回转阀芯 |
Splool swing |
|
4-75-6 |
6 |
60319541 |
1 |
斗杆2阀芯 |
Splool arm2 |
|
4-75-7 |
7 |
60319542 |
1 |
动臂2阀芯 |
Splool boom2 |
|
4-75-8 |
8 |
60319543 |
1 |
直线行走阀芯组件 |
SUB-ASSY straight travel spool |
|
4-75-9 |
9 |
60292580 |
1 |
备用阀芯 |
Option spool |
|
4-75-10 |
10 |
60319544 |
2 |
旁路截止阀芯 |
Splool bypass-cut |
|
4-75-151 |
151 |
60100467 |
6 |
堵 |
Plug |
|
4-75-152 |
152 |
60008711 |
2 |
堵 |
Plug |
|
4-75-153 |
153 |
60008713 |
10 |
堵 |
Plug |
|
4-75-161 |
161 |
60319524 |
4 |
O形圈 |
O-Ring |
|
4-75-162 |
162 |
60319525 |
6 |
O形圈 |
O-Ring |
|
4-75-163 |
163 |
60100517 |
9 |
O形圈 |
O-ring |
|
4-75-164 |
164 |
60319526 |
2 |
O形圈 |
O-Ring |
|
4-75-165 |
165 |
60100515 |
4 |
O形圈 |
O-ring |
|
4-75-166 |
166 |
60008696 |
12 |
O形圈 |
O-ring |
|
4-75-167 |
167 |
60221657 |
6 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-77-168 |
168 |
60221658 |
3 |
O形圈 |
O-ring |
|
4-77-169 |
169 |
60312651 |
10 |
O-RINGOORBP14 |
O-RING |
|
4-77-201 |
201 |
60075555 |
9 |
阀盖 |
Cover, valve |
|
4-77-202 |
202 |
60100506 |
2 |
弹簧盖 |
Cap, pilot |
|
4-77-203 |
203 |
60075556 |
9 |
阀盖 |
Cover, valve |
|
4-77-204 |
204 |
60292567 |
1 |
阀盖 |
Cover |
|
4-77-205 |
205 |
60292568 |
1 |
阀盖 |
Cover |
|
4-77-211 |
211 |
60292569 |
1 |
板 |
Plate |
|
4-77-213 |
213 |
60075554 |
2 |
阀盖 |
Valve bonnet |
|
4-77-214 |
214 |
60319527 |
1 |
单向阀板 |
Cover load check |
|
4-77-215 |
215 |
60075552 |
1 |
阀盖 |
Valve bonnet |
|
4-77-216 |
216 |
60292570 |
1 |
法兰 |
Flange |
|
4-77-252 |
252 |
60292571 |
2 |
锁阀 |
lock valve selector |
|
4-77-253 |
253 |
60271302 |
1 |
斗杆1逻辑阀 |
logic valve of Arm 1 |
|
4-77-254 |
254 |
60319528 |
1 |
回转逻辑阀部件 |
ASSY logic poppet |
|
4-77-255 |
255 |
60205667 |
2 |
逻辑控制阀 |
Logic control valve |
|
4-77-257 |
257 |
60271306 |
1 |
斗杆再生切断阀 |
cutoff Spool of Arm Regeneration |
|
4-77-261 |
261 |
60319529 |
11 |
O形圈 |
O-Ring |
|
4-77-262 |
262 |
60100514 |
2 |
O形圈 |
O-ring |
|
4-77-263 |
263 |
60319530 |
9 |
O形圈 |
O-Ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-79-264 |
264 |
60319531 |
3 |
O形圈 |
O-Ring |
|
4-79-267 |
267 |
60319532 |
1 |
O形圈 |
O-Ring |
|
4-79-271 |
271 |
60319533 |
40 |
内六角螺钉 |
Screw hex S.H.C. |
|
4-79-272 |
272 |
60008721 |
4 |
内六角螺钉 |
Bolt, socket head |
|
4-79-273 |
273 |
60319534 |
4 |
内六角螺钉 |
Screw hex S.H.C. |
|
4-79-275 |
275 |
60319535 |
12 |
内六角螺钉 |
Screw hex S.H.C. |
|
4-79-277 |
277 |
60100512 |
4 |
内六角螺钉 |
Screw, socket head |
|
4-79-341 |
341 |
60292586 |
1 |
堵 |
Plug |
|
4-79-342 |
342 |
60271305 |
1 |
铲斗限位阀芯 |
Limit Spool of Bucket |
|
4-79-351 |
351 |
60292587 |
3 |
节流 |
Orifice |
|
4-79-511 |
511 |
60075548 |
10 |
单向阀 |
One-Way Valve |
|
4-79-512 |
512 |
60292590 |
2 |
节流阀 |
Poppet |
|
4-79-513 |
513 |
60075549 |
2 |
单向阀 |
One-Way Valve |
|
4-79-514 |
514 |
60271304 |
1 |
BP阀芯 |
BP Spool |
|
4-79-515 |
515 |
60292591 |
2 |
节流阀 |
Poppet |
|
4-79-521 |
521 |
60075591 |
12 |
弹簧 |
Spring |
|
4-79-522 |
522 |
60008817 |
2 |
弹簧 |
Spring |
|
4-79-523 |
523 |
60075589 |
2 |
弹簧 |
Spring |
|
4-79-541 |
541 |
60075545 |
1 |
球 |
Ball |
|
4-79-542 |
542 |
60307532 |
1 |
弹簧座 |
Seat, spring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-81-543 |
543 |
60075592 |
1 |
弹簧 |
Spring |
|
4-81-551 |
551 |
60075542 |
17 |
堵 |
Plug |
|
4-81-552 |
552 |
60008715 |
2 |
堵 |
Plug |
|
4-81-553 |
553 |
60075540 |
2 |
堵 |
Plug |
|
4-81-554 |
554 |
60008714 |
1 |
堵 |
Plug |
|
4-81-555 |
555 |
60039401 |
1 |
油塞 |
Plug, oil |
|
4-81-556 |
556 |
60242320 |
1 |
节流接头 |
plug |
|
4-81-561 |
561 |
60312647 |
19 |
O-RINGOORBP29 |
O-RING |
|
4-81-562 |
562 |
60008705 |
2 |
O形圈 |
O-ring |
|
4-81-563 |
563 |
60100516 |
1 |
O形圈 |
O-ring |
|
4-81-601 |
601 |
60319545 |
1 |
主溢流阀 |
Assy main rellef valve |
|
4-81-602 |
602 |
60205669 |
6 |
接口溢流阀 |
Port relief valve |
|
4-81-605 |
605 |
60205670 |
2 |
接口溢流阀 |
Port relief valve |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
4-83-1 |
1 |
60201949 |
1 |
马达 Motor |
|
4-83-2 |
2 |
60201948 |
1 |
减速机 Reduction gear |
|
4-83-3 |
3 |
60210761 |
1 |
减速机总成维修包 Gearmotor maintenance package |
|

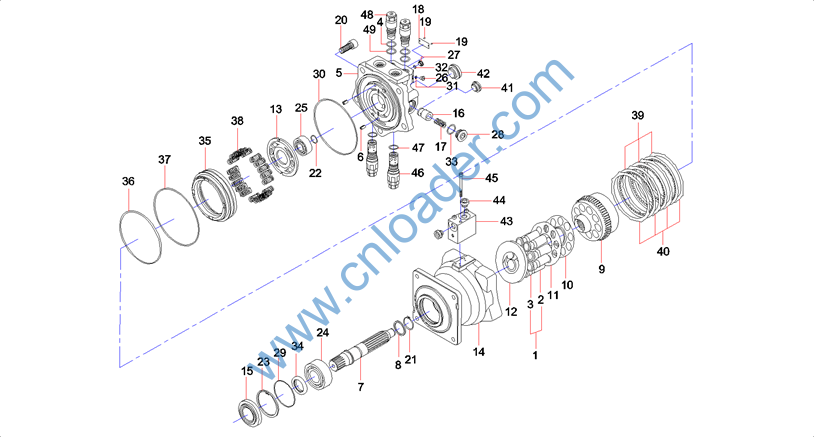

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-85-1 |
1 |
60221635 |
1 |
活塞组件 |
Piston Elements |
|
4-85-2 |
2 |
60221636 |
9 |
活塞 |
Piston |
|
4-85-3 |
3 |
60221637 |
9 |
支脚 |
Support foot |
|
4-85-4 |
4 |
60221668 |
2 |
备用环 |
Spare Ring |
|
4-85-5 |
5 |
60221639 |
1 |
阀盖 |
Valve cover |
|
4-85-6 |
6 |
60221640 |
2 |
销子 |
Pin |
|
4-85-7 |
7 |
60221641 |
1 |
驱动轴 |
Driving Shaft |
|
4-85-8 |
8 |
60221642 |
1 |
垫板 |
Backup plate |
|
4-85-9 |
9 |
60221643 |
1 |
油缸 |
Oil Cylinder |
|
4-85-10 |
10 |
60221644 |
1 |
弹簧板 |
Spring plate |
|
4-85-11 |
11 |
60221645 |
1 |
压板 |
Pressed plate |
|
4-85-12 |
12 |
60221646 |
1 |
底板 |
Bottom board |
|
4-85-13 |
13 |
60221647 |
1 |
阀盘 |
Valve Chassis |
|
4-85-14 |
14 |
60221648 |
1 |
护板 |
Guard board |
|
4-85-15 |
15 |
60221649 |
1 |
前盖板 |
Front cover plate |
|
4-85-16 |
16 |
60039351 |
2 |
活塞 |
Piston |
|
4-85-17 |
17 |
60081437 |
2 |
弹簧 |
Spring |
|
4-85-18 |
18 |
60100511 |
1 |
铭牌 |
Nameplate |
|
4-85-19 |
19 |
60008722 |
2 |
铆钉 |
Rivet |
|
4-85-20 |
20 |
60221650 |
5 |
内六角螺栓 |
Inner hexagon bolt |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-87-21 |
21 |
60221630 |
1 |
支撑环 |
Ring, Retainer |
|
4-87-22 |
22 |
60221651 |
1 |
卡箍 |
Thimble |
|
4-87-23 |
23 |
60221652 |
1 |
锁紧套 |
Lock sleeve |
|
4-87-24 |
24 |
60221653 |
1 |
滚动轴承 |
Rolling Bearing |
|
4-87-25 |
25 |
60221654 |
1 |
滚动轴承 |
Rolling Bearing |
|
4-87-26 |
26 |
60100467 |
2 |
堵 |
Plug |
|
4-87-27 |
27 |
60008711 |
2 |
堵 |
Plug |
|
4-87-28 |
28 |
60039401 |
2 |
油塞 |
Plug, oil |
|
4-87-29 |
29 |
60221655 |
1 |
O形圈 |
O-ring |
|
4-87-30 |
30 |
60221656 |
1 |
O形圈 |
O-ring |
|
4-87-31 |
31 |
60221657 |
2 |
O形圈 |
O-ring |
|
4-87-32 |
32 |
60221658 |
2 |
O形圈 |
O-ring |
|
4-87-33 |
33 |
60100516 |
2 |
O形圈 |
O-ring |
|
4-87-34 |
34 |
60210759 |
1 |
马达油封 |
Motor Oil Seal |
|
4-87-35 |
35 |
60221659 |
1 |
制动活塞 |
Brake piston |
|
4-87-36 |
36 |
60221660 |
1 |
O形圈 |
O-ring |
|
4-87-37 |
37 |
60221661 |
1 |
O形圈 |
O-ring |
|
4-87-38 |
38 |
60039405 |
20 |
制动弹簧 |
Spring, retarding |
|
4-87-39 |
39 |
60221662 |
3 |
摩擦片 |
Friction disc |
|
4-87-40 |
40 |
60221663 |
4 |
隔板 |
Spacing plate |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-89-41 |
41 |
60196562 |
1 |
堵 |
Plug |
|
4-89-42 |
42 |
60221664 |
1 |
堵 |
Plug |
|
4-89-43 |
43 |
B220401000688 |
1 |
回转马达延时阀 |
Valve,brake,delay |
|
4-89-44 |
44 |
60196563 |
2 |
堵 |
Plug |
|
4-89-45 |
45 |
60221665 |
3 |
内六角螺栓 |
Inner hexagon bolt |
|
4-89-46 |
46 |
60221666 |
2 |
溢流阀 |
Relief Valve |
|
4-89-47 |
47 |
60100513 |
2 |
O形圈 |
O-ring |
|
4-89-48 |
48 |
60008753 |
2 |
防反转阀 |
Valve, anit-rebound |
|
4-89-49 |
49 |
60221667 |
2 |
O形圈 |
O-ring |
|

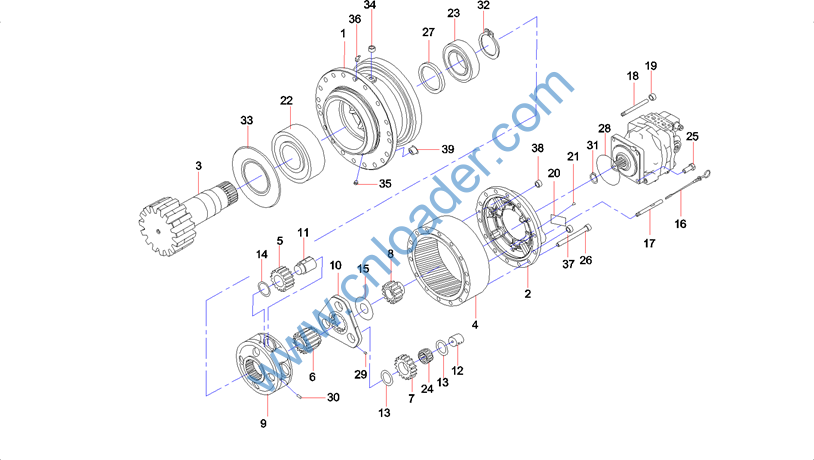

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

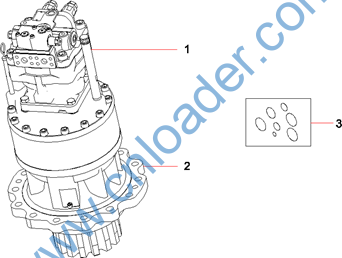

4-91-1 |
1 |
60221607 |
1 |
端盖 |
cover |
|
4-91-2 |
2 |
60221608 |
1 |
后盖板 |
Rear cover plate |
|
4-91-3 |
3 |
60221609 |
1 |
驱动轴 |
Driving Shaft |
|
4-91-4 |
4 |
60221610 |
1 |
环形齿轮 |
Ring gear |
|
4-91-5 |
5 |
60221611 |
4 |
行星齿轮 |
Planet Gear |
|
4-91-6 |
6 |
60221612 |
1 |
中心齿轮 |
Central gear |
|
4-91-7 |
7 |
60221613 |
3 |
行星齿轮 |
Planet Gear |
|
4-91-8 |
8 |
60221614 |
1 |
中心齿轮 |
Central gear |
|
4-91-9 |
9 |
60221615 |
1 |
传送架 |
Carrier Support |
|
4-91-10 |
10 |
60221616 |
4 |
传送架 |
Carrier Support |
|
4-91-11 |
11 |
60221617 |
3 |
销子 |
Pin |
|
4-91-12 |
12 |
60221618 |
6 |
销子 |
Pin |
|
4-91-13 |
13 |
60221619 |
4 |
滑块 |
Sliding block |
|
4-91-14 |
14 |
60221620 |
1 |
垫片 |
Gasket |
|
4-91-15 |
15 |
60221621 |
1 |
滑靴板 |
Sliding boot plate |
|
4-91-16 |
16 |
60084222 |
1 |
机油尺 |
Dipstick,oil |
|
4-91-17 |
17 |
60081472 |
1 |
油尺外管 |
Tube, oil gauge |
|
4-91-18 |
18 |
60008615 |
1 |
加油管 |
Tube, fill |
|
4-91-19 |
19 |
B229900002437 |
1 |
呼吸管盖 |
Cap, breather |
|
4-91-20 |
20 |
60221622 |
1 |
铭牌 |
nameplate |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-93-21 |
21 |
60038620 |
2 |
销子 |
Pin |
|
4-93-22 |
22 |
60221623 |
1 |
轴承 |
Bearing |
|
4-93-23 |
23 |
60221624 |
1 |
轴承 |
Bearing |
|
4-93-24 |
24 |
60221625 |
3 |
针规 |
Pointer gauge |
|
4-93-25 |
25 |
60221626 |
4 |
外六角螺栓 |
Outer hex bolt |
|
4-93-26 |
26 |
60221627 |
20 |
内六角螺栓 |
Inner hexagon bolt |
|
4-93-27 |
27 |
60210760 |
1 |
减速机油封 |
Gearbox Oil Seal |
|
4-93-28 |
28 |
B230101002175 |
1 |
O形圈 |
O-ring |
|
4-93-29 |
29 |
60221628 |
3 |
弹簧销 |
Spring pin |
|
4-93-30 |
30 |
60221629 |
4 |
弹簧销 |
Spring pin |
|
4-93-31 |
31 |
60221630 |
1 |
支撑环 |
Ring, Retainer |
|
4-93-32 |
32 |
60221631 |
1 |
支撑环 |
Ring, Retainer |
|
4-93-33 |
33 |
60221632 |
1 |
轴承密封件 |
Bearing Seal Element |
|
4-93-34 |
34 |
B229900005912 |
1 |
回转减速机螺塞 |
Plug,bolt,slewing reducer |
|
4-93-35 |
35 |
60008609 |
1 |
堵 |
Plug |
|
4-93-36 |
36 |
60008610 |
1 |
黄油嘴 |
Fitting, grease |
|
4-93-37 |
37 |
B229900005912 |
1 |
回转减速机螺塞 |
Plug,bolt,slewing reducer |
|
4-93-38 |
38 |
60221633 |
1 |
回转减速机螺塞 |
Slewing reducer plugs |
|
4-93-39 |
39 |
60221634 |
2 |
螺栓头 |
Bolt head |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

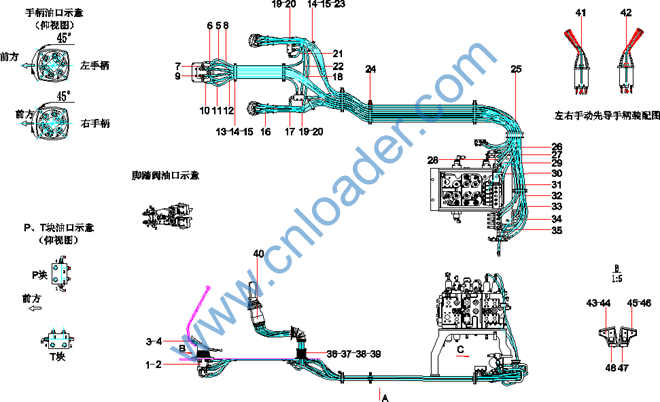

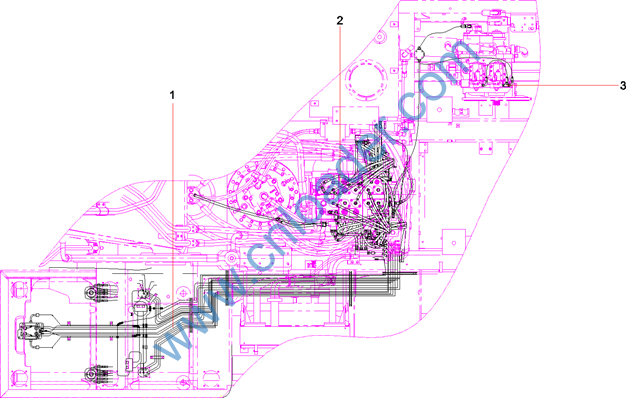

4-95-1 |
1 |
13310212 |
1 |
PPC管路 PPC Pipeline |
|
4-95-2 |
2 |
13309359 |
1 |
主阀及电磁阀管路 Pipeline of Main Valve Frame and |
|
4-95-3 |
3 |
13309991 |
1 |
主泵先导管路 Pilot pipeline of Main Pump |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-97-1 |
1 |
60283709 |
1 |
先导阀 |
Pilot Valve |
|
4-97-2 |
2 |
11571909 |
2 |
联接块 |
Block |
|
4-97-3 |
3 |
A210111000012 |
4 |
螺栓 M10×20GB5783 10.9级 |
Bolt |
|
4-97-4 |
4 |
A210491000120 |
12 |
垫圈 |
washer |
|
4-97-5 |
5 |
B230103004288 |
1 |
胶管 |
Hose Assembly |
|
4-97-6 |
6 |
B230103005103 |
1 |
胶管 |
Rubber Hose 1SN8-DKOL- |
|
4-97-7 |
7 |
B230103004207 |
1 |
胶管 |
Rubber Hose |
|
4-97-8 |
8 |
B230103006195 |
1 |
胶管 |
Rubber Hose |
|
4-97-9 |
9 |
B230103003246 |
1 |
胶管 |
Rubber Hose |
|
4-97-10 |
10 |
B230103005103 |
1 |
胶管 |
Rubber Hose 1SN8-DKOL- |
|
4-97-11 |
11 |
B230103004207 |
1 |
胶管 |
Rubber Hose |
|
4-97-12 |
12 |
21027563 |
1 |
胶管 |
Hose Assembly |
|
4-97-13 |
13 |
A820101117104 |
2 |
管夹 |
pipe nip |
|
4-97-14 |
14 |
A210111000342 |
8 |
螺栓M8×16GB5783 10.9级 |
Bolt |
|
4-97-15 |
15 |
24000633 |
8 |
垫圈8GB97.1 达克锈 |
Washer |
|
4-97-16 |
16 |
A239900000065 |
12 |
尼龙扎带 |
Nylon belting |
|
4-97-17 |
17 |
B230103004127 |
1 |
胶管 |
Hose Assembly |
|
4-97-18 |
18 |
B230103003138 |
1 |
胶管 |
Hose Assembly |
|
4-97-19 |
19 |
A820199000360 |
2 |
PT块 |
Block, PT |
|
4-97-20 |
20 |
A210204000355 |
4 |
螺钉M10×40GB70.1 10.9级 |
Screw |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-99-21 |
21 |
21027563 |
1 |
胶管 |
Hose Assembly |
|
4-99-22 |
22 |
23001051 |
1 |
胶管 |
Rubber Hose |
|
4-99-23 |
23 |
A820101117116 |
2 |
管夹 |
Clamp |
|
4-99-24 |
24 |
13305841 |
3 |
护套 |
jacket |
|
4-99-25 |
25 |
13305833 |
1 |
护套 |
jacket |
|
4-99-26 |
26 |
B230103002946 |
1 |
胶管 |
Rubber Hose |
|
4-99-27 |
27 |
B230103002946 |
1 |
胶管 |
Rubber Hose |
|
4-99-28 |
28 |
B230103002946 |
1 |
胶管 |
Rubber Hose |
|
4-99-29 |
29 |
B230103002946 |
1 |
胶管 |
Rubber Hose |
|
4-99-30 |
30 |
B230103007716 |
1 |
胶管 |
Rubber Hose |
|
4-99-31 |
31 |
60307232 |
1 |
胶管 |
rubber hose |
|
4-99-32 |
32 |
60307232 |
1 |
胶管 |
rubber hose |
|
4-99-33 |
33 |
B230103008477 |
1 |
胶管 |
Rubber Hose |
|
4-99-34 |
34 |
B230103002238 |
1 |
胶管 |
Rubber Hose |
|
4-99-35 |
35 |
B230103002238 |
1 |
胶管 |
Rubber Hose |
|
4-99-36 |
36 |
A820601990304 |
2 |
法兰 |
Flange |
|
4-99-37 |
37 |
A820601990336 |
2 |
波纹管 |
Grommet |
|
4-99-38 |
38 |
A210111000079 |
8 |
螺栓 |
Bolt |
|
4-99-39 |
39 |
24000632 |
16 |
垫圈6GB97.1 达克锈 |
washer |
|
4-99-40 |
40 |
60210245 |
2 |
先导阀 |
Pilot-control Valve |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

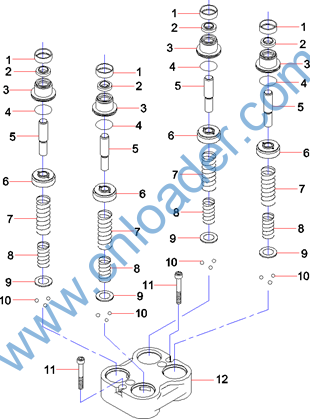

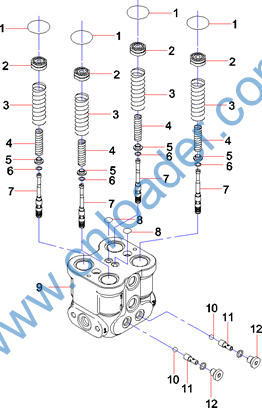

4-101-41 |
41 |
11145459 |
1 |
左手柄总装 |
Left handle Assy |
|
4-101-42 |
42 |
11145480 |
1 |
右手柄总装 |
Right handle Assy |
|
4-101-43 |
43 |
12009972 |
1 |
脚踏阀垫板总成右 |
Right backup plate of pedal Asy. |
|
4-101-44 |
44 |
12003641 |
1 |
脚踏阀垫板总成左 |
Left backup plate of pedal |
|
4-101-45 |
45 |
12009258 |
1 |
蝶形脚踏垫板套 |
Backup sleeve of pedal |
|
4-101-46 |
46 |
12010268 |
1 |
脚踏阀垫板套右 |
Backup sleeve of pedal |
|
4-101-47 |
47 |
A210204000334 |
4 |
螺钉M10×16GB70.1 10.9级 |
Bolt, socket head |
|
4-101-48 |
48 |
23000066 |
4 |
螺钉 |
Screw |
|

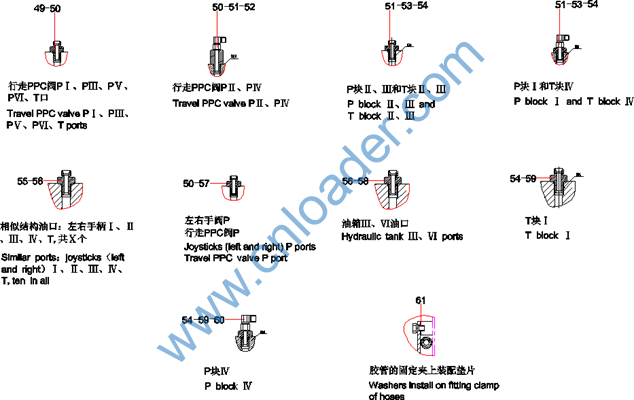

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-103-49 |
49 |
A820205002445 |
5 |
G1/4-M16接头 |
G1/4-M16connector |
|
4-103-50 |
50 |
B230101000047 |
10 |
O形圈 |
O-Ring-10.8 |
|
4-103-51 |
51 |
B210780000636 |
4 |
直角组合接头 |
Fitting, Elbow |
|
4-103-52 |
52 |
13106800 |
2 |
G1/4-M16加长接头 |
G1/4-M16connector |
|
4-103-53 |
53 |
B210780000148 |
6 |
端直通接头 |
Stud Straight Connector |
|
4-103-54 |
54 |
A230101000247 |
8 |
O形圈 |
O-ring 10.9×2.3(JISB2401) |
|
4-103-55 |
55 |
11287446 |
10 |
G3/8-M16接头 |
Connector |
|
4-103-56 |
56 |
B230101000049 |
12 |
O形圈 |
O-ring |
|
4-103-57 |
57 |
60173491 |
3 |
过滤接头 |
Filter joint |
|
4-103-58 |
58 |
A820205000961 |
2 |
G3/8-M18接头 |
Connector |
|
4-103-59 |
59 |
A820205000894 |
2 |
接头 |
Fitting |
|
4-103-60 |
60 |
B210780000024 |
1 |
直角组合接头 |
Fitting, Elbow |
|
4-103-61 |
61 |
24002251 |
8 |
螺钉M6×25GB70.1 10.9级 |
Screw M6×25GB70.1 Grade 10.9 |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-105-1 |
1 |
60319776 |
2 |
护罩 |
Bellows |
|
4-105-2 |
2 |
60038339 |
2 |
定位螺栓 |
Bolt, positioning |
|
4-105-3 |
3 |
60008591 |
2 |
凸轮 |
Mount, upper |
|
4-105-4 |
4 |
60008592 |
4 |
调整螺杆 |
Screw, adjusting |
|
4-105-5 |
5 |
60038480 |
4 |
螺母 |
Nut |
|
4-105-6 |
6 |
60319777 |
2 |
螺栓 |
Set screw |
|
4-105-7 |
7 |
60319778 |
2 |
盖 |
Cover |
|
4-105-8 |
8 |
60038181 |
4 |
衬套 |
Sleeve |
|
4-105-9 |
9 |
60008585 |
2 |
凸轮轴 |
Shaft |
|
4-105-10 |
10 |
60340389 |
1 |

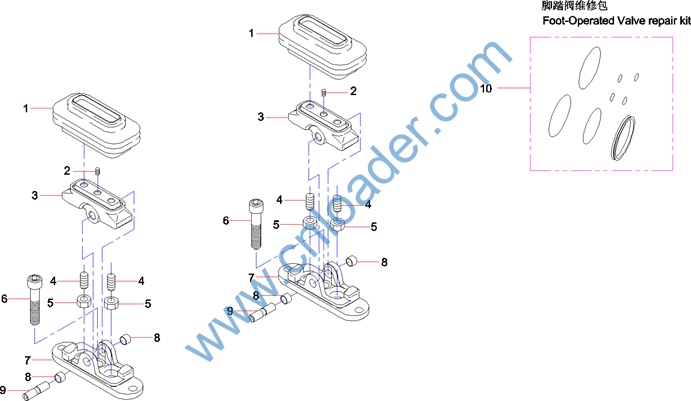

脚踏阀维修包 |
Foot-Operated Valve repair kit |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-107-1 |
1 |
60008754 |
4 |
盖 |
Cover |
|
4-107-2 |
2 |
60008776 |
4 |
防尘圈 |
Dust ring |
|
4-107-3 |
3 |
60163768 |
4 |
堵 |
Plug |
|
4-107-4 |
4 |
60038720 |
4 |
O形圈 |
O-ring |
|
4-107-5 |
5 |
60319779 |
4 |
推杆 |
Rod |
|
4-107-6 |
6 |
60008803 |
4 |
活塞 |
Piston |
|
4-107-7 |
7 |
60008767 |
4 |
弹簧 |
Spring |
|
4-107-8 |
8 |
60008766 |
4 |
弹簧 |
Spring |
|
4-107-9 |
9 |
60008756 |
4 |
弹簧座 |
Seat, spring |
|
4-107-10 |
10 |
60038140 |
12 |
轴承钢珠 |
Bearing, ball |
|
4-107-11 |
11 |
60038563 |
2 |
内六角螺钉 |
Screw, socket head |
|
4-107-12 |
12 |
60319780 |
1 |
外壳(阻尼器) |
Casing（damper） |
