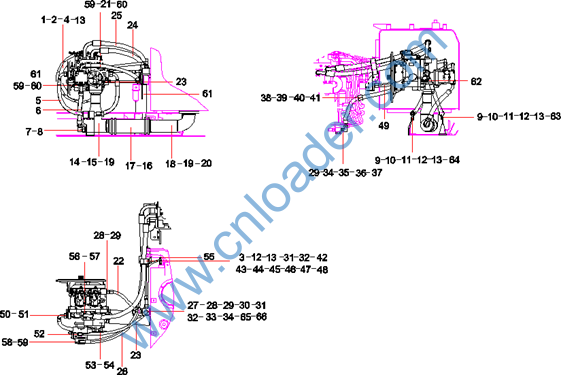

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

3-15-1

1

14133567

1

泵室线束

Pump Room harness

3-15-2

2

A239900000065

22

尼龙扎带

Nylon belting

3-15-3

3

A210491000120

8

垫圈

washer

3-15-4

4

24000512

1

垫圈10GB93 达克锈

Washer

3-15-5

5

13309252

1

比例阀线束固定架

Proportional valve harness fixed

3-15-6

6

A210111000342

1

螺栓M8×16GB5783 10.9级

Bolt

3-15-7

7

A210111000195

6

螺栓

Bolt

3-15-8

8

60086353

5

线束固定夹

the fixity of line

3-15-9

9

24000633

1

垫圈8GB97.1 达克锈

Washer

3-15-10

10

11169936

1

橡胶护套

Rubber protective sleeve

3-15-11

11

11400099

2

线夹

The clamp of AMP

3-15-12

12

11166822

1

钢管

steel tube

3-15-13

13

A210111000295

1

螺栓

Bolt

3-15-14

14

60041902

1

德弛插件90度固定金属附件

90 degree metal mounting bracket

3-15-15

15

变更或见其他配置

1

电磁泵开关

Electromagnetism pump switch

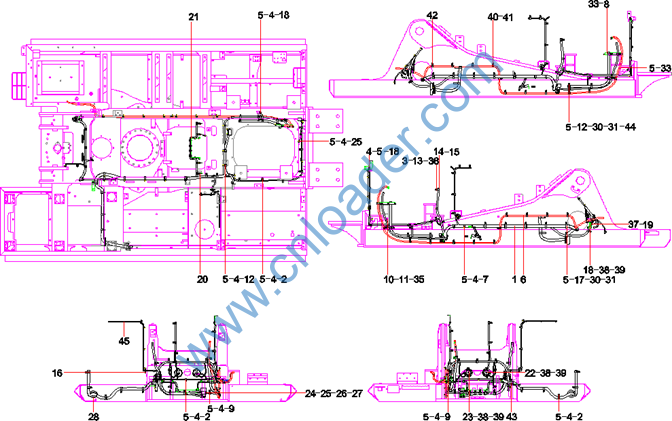

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

3-17-1

1

14133602

1

车身线束

Body Harness

3-17-2

2

60083322

26

线夹

Clamp

3-17-3

3

60086354

12

线束固定夹

Clamp

3-17-4

4

A210111000195

54

螺栓

Bolt

3-17-5

5

A210491000120

62

垫圈

washer

3-17-6

6

60242056

1

电源线

Power Supply Line

3-17-7

7

60086357

12

线束固定夹

Clamp

3-17-8

8

13514948

1

线束支架

Harness support

3-17-9

9

60086355

8

线束固定夹

the fixity of line

3-17-10

10

A210111000101

20

螺栓M12×25GB5783 10.9级

Bolt

3-17-11

11

60060548

1

垫圈12GB96.1 达克锈

Washer

3-17-12

12

60086356

5

线束固定夹

Clamp

3-17-13

13

60238783

1

垫圈6GB96.1 达克锈

Washer

3-17-14

14

A210210000003

1

螺钉

Screw

3-17-15

15

24000630

1

垫圈 达克锈

Washer

3-17-16

16

11169936

2

橡胶护套

Rubber protective sleeve

3-17-17

17

60119587

1

线束固定夹

the fixity of line

3-17-18

18

60041902

4

德弛插件90度固定金属附件

90 degree metal mounting bracket

3-17-19

19

60149605

12

线束固定夹

The Fixity Of Line

3-17-20

20

11768685

4

线夹固定架

Clamp fixed frame Ⅱ

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

3-19-21

21

13840915

1

比例阀线束固定架组件

proportional valve Harness fixed

3-19-22

22

60202066

1

电喇叭B36高音

Electric Horn

3-19-23

23

60202067

1

电喇叭B36低音

Electric Horn

3-19-24

24

12060843

1

线夹三菱

the clamp for connecter of

3-19-25

25

12060897

2

线夹

The Bracket for connecter of

3-19-26

26

12061491

1

线夹矢崎

The Bracket for connecter of shiqi

3-19-27

27

12061200

1

线夹

the clamp of swp

3-19-28

28

11844004

1

橡胶护套

Rubber protective sleeve

3-19-30

30

A210111000295

4

螺栓

Bolt

3-19-31

31

11166822

4

钢管

steel tube

3-19-33

33

A210111000012

1

螺栓 M10×20GB5783 10.9级

Bolt

3-19-35

35

A210491000121

19

垫圈

Washer

3-19-36

36

A210210000008

1

螺钉

Screw

3-19-37

37

13300235

1

接插件安装支架

Plug-IN mounting support

3-19-38

38

A210111000323

4

螺栓

Bolt

3-19-39

39

24000633

4

垫圈8GB97.1 达克锈

Washer

3-19-40

40

60149607

2

线束固定夹

The Fixity Of Line

3-19-41

41

11206238

1

Φ26胶垫

Φ26 rubber cushion

3-19-42

42

11206203

1

Φ40胶垫

Φ40 rubber cushion

3-19-43

43

11133736

1

护套

Protective sleeve

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

3-21-44

44

24000512

4

垫圈10GB93 达克锈    Washer

3-21-45

45

A239900000065

35

尼龙扎带    Nylon belting

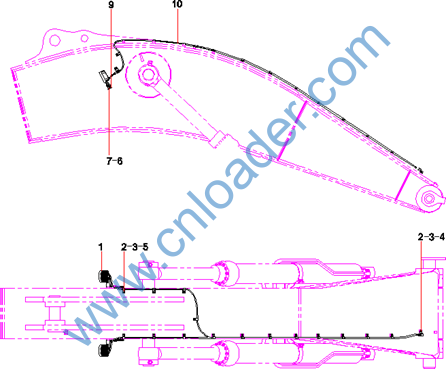

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

3-23-1

1

60304919

2

动臂工作灯

Boom working light

3-23-2

2

A210111000195

20

螺栓

Bolt

3-23-3

3

A210491000120

20

垫圈

washer

3-23-4

4

60041902

3

德弛插件90度固定金属附件

90 degree metal mounting bracket

3-23-5

5

60083322

18

线夹

Clamp

3-23-6

6

A210111000212

2

螺栓M16×35GB5783 10.9级

bolt

3-23-7

7

A210491000118

2

垫圈

High-strength steel washer

3-23-9

9

13584605

2

灯架

lamp frame

3-23-10

10

13288800

1

动臂线束

Boom Harness

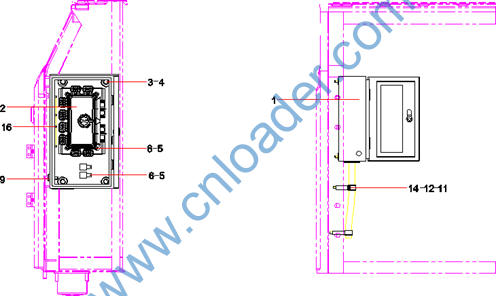

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

3-25-1

1

13271326

1

电控箱

Electric cabinet

3-25-2

2

13271327

1

盒

Integrated box SY485C1I3KH.5.1.4

3-25-3

3

A210111000197

4

螺栓

Bolt

3-25-4

4

A210491000120

8

垫圈

washer

3-25-5

5

A210210000008

4

螺钉

Screw

3-25-6

6

24000632

6

垫圈6GB97.1 达克锈

washer

3-25-9

9

B241000000022

1

2芯直流插座

Receptacle, power

3-25-11

11

11166822

2

钢管

steel tube

3-25-12

12

60086356

2

线束固定夹

Clamp

3-25-14

14

A210111000295

2

螺栓

Bolt

3-25-16

16

A239900000065

15

尼龙扎带

Nylon belting

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

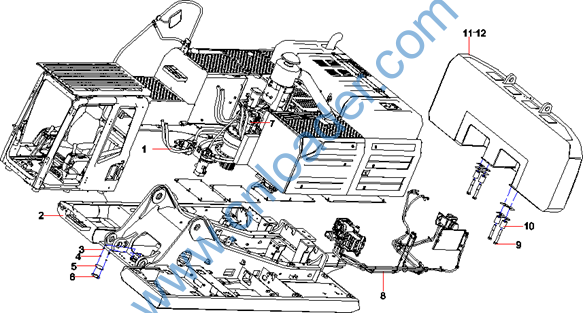

4-3-1

1

13308319

1

平台液压系统

hydraulic system of platform

4-3-2

2

13311442

1

回转平台

revolving frame

4-3-3

3

A210111000101

2

螺栓M12×25GB5783 10.9级

Bolt

4-3-4

4

24000639

2

垫圈12GB97.1 达克锈

Washer

4-3-5

5

A820101117871

1

盖

Cover

4-3-6

6

A820606030364

1

密封垫

Gasket

4-3-7

7

13310215

1

先导系统

Pilot System SY485C1I3KH.1.4

4-3-8

8

13278021

1

电装空调系统

Air conditioning system

4-3-9

9

21021304

8

螺栓GB5785 10.9级

Bolt

4-3-10

10

13354544

8

套

Cover

4-3-11

11

13272901

1

配重总成

Counterweight assembly

4-3-12

12

变更或见其他配置

1

配重总成

Counterweight assembly

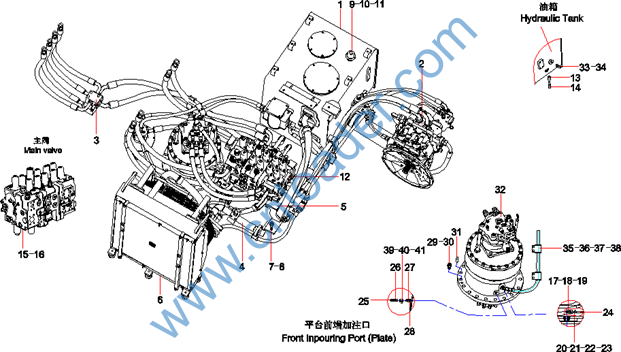

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-5-1

1

13510936

1

液压油箱

Oil Tank

4-5-2

2

13308021

1

泵室管路

pump room pipeline

4-5-3

3

13308041

1

平台主管路

main pipeline of platform

4-5-4

4

13308050

1

泄回油管路

pipeline of return

4-5-5

5

13503268

1

主阀架

Main Valve Frame

4-5-6

6

13301167

1

散热器安装

Radiator Installation

4-5-7

7

A210111000061

8

螺栓M20×55GB5783 10.9级

Bolt

4-5-8

8

A210491000132

8

垫圈

Washer

4-5-9

9

60129702

1

呼吸阀

Valve, breather AS

4-5-10

10

60249819

2

螺钉M6×16GB70.1 10.9级

Screw

4-5-11

11

24000632

2

垫圈6GB97.1 达克锈

washer

4-5-12

12

60242783

1

多路阀

Multi-way Valve

4-5-13

13

11450168

6

间隔套

Spacer Sleeve

4-5-14

14

A210110000201

6

螺栓M20×80GB5783 10.9级

Bolt

4-5-15

15

A820205002644

1

G1堵头

G1 plug

4-5-16

16

B230101000050

1

O形圈

O-ring

4-5-17

17

A820205002283

1

接头

Fitting

4-5-18

18

60202193

1

管接头

Pipe connector

4-5-19

19

B210780001426

1

管接头

Fitting

4-5-20

20

10137010

1

接头

Fitting

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-7-21

21

60006360

1

铜垫圈

Washer, copper

4-7-22

22

B220401000916

1

放油阀

Valve AS, drain

4-7-23

23

A229900001347

1

软管环箍

Clamp

4-7-24

24

10192981

1

放油软管

Hose, return

4-7-25

25

B229900000686

1

黄油嘴

Grease nipple

4-7-26

26

21025907

1

胶管

Rubber Hose

4-7-27

27

A820205002483

1

PT1/4-M14过渡接头

Fitting

4-7-28

28

A229900010160

1

管接头

Pipe connector

4-7-29

29

A210111000321

18

螺栓M24×80GB5783 10.9级

Bolt

4-7-30

30

A210491000122

18

垫圈

Washer

4-7-31

31

23000080

1

销

Pin

4-7-32

32

60191651

1

减速机总成

Slewing Reducer Assembly

4-7-33

33

10077549

1

接头

Fitting

4-7-34

34

60008962

1

温度传感器

Temperature Sensor

4-7-35

35

13306471

4

夹板

fitting strip SY485C1I3KH.1.2.4-3

4-7-36

36

11206238

2

Φ26胶垫

Φ26 rubber cushion

4-7-37

37

A210111000024

4

螺栓

Bolt

4-7-38

38

A210491000120

4

垫圈

washer

4-7-39

39

60086353

4

线束固定夹

the fixity of line

4-7-40

40

A210111000199

4

螺栓M12×20GB5783 10.9级

Bolt

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-9-41

41

A210491000121

4

垫圈    Washer

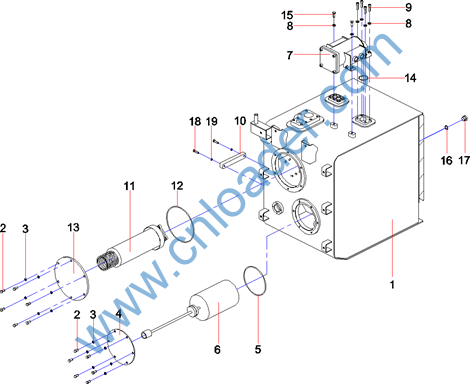

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-11-1

1

13493377

1

液压油箱体

Hydraulic oil tank body

4-11-2

2

A210111000101

12

螺栓M12×25GB5783 10.9级

Bolt

4-11-3

3

A210401000002

12

垫圈

Washer

4-11-4

4

13302886

1

吸油盖

suction cover

4-11-5

5

A210609000112

1

O形圈

O-Ring-212×5.3GB3452.1

4-11-6

6

60251436

1

吸油过滤器

Oil suction filter

4-11-7

7

12353451

1

泄油滤芯总成

oil drainage filter core

4-11-8

8

A210405000001

6

垫圈

Washer

4-11-9

9

A210204000338

4

螺钉M12×40GB70.1 10.9级

Screw

4-11-10

10

A250100000044

1

液位计

Liquid level meter

4-11-11

11

60014122

1

回油过滤器

Oil Return Filter

4-11-12

12

A210609000219

1

O形圈

O-ring

4-11-13

13

10695860

1

盖板

Cover PlateSY420C5MK.1.2.6.3-1

4-11-14

14

B230101000366

1

O形圈

O-ring

4-11-15

15

A210111000202

2

螺栓

Bolt

4-11-16

16

B230101000356

1

O形圈

O-Ring-23.7

4-11-17

17

10514225

1

堵头

Screw Plug

4-11-18

18

21005186

2

螺栓

Bolt

4-11-19

19

24000512

2

垫圈10GB93 达克锈

Washer

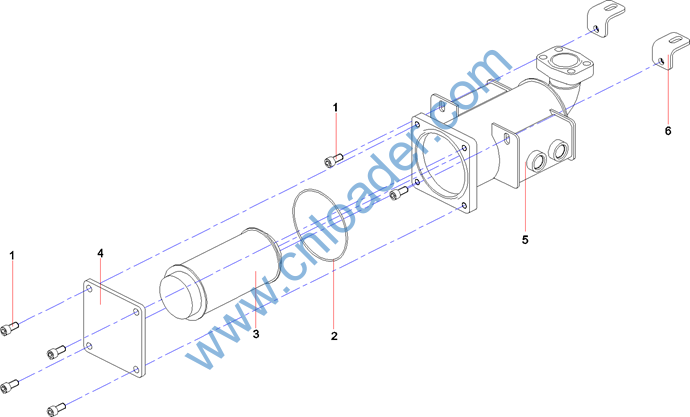

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-13-1

1

A210204000167

6

螺钉M12×25GB70.1 10.9级

Screw

4-13-2

2

A210608000023

1

O形圈

O-ring

4-13-3

3

60210416

1

36T回油滤清器

Oil Return Filter Element

4-13-4

4

12355472

1

端盖

end coverSY365CAI2KS.1.2.1.3-2

4-13-5

5

12355690

1

泄油桶

oil draining

4-13-6

6

12355610

1

板

plate

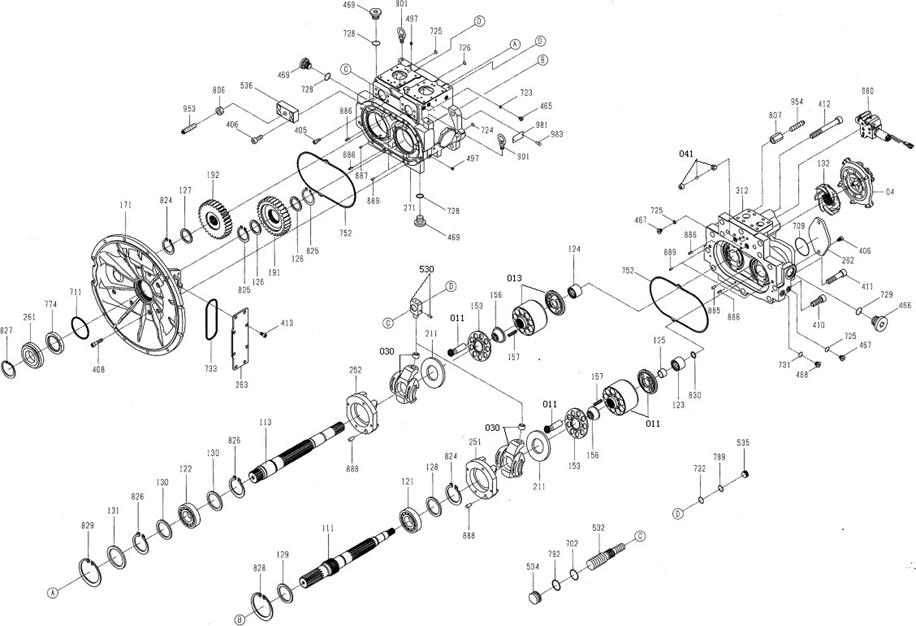

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-15-1

1

60355586

1

柱塞泵

Plunger Pump

4-15-2

2

60242827

1

柱塞泵

Plunger Pump

4-15-3

3

A210111000203

8

螺栓

Bolt

4-15-4

4

A210204000359

12

螺钉

Screw

4-15-5

5

B230103001771

2

胶管

Rubber Hose

4-15-6

6

B230103001940

1

胶管

Rubber Hose 1SN32-DKOL-

4-15-7

7

B210780001181

1

管接头

Fitting, Adapter

4-15-8

8

B210780000030

1

直角组合接头

Fitting, Elbow

4-15-9

9

60208243

2

堵头

Plug

4-15-10

10

11206203

4

Φ40胶垫

Φ40 rubber cushion

4-15-11

11

13631387

8

管夹

Clamp

4-15-12

12

A210111000202

19

螺栓

Bolt

4-15-13

13

A210491000121

39

垫圈

Washer

4-15-14

14

14019824

1

泵端吸油钢管

Steel tube assembly

4-15-15

15

A210609000083

1

O形圈

O-ring

4-15-16

16

60318656

4

T型抱箍

T-type anchor ear

4-15-17

17

13306236

1

吸油胶管

suction hose SY485C1I3KH.1.2.2-

4-15-18

18

14019829

1

油箱端吸油钢管

Steel tube assembly

4-15-19

19

A210204000232

8

螺钉M16×45GB70.1 10.9级

Screw

4-15-20

20

A210609000125

1

O形圈

O-ring

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-17-21

21

B230103002698

1

胶管

Rubber Hose 4SP20-DKOS-

4-17-22

22

60253576

1

胶管

Rubber Hose

4-17-23

23

B230103003287

1

胶管

Hy hose 1SN12-DKOL-DKOL90-

4-17-24

24

60253561

1

胶管

Rubber Hose

4-17-25

25

60253562

1

胶管

Rubber Hose

4-17-26

26

B230103002533

1

胶管

Hose AS

4-17-27

27

13304018

1

过渡块

transitional block

4-17-28

28

A820205000942

2

接头

Fitting

4-17-29

29

B230101000356

3

O形圈

O-Ring-23.7

4-17-30

30

21002823

1

管接头

Pipe connector

4-17-31

31

A820205002468

2

接头

Connector

4-17-32

32

B230101000050

2

O形圈

O-ring

4-17-33

33

B210780000025

1

直角组合接头

Fitting, Elbow

4-17-34

34

13304020

1

过渡块

transitional block

4-17-35

35

A820205002473

1

接头

Connector

4-17-36

36

B210780000029

1

直角组合接头

Fitting, Elbow

4-17-37

37

A210204000357

2

螺钉M10×60GB70.1 10.9级

Bolt

4-17-38

38

13306237

4

夹板

fitting strip SY485C1I3KH.1.2.2-5

4-17-39

39

A820606020470

2

φ34胶垫

Φ34 rubber cushion SY420.13.1-

4-17-40

40

A210111000012

4

螺栓 M10×20GB5783 10.9级

Bolt

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-19-41

41

A210491000120

4

垫圈

washer

4-19-42

42

13306242

1

支架

bracket SY485C1I3KH.1.2.2.3

4-19-43

43

13306360

1

支架

bracket SY485C1I3KH.1.2.2.4

4-19-44

44

13306238

1

卡板

clamp plate SY485C1I3KH.1.2.2-7

4-19-45

45

13304016

1

过渡块

Transitional block

4-19-46

46

A210111000205

3

螺栓M14×30GB5783 10.9级

Bolt M14×30GB5783 Grade 10.9

4-19-47

47

A210111000103

4

螺栓M12×60GB5783 10.9级

Bolt

4-19-48

48

13308536

2

Φ48胶垫

Φ48 rubber cushion

4-19-49

49

B230103003775

1

胶管

Rubber Hose

4-19-50

50

21002928

2

管接头

Pipe connector

4-19-51

51

21007877

2

O形圈

O-ring

4-19-52

52

24004879

1

管接头

Pipe connector

4-19-53

53

A820205000961

1

G3/8-M18接头

Connector

4-19-54

54

B230101000049

1

O形圈

O-ring

4-19-55

55

B210780000016

1

三通组合L型接头

Fitting, Tee

4-19-56

56

B210780000693

8

对开法兰

Flange, Split

4-19-57

57

A210204000454

16

螺钉M14×45GB70.1 10.9级

Screw

4-19-58

58

B210780000644

2

对开法兰

Split Flange

4-19-59

59

A210204000354

8

螺钉 M10×30GB70.1 10.9级

Screw

4-19-60

60

B210780000696

2

对开法兰

Flange, split

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-21-61

61

13948034

1

支架

bracket SY485C1I3KH.1.2.2.5C

4-21-62

62

60217140

3

压力传感器

Sensor, pressure

4-21-63

63

13631392

1

支架

support

4-21-64

64

13631388

1

板

plate

4-21-65

65

24000633

3

垫圈8GB97.1 达克锈

Washer

4-21-66

66

A210111000323

3

螺栓

Bolt

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-23-2

2

60319637

2

调节器

Adjuster for main pump

4-23-3

3

60125194

2

电磁比例减压阀壳体组件

Housing GP, valve, reducing

4-23-4

4

60319636

1

齿轮泵

Gear Pump

4-23-5

5

60319638

1

主泵维修包

Main Pump Repair Kit

4-23-11

11

60319630

2

活塞总成

ASSY piston

4-23-13

13

60319631

1

缸体总成

ASSY ccylinder (R)

4-23-14

14

60319632

1

缸体总成

ASSY ccylinder (L)

4-23-30

30

60319633

2

斜盘总成

ASSY swash plate

4-23-41

41

60319634

2

单向阀总成

ASSY check valve 1

4-23-111

111

61006876

1

传动轴2924250-2030 SY485泵轴

Transmission shaft

4-23-113

113

60319567

1

从动轴

Shaft driven

4-23-114

114

60319568

1

连轴花键套

Coupling spline

4-23-121

121

60319569

1

圆柱轴承

Bearing roller

4-23-122

122

60319570

1

圆柱轴承

Bearing roller

4-23-123

123

60319571

1

滚针轴承

Bearing needle

4-23-124

124

60319572

1

滚针轴承

Bearing needle

4-23-125

125

60319573

1

滚针轴承内圈

Ring inner

4-23-126

126

61006877

2

衬垫PFTRA7095 SY485泵轴加粗

Cushion

4-23-127

127

60319575

1

轴承隔离圈

Spacer

4-23-128

128

60319576

1

轴承隔离圈

Spacer bearing

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-25-129

129

60319577

1

轴承隔离圈

Spacer ,bearing

4-25-130

130

60319578

2

轴承隔离圈

Spacer bearing

4-25-131

131

60319579

1

轴承隔离圈

Spacer bearing

4-25-132

132

60319580

1

增压轮

Booster

4-25-153

153

60319581

2

回程盘

Plate set

4-25-156

156

60319582

2

球面衬套

Bush spherical

4-25-157

157

60319583

18

回程弹簧

Spring cylinder

4-25-171

171

61006878

1

前壳体2923310-0912 SY485泵轴

Front housing body

4-25-191

191

61006879

1

主动齿轮2903190-1825 SY485泵

Driving gear

4-25-192

192

60319586

1

从动齿轮

Gear driven

4-25-211

211

60319587

2

滑靴盘

Plate shoe

4-25-251

251

60319588

1

斜盘支撑台

Plate swash

4-25-252

252

60319589

1

斜盘支撑台

Support s. p.

4-25-261

261

61006880

1

前盖2923150-2179 SY485泵轴加

Front cover

4-25-262

262

60319591

1

盖板

Cover

4-25-263

263

60319592

1

PTO盖

Cover PTO

4-25-264

264

60319593

1

连接法兰

PLATE sub

4-25-271

271

60319594

1

泵壳体

Housing-pump

4-25-312

312

60319595

1

配油盖

Cover valve

4-25-314

314

60319596

1

配油盘

Distributing Oil Disc

识别码 IC

序号 INDEX

零件代码 PART NUMBER

数量 QTY

名称 PART NAME

4-27-405

405

60319597

8

螺钉

SCREW hex. S. H. C.

4-27-406

406

60319598

8

螺钉

SCREW hex. S. H. C.

4-27-408

408

60319599

11

螺钉

SCREW hex. S. H. C.

4-27-409

409

60319600

2

螺钉

SCREW hex. S. H. C.

4-27-410

410

60319601

9

螺钉

SCREW hex. S. H. C.

4-27-411

411

60319602

2

螺钉

SCREW hex. S. H. C.

4-27-412

412

60319603

1

螺钉

SCREW hex. S. H. C.

4-27-413

413

60319604

8

螺钉

SCREW hex. S. H. C.

4-27-465

465

60100467

6

堵

Plug

4-27-466

466

60319605

2

堵

PLUG

4-27-467

467

60008711

4

堵

Plug

4-27-469

469

60008712

3

堵

Plug

4-27-492

492

60319606

4

保持器

RESTRICTOR

4-27-497

497

60224866

6

堵头

Plug

4-27-532

532

60075455

2

伺服柱塞

Plunger, servo

4-27-534

534

60319607

2

挡柱

STOPPER(L)

4-27-535

535

60319608

2

挡柱

STOPPER(S)

4-27-536

536

60319609

2

伺服盖

COVER servo

4-27-702

702

60050051

2

O形圈

O-ring

4-27-709

709

60319610

2

O形圈

O RING
