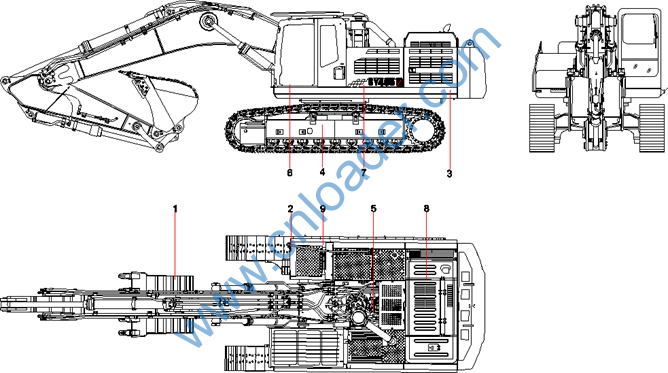

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
1-3-1 |
1 |
14038340 |
1 |
工作装置（选配） |
Work device |
|
1-3-2 |
2 |
14038121 |
1 |
电气系统（选配） |
Eletrical system assembly |
|
1-3-3 |
3 |
14038344 |
1 |
上车总成 |
Slewing device |
|
1-3-4 |
4 |
14036611 |
1 |
下车总成 |
travel device |
|
1-3-5 |
5 |
13294706 |
1 |
动力系统 |
Power System SY485C1I3KH.1.3 |
|
1-3-6 |
6 |
14037913 |
1 |
驾驶室 |
Cab |
|
1-3-7 |
7 |
14036582 |
1 |
涂装总成 |
Coating |
|
1-3-8 |
8 |
13312148 |
1 |
覆盖件总成 |
Assembly panels |
|
1-3-9 |
9 |
14035990 |
1 |
随机附件 |
Accessories |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-3-1 |
1 |
变更或见其他配置 |
1 |
工作装置(松土器) |
Work device |
|
2-3-2 |
2 |
14038338 |
1 |
工作装置(7m动臂+3m斗杆) |
Work device assembly |
|
2-3-3 |
3 |
变更或见其他配置 |
1 |
工作装置(7m动臂+3.35m斗杆) |
Work device 2 |
|
2-3-4 |
4 |
13287540 |
1 |
岩石铲斗 |
Bucket(2.15) |
|
2-3-5 |
5 |
变更或见其他配置 |
1 |
四齿铲斗 |
Bucket assem |
|
2-3-6 |
6 |
变更或见其他配置 |
1 |
土耳其岩石铲斗 |
Bucket assem |
|
2-3-7 |
7 |
变更或见其他配置 |
1 |
岩石铲斗 |
Bucket assem |
|
2-3-8 |
8 |
13304042 |
1 |
工作装置管路 |
work device pipeline |
|
2-3-9 |
9 |
变更或见其他配置 |
1 |
工作装置管路 |
Work device Tube |
|
2-3-10 |
10 |
变更或见其他配置 |
1 |
工作装置选配二 |
Work device |
|
2-3-11 |
11 |
变更或见其他配置 |
1 |
工作装置管路 |
Work device Tube |
|
2-3-12 |
12 |
变更或见其他配置 |
1 |
铲斗总成 |
Bucket assem |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

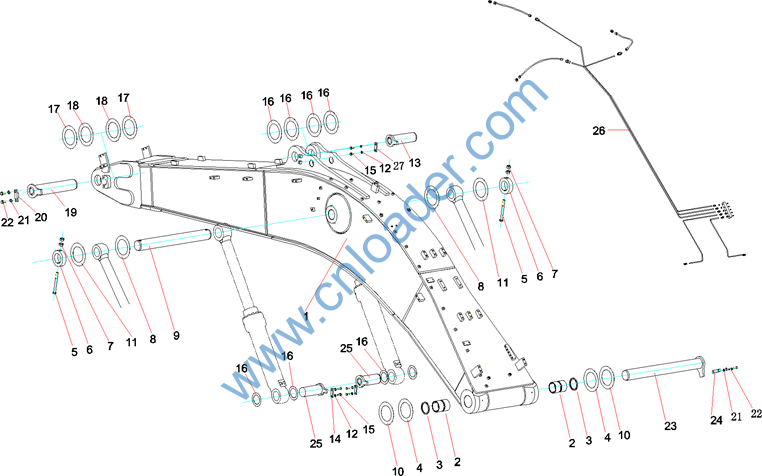

2-5-1 |
1 |
13303496 |
1 |
动臂 |
Boom SY485C1I3KH.3.2 |
|
2-5-2 |
2 |
11172131 |
2 |
轴套 |
Shaft SleeveSY425C1M2K.3-3 |
|
2-5-3 |
3 |
60044259 |
2 |
MCS防尘圈 |
Dust ring |
|
2-5-4 |
4 |
13286692 |
2 |
垫片 |
Spacer |
|
2-5-5 |
5 |
A210110000108 |
2 |
螺栓M24×240GB5782 10.9级 |
Bolt M24×240GB5782-00 Class |
|
2-5-6 |
6 |
13304058 |
2 |
固定套 |
fixed sleeve SY485C1I3KH.3-15 |
|
2-5-7 |
7 |
A210307000007 |
4 |
螺母 |
Nut |
|
2-5-8 |
8 |
A820102010678 |
10 |
垫片 |
Adjusting Spacer |
|
2-5-9 |
9 |
13264722 |
1 |
动臂中支承销轴 |
Pin Shaft SY485C1I3KH.3-12 |
|
2-5-10 |
10 |
13286691 |
4 |
垫片 |
Spacer |
|
2-5-11 |
11 |
10254335 |
4 |
垫片 |
Adjusting Spacer |
|
2-5-12 |
12 |
A210491000118 |
6 |
垫圈 |
High-strength steel washer |
|
2-5-13 |
13 |
11347590 |
1 |
销轴 |
Lock pin SY425C1M2K.3.24 |
|
2-5-14 |
14 |
13619666 |
2 |
盖板 |
Plate |
|
2-5-15 |
15 |
A210111000212 |
6 |
螺栓M16×35GB5783 10.9级 |
bolt |
|
2-5-16 |
16 |
A820102010676 |
22 |
垫片 |
Adjusting Spacer |
|
2-5-17 |
17 |
10254241 |
2 |
垫片 |
Adjusting Gasket |
|
2-5-18 |
18 |
10254242 |
2 |
垫片 |
Adjusting Gasket |
|
2-5-19 |
19 |
13781624 |
1 |
动臂前叉销轴 |
Pin Shaft |
|
2-5-20 |
20 |
13781276 |
1 |
压板 |
Plate |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-7-21 |
21 |
A210491000132 |
4 |
垫圈 |
Washer |
|
2-7-22 |
22 |
A210111000289 |
4 |
螺栓M20×45GB5783 10.9级 |
Bolt |
|
2-7-23 |
23 |
14047812 |
1 |
动臂根部销轴 |
BOOM root axial pin |
|
2-7-25 |
25 |
11347581 |
2 |
销轴 |
Lock pin SY425C1M2K.3.20 |
|
2-7-26 |
26 |
13303565 |
1 |
润滑管路总成 |
Lubricating pipeline assem |
|
2-7-27 |
27 |
13702857 |
1 |
盖板 |
Plate |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
2-9-1 |
1 |
13301113 |
1 |
斗杆 |
Arm |
|
2-9-2 |
2 |
13264725 |
2 |
斗杆前支承轴套 |
Bushing SY485C1I3KH.3-4 |
|
2-9-3 |
3 |
13268512 |
2 |
耐磨环 |
Abrasion Proof Ring |
|
2-9-4 |
4 |
A210491000121 |
8 |
垫圈 |
Washer |
|
2-9-5 |
5 |
13124496 |
4 |
定位销 |
Locating Pin |
|
2-9-6 |
6 |
A210204000206 |
8 |
螺钉M12×35GB70.1 10.9级 |
Screw |
|
2-9-7 |
7 |
60044258 |
2 |
MCS防尘圈 |
Dust ring |
|
2-9-8 |
8 |
A820208000360 |
2 |
轴套 |
Shaft Sleeve |
|
2-9-9 |
9 |
60044257 |
2 |
MCS防尘圈 |
Seal, Dust |
|
2-9-11 |
11 |
13277858 |
2 |
斗杆后支承轴套 |
Shaft sleeve SY485C1I3KH.3-2A |
|
2-9-12 |
12 |
A210804000002 |
5 |
黄油嘴 |
Fitting, Grease |
|
2-9-13 |
13 |
11347592 |
1 |
销轴 |
Lock pin SY425C1M2K.3.25 |
|
2-9-17 |
17 |
11347579 |
1 |
销轴 |
Lock pin SY425C1M2K.3.19 |
|
2-9-18 |
18 |
10135677 |
8 |
垫片 |
Shim |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

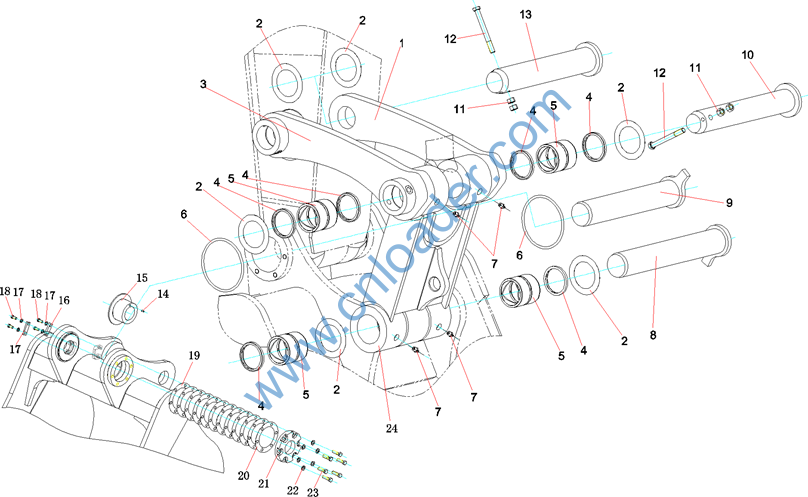

2-11-1 |
1 |
13299734 |
1 |
左摇杆 |
Left jiggle bar SY485C1I3KH.3.7-1 |
|
2-11-3 |
3 |
13299781 |
1 |
右摇杆 |
Right jiggle bar SY485C1I3KH.3.8 |
|
2-11-5 |
5 |
13264726 |
4 |
连杆轴套 |
Bushing SY485C1I3KH.3-5 |
|
2-11-6 |
6 |
60285827 |
2 |
O形圈 |
O-ring |
|
2-11-8 |
8 |
13264778 |
1 |
铲斗连杆销轴 |
Pin Shaft SY485C1I3KH.3.17 |
|
2-11-9 |
9 |
13264777 |
1 |
铲斗销轴 |
Pin Shaft SY485C1I3KH.3.16 |
|
2-11-10 |
10 |
13264776 |
1 |
摇杆连杆销轴 |
Pin Shaft SY485C1I3KH.3.15 |
|
2-11-11 |
11 |
A210307000029 |
4 |
螺母 |
Nut |
|
2-11-12 |
12 |
A210110000347 |
2 |
螺栓M20×200GB5782 10.9级 |
Bolt-M20 |
|
2-11-13 |
13 |
13264775 |
1 |
斗杆摇杆销轴 |
Pin Shaft SY485C1I3KH.3.14 |
|
2-11-14 |
14 |
13268515 |
1 |
销钉 |
shaft bolt |
|
2-11-15 |
15 |
13268513 |
1 |
压紧套 |
Bush SY485C1I3KH.3-7 |
|
2-11-19 |
19 |
13268510 |
8 |
调整垫 |
Adjusting spacer1 |
|
2-11-20 |
20 |
13268511 |
4 |
调整垫 |
Adjusting space2r |
|
2-11-21 |
21 |
13268514 |
1 |
压盘 |
Pressure plate SY485C1I3KH.3-8 |
|
2-11-23 |
23 |
A210111000063 |
6 |
螺栓M20×70GB5783-00 |
Bolt-M20×70GB5783 Grade 10.9 |
|
2-11-24 |
24 |
13299645 |
1 |
连杆总成 |
Connecting RodAssy |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

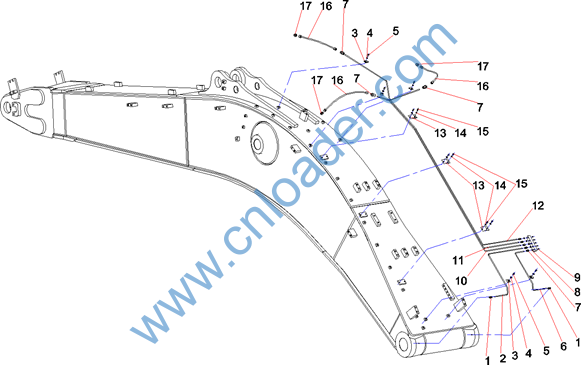

2-13-1 |
1 |
A229900006985 |
2 |
管接头 |
Pipe connector |
|
2-13-2 |
2 |
13299810 |
1 |
硬管 |
Pipe |
|
2-13-5 |
5 |
A210111000195 |
5 |
螺栓 |
Bolt |
|
2-13-7 |
7 |
A810201031035 |
8 |
过渡接头 |
Transitional Joint |
|
2-13-8 |
8 |
A210434000007 |
5 |
垫圈 |
Washer |
|
2-13-10 |
10 |
13299811 |
1 |
硬管 |
Pipe |
|
2-13-15 |
15 |
A210111000348 |
6 |
螺栓 |
Bolt |
|
2-13-16 |
16 |
23905413 |
3 |
胶管 |
Rubber Hose |
