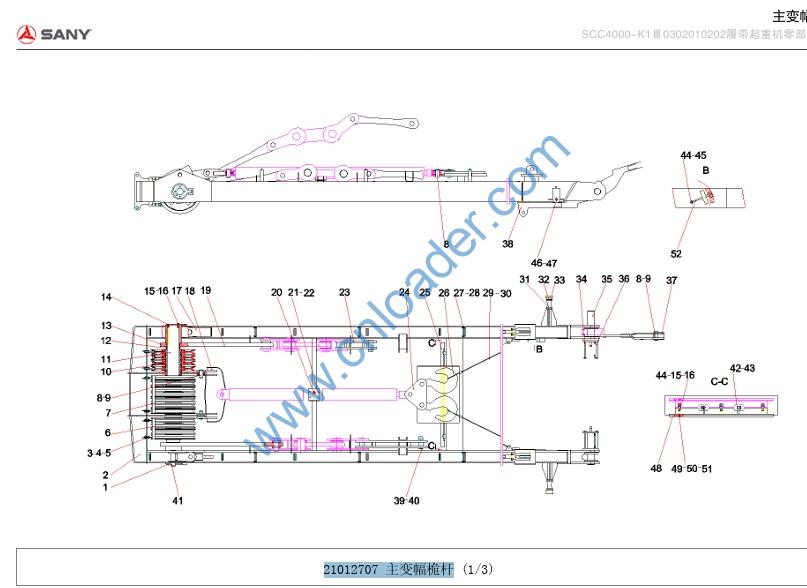

21012707 Main luffing mast

21012707 Main luffing mast

1 21012178 Spindle end cover 2
2 21012201 Luffing mast stand 1
3 A210111000024 bolt M10×30GB5783 10.9 grade 24
4 A210307000017 Nut M10GB6170 24
5 A210401000001 Washer 10GB93 24
6 21012268 gear lever 4
7 21012271Block lever 2
8 10138903 pin 8
9 21006375 pin 13
10 21012281 Nylon pulley assembly 15
11 21011886 [T] Spindle 1
12 21012180 Spacer 2
13 21012181 copper sleeve 2
14 A210804000002 oil cup 2
15 A210111000212 bolt M16×35GB5783 10.9 grade 15
16 A210401000004 gasket 16GB93 97
17 21012282 Pull rope connector 2
18 21012285 Cylinder connecting plate 1
19 21012290 Pull plate assembly I 2
20 21012182 pad 1
21 A210111000091 bolt M8×30GB5783 4
22 A210307000012 Nut M8GB6170 4

23 21012296 Pull plate assembly III 2
24 21012183 Board 2
25 21035055 Wear plate backing plate 1
26 21012617 Eye Hook Alloy ALLOY 2
27 21012184 Steel rope stop pin 10
28 21011761 Pin Pin 18
29 21033176 Wire rope 2
30 21018255 Shackle 2
31 21012185 Supporting wheel 2
32 10173867 Baffle 2
33 21012186 End cap 2
34 21012187 Bolt 4
35 21012298 knot pin 2
36 21012188 Guard 4
37 21012273 Left rocker 1
38 21012280 Right rocker 1
39 10138496 pin 2
40 21012138 Pin Pin 2
41 10138905 pin 2
42 10138902 pin 2
43 A210491000017 pin 4×40GB91 2
44 21001338 Washer 16GB97.1 300HV 4

45 A210501000024 pin 3.2×28GB91 1
46 21021543 Bolt 8
47 A210401000016 Washer 6GB93 8
48 21035053 Wear-resistant plate 1
49 A210204000220 screw GB70.1 10.9 level 4
50 A210405000007 Washer 8GB97.1 4
51 A210401000017 Washer 8GB93 4
52 21033156 Angle pointer 1
