零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
61009321 |
1 |
阀体 |
Housing |
|
A210609000291 |
1 |
O形圈 |
O-ring |
|
61009322 |
1 |
挡圈 |
Ring |
|
60319726 |
1 |
O型圈 |
O ring |
|
61009323 |
1 |
插装式溢流阀 |
Plug-in relief valve |
|

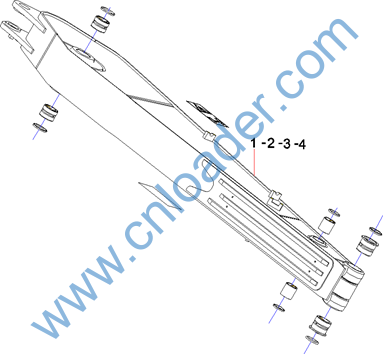

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
11911736 |
1 |
斗杆总成 |
Arm |
|
A820101332702 |
2 |
夹板 |
Clamp |
|
A820199000364 |
2 |
丝座 |
Thread seat |
|
13505385 |
2 |
座 |
Sit |
|

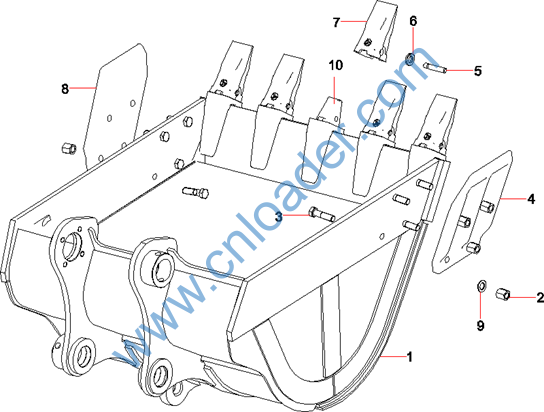

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

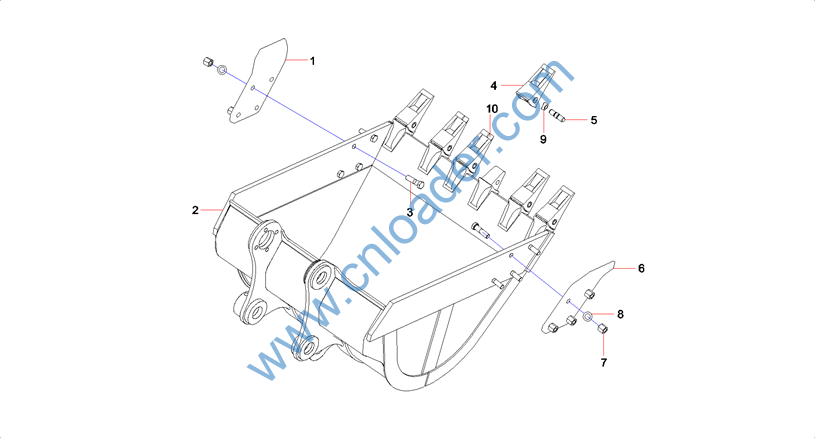

11859237 |
1 |
改进普通铲斗体 |
Bucket |
|
A210307000007 |
8 |
螺母 M24GB6170-00 10级 |
Nut |
|
A210110000427 |
8 |
螺栓M24×90GB5782 10.9级 |
Bolt |
|
11182515 |
1 |
左侧齿 |
Bit, side, left |
|
12915776 |
5 |
齿销 |
Pin, tooth |
|
12915777 |
5 |
卡簧 |
Clip, pin |
|
11912709 |
5 |
斗齿 |
Tooth, bucket |
|
11182516 |
1 |
右侧齿 |
Cutter, side, right |
|
A210491000122 |
8 |
垫圈 |
Washer |
|
13960272 |
5 |
齿座 |
base of tooth |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
11182516 |
1 |
右侧齿 |
Cutter, side, right |
|
11436742 |
1 |
普通铲斗体 |
General scraper bucket body |
|
A210110000427 |
8 |
螺栓M24×90GB5782 10.9级 |
Bolt |
|
11912709 |
6 |
斗齿 |
Tooth, bucket |
|
12915776 |
6 |
齿销 |
Pin, tooth |
|
11182515 |
1 |
左侧齿 |
Bit, side, left |
|
A210334000013 |
8 |
螺母 |
Nut |
|
A210491000122 |
8 |
垫圈 |
Washer |
|
12915777 |
6 |
卡簧 |
Clip, pin |
|
12657353 |
6 |
齿座 |
Base, tooth |
|

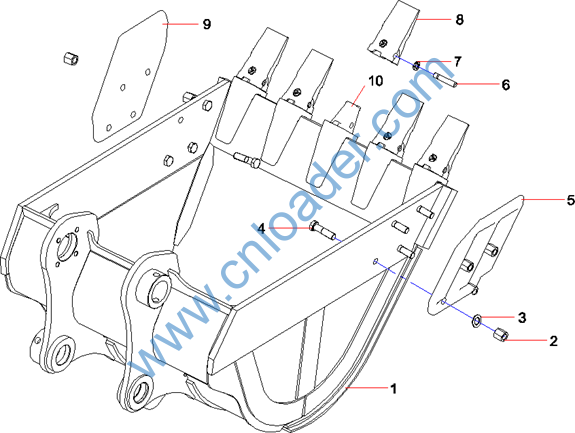

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
12852541 |
1 |
改进普通铲斗体 |
Improved common bucket body |
|
A210307000007 |
8 |
螺母 M24GB6170-00 10级 |
Nut |
|
A210491000122 |
8 |
垫圈 |
Washer |
|
A210110000427 |
8 |
螺栓M24×90GB5782 10.9级 |
Bolt |
|
11182515 |
1 |
左侧齿 |
Bit, side, left |
|
12915776 |
5 |
齿销 |
Pin, tooth |
|
12915777 |
5 |
卡簧 |
Clip, pin |
|
11912709 |
5 |
斗齿 |
Tooth, bucket |
|
11182516 |
1 |
右侧齿 |
Cutter, side, right |
|
13960272 |
5 |
齿座 |
base of tooth |
|

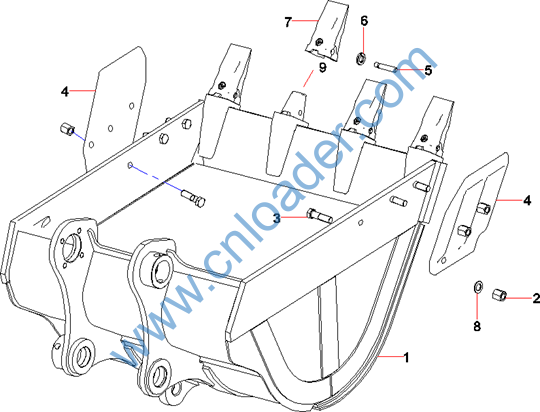

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
12542898 |
1 |
岩石铲斗体 |
General scraper bucket body |
|
A210307000007 |
6 |
螺母 M24GB6170-00 10级 |
Nut |
|
A210110000427 |
6 |
螺栓M24×90GB5782 10.9级 |
Bolt |
|
11280631 |
2 |
侧齿 |
Cutter, side |
|
12915776 |
4 |
齿销 |
Pin, tooth |
|
12915777 |
4 |
卡簧 |
Clip, pin |
|
11902148 |
4 |
斗齿 |
bucket tooth |
|
A210491000122 |
6 |
垫圈 |
Washer |
|
13960272 |
4 |
齿座 |
base of tooth |
|

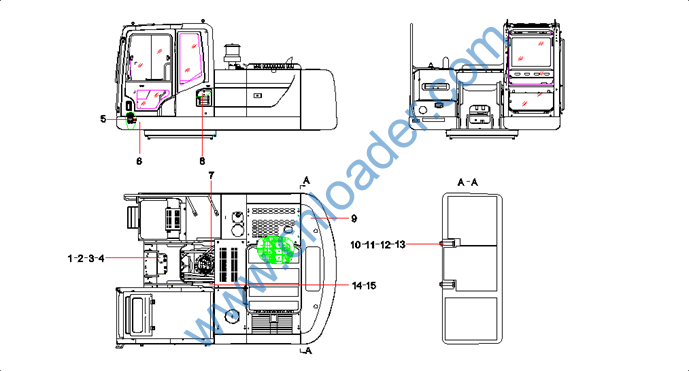

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
A820606030364 |
1 |
密封垫 |
Gasket |
|
A820101117871 |
1 |
盖 |
Cover |
|
A210111000202 |
2 |
螺栓M12×30GB5783 10.9级 |
Bolt |
|
24000639 |
2 |
垫圈12GB97.1 达克锈 |
Washer |
|
13601618 |
1 |
先导管路 |
Lines Group, Pilot |
|
13626606 |
1 |
回转平台 |
revolving frame |
|
14034660 |
1 |
液压主管路 |
Hydraulic main pipeline of platform |
|
13517339 |
1 |
空调系统 |
HVAC group |
|
13501474 |
1 |
配重总成 |
Counterweight |
|
A210110000354 |
4 |
螺栓M30×300GB5782 10.9级 |
Bolt |
|
A210444000003 |
4 |
垫圈 |
Washer |
|
11508253 |
3 |
配重调整垫片 |
Shim, counterweight |
|
11508248 |
3 |
配重调整垫片 |
Shim, counterweight |
|
14000129 |
1 |
平台主管路 |
Main pipeline of platform |
|
14000210 |
1 |
破碎锤先导管路 |
hammer Pilot Pipeline |
|

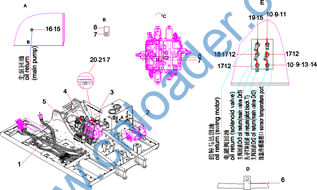

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
11543868 |
1 |
PPC管路 |
Lines GP, pilot |
|
13601662 |
1 |
主泵管路 |
pump pipeline |
|
13609947 |
1 |
主阀管路 |
Valve, main control |
|
13601637 |
1 |
电磁阀管路 |
Lines GP, pilot manifold |
|
11779657 |
2 |
胶套 |
Grommet |
|
60086354 |
1 |
线束固定夹 |
Clamp |
|
A210111000199 |
4 |
螺栓M12×20GB5783 10.9级 |
Bolt |
|
60086357 |
2 |
线束固定夹 |
Clamp |
|
A820205000839 |
2 |
接头 |
Fitting |
|
A230101000247 |
2 |
O形圈 |
O-ring 10.9×2.3(JISB2401) |
|
B210780000418 |
1 |
直角组合接头 |
Fitting |
|
A230101000243 |
2 |
O形圈 |
O-ring 16.7×3.5(JISB2401) |
|
10077549 |
1 |
接头 |
Fitting |
|
60060301 |
1 |
温度传感器 |
Sensor, hydraulic oil temperature |
|
A229900001581 |
3 |
O形圈 |
O-ring 21.7×3.5(JISB2401) |
|
A820205000837 |
1 |
接头 |
M24-M30joint |
|
A820205000838 |
2 |
接头 |
Fitting |
|
B210780000024 |
2 |
直角组合接头 |
Connector |
|
A820205002377 |
1 |
接头 |
Fitting |
|
60086356 |
2 |
线束固定夹 |
Clamp |
|

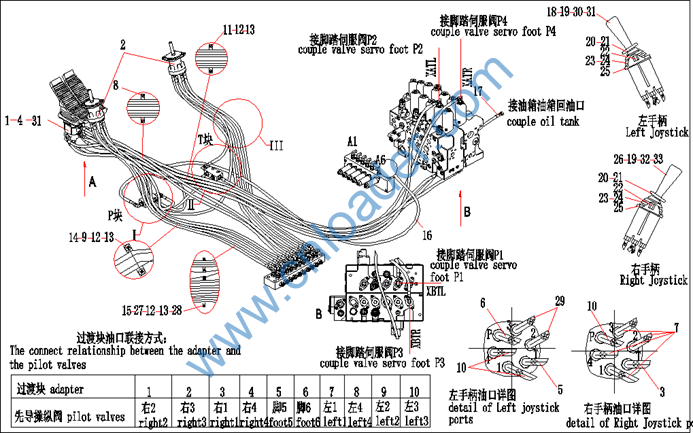

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
A210491000121 |
4 |
垫圈 Washer |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
A210111000197 |
4 |
螺栓M10×25GB5783 10.9级 |
Bolt |
|
B220401001302 |
2 |
先导阀 |
Valve, pilot |
|
B230103000982 |
1 |
胶管 |
Hose Assembly |
|
60170604 |
1 |
先导阀PVD8PC6008(脚踏) |
Valve, travel |
|
B230103002263 |
1 |
胶管 |
Hose Assembly |
|
A831211120000 |
1 |
胶管 |
Rubber Hose |
|
B230103001375 |
4 |
胶管 |
Hose AS |
|
11602341 |
2 |
橡胶垫 |
Gasket, rubber |
|
11602348 |
2 |
橡胶垫 |
Gasket, rubber |
|
B230103000985 |
3 |
胶管 |
Hose Assembly |
|
11243372 |
2 |
压板 |
Plate, pressure |
|
A210111000342 |
10 |
螺栓M8×16GB5783 10.9级 |
Bolt |
|
24000511 |
10 |
垫圈8GB93 达克锈 |
Washer |
|
11243374 |
2 |
压板 |
Plate, pressure |
|
11243400 |
1 |
压板 |
Plate, pressure |
|
B230103003282 |
1 |
胶管 |
Hose AS |
|
B230103003202 |
1 |
胶管总成 |
Hose AS |
|
B229900001613 |
1 |
左手柄 |
Joystick , left |
|
A210264000022 |
2 |
自攻螺钉 |
Screw, self-tapping |
|
11050165 |
2 |
手柄 |
Handle, grip |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
A210308000006 |
2 |
螺母 |
Nut |
|
A210307000002 |
2 |
螺母 |
Nut |
|
A229900006446 |
2 |
罩 |
Joystick, rubber cover |
|
A229900001028 |
2 |
罩 |
Joystick, rubber cover |
|
A229900001027 |
2 |
板 |
Plate |
|
B229900001614 |
1 |
右手柄 |
Joystick, right |
|
60086354 |
2 |
线束固定夹 |
Clamp |
|
11602359 |
2 |
橡胶垫 |
Gasket, rubber |
|
60128281 |
2 |
胶管总成 |
Hose AS |
|
60116344 |
1 |
插入件 |
Insert, switch |
|
24000637 |
4 |
垫圈 |
Washer |
|
A241200000875 |
1 |
按钮开关 |
Switch |
|
A229900006438 |
1 |
插入件 |
Insert, switch |
|

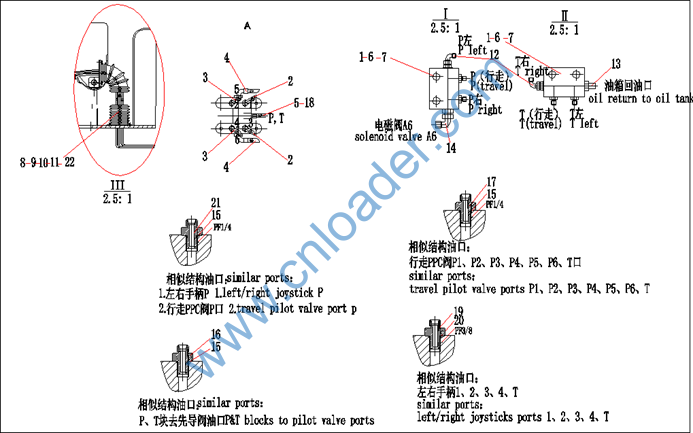

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
24000512 |
4 |
垫圈10GB93 达克锈 |
Washer |
|
B230103002001 |
2 |
胶管 |
Hose AS |
|
B230103002658 |
2 |
胶管 |
Hose AS |
|
21020054 |
2 |
胶管 |
Hose AS |
|
B230103004256 |
1 |
胶管 |
Hose AS |
|
A820199000360 |
2 |
PT块 |
Block, PT |
|
21005186 |
4 |
螺栓M10×40GB5783 10.9级 |
Bolt |
|
A820601990304 |
2 |
法兰 |
Flange |
|
A820601990336 |
2 |
波纹管 |
Grommet |
|
A210111000079 |
8 |
螺栓 |
Bolt |
|
24000632 |
8 |
垫圈 |
washer |
|
B210780000418 |
2 |
直角组合接头 |
Fitting |
|
B210780000024 |
1 |
直角组合接头 |
Connector |
|
A820205000894 |
2 |
接头 |
Fitting |
|
B230101000047 |
16 |
O形圈 |
O-Ring-10.8 |
|
A820205000839 |
6 |
接头 |
Fitting |
|
A820205000940 |
7 |
接头 |
Fitting |
|
A831211095000 |
1 |
胶管 |
Hose AS |
|
A820205000946 |
10 |
接头 |
Fitting |
|
B230101000049 |
10 |
O形圈 |
O-ring |
