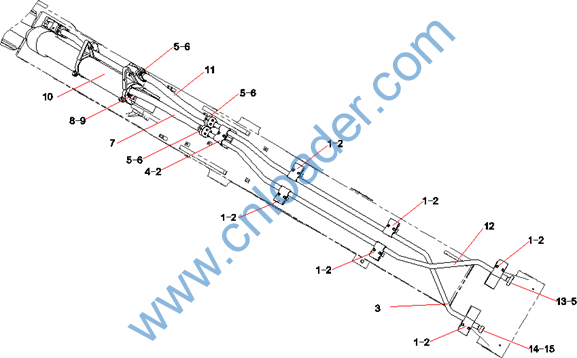

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
13884679 |
6 |
管夹 |
Pipe clip |
|
A210204000337 |
14 |
螺钉M12×30GB70.1 10.9级 |
Screw |
|
13885374 |
1 |
钢管总成 |
Steel Pipe Assy. |
|
13881621 |
1 |
管夹 |
Pipe clip |
|
B210780000693 |
6 |
对开法兰 |
Flange, Split |
|
A210204000366 |
4 |
螺钉 |
Screw |
|
60068308 |
1 |
胶管 |
Hose AS |
|
B210780000004 |
2 |
对开法兰 |
Flange, Split |
|
A210204000462 |
4 |
螺钉 |
Screw |
|
60270929 |
1 |
20T斗杆油缸总成 |
Cylinder, arm |
|
60037640 |
1 |
胶管 |
Hose AS |
|
13885420 |
1 |
钢管总成 |
Steel Pipe Assy |
|
A210204000366 |
4 |
螺钉 |
Screw |
|
B210780000244 |
2 |
对开法兰 |
Flange, Split |
|
A210204000355 |
4 |
螺钉M10×40GB70.1 10.9级 |
Bolt, socket head |
|

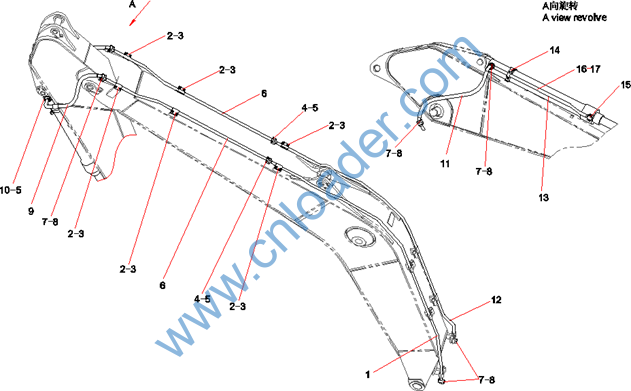

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
13885543 |
1 |
钢管总成 |
steel pipe assy. |
|
13505880 |
12 |
管夹 |
Pipe clip |
|
A210204000337 |
12 |
螺钉M12×30GB70.1 10.9级 |
Screw |
|
A210609000136 |
2 |
O形圈 |
O-ring |
|
A210204000215 |
12 |
螺钉M10×35GB70.1 10.9级 |
Screw |
|
13885603 |
2 |
钢管总成 |
Steel Pipe Assy |
|
B210780000244 |
6 |
对开法兰 |
Flange, Split |
|
A210204000355 |
12 |
螺钉M10×40GB70.1 10.9级 |
Bolt, socket head |
|
60142333 |
1 |
胶管 |
Rubber Hose |
|
B210780000007 |
2 |
对开法兰FHS63A3CX三一电气设备 |
Flange, Split |
|
60142332 |
1 |
胶管 |
Hose AS |
|
13885198 |
1 |
钢管总成 |
steel pipe assy. |
|
60270928 |
1 |
20T铲斗油缸总成 |
Cylinder, bucket |
|
11149636 |
1 |
管卡 |
Pipe Clamp |
|
A210609000136 |
1 |
O形圈 |
O-ring |
|
A210204000357 |
4 |
螺钉M10×60GB70.1 10.9级 |
Bolt |
|
11418218 |
1 |
钢管总成 |
steel tube assem. |
|

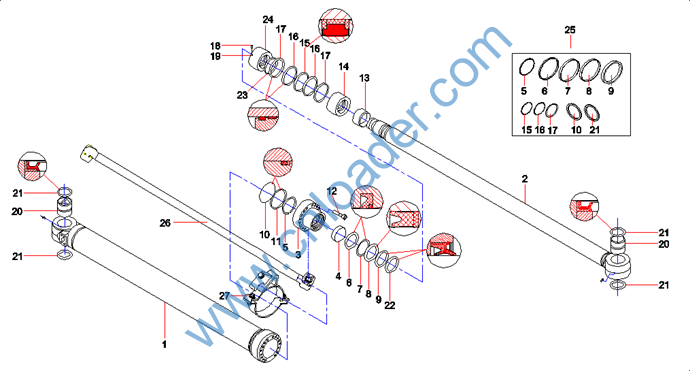

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
A210206000017 |
1 |
螺钉 |
Screw |
|
A880899030000 |
1 |
钢球 |
Steel Ball |
|
11347656 |
1 |
活塞 |
Piston |
|
60143563 |
2 |
UP防污圈 |
Anti-pollution loop |
|
60143566 |
2 |
UP导向环 |
|
|
60087456 |
1 |
SPGW密封圈 |
Seal ring |
|
11347655 |
1 |
弹簧 |
Spring |
|
60061678 |
1 |
K08-D密封圈 |
Seal ring |
|
A880804040028 |
1 |
挡圈 |
Retainer Ring |
|
A210608000012 |
1 |
O形圈 |
O-ring |
|
A210609000275 |
1 |
O形圈 |
O-ring 118×5.3GB3452.1 |
|
11347701 |
1 |
压盖 |
Pressure cover |
|
60022384 |
12 |
螺钉M16×90GB70.1 12.9级 |
|
|
A210417000105 |
1 |
挡圈 |
Retainer ring |
|
A880808020003 |
1 |
含油轴套 |
Oil-bearing bush 85×90×30 DID |
|
60084616 |
1 |
HBY密封圈 |
Seal ring |
|
60066559 |
1 |
IUH密封圈 |
Seal ring |
|
60084438 |
1 |
支承环 |
|
|
60136784 |
1 |
DKBZ3防尘圈 |
Dust ring |
|
A210417000104 |
1 |
挡圈 |
Retainer Ring100GB895.1-86 |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
11347702 |
1 |
缓冲套 |
Bumper Sleeve |
|
60001446 |
2 |
挡圈 |
Retainer Ring |
|
B230101000959 |
1 |
O形圈 |
O-ring |
|
11347654 |
1 |
活塞杆 |
piston rod |
|
11261296 |
1 |
导套 |
|
|
60215142 |
2 |
GWJ防尘圈 |
Dust ring |
|
A880000000271 |
1 |
衬套一 |
Bush II |
|
11347700 |
1 |
缸筒总成 |
Cylinder assem. |
|
A880899010003 |
1 |
直通式压注油杯 |
Straight-through forced filling oil |
|
60215141 |
2 |
GWJ防尘圈 |
Dust ring |
|
A880000000226 |
1 |
衬套二 |
Bush II |
|
60060287 |
1 |
20T动臂油缸维修包 |
Cylinder, boom, seal kit |
|

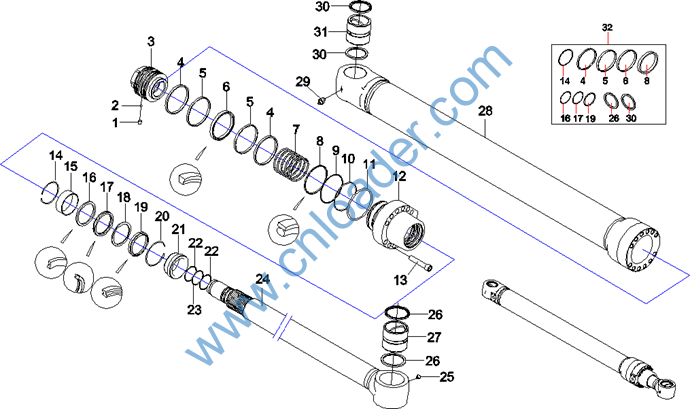

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
60065271 |
1 |
缸体 |
Front wheel inclined oil cylinder |
|
60065298 |
1 |
活塞杆 |
Piston Rod |
|
60065263 |
1 |
端盖 |
End cover |
|
60065282 |
1 |
滑动轴套 |
Sliding shaft sleeve |
|
60065253 |
2 |
挡圈 |
Retainer Ring |
|
60065203 |
1 |
缓冲圈 |
Buffer ring |
|
60065356 |
1 |
轴用密封圈 |
Seal Ring |
|
60065306 |
1 |
开口挡圈 |
opening retainer ring |
|
60065341 |
1 |
防尘圈 |
Dust Ring |
|
60065332 |
1 |
O型密封圈 |
O-ring |
|
60065247 |
1 |
挡圈 |
Retainer Ring |
|
60022043 |
12 |
螺钉M18×90(GB70.1) 12.9级 |
|
|
60065209 |
1 |
缓冲套 |
Bumper Sleeve |
|
60065211 |
1 |
缓冲泄压环 |
Buffer ring |
|
60065287 |
1 |
活塞 |
Piston |
|
60065351 |
1 |
孔用密封圈 |
Seal Ring |
|
60065337 |
2 |
成型导向环 |
Guide Ring |
|
60065217 |
2 |
纳污环 |
Ring |
|
24000487 |
1 |
螺钉 |
Screw |
|
21010039 |
1 |
钢球 |
Steel Ball |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
60065195 |
1 |
后缓冲套 |
Behind-Bumper Sleeve |
|
60065212 |
1 |
缓冲泄压环 |
Buffer ring |
|
60065194 |
2 |
挡环 |
Baffle Ring |
|
60065213 |
1 |
卡圈 |
Clamp ring |
|
60065231 |
2 |
B型轴套 |
Type B Shaft Sleeve |
|
60065345 |
4 |
防尘圈 |
Dust Ring |
|
60107383 |
1 |
20T斗杆油缸维修包 |
20T Bucket Arm Cylinder Repair Kit |
|
12527246 |
1 |
钢管总成 |
Steel Pipe Assy |
|
11288840 |
1 |
管夹 |
clamp |
|
12208107 |
1 |
管夹 |
Clamp |
|

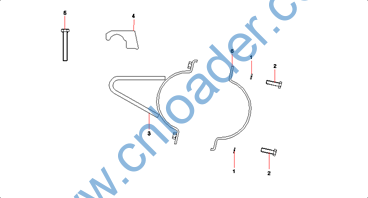

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
A210401000001 |
2 |
垫圈 |
Washer |
|
A210111000026 |
2 |
螺栓M10×35GB5783 10.9级 |
Bolt |
|
12207694 |
1 |
管卡 |
clamp |
|
12203288 |
1 |
压块 |
Fixture block |
|
A210111000127 |
1 |
螺栓 |
Bolt |
|
11149073 |
1 |
管卡 |
clamp |
|

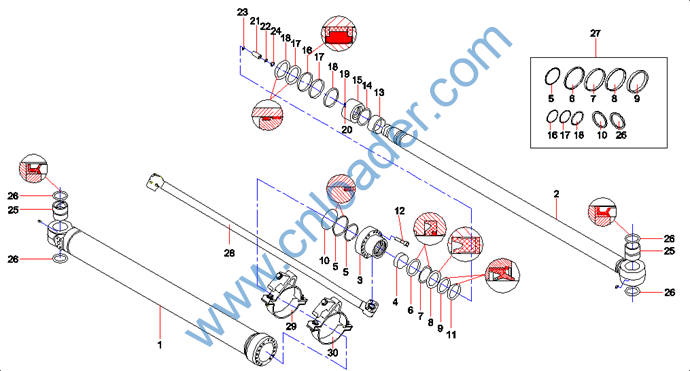

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
60065269 |
1 |
缸体 |
Cylinder, barrel |
|
60065296 |
1 |
活塞杆 |
Piston Rod |
|
60065261 |
1 |
端盖 |
End cover |
|
60065280 |
1 |
滑动轴套 |
Sliding shaft sleeve |
|
60065243 |
1 |
挡圈 |
Retainer Ring |
|
60065201 |
1 |
缓冲圈 |
Buffer ring |
|
60065354 |
1 |
轴用密封圈 |
Seal Ring |
|
60065309 |
1 |
开口挡圈 |
opening retainer ring |
|
60065340 |
1 |
防尘圈 |
Dust Ring |
|
24003951 |
1 |
O形圈 NBR 橡胶 |
O-ring |
|
60065250 |
1 |
挡圈 |
Retainer Ring |
|
A210204000042 |
10 |
螺钉 |
Screw |
|
60065192 |
1 |
铲斗用缓冲套 |
Bumper Sleeve |
|
60065289 |
1 |
活塞 |
Piston |
|
60065348 |
1 |
孔用密封圈 |
Seal Ring |
|
60065334 |
2 |
成型导向环 |
Guide Ring |
|
60065214 |
2 |
纳污环 |
Ring |
|
24000487 |
1 |
螺钉 |
Screw |
|
21010039 |
1 |
钢球 |
Steel Ball |
|
60065323 |
2 |
轴套 |
Shaft Sleeve |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
60065344 |
4 |
尘圈 |
Dust Ring |
|
60065244 |
1 |
挡圈 |
Retainer Ring |
|
60065257 |
1 |
垫片 |
Spacer |
|
60065312 |
1 |
螺母 |
Nut |
|
60107384 |
1 |
20铲斗油缸维修包 |
20T Bucket Cylinder Repair Kit |
|
11418218 |
1 |
钢管总成 |
steel tube assem. |
|
11149636 |
1 |
管卡 |
Pipe Clamp |
|

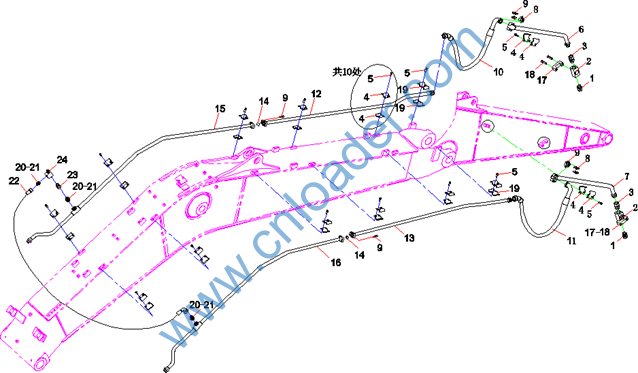

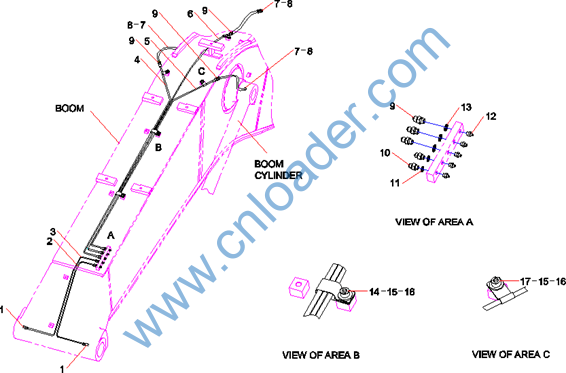

零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
11102369 |
2 |
接头 |
Fitting |
|
11594962 |
1 |
黄油管 |
Lines GP, grease |
|
11594975 |
1 |
黄油管 |
Lines GP, grease |
|
11594983 |
1 |
黄油管 |
Line, grease |
|
11595301 |
1 |
黄油管 |
Line, grease |
|
11595233 |
1 |
黄油管 |
Line, grease |
|
A820205000858 |
3 |
管接头 |
Fitting |
|
B230103000815 |
3 |
胶管 |
Hose AS |
|
11102368 |
6 |
接头 |
Fitting |
|
11102367 |
2 |
接头 |
Fitting |
|
A210434000005 |
2 |
垫圈 |
Washer |
|
B229900000379 |
5 |
黄油嘴 |
Zerk, grease |
|
A210434000007 |
3 |
垫圈 |
Washer |
|
A820101216696 |
2 |
三管管卡 |
Clamp, 3 tube |
|
A210491000120 |
5 |
垫圈 |
Washer |
|
A210204000334 |
5 |
螺钉M10×16GB70.1 10.9级 |
Bolt, socket head |
|
A820101216692 |
3 |
单管管卡 |
Clamp |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
B210780000896 |
2 |
螺塞 |
Screw plug |
|
60260743 |
2 |
球阀 |
ball valve |
|
B210780001703 |
2 |
端直通组合接头 |
Swivel Stud Straight Adapter with |
|
13505881 |
24 |
管夹 |
Pipe clip |
|
A210204000337 |
24 |
螺钉M12×30GB70.1 10.9级 |
Screw |
|
13780022 |
1 |
钢管总成 |
Steel Pipe Assy. |
|
13780021 |
1 |
钢管总成 |
Steel Pipe Assy. |
|
B210780000244 |
4 |
对开法兰 |
Flange, Split |
|
A210204000364 |
16 |
螺钉 |
Screw |
|
13885762 |
1 |
左前管总成 |
tube |
|
13885763 |
1 |
右前管总成 |
tube |
|
B230101000456 |
2 |
O形圈 |
O-ring |
|
13990414 |
1 |
左后管总成 |
Left rear pipe assembly |
|
13990416 |
1 |
右后管总成 |
Rear Pipe (Right) |
|
A820101332703 |
2 |
夹板 |
Fitting Strip |
|
A210204000362 |
4 |
螺钉M12×70GB70.1 10.9级 |
Bolt, socket head |
|
13884679 |
4 |
管夹 |
Pipe clip |
|
A820205002473 |
4 |
接头 |
Connector |
|
A229900001581 |
4 |
O形圈 |
O-ring 21.7×3.5(JISB2401) |
|
60163193 |
1 |
胶管总成 |
Rubber Hose |
|
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
21015744 |
1 |

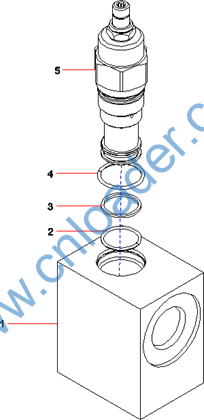

直通组合接头 Swivel Straight Connector |
|
13995991 |
1 |
溢流阀组 Relief valve group |
