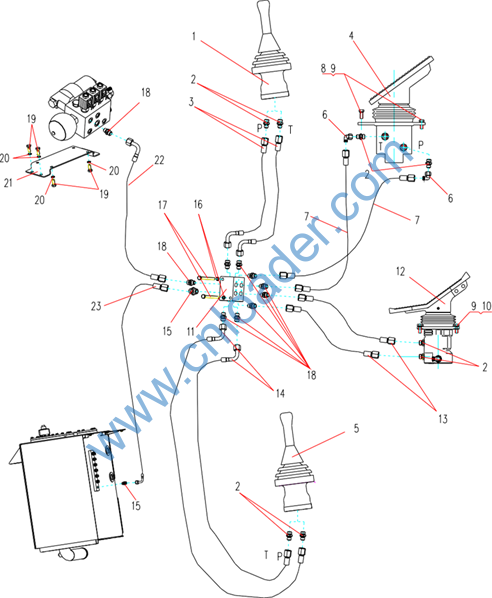

先导液压管路 Pilot Hydraulic Piping
|
序号 ITEM |
零件代号 Part No |
零件名 |
PART NAME |
数量 Q’T Y |
|
1 |
803163582 |
接头 |
Adapter |
5 |
|
2 |
803172598 |
软管总成 |
Hose Assy |
1 |
|
3 |
819908890 |
软管总成 |
Hose Assy |
1 |
|
4 |
803172095 |
软管总成 |
Hose Assy |
1 |
|
5 |
803172316 |
接头 |
Adapter |
3 |
|
6 |
803166487 |
接头 |
Adapter |
3 |
|
7 |
803164887 |
管堵 |
Plug |
1 |
|
8 |
800305381 |
回转接头 |
Rotary Connection |
1 |
|
9 |
803007231 |
回转马达 |
Swing Motor |
1 |
|
10 |
803172107 |
软管总成 |
Hose Assy |
1 |
|
11 |
803172161 |
接头 |
Adapter |
6 |
|
12 |
860104750 |
放油管 |
Hose |
1 |
|
13 |
803172597 |
软管总成 |
Hose Assy |
1 |
|
14 |
803163569 |
接头 |
Adapter |
1 |
|
15 |
310500042 |
接头 |
Adapter |
1 |
|
16 |
803172083 |
软管总成 |
Hose Assy |
1 |
|
17 |
803007225 |
直线阀 |
Line Valve |
1 |
|
18 |
805603538 |
销 |
Pin |
1 |
|
19 |
805006290 |
螺栓 |
Bolt |
9 |
|
20 |
805300011 |
垫圈 |
Washer |
9 |
|
21 |
803172307 |
接头 |
Joint |
1 |
|
22 |
803172162 |
接头 |
Adapter |
1 |
|
23 |
803183916 |
软管 |
Hose Assy |
1 |
|
24 |
805200262 |
螺母 |
Nut |
1 |
|
25 |
803177315 |
接头体 |
Adapter |
1 |
|
26 |
801102863 |
油杯 |
Grease Nipple |
1 |
先导液压管路 Pilot Hydraulic Piping
先导液压管路 Pilot Hydraulic Piping
|
序号 ITEM |
零件代号 Part No |
零件名 |
PART NAME |
数量 Q’T Y |
|
1 |
803007222 |
右先导阀 |
Right Pilot Valve |
1 |
|
2 |
803172161 |
接头 |
Adapter |
8 |
|
3 |
803172419 |
软管总成 |
Hose Assy |
2 |
|
4 |
803007191 |
破碎先导阀 |
Breaker Pilot Valve |
1 |
|
5 |
803007221 |
左先导阀 |
Left Pilot Valve |
1 |
|
6 |
803166487 |
接头 |
Adapter |
2 |
|
7 |
803177328 |
软管总成 |
Hose Assy |
2 |
|
8 |
805000714 |
螺栓 |
Bolt |
2 |
|
9 |
805300014 |
垫圈 |
Washer |
6 |
|
10 |
805000062 |
螺栓 |
Bolt |
4 |
|
11 |
803007220 |
分流块 |
Diffluence |
1 |
|
12 |
803202206 |
先导阀 |
Pilot Valve |
1 |
|
13 |
803172092 |
软管总成 |
Hose Assy |
2 |
|
14 |
803172095 |
软管总成 |
Hose Assy |
2 |
|
15 |
803173835 |
接头 |
Adapter |
1 |
|
16 |
805300010 |
垫圈 |
Washer |
2 |
|
17 |
805004693 |
螺栓 |
Bolt |
2 |
|
18 |
803163582 |
接头 |
Adapter |
10 |
|
19 |
805000714 |
螺栓 |
Bolt |
8 |
|
20 |
805300014 |
垫圈 |
Washer |
8 |
|
21 |
310500233 |
支架 |
Bracket |
1 |
|
22 |
803172000 |
软管总成 |
Hose Assy |
1 |
|
23 |
803172012 |
软管总成 |
Hose Assy |
1 |

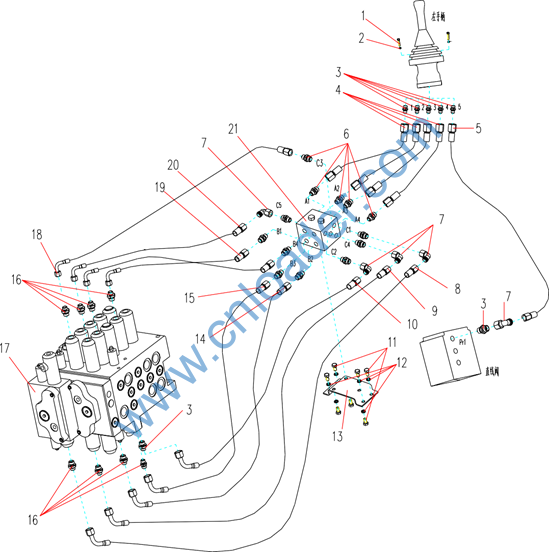

先导液压管路 Pilot Hydraulic Piping
先导液压管路 Pilot Hydraulic Piping
|
序号 ITEM |
零件代号 Part No |
零件名 |
PART NAME |
数量 Q’T Y |
|
1 |
805103606 |
螺钉 |
Screw |
4 |
|
2 |
805300030 |
垫圈 |
Washer |
4 |
|
3 |
803172161 |
接头 |
Adapter |
7 |
|
4 |
803177329 |
软管总成 |
Hose Assy |
4 |
|
5 |
803173145 |
软管总成 |
Hose Assy |
1 |
|
6 |
803163582 |
接头 |
Adapter |
13 |
|
7 |
803163572 |
接头 |
Adapter |
5 |
|
8 |
803172018 |
软管总成 |
Hose Assy |
1 |
|
9 |
803172467 |
软管总成 |
Hose Assy |
1 |
|
10 |
803172004 |
软管总成 |
Hose Assy |
1 |
|
11 |
805005234 |
螺栓 |
Bolt |
4 |
|
12 |
805300010 |
垫圈 |
Washer |
4 |
|
13 |
310500235 |
支架 |
Bracket |
1 |
|
14 |
803172005 |
软管总成 |
Hose Assy |
1 |
|
15 |
803172091 |
软管总成 |
Hose Assy |
1 |
|
16 |
803172160 |
接头 |
Adapter |
8 |
|
17 |
803007230 |
主阀 |
MainValve |
1 |
|
18 |
803172492 |
软管总成 |
Hose Assy |
1 |
|
19 |
803173146 |
软管总成 |
Hose Assy |
1 |
|
20 |
803172601 |
软管总成 |
Hose Assy |
1 |
|
21 |
803172496 |
梭阀块 |
Shuttle Valve |
1 |
