SY215C9 hydraulic excavator SANY ACS



零件代码 PART NUMBER

名称 PART NAME

60008721

内六角螺钉

Bolt, socket head

60100505

弹簧盖

Cap, pilot

60100501

左行走阀芯

Spool, valve, travel

60008819

螺柱

Bolt, socket head

60008823

Seat

60008770

弹簧

Spring

60008769

弹簧

Spring

60008818

挡圈

Ring, retaining

60008789

Cap

60100514

O形圈

O-ring

60050051

O形圈

O-ring
















零件代码 PART NUMBER

名称 PART NAME

60008819

螺柱

Bolt, socket head

60008823

Seat

60008770

弹簧

Spring

60008769

弹簧

Spring

60008818

挡圈

Ring, retaining

60008721

内六角螺钉

Bolt, socket head

60100505

弹簧盖

Cap, pilot

60100485

回转阀芯

Spool, valve, swing

60008789

Cap

60100514

O形圈

O-ring

60050051

O形圈

O-ring








零件代码 PART NUMBER

名称 PART NAME

60100506

弹簧盖

Cap, pilot

60100480

动臂阀芯

Spool, valve, boom

60008819

螺柱

Bolt, socket head

60008823

Seat

60008772

弹簧

Spring

60008771

弹簧

Spring

60008801

挡圈

Ring, retaining

60100514

O形圈

O-ring








零件代码 PART NUMBER

名称 PART NAME

60100487

回转优先阀

Valve, swing priority

60100506

弹簧盖

Cap, pilot

60008721

内六角螺钉

Bolt, socket head

60008823

Seat

60008801

挡圈

Ring, retaining

60008769

弹簧

Spring

60039319

弹簧

Spring

60100514

O形圈

O-ring








零件代码 PART NUMBER

名称 PART NAME

60008819

螺柱

Bolt, socket head

60008823

Seat

60008770

弹簧

Spring

60008769

弹簧

Spring

60008818

挡圈

Ring, retaining

60100466

Plug

60100505

弹簧盖

Cap, pilot

60100473

备用阀芯

Spool, valve, service valve

60008789

Cap

60008713

Plug

60008721

内六角螺钉

Bolt, socket head

60100514

O形圈

O-ring

60050051

O形圈

O-ring

60008700

O形圈

O-ring








零件代码 PART NUMBER

名称 PART NAME

60008818

挡圈

Ring, retaining

60100505

弹簧盖

Cap, pilot

60100481

斗杆阀芯

Spool, valve, arm

60008790

Cap

60008721

内六角螺钉

Bolt, socket head

60008819

螺柱

Bolt, socket head

60008823

Seat

60008770

弹簧

Spring

60008769

弹簧

Spring

60100514

O形圈

O-ring

60050051

O形圈

O-ring








零件代码 PART NUMBER

名称 PART NAME

60008713

Plug

60100507

弹簧盖

Cap, pilot

60100496

液压切断阀

Valve, hydraulic cutoff

60008721

内六角螺钉

Bolt, socket head

60038528

螺栓

Bolt, socket head

60008825

Seat

60038244

弹簧

Spring

60038243

弹簧

Spring

60100508

挡圈

Ring, retaining

60008700

O形圈

O-ring

60008821

O形圈

O-ring

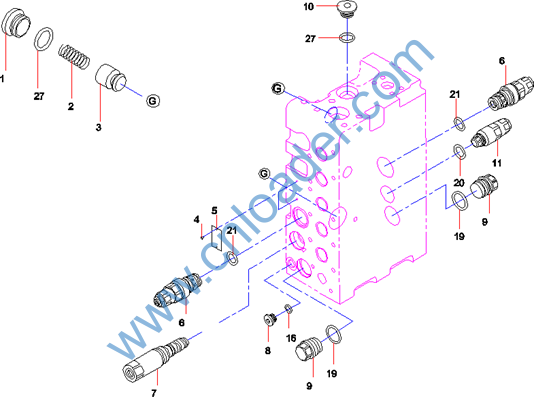

零件代码 PART NUMBER

名称 PART NAME

60008715

Plug

60008817

弹簧

Spring

60008783

单向阀

Valve, check

60008722

铆钉

Rivet

60100511

铭牌

Nameplate

60100488

流阀

Valve, relief

60100484

斗杆再生阀

Valve, arm regeneration

60008713

Plug

60100465

Plug

60008712

Plug

60100490

节流阀

Valve, relief

60008700

O形圈

O-ring

60100516

O形圈

O-ring

60100517

O形圈

O-ring

60100515

O形圈

O-ring

60335071

O形圈

O-ring

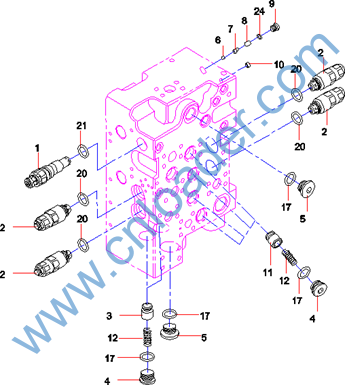

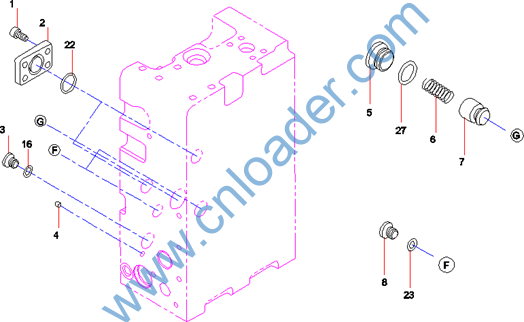

零件代码 PART NUMBER

名称 PART NAME

60008717

螺栓

Bolt, socket head

60008781

法兰

Cap, flanged

60008713

Plug

60008728

紧定螺钉

Screw, set

60008715

Plug

60008817

弹簧

Spring

60008783

单向阀

Valve, check

60008711

Plug

60008700

O形圈

O-ring

60008697

O形圈

O-ring

60335071

O形圈

O-ring

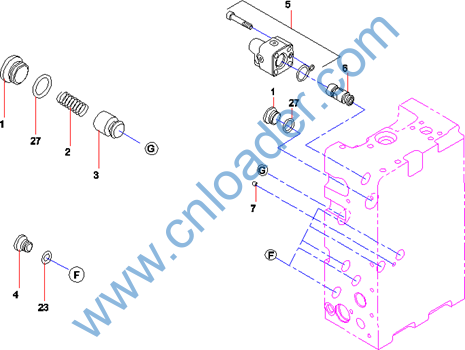

零件代码 PART NUMBER

名称 PART NAME

60008715

Plug

60008817

弹簧

Spring

60008783

单向阀

Valve, check

60008711

Plug

60100494

逻辑阀

Bolt, socket head

60100476

单向阀

Valve, check

60008728

紧定螺钉

Screw, set

60008697

O形圈

O-ring

60335071

O形圈

O-ring
