SY215C9 hydraulic excavator SANY BR



A210491000121

垫圈    Washer








A210111000197

Bolt

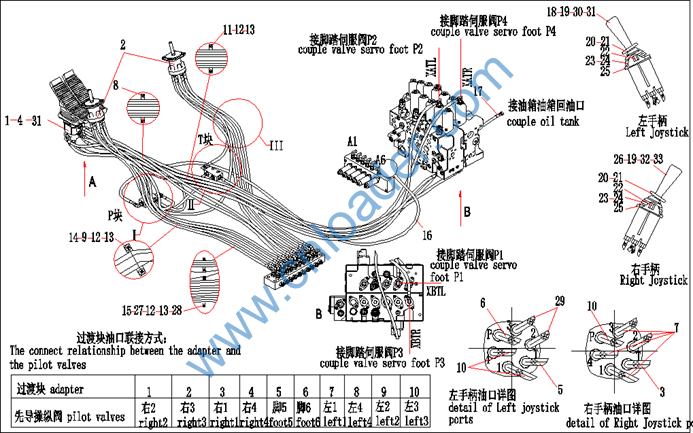

B220401001302

Valve, pilot

B230103000982

Hose AS

60170604

Valve, travel

B230103002263

Hose AS

A831211120000

Hose AS

B230103001375

Hose AS

11602341

Gasket, rubber

11602348

Gasket, rubber

B230103000985

Hose AS

11243372

Plate, pressure

A210111000342

Bolt

24000511

Washer

11243374

Plate, pressure

11243400

Plate, pressure

B230103003282

Hose AS

B230103003202

Hose AS

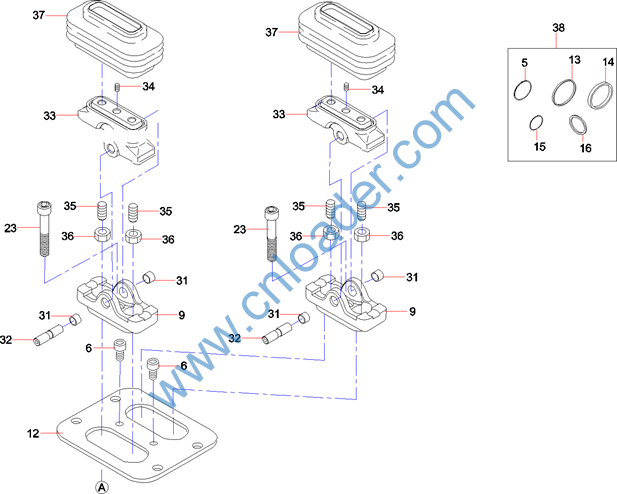

B229900001613

Joystick , left

A210264000022

Screw, self-tapping

11050165

Handle, grip








A210308000006

Nut

A210307000002

Nut

A229900006446

Joystick, rubber cover

A229900001028

Joystick, rubber cover

A229900001027

Plate

B229900001614

Joystick, right

60086354

Clamp

11602359

Gasket, rubber

60128281

Hose AS

60116344

Insert, switch

变更或见其他配置

Washer

A241200000875

Switch

A229900006438

Insert, switch








24000512

Washer

B230103002001

Hose AS

B230103002658

Hose AS

21020054

Hose AS

B230103004256

Hose AS

A820199000360

Block, PT

21005186

Bolt

A820601990304

Flange

A820601990336

Grommet

A210111000079

Bolt

24000632

washer

B210780000418

Fitting

B210780000024

Fitting, Elbow

A820205000894

Fitting

B230101000047

O-Ring-10.8

A820205000839

Fitting

A820205000940

Fitting

A831211095000

Hose AS

A820205000946

Fitting

B230101000049

O-ring








60020078

过滤接头    Fitting, screen

11243401

胶套    Sleeve, rubber

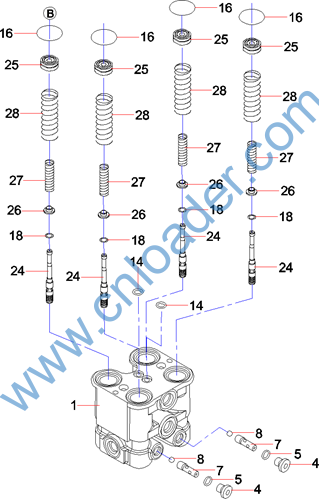

60008879

Pin, roll

60008604

Nut, adjusting

60008809

Plate, circular

60008602

Shaft

60008603

Ring, seal

60008595

Plug

B230101000363

O-ring

60008599

Rod

60008811

PLATE

60008758

Seat, spring

60008775

Spring

60008597

Washer

60008774

Spring, large

60008760

SPOOL

60008795

Housing

60008799

O-RING

60008810

Plate, connecting

60008786

Bolt, socket head

60008598

Washer, seal

60008806

Sleeve








60331163

手动先导阀维修包    Kit, seal

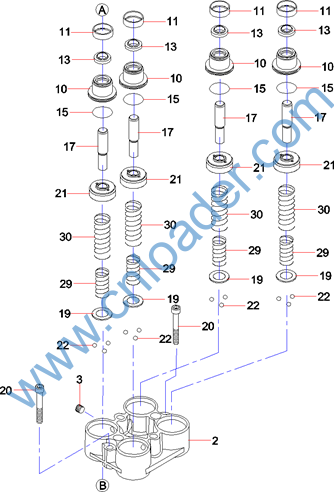

60237073

Screw

60237074

Mount, lower

60237075

Plate

60237078

Screw, socket head

60008690

Sleeve, shaft

60008585

Shaft

60008591

Mount, upper

60237082

Screw, set

60008592

Screw, adjusting

60038480

Nut

60237083

Cover, rubber

60331164

Kit, seal

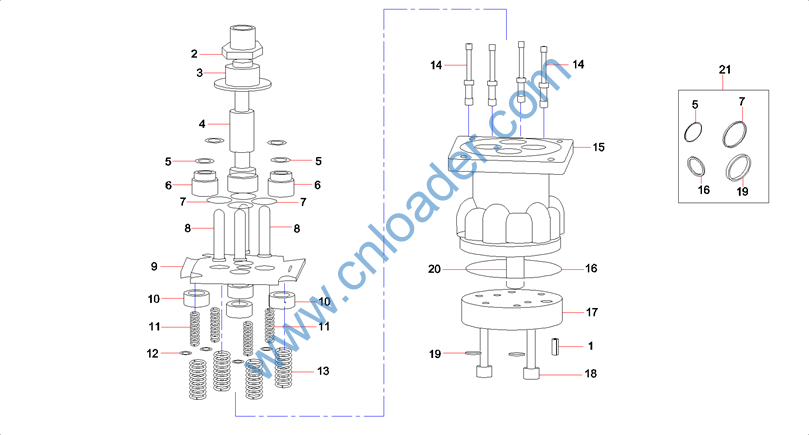

60237072

Valve

60008728

Screw, set

60163768

Plug

60008754

Cover

60163771

Ring, dust

60038720

O-ring

60273527

Rod

60008756

Seat, spring

60038563

Screw, socket head

60008803

Piston

60237077

Ball, steel

60008766

Spring

60008767

Spring








60273523

Valve, travel, pilot

60273524

Plug

60221657

O-ring

60273525

Spool, cartridge

60273526

Ball, steel

60038727

O-ring

60038820

O-ring

60008597

Washer

60273528

Spool

60237080

Seat, spring

60008589

Washer

60008594

Spring, small

60038221

Spring, large
