SY215C9 hydraulic excavator SANY SV

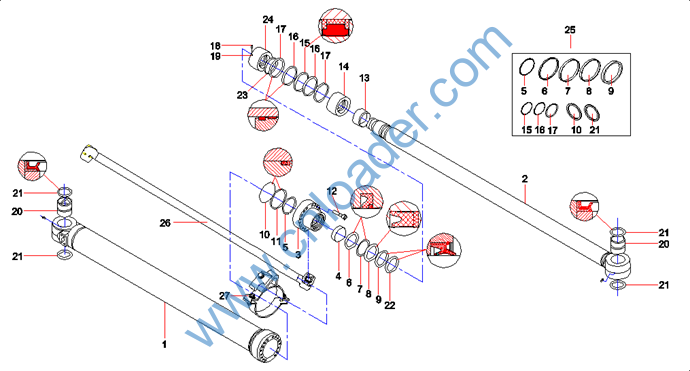

60065269

Cylinder, barrel

60065296

Piston Rod

60065261

End cover

60065280

Sliding shaft sleeve

60065243

Retainer Ring

60065201

Buffer ring

60065354

Ring, seal

60065309

opening retainer ring

60065340

Ring, dust

24003951

O-ring

60065250

Ring, retaining

A210204000042

Screw

60065192

Bumper Sleeve

60065289

Piston

60065348

Seal Ring

60065334

Ring, guide

60065214

Ring, contaminant

24000487

Screw

21010039

Ball, Steel

60065323

Shaft Sleeve








60065344

Dust Ring

60065244

Retainer Ring

60065257

Spacer

60065312

Nut

60107384

Kit,repair,oil cylinder

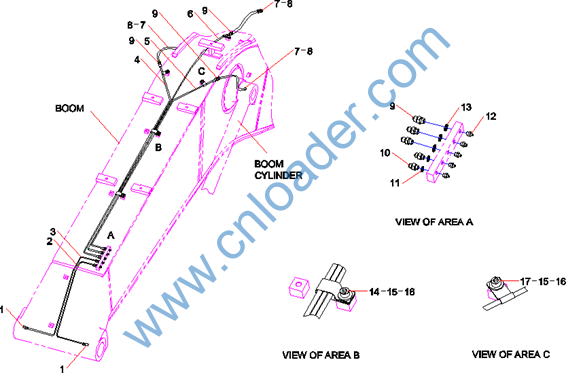

11418218

steel tube

11149636

Pipe Clip








11102369

Fitting

11594962

Lines GP, grease

11594975

Lines GP, grease

11594983

Line, grease

11595301

Line, grease

11595233

Line, grease

A820205000858

Fitting

B230103000815

Hose AS

11102368

Fitting

11102367

Fitting

A210434000005

Washer

B229900000379

Zerk, grease

A210434000007

Washer

A820101216696

Clamp, 3 tube

A210491000120

Washer, Gear Thrust

A210204000334

Bolt, socket head

A820101216692

Clamp








B210780000896

Screw plug

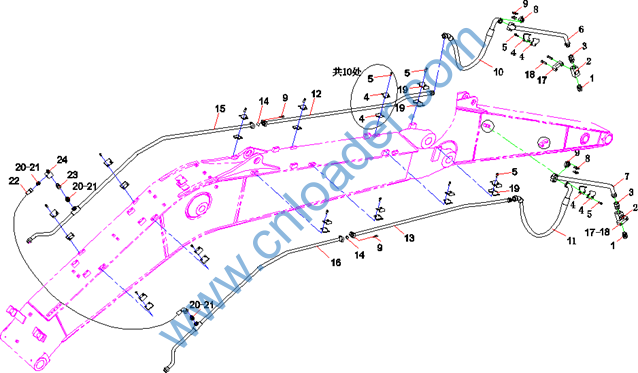

60260743

ball valve

B210780001703

Swivel Stud Straight Adapter with

13505881

Pipe clip

A210204000337

Bolt

13780022

Steel Pipe Assy.

13780021

Steel Pipe Assy.

B210780000244

Flange, Split

A210204000364

Screw

13885762

tube SY215.3.10L.1.4L

13885763

tube SY215.3.10L.1.5L

B230101000456

O-ring

13990414

Left rear pipe assembly

13990416

Rear Pipe (Right)

A820101332703

Fitting Strip

A210204000362

Screw

13884679

Pipe clip

A820205002473

Connector

A229900001581

O-ring 21.7×3.5(JISB2401)

60163193

Rubber Hose








21015744

直通组合接头    Swivel Straight Connector

13995991

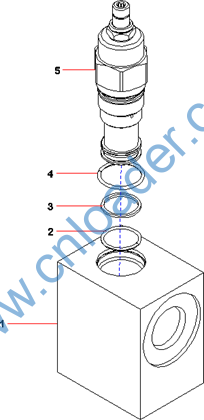

溢流阀组    Relief valve group HIP_YL200_5








61009321

Housing

A210609000291

O-ring

61009322

Ring

60319726

O ring

61009323

Plug-in relief valve

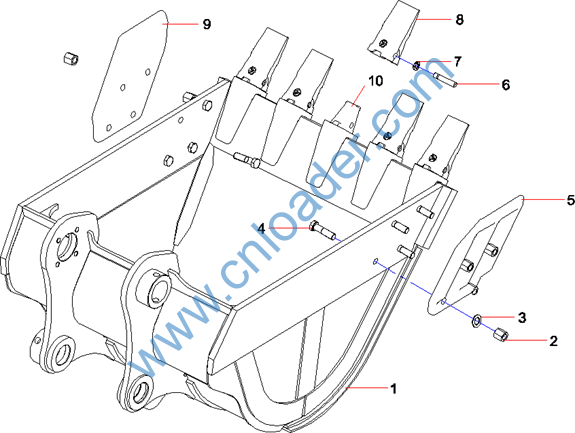

12852541

Improved common bucket body

A210307000007

Nut

A210491000122

Washer

A210110000427

Bolt

11182515

Bit, side, left

12915776

Pin, tooth

12915777

Clip, pin

11912709

Tooth, bucket

11182516

Cutter, side, right

13960272

base of tooth








A820606030364

Gasket

A820101117871

Cover

A210111000202

Bolt

24000639

Washer

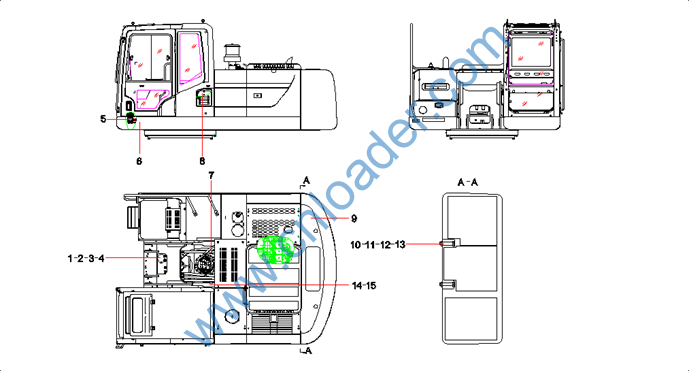

13601618

Lines Group, Pilot

13626606

revolving frame

14034660

Hydraulic main pipeline of platform

13517339

HVAC group

13501474

Counterweight

A210110000354

Bolt

A210444000003

Washer

11508253

Shim, counterweight

11508248

Shim, counterweight

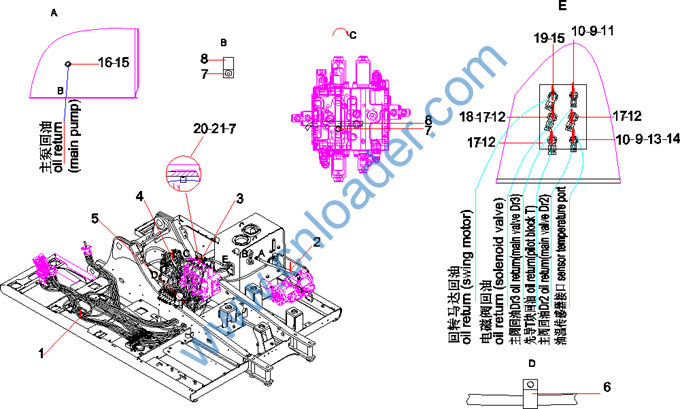

14000129

Main pipeline of platform

14000210

hammer Pilot Pipeline








11543868

Lines GP, pilot

13601662

pump pipeline

13609947

Valve, main control

13601637

Lines GP, pilot manifold

11779657

Grommet

60086354

Clamp

A210111000199

Bolt

60086357

Clamp

A820205000839

Fitting

A230101000247

O-ring 10.9×2.3(JISB2401)

B210780000418

Fitting

A230101000243

O-ring 16.7×3.5(JISB2401)

10077549

Fitting

60060301

Sensor, hydraulic oil temperature

A229900001581

O-ring 21.7×3.5(JISB2401)

A820205000837

M24-M30joint

A820205000838

Fitting

B210780000024

Fitting, Elbow

A820205002377

Fitting

60086356

Clamp
