SY335C9I2KH hydraulic excavator SANY SBR



零件代码 PART NUMBER

名称 PART NAME

A810102060108

发动机支架

Engine support

A210111000026

螺栓

Bolt

A210110000447

螺栓M10×55GB5782 10.9级

Bolt

A210491000120

垫圈

washer

A810102060111

发动机支架

Engine support

60051280

法兰联轴器

Flanging coupling

A210111000120

螺栓M10×45GB5783 10.9级

Bolt

A820201001245

端盖

End cover SY310C1.1.3.1-1

A210110000009

螺栓

Bolt

A210491000121

垫圈

Washer

A810102060109

发动机支架

Engine support

A820301021297

螺栓

Bolt

A210491000144

垫圈

washer

A810102060110

发动机支架

Engine support

A820101341529

碗垫

Coaster, Bowl

A230199000043

橡胶件

rubber parts 4256314

A230199000042

橡胶件

rubber parts 4188649

A820204000534

螺母

Nut

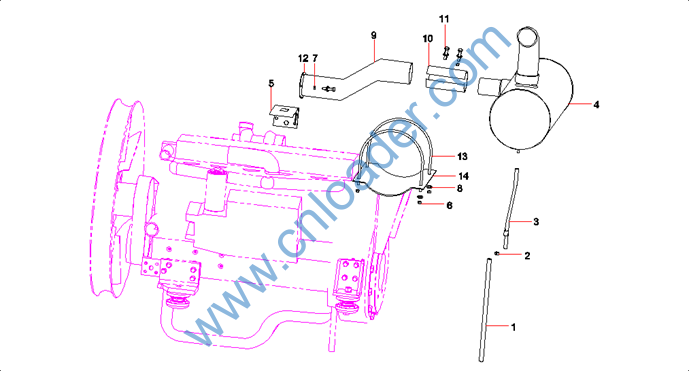

零件代码 PART NUMBER

名称 PART NAME

A820606030837

引水胶管

Water Plastic Tube

A229900001347

软管环箍

Clamp

A810102079062

引水管

Tube

A220202000028

消声器总成

Muffler assembly

A810102072198

隔热盖

Thermal insulation cover

A210307000036

螺母

Nut

A210346000007

螺母

Nut

A210491000120

垫圈

washer

A810102071260

排气接管

exhaust assistant pipe

11761299

抱箍

Anchor Ear

21005186

螺栓

Bolt

60101678

垫圈

Washer

A820301017053

U型螺杆

U-type threaded rod

A810102072199

消音器支架

Silencer Bracket

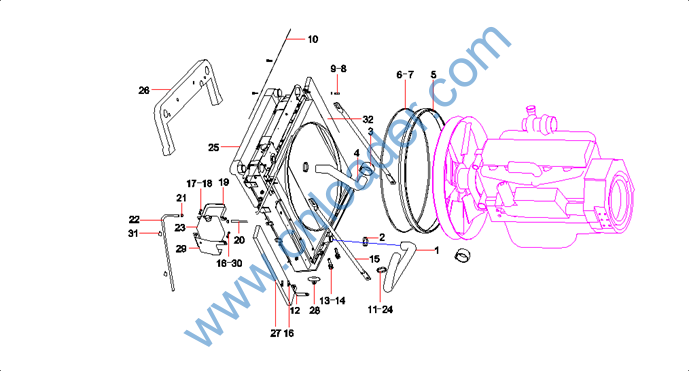

零件代码 PART NUMBER

名称 PART NAME

11944887

进水胶管

Oil-in rubber hose

60202886

喉箍

CLAMP

60219321

喉箍φ58-φ71 W型内衬

Clamp, hose

12119616

回水胶管

Return rubber hose

A230199000044

橡胶罩

Rubber Cover

A229900004513

环箍

Hoop

A229900004514

锁扣

Lock

A210111000263

螺栓

Bolt

A210491000118

垫圈

High-strength steel washer

A820606030560

密封条

Sealing strip

12016797

管夹

Pipe Clamp

12010877

plate

A210204000337

螺钉M12×30GB70.1 10.9级

Bolt

60060548

垫圈12GB96.1 达克锈

Washer

A820301017054

支撑

Support

A210491000120

垫圈

washer

A210204000220

螺钉M8×20GB70.1 10.9级

Screw

24000633

垫圈8GB97.1 达克锈

Washer

A810102099060

支架

Bracket

A820606030367

软管

hose








零件代码 PART NUMBER

名称 PART NAME

A229900001345

软管环箍

Clamp

12957673

水管

hose

A229900001590

储液箱

Tank, coolant

A820606030450

护套

Grommet

60173254

散热器

Cooler Assembly

12259061

顶部海绵

Top sponge

11857942

左侧海绵

Left-hand sponge

11961759

扣钉

Cramp

A810102099162

支架

Bracket

A210111000012

螺栓 M10×20GB5783 10.9级

Bolt

60083322

线夹

Clamp

11858836

右侧海绵

Right-hand sponge

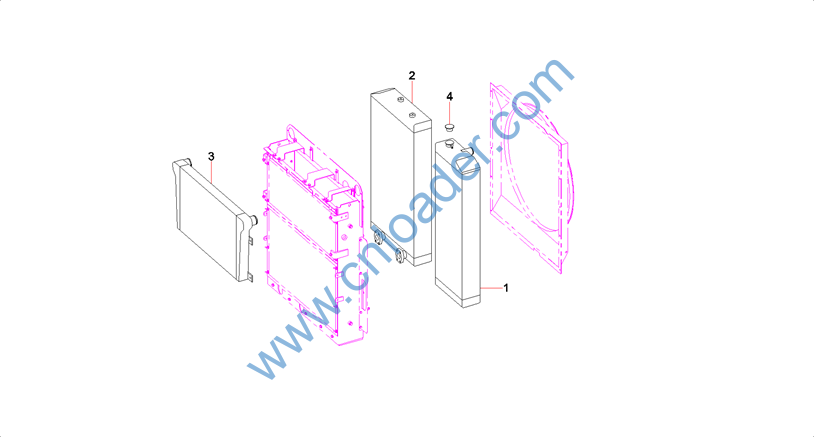

零件代码 PART NUMBER

名称 PART NAME

60180527

散热器    Radiator

60122956

散热器    Radiator

60122957

散热器    Radiator

60125365

水箱盖    Cap, coolant tank












B229900001059

T型抱箍

Clamp

A820606030826

短胶管

Short rubber tube

12119618

中冷钢管

Intercooled steel tube

A820606030824

中冷进气胶管

Intercooled air-intake hose

13295570

中冷进气钢管

Inter-Cooler Intake Pipe

12119617

中冷排气胶管

Intercooled air-intake hose

A229900003759

T型抱箍

Clamp

A210491000120

垫圈

washer

24000633

垫圈8GB97.1 达克锈

Washer

A210204000334

螺钉M10×16GB70.1 10.9级

Bolt, socket head

A810102072216

固定架

Fixed frame

A810102072217

固定架

Fixed frame

A820101345946

管箍

Tube collar

13354676

短胶管

Short rubber tube

11856750

进气接管

Air inlet connecting tube

A210111000202

螺栓

Bolt

A210491000121

垫圈

Washer

11856353

空滤固定架

Fixed frame SY365C8I2KS.1.3.4.2

A210111000270

螺栓M10×90 GB5783 10.9级

Bolt M10×90GB5783 Grade 10.9

A210204000220

螺钉M8×20GB70.1 10.9级

Screw












零件代码 PART NUMBER

名称 PART NAME

10131920

空滤卡箍

Clamp assembly

60125399

空气滤清器

Air cleaner

A229900002262

T型抱箍

T-type anchor ear

11856555

前进气胶管

Front air intake rubber hose

A229900002220

T型抱箍

Clamp

10120823

进气钢管

Air intake steel tube

A222100000384

空气预滤器

Air Pre-Filter

A229900002734

T型抱箍

Clamp

10120819

后进气胶管

Rear air inlet rubber hose

A229900001659

T型抱箍

Clamp

60262508

螺栓M12×30GB5783 10.9级 锌镍

Bolt

60262511

垫圈12GB96.1 锌镍合金

Washer

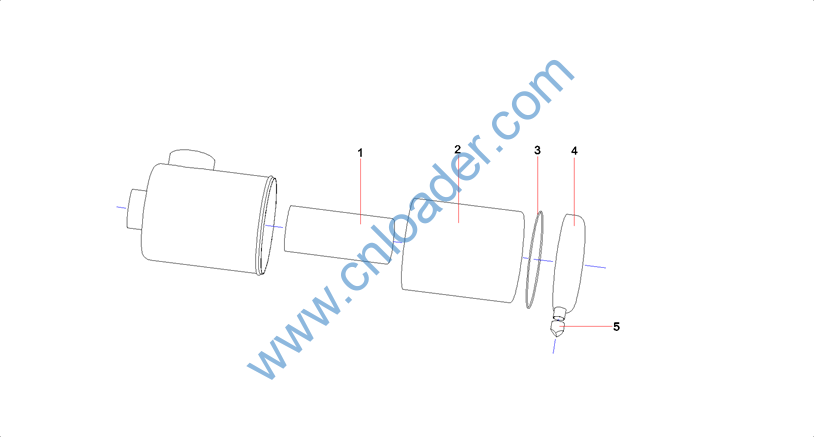

零件代码 PART NUMBER

名称 PART NAME

B222100000640

空气滤清器安全滤芯

Auxiliary cartridge of air cleaner

B222100000641

空气滤清器主滤芯

Main cartridge of air cleaner

60176285

密封圈

Seal ring

60176264

CAP

60176270

排尘阀

Dust Exhaust Valve
