60046516 |
|
60046515 |
|
60046508 |
|
60046520 |
|
60046519 |
|
60046517 |
|
60046521 |
|
60046512 |
|
60046514 |
|
60046497 |
|
60046502 |
|
60046511 |
|
60046507 |
|
60046522 |
|
60046500 |
|
60046498 |
|
60046501 |
|
60046503 |
|
60046509 |
|
60046510 |
|
60046496 |
|
60046524 |
|
60046513 |
|
60046525 |
|
60043410 |
|
60180837 |
|
60042755 |
|
60318593 |
|
13313343 |
|
60101257 |
|
60100129 |
|
60155077 |
|
60153895 |
|
60153897 |
A810201024318
60129702
12739185 覆盖件总装(General assembly of covering parts) ………………………………………………………………… 2-178
12855224 右门总成(Right Door Assy. SY335C9H.1.6.3) …………………………………………………………… 2-186
12677408 右门(Door AS,left rear) …………………………………………………………………………………… 2-188
14099806 扶手总成(hand rail) ………………………………………………………………………………………… 2-190
10123768 右上后盖(Right upper rear coverSY310C1.1.6.1A) ……………………………………………………… 2-192
12909447 工具箱总成(Battery Box Assy SY300E.1.6.10) ………………………………………………………… 2-194
12697690 左门总成(left door assy SY305C9I2K.1.6.12) …………………………………………………………… 2-196
12677108 门(doorⅠ SY365C8I2KS.1.6.25.2) ………………………………………………………………………… 2-198
13852760 左前门(Left front door SY305C9I2K.1.6.12.3) ………………………………………………………… 2-200
A810502012207 左上后盖(Left upper rear coverSY310C1.1.6.4) ………………………………………………… 2-202
11256386 机顶罩总成(Bonnet Assy. SY335C8I2K.1.6.6A) ………………………………………………………… 2-204
11255413 机顶罩总成(Bonnet Assy.) …………………………………………………………………………………… 2-206
A810502015193 后横梁(Rear beam) ……………………………………………………………………………………… 2-208
A810502012215 柴油机下隔板(engine clapboard) …………………………………………………………………… 2-210
12405266 空调系统(Air conditioning) …………………………………………………………………………………………… 2-212
60168171 空调单元总成(Assembly, air conditioner) ……………………………………………………………… 2-218
10473304 空调电气系统(Electric system of air conditioner) …………………………………………………… 2-224
11598248 配重总成(Counterweight assembly) …………………………………………………………………………………… 2-226
13253628
转支承总成(Rotary bearing assy SY335C8I2K.1.7A) …………………………………………………………… 2-228
13484728
转支承(Slewing ring SSf1405/50CWHⅡ) ………………………………………………………………… 2-230
12736989 驾驶室总成(Cab SY305C9.1.5) ………………………………………………………………………………………… 2-232
60211180 扬子驾驶室(Yangzi Cab) ……………………………………………………………………………………… 2-234
A229900003660 内饰件总成(Plate GP,protect,decoration,inner) ………………………………………………… 2-236
60015520 前控箱总成() …………………………………………………………………………………………………… 2-238
60015519 空调罩总成(A/C Cover Assy) ………………………………………………………………………………… 2-240
61019348 电气总成(Electric AS) ……………………………………………………………………………………… 2-242
A229900008240 刮水器总成(Wiper AS) ………………………………………………………………………………… 2-244
A229900003761 刮水器总成(Wiper Assembly) ………………………………………………………………………… 2-246
|
61022830 |
附属件总成(Accessory AS) …………………………………………………………………………………… |
2-250 |
|
61019350 |
玻璃总成(Glass AS) …………………………………………………………………………………………… |
2-256 |
|
60238725 |
风门EMC0512.3.1 扬子钣金(Air floor) …………………………………………………………………… |
2-258 |
|
A229900009414 驾驶室门总成(Cab door hinge) ……………………………………………………………………… |
2-260 |
|
|
60085462 驾驶室门窗(Glass) …………………………………………………………………………………………… |
2-262 |
|
|
A229900009424 天窗总成(Skylight AS) ………………………………………………………………………………… |
2-264 |
|
|
61020327 |
前窗总成(Front window AS) ………………………………………………………………………………… |
2-266 |
|
61019352 |
风道总成(Duct AS) …………………………………………………………………………………………… |
2-268 |
|
12076176 |
行走操纵机构(Running control mechanism SY215C9.1.5.2) …………………………………………… |
2-270 |
|
12773451 |
座椅及操纵箱(Seat and controlbox SY215C9.1.5.5A) …………………………………………………… |
2-272 |
|
B229900000265 机械悬浮式驾驶座椅(Mechanical Suspension Driver seat) ……………………………………… 2-276 |
||
|
60204190 |
右扶手箱总成(Right armrest box assembly) ……………………………………………………………… |
2-282 |
|
60204189 |
左扶手箱总成(Armrest AS, left) …………………………………………………………………………… |
2-284 |
|
12777161 |
底板架(Floor SY335C9.1.5.6A) ……………………………………………………………………………… |
2-286 |
|
12757278 先导管路(Pilot Pipeline SY335C9I2KH.1.4A) ……………………………………………………………………… |
2-290 |
|
|
11772669 PPC管路(PPC pipeline SY335C9I2K.1.4.1) ………………………………………………………………… |
2-292 |
|
|
60170604 先导阀PVD8PC6008(脚踏)(Valve, travel) ………………………………………………………………… |
2-300 |
|
|
B220401001302 先导阀(Valve, pilot) ………………………………………………………………………………… |
2-306 |
|
|
12757265 电磁阀管路(Electromagnetic valve pipeline SY335C9I2) ……………………………………………… |
2-310 |
|
|
60136331 六联电磁换向阀组(Solenoid valve group) ………………………………………………………………… |
2-314 |
|
|
12757236 主阀管路(Main valve pipeline) …………………………………………………………………………… |
2-316 |
||
|
12757217 主泵管路(Main pump pipeline SY335C9I2KH.1.4A.2) …………………………………………………… |
2-320 |
||
|
B229900000063 液压油过滤器(Filter, pilot AS) …………………………………………………………………… |
2-324 |
||
|
第3章 行走装置(Travel device SY335C9H.2) …………………………………………………………………… |
3-1 |
||
|
12745013 行走装置(Travel device SY335C9H.2) ………………………………………………………………………… |
3-2 |
||
|
12286069 |
引导轮总成(Leading Wheel AssemblySWY216A) ……………………………………………………………………… |
3-6 |
|
|
60310119 |
张紧装置(Tensioning Equipment) ……………………………………………………………………………………… |
3-8 |
|
|
13914436 |
履带总成(crawler assembly) …………………………………………………………………………………………… |
3-10 |
|
|
11358479 |
支重轮总成(track roller) ……………………………………………………………………………………………… |
3-12 |
|
|
11172918 |
行走装置液压管路(Travel device hydraulic pipeline SY335C8) ………………………………………………… |
3-14 |
|
|
60243992 |
中央 |
3-18 |
|
|
12940338 |
减速机总成(reducer) ………………………………………………………………………………………… |
3-20 |
|
|
60223357 |
液压马达(Plunger motor) …………………………………………………………………………………… |
3-24 |
|
|
第4章 工作装置(Work Device SY335C9I2KH.3A) ………………………………………………………………… |
4-1 |
||
|
12745917 工作装置(Work Device SY335C9I2KH.3A) ……………………………………………………………………… |
4-2 |
||
|
12174692 工作装置管路(Work device tube SY335C9I2K.3D.1) ………………………………………………………………… |
4-12 |
||
|
60011434 |
铲斗油缸(Bucket Oil Cylinder) …………………………………………………………………………… |
4-16 |
|
|
12182683 |
铲斗油缸管路(Bucket cylinder pipeline SY335C9I2K.3.1.) …………………………………………… |
4-20 |
|
|
11162112 |
管卡组合(pipe clip combination) ………………………………………………………………………… |
4-22 |
|
|
12261944 |
斗杆油缸管路(Bucket rod cylinder pipeline SY335C9I2K.) …………………………………………… |
4-24 |
|
|
60011436 |
斗杆油缸(Arm cylinder) ……………………………………………………………………………………… |
4-26 |
|
|
60011435 |
动臂油缸(Boom Cylinder) …………………………………………………………………………………… |
4-30 |
|
|
11219750 |
右动臂油缸管路(Right derrick oil cylinder pipeline SY33) ………………………………………… |
4-34 |
|
|
A810312990198 管卡组合(pipe clip combination SY300C.3.1.4.2) ……………………………………………… |
4-36 |
||
|
11219749 左动臂油缸管路(Left derrick oil cylinder pipeline SY335) ………………………………………… |
4-38 |
||
转接头(Center Swivel Joint) ………………………………………………………………………
A810201000218 管卡组合(pipe clip combination SY300C.3.1.3.3) ……………………………………………… 4-40
12127622 润滑管路(Work device Lubrication Pineline SY335C9) …………………………………………………………… 4-42
12002883 铲斗(Bucket) ……………………………………………………………………………………………………………… 4-44
12002289 铲斗体(Bucket) ………………………………………………………………………………………………… 4-46
第5章 电气系统(electrical system SY305C9I2KH.5) ……………………………………………………… 5-1
12751750 电气系统(electrical system SY305C9I2KH.5) ……………………………………………………………… 5-2
第6章 涂装(Coating) …………………………………………………………………………………………………………… 6-1
12368205 涂装(Coating) …………………………………………………………………………………………………………… 6-2
第7章 随机附件(SY335C9I2KH hydraulic excavator attached) ……………………………………… 7-1
12745195 随机附件(SY335C9I2KH hydraulic excavator attached) ………………………………………………… 7-2
10442742 随机工具(Accompanying tools-SY360C.6.1) ………………………………………………………………………… 7-6
A290000000155 手提工具箱(Toolbox) …………………………………………………………………………………… 7-12
第8章 电源开关(power switch SY335C9M2KS.8A) ……………………………………………………………… 8-1
13852709 电源开关(power switch SY335C9M2KS.8A) …………………………………………………………………… 8-2
第9章 沙特版破碎锤管路(Quartering hammer pipeline) ………………………………………………… 9-1
14191189 沙特版破碎锤管路(Quartering hammer pipeline) ………………………………………………………… 9-2
|
14191098 |
工作装置管路（斗杆(Lines GP, hydraulic, auxiliary) …………………………………………………………… |
9-4 |
|
14191099 |
破碎锤平台管路(Platform piping diagram) ………………………………………………………………………… |
9-8 |
|
14012987 |
破碎锤先导管路(hammer Pilot Pipeline SY335C9I2K.3.11.3) …………………………………………………… |
9-12 |
|
B220402000338 脚踏阀(Foot-Operated Valve JRCVP-A-1-02) ……………………………………………………… |
9-14 |
|
|
第10章 其他配置(Other Fittings) …………………………………………………………………………………… |
10-1 |
|
|

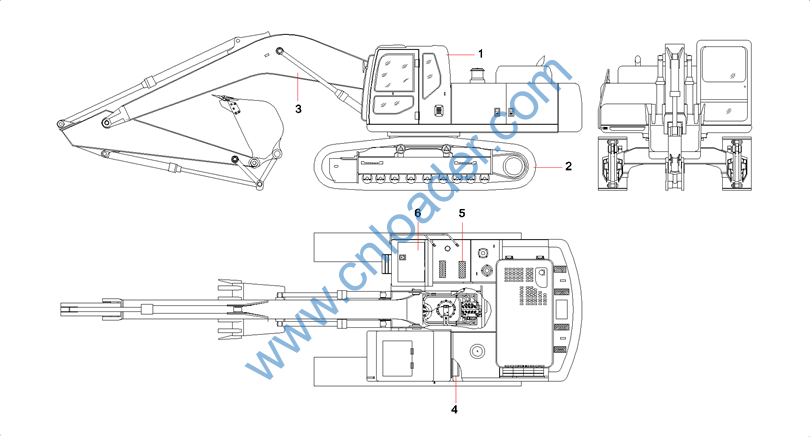

序号 INDEX |
零件代码 PART NUMBER |
|
1 |
12753368 |
|
2 |
12745013 |
|
3 |
12745917 |
|
4 |
12751750 |
|
5 |
12368205 |
|
6 |
12745195 |
|
7 |
13852709 |
|
8 |
14191189 |
|

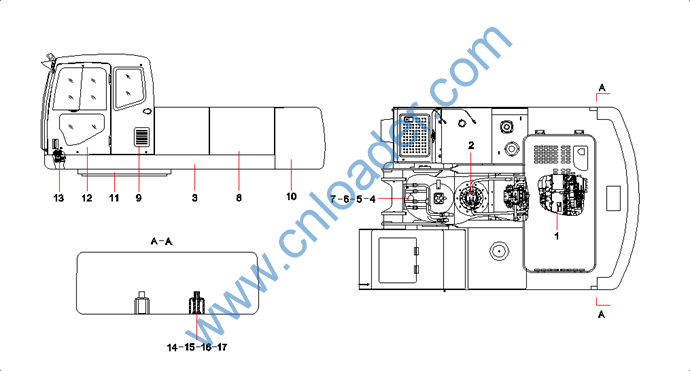

序号 INDEX |
零件代码 PART NUMBER |
|
1 |
12744702 |
|
2 |
12745962 |
|
3 |
12740468 |
|
4 |
A820606030364 |
|
5 |
A820101117871 |
|
6 |
A210111000202 |
|
7 |
24000639 |
|
8 |
12739185 |
|
9 |
12405266 |
|
10 |
11598248 |
|
11 |
13253628 |
|
12 |
12736989 |
|
13 |
12757278 |
|
14 |
60013102 |
|
15 |
60112963 |
|
16 |
A820101326339 |
|
17 |
14080418 |
|

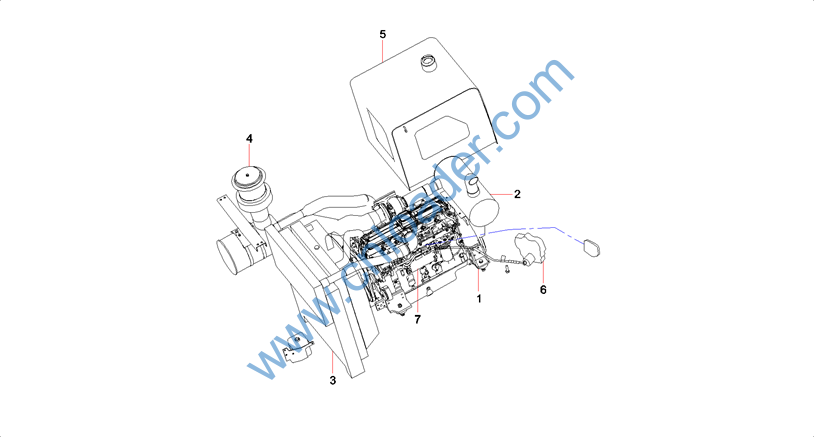

零件代码 PART NUMBER |
名称 PART NAME |
|
|

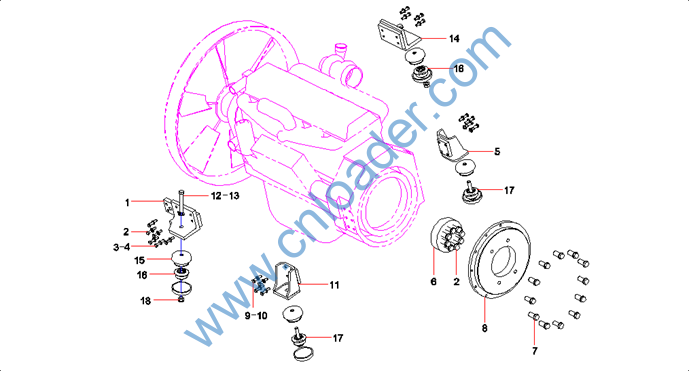

A810102060101 |
减震及传动系统 |
Damping and transmission system |
|
A810102070197 |
排气系统 |
Exhaust systemSY310C1.1.3.2 |
|
12338949 |
冷却系统 |
Cooling system SY335C9I2K.1.3.3 |
|
12341400 |
进气系统 |
Intake System SY335C9I2K.1.3.4 |
|
12754013 |
燃油系统 |
Fuel System SY335C9I2KH.1.3.5 |
|
13182792 |
油门控制系统 |
Throttle control |
|
B220200000072 |
发动机 |
Engine |
