Body,container reach stacker,RSC45C2 SANY SVE





Part No.

Description

B230101001571

Ring, Wear

B230101001322

Guide ring

60249668

Ring, seal, B7

B230101000034

Ring, seal, OK

A210609000314

O-ring 132×5.3GB3452.1

13242575

Nut

24004294

Screw

13242577

Piston

13177234

Sleeve, separating

13242576

Body, piston rod

10424844

Nut, lock

B210770000084

Connector, pressure measuring

13050608

Ring, ear

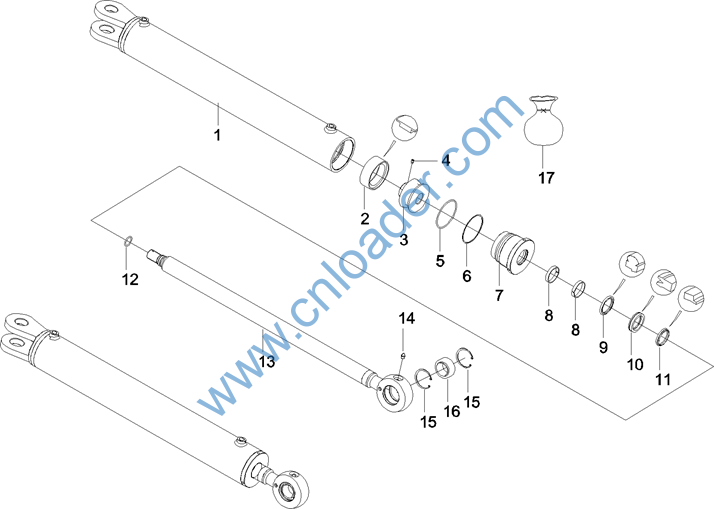

Part No.

Description

10202945

Assembly, cylinder barrel

B230101001155

Seal

10202940

Piston

24004294

Screw

A210609000087

O-ring

10201417

Ring, retaining

10202939

Sleeve, guide

60013716

Ring, guide, UP

A880806030136

Seal

B230101001951

Seal

B230101001948

Ring, dustproof, PW

A210609000044

O-ring

10202948

Assembly, piston rod

A210804000002

Zerk, Grease

A210416000037

Snap Ring

A210612000023

Bearing, joint

10347377

Package, sealing parts, industrial art

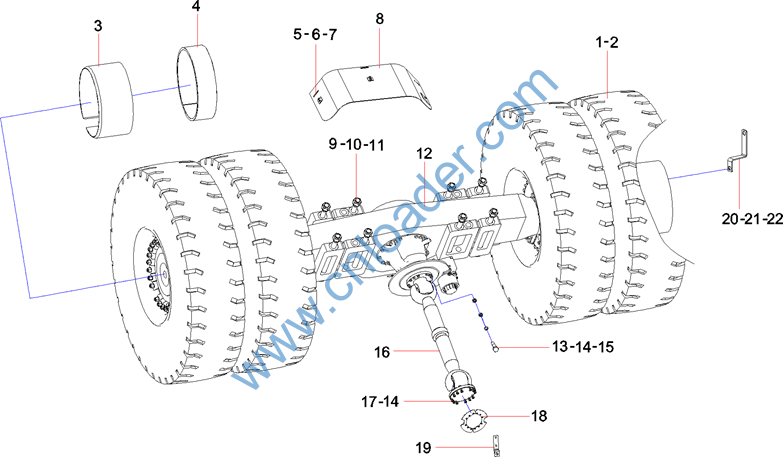

Part No.

Description

A229900002057

Rim

A210881000093

Tyre

60112798

Ring, lock

12938597

Ring, sleeve, middle

A210111000348

Bolt

A210405000007

Washer Flat M8

A210401000017

Washer Lock M8

11346189

Plate, oilproof

A829900001442

Bolt

A210401000012

Washer 36GB93

A820204000388

Nut

60308535

Drive axle

A210110000341

Bolt

A210319000019

Nut

A210401000003

Washer 14GB93

60341728

transmission shaft

21005237

Bolt

13938227

sensor plate SRSC45.1-72A

11342780

Support, speed sensor

A820101313646

Plate, lock, fixed, air pipe

A210111000038

Bolt M12×30

A210401000002

Washer

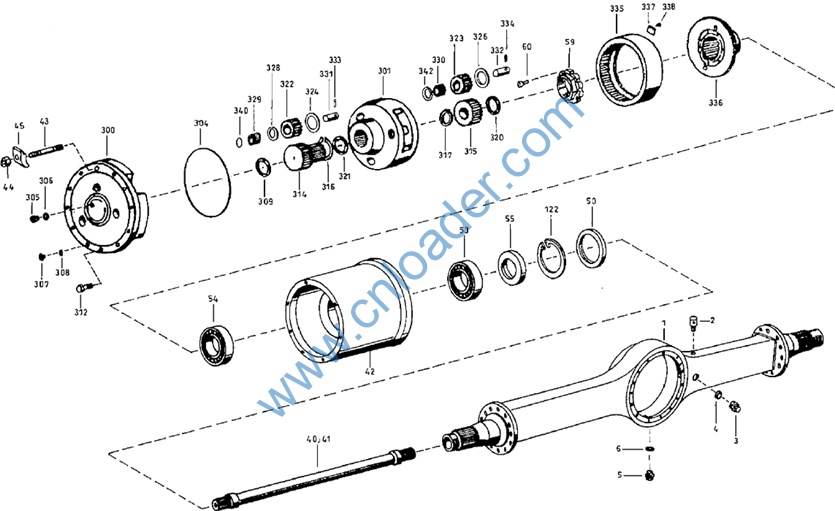

Part No.

Description

60121013

Shell, shaft

60061416

Plug, ventilation

60099157

Plug, pipe

60099263

Ring, seal

60099180

Axle, driving

60054025

Hub

B229900002716

Stud

60099258

Ring, seal

60099167

Bearing, roller, tapered

60099167

Bearing, roller, tapered

60099195

Sleeve, separating

60099179

Nut

60099214

Screw, hexagon, inner

60121071

Ring, retaining, elastic

60099175

Chamber, planet gear

60120996

Bracket, planet gear

60099253

O-ring

60099157

Plug, pipe

60099263

Ring, seal

60099155

Screw

60121015

Ring, seal

60099231

Ring, thrust










Part No.

Description

60099219

Bolt, hexagon

60099171

Gear, central

60099172

Gear, central

60099199

Ring, retaining, elastic

60121005

Ring, retaining, elastic

60099233

Washer, thrusting

60099231

Ring, thrust

60099174

Gear, planet

60099173

Gear, planet

60099230

Washer, thrusting

60099232

Washer, thrust

60099163

Bearing, needle

60099162

Bearing, needle

60099235

Pin, planet

60099236

Pin, planet

60099226

Pin, lock

60099225

Pin, lock

60099183

Ring, gear

60121003

Support, toothed ring

60099178

Bracket, fixed

60099210

Bolt, hexagon

60099252

O-ring

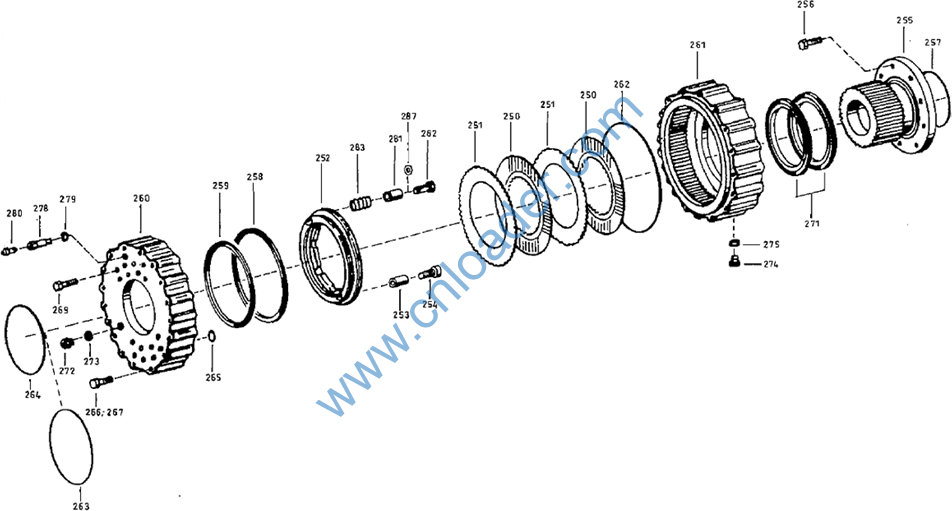

Part No.

Description

60062647

Disc, friction plate, brake

60062646

Blade, steel, brake

60121008

Piston

60099227

Bushing

60099215

Bolt, hexagon

60099241

Bearer, brake

60099206

Bolt, screw

60099251

O-ring

60099257

Seal, oil, piston

60099256

Seal, oil, piston

60099240

Housing, axle

60099239

Housing, axle

60099254

O-ring

60099250

O-ring

60099249

O-ring

60099248

O-ring

60099218

Screw, hexagon, inner

60099217

Bolt, hexagon

60099211

Bolt, hexagon

60062648

Seal, mirror surface

60099156

Plug, pipe

60099262

Ring, seal












Part No.

Description

60099154

Screw

60099260

Ring, seal

60099198

Connector

60099260

Ring, seal

60099160

Valve, exhaust

60099228

Pipe

60099193

Screw, flange

60099185

Spring, compressed
