P
|

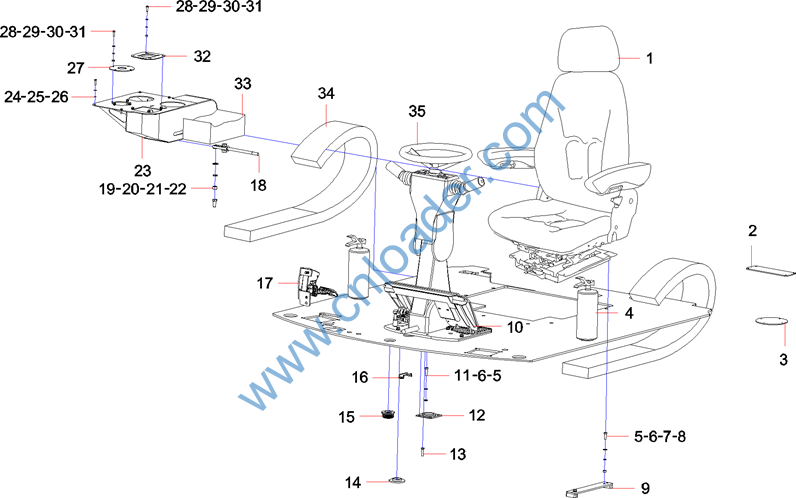

Part No. |
Description |
|
60149848 |
Seat, driver, suspending, mechanical |
|
12493451 |
Baffle, radio hole |
|
12530718 |
Plate, speaker hole, radio |
|
59001329 |
Fire Extinguisher, Powder, ABC |
|
A210405000007 |
Washer Flat M8 |
|
A210401000017 |
Washer Lock M8 |
|
A210111000090 |
Bolt M8x25 |
|
A210307000015 |
Nut M5 |
|
12153581 |
Plate, mounting, seat |
|
12142583 |
Pedal, double |
|
A210111000091 |
Bolt M8x30 |
|
13529215 |
Sleeve, guide |
|
A210204000147 |
Screw M8×20GB70.1 |
|
13863031 |
Ear, anchor, moire tube |
|
10480997 |
Sleeve, mounting |
|
12180237 |
Cover, protective, parking button |
|
60099291 |
Pedal, accelerator, suspension |
|
12148869 |
Stud, connecting |
|
A210405000001 |
Washer |
|
A210401000002 |
Washer |
|
A210111000037 |
Bolt M12X25 |
|
A210307000001 |
Nut |
|
Part No. |
Description |
|
12148799 |
Support, handle seat |
|
A210405000005 |
Washer Lock M5 |
|
A210401000015 |
Washer Flat M5 |
|
A210111000071 |
Bolt M5×20GB5783 |
|
11775191 |
Board, cord-out, joystick |
|
A210405000006 |
Washer Flat M6 |
|
A210401000016 |
Washer Lock M6 |
|
A210111000080 |
Bolt M6x20 |
|
A210307000016 |
Nut |
|
13099978 |
Plate, mounting, joystick |
|
60154116 |
Armrest, wide, seat |
|
B229900003089 |
Chain, drag |
|
60025888 |
Assembly, steering-column, adjustable |
|

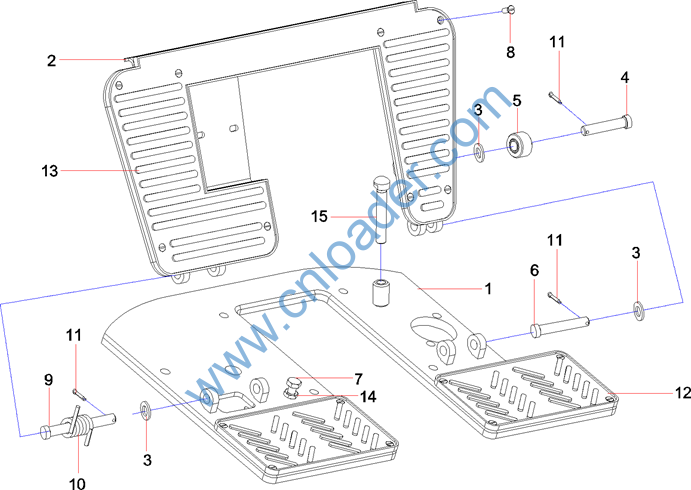

Part No. |
Description |
|
12142587 |
Seat, bottom |
|
12142593 |
Pedal |
|
A210405000011 |
Washer Flat M10 |
|
13058570 |
Shaft, pin, roller |
|
10253342 |
Roller |
|
12142582 |
Shaft, pin, right |
|
A210111000088 |
Bolt M8x16 |
|
A210211000002 |
Screw M5×10GB819.1 |
|
12142581 |
Shaft, pin, left |
|
13400089 |
Spring, torsion |
|
A210501000001 |
Pin, Cotter |
|
12260600 |
Sleeve, rubber, cushion foot |
|
12260594 |
Sleeve, rubber |
|
A210309000012 |
Nut |
|
12906437 |
Bolt, adjusting |
|

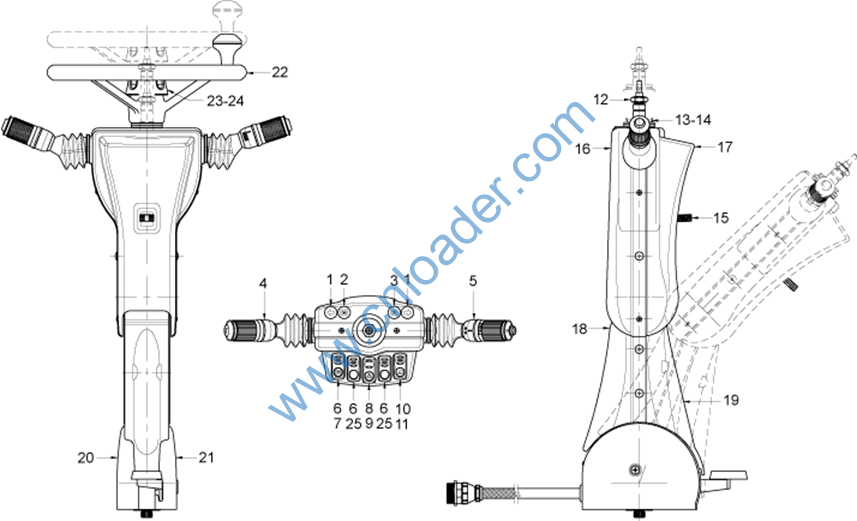

Part No. |
Description |
|
60236822 |
Light, warning |
|
60236823 |
Light, warning |
|
60236824 |
Light, warning |
|
60191984 |
Switch, column |
|
60191985 |
Switch, column |
|
60191986 |
Switch, rocker |
|
60191987 |
Key, swith |
|
60191988 |
Switch, rocker |
|
60191989 |
Key, swith |
|
60191990 |
Switch, rocker |
|
60191991 |
Key, swith |
|
60236825 |
Column, steering |
|
60236826 |
Disc, telescopic, rubber |
|
60236827 |
Tube, telescopic, rubber |
|
60236828 |
Adjustment, lift |
|
60236829 |
Cover, front, upper |
|
60236830 |
Cover, rear, upper |
|
60236831 |
Cover, front, lower |
|
60236832 |
Cover, rear, lower |
|
60236833 |
Protection, left |
|
60236834 |
Protection, right |
|
60236835 |
Wheel, steering |
|
Part No. |
Description |
|
60236836 |
Adjuster, telescopic |
|
60236837 |
Cap, steering wheel |
|
60191992 |
Key, swith |
|

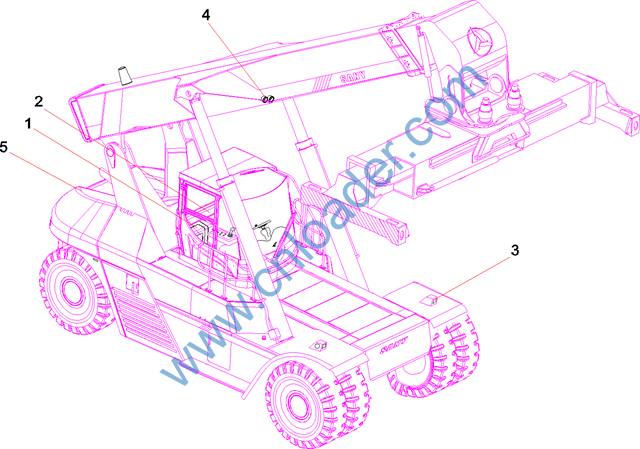

Part No. |
Description |
|
13061372 |
Diagram, schematic, electrical |
|
12938585 |
Layout, electric, cab |
|
13061381 |
Layout, electric, frame |
|
12926228 |
Layout, boom |
|
11446721 |
Radar, reversing, visible |
