Part No. |
Description |
|
12457513 |
Weldment, mudguard, (left) |
|
13587141 |
Seat, front headlight, left |
|
A210111000023 |
Bolt M10x30 |
|
A210401000001 |
Washer Lock M10 |
|
A210404000003 |
Washer Flat M10 |
|
A210307000017 |
Nut |
|
10477981 |
Plate, support |
|
A210111000091 |
Bolt M8x30 |
|
A210401000017 |
Washer Lock M8 |
|
A210404000005 |
Washer Flat M8 |
|
A210307000012 |
Nut |
|
12462194 |
Banding, (left) |
|
A210210000017 |
Screw |
|
A210401000016 |
Washer Lock M6 |
|
A210404000009 |
Washer |
|
12904926 |
Sleeve, rubber |
|
Part No. |
Description |
|
13116947 |
Plate |
|
10347353 |
Seat, mounting |
|
A210111000040 |
Bolt M12x40 |
|
A210401000002 |
Washer |
|
A210404000004 |
Washer Flat M12 |
|
A210307000001 |
Nut |
|
Part No. |
Description |
|
10182062 |
Rod, support |
|
A229900002196 |
Mirror, rearview, left |
|
Part No. |
Description |
|
10182062 |
Rod, support |
|
A229900002197 |
Mirror, Hoist |
|
Part No. |
Description |
|
A210111000025 |
Bolt M10x35 |
|
A210401000001 |
Washer Lock M10 |
|
A210404000003 |
Washer Flat M10 |
|
13556612 |
Platform, left |
|
13556654 |
Platform, right |
|
13115749 |
Door, left |
|
10425030 |
Door, right |
|
10495320 |
Body, shield, lug, left |
|
10495319 |
Cover, lug, right |
|
A210111000093 |
Bolt M8x40 |
|
A210401000017 |
Washer Lock M8 |
|
A210404000005 |
Washer Flat M8 |
|
A210307000012 |
Nut |
|
A210307000017 |
Nut |
|
11474961 |
Pad, adjuting, movable |
|
Part No. |
Description |
|
13114775 |
Mast, left |
|
13115698 |
Cover, hydraulic radiator |
|
A222200000042 |
Latch, Cover |
|
11898442 |
Plate, connecting, door lock |
|
A210204000196 |
Screw |
|
A210401000001 |
Washer Lock M10 |
|
A210405000011 |
Washer Flat M10 |
|
10196926 |
Hinge |
|
A210111000080 |
Bolt M6x20 |
|
A210404000009 |
Washer |
|
A210319000003 |
Nut M6 |
|
A210211000008 |
Screw M6×20GB819.1 |
|
A229900009852 |
Spring, air |
|
A210111000094 |
Bolt M8x50 |
|
A210401000017 |
Washer Lock M8 |
|
A210405000007 |
Washer Flat M8 |
|
A210307000012 |
Nut |
|
11360286 |
Pad, elastic |
|
10196925 |
Plate, support, air spring |
|
A210111000011 |
Washer Lock M10 |
|

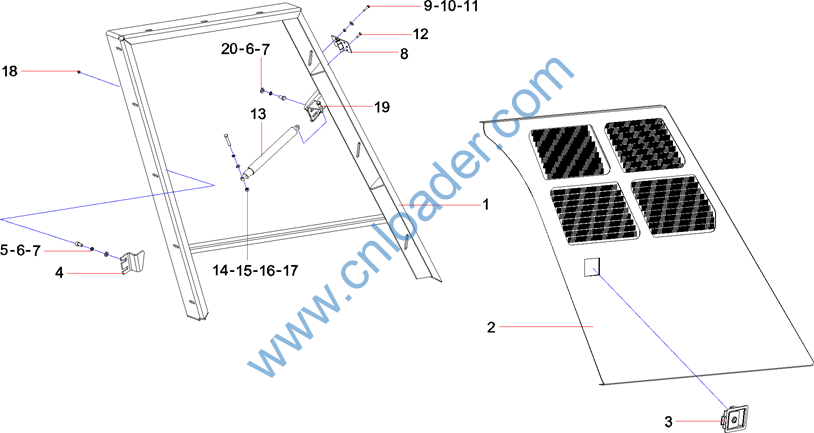

Part No. |
Description |
|
13027649 |
Doorframe, right |
|
12004268 |
Cover, radiator, air conditoner |
|
A222200000042 |
Latch, Cover |
|
11898462 |
Plate, connecting, door lock |
|
A210204000196 |
Screw |
|
A210401000001 |
Washer Lock M10 |
|
A210405000011 |
Washer Flat M10 |
|
10196926 |
Hinge |
|
A210111000080 |
Bolt M6x20 |
|
A210404000009 |
Washer |
|
A210319000003 |
Nut M6 |
|
A210211000008 |
Screw M6×20GB819.1 |
|
A229900009852 |
Spring, air |
|
A210111000094 |
Bolt M8x50 |
|
A210401000017 |
Washer Lock M8 |
|
A210405000007 |
Washer Flat M8 |
|
A210307000012 |
Nut |
|
11360286 |
Pad, elastic |
|
10196925 |
Plate, support, air spring |
|
A210111000011 |
Washer Lock M10 |
