Part No. |
Description |
|
60099517 |
Body, pressure regulating valve |
|
60099518 |
Core, pressure regulating valve |
|
60099609 |
Spring, inner, pressure regulating valve core |
|
60099610 |
Spring, outer, pressure regulating valve core |
|
60099608 |
Sleeve, protective, spring, pressure regulating valve core |
|
60099568 |
Piston, safety valve |
|
60099569 |
Spring, piston, safety valve |
|
60099570 |
Seat, spring, safety valve piston |
|
60099643 |
Ring, clamping |
|
60099756 |
Seal |
|
60099509 |
Plug |
|
60099616 |
Ring, positioning |
|

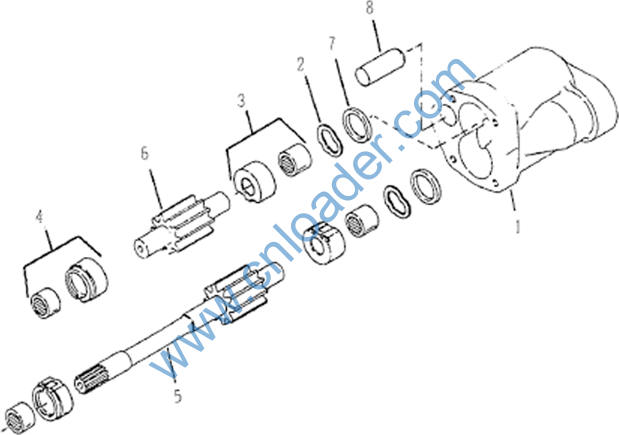

Part No. |
Description |
|
60099513 |
Body, pump |
|
60099505 |
Spring, Disc |
|
60099554 |
Assembly, thrust plate and bearing |
|
60099553 |
Assembly, thrust plate and bearing |
|
60099581 |
Assembly, drive axle, pump |
|
60099573 |
Assembly, driven shaft, pump |
|
60099757 |
Seal, Pump Shaft |
|

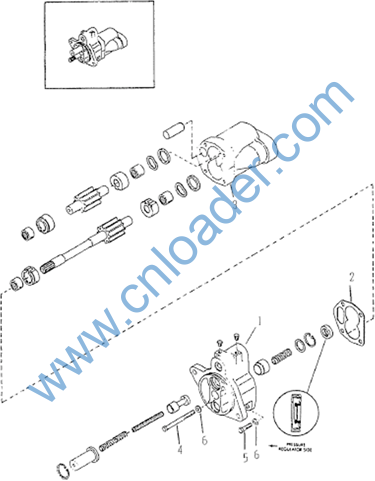

Part No. |
Description |
|
60099530 |
Assembly, pressure adjusting valve |
|
60099590 |
Gasket |
|
60099516 |
Assembly, auxiliary pump |
|
60099614 |
Screw, pressure regulating valve to auxiliary pump |
|
60099674 |
Screw, flat head |
|
60099699 |
Washer, Lock |
|

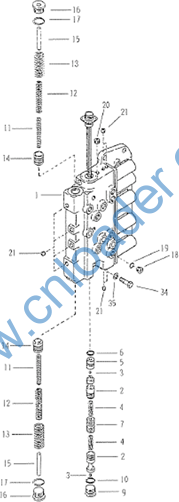

Part No. |
Description |
|
60099646 |
Shell, control valve |
|
60099525 |
Core, valve, speed stage |
|
60099526 |
Core, valve, speed stage |
|
60099696 |
Spring, valve core, speed stage |
|
60099495 |
Plug, Pipe |
|
60099752 |
O-ring |
|
60099623 |
Spring, steering valve core |
|
60099522 |
Core, steering valve |
|

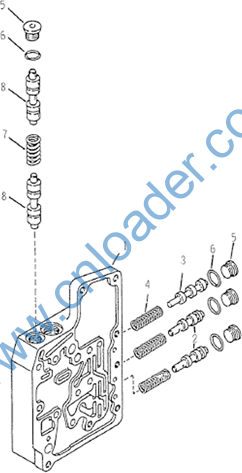

Part No. |
Description |
|
60099523 |
Cover, control valve |
|
60099519 |
Assembly, pressure regulating valve core |
|
60099714 |
Ball, stop, pressure plate |
|
60121020 |
Spring |
|
60099520 |
Block, brake, pressure regulating valve |
|
60099761 |
O-ring, brake block, pressure regulating valve |
|
60099521 |
Block, brake, pressure regulating valve |
|
60099612 |
Pin, cylindrical, pressure regulating valve |
|
60099495 |
Plug, Pipe |
|
60099752 |
O-ring |
|
60099709 |
Spring, inner, pressure accumulator |
|
60099711 |
Spring, mid, pressure accumulator |
|
60099710 |
Spring, outer, pressure accumulator |
|
60099529 |
Core, valve, pressure accumulator |
|
60099708 |
Pin, stop, valve core, pressure accumulator |
|
60099496 |
Plug, pipe |
|
60099764 |
O-ring |
|
60099780 |
Plug, hole, checking |
|
60099750 |
O-ring |
|
60099494 |
Plug, pipe |
|
60099506 |
Plug |
|

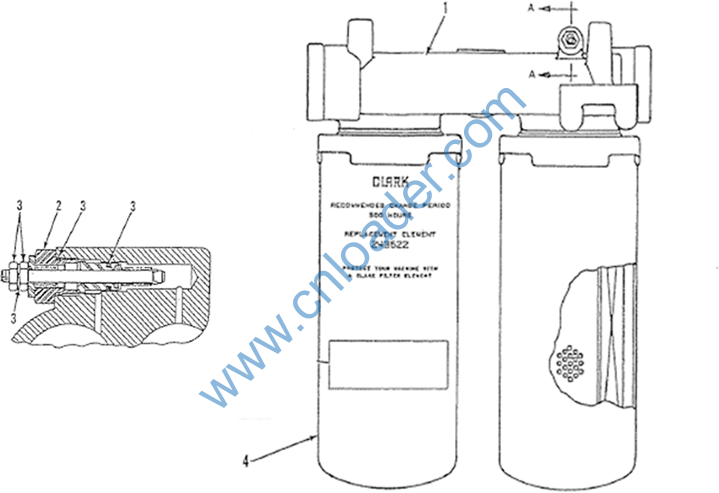

Part No. |
Description |
|
B229900000101 |
Assembly, oil filter head, torque converter |
|
60121021 |
Indicator, electrical |
|
60108685 |
Package, sealing ring, static gun |
|
B222100000106 |
Element, filter |
|
Part No. |
Description |
|
60099744 |
O-ring |
|
60099588 |
Pad, sealing, torque converter shell body to gearbox shell body |
|
60099773 |
Seal, oil, turbine shaft |
|
60099760 |
Ring, Piston |
|
60121017 |
Oil |
|
60099758 |
Ring, sealing, oil retainer disc |
|
60099755 |
O-ring, hub, pump impeller |
|
60099753 |
O-ring, pump impeller cover to pump impeller |
|
60099754 |
O-ring, bearing cover, pump impeller cover |
|
60099591 |
Bushing |
|
60121054 |
O-ring |
|
60099770 |
O-ring, connecting parts |
|
60121029 |
Washer |
|
60121037 |
Washer |
|
60121034 |
Washer |
|
60099667 |
Pad, liner, sealing plate |
|
60121072 |
Washer |
|
60121048 |
O-ring |
|
60099748 |
O-ring |
|
60099747 |
O-ring |
|
60121045 |
O-ring |
|
60121033 |
Washer |
|
Part No. |
Description |
|
60121032 |
Washer |
|
60121068 |
Seal |
|
60121052 |
O-ring |
|
60121050 |
O-ring |
|
60099742 |
O-ring |
|
60099756 |
Seal |
|
60099757 |
Seal, Pump Shaft |
|
60099761 |
O-ring, brake block, pressure regulating valve |
|
60099764 |
O-ring |
|
60121036 |
Washer |
|
60121066 |
Seal, oil |
|
60121067 |
Seal, oil |
|
60121065 |
Seal, oil |
|
60121035 |
Washer |
|
60121030 |
Washer |
|
60121031 |
Washer |
|
60099743 |
O-ring |
|
60121073 |
Ring, oil seal, piston |
|
60121058 |
Ring, oil seal, piston |
|
60121055 |
O-ring |
|
60121057 |
Ring, oil seal, piston |
|
60099774 |
O-ring, from coil to nut |
