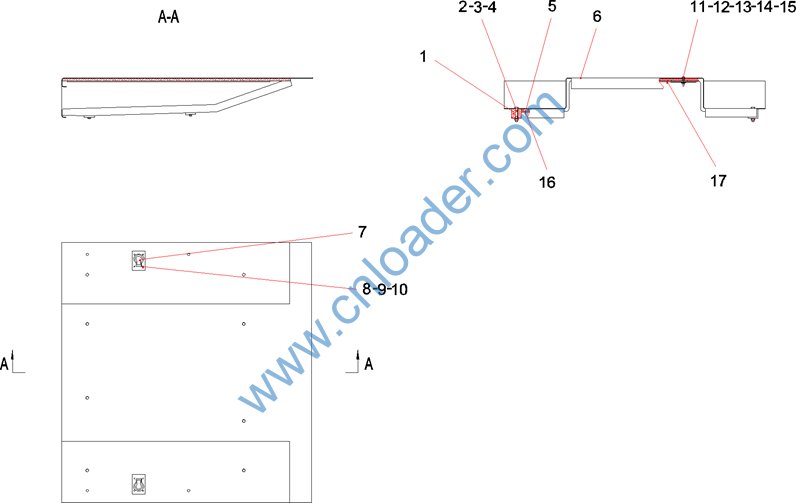

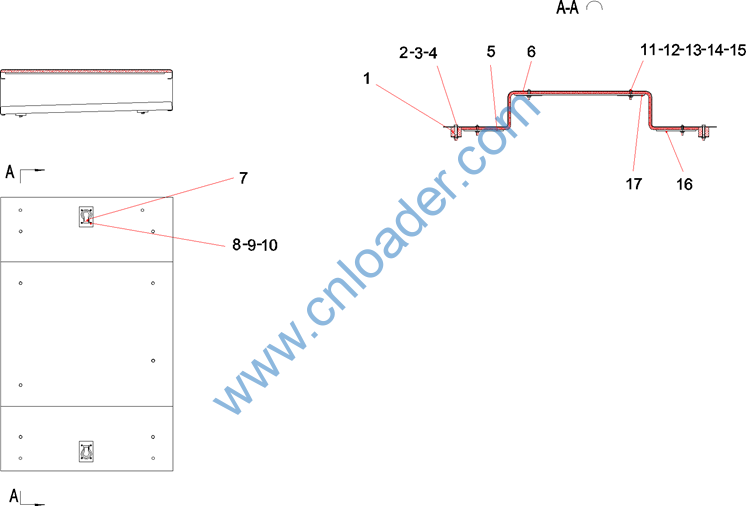

Part No. |
Description |
|
A810502000239 |
Column, elastic |
|
A820301014341 |
Bolt |
|
A210405000001 |
Washer |
|
A210309000016 |
Nut M12GB6172.1 |
|
10936808 |
Sponge, sound-absorbing & heat-insulation |
|
10936711 |
Welding, panel, 3 |
|
A229900003988 |
Buckle, mension, access cover, stainless steel |
|
A210203000039 |
Screw |
|
A210307000014 |
Nut M4GB6170 |
|
A210405000004 |
Washer Flat M4 |
|
A210405000006 |
Washer Flat M6 |
|
A210307000016 |
Nut |
|
A210210000027 |
Screw M6×30GB818 |
|
12014413 |
Gasket |
|
A210404000009 |
Washer |
|
12955289 |
Plate, net |
|
12955290 |
Plate, net |
|

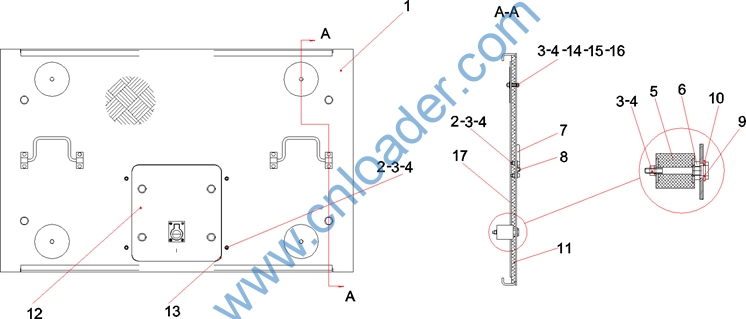

Part No. |
Description |
|
A810502000239 |
Column, elastic |
|
A820301014341 |
Bolt |
|
A210405000001 |
Washer |
|
A210309000016 |
Nut M12GB6172.1 |
|
10935783 |
Sponge, sound-absorbing & heat-insulation |
|
10935781 |
Plate, cover |
|
A229900003988 |
Buckle, mension, access cover, stainless steel |
|
A210203000039 |
Screw |
|
A210307000014 |
Nut M4GB6170 |
|
A210405000004 |
Washer Flat M4 |
|
A210405000006 |
Washer Flat M6 |
|
A210307000016 |
Nut |
|
A210210000027 |
Screw M6×30GB818 |
|
12014413 |
Gasket |
|
A210404000009 |
Washer |
|
12955479 |
Plate, net |
|
12955480 |
Plate, net |
|

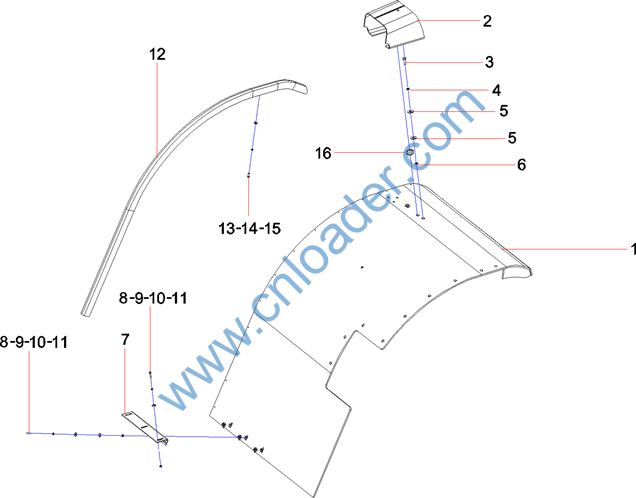

Part No. |
Description |
|
11338700 |
Flap, 5 |
|
A210204000130 |
Screw M6×16GB70.1 |
|
A210405000006 |
Washer Flat M6 |
|
A210307000016 |
Nut |
|
A810502000239 |
Column, elastic |
|
A210309000016 |
Nut M12GB6172.1 |
|
A820301014172 |
Handle |
|
A820101313322 |
Seat, handle |
|
A820301014341 |
Bolt |
|
A210405000001 |
Washer |
|
11338702 |
Sponge, sound-absorbing & heat-insulation |
|
11326045 |
Plate, cover, oil filler |
|
11326040 |
Plate, backup |
|
A210111000081 |
Bolt M6x25 |
|
12014413 |
Gasket |
|
A210404000009 |
Washer |
|
12955148 |
Plate, meshed |
|

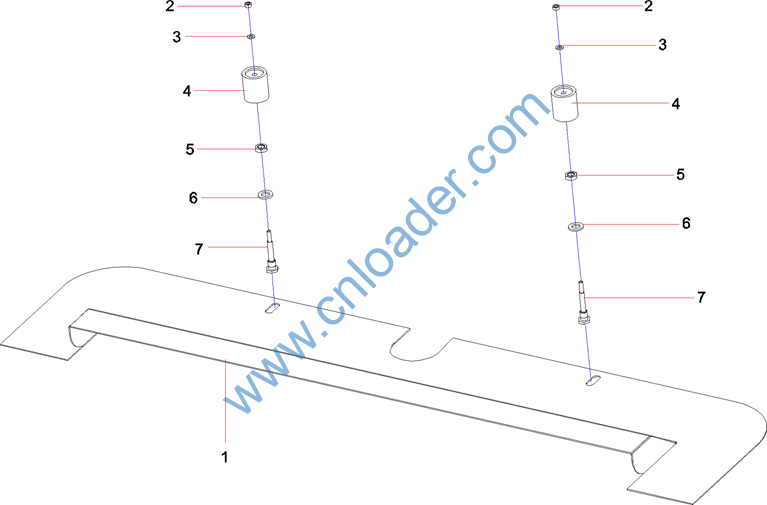

Part No. |
Description |
|
12759699 |
Plate, cover |
|
A210309000016 |
Nut M12GB6172.1 |
|
A210405000006 |
Washer Flat M6 |
|
A810502000239 |
Column, elastic |
|
A210405000001 |
Washer |
|
A210307000016 |
Nut |
|
A820301014341 |
Bolt |
|

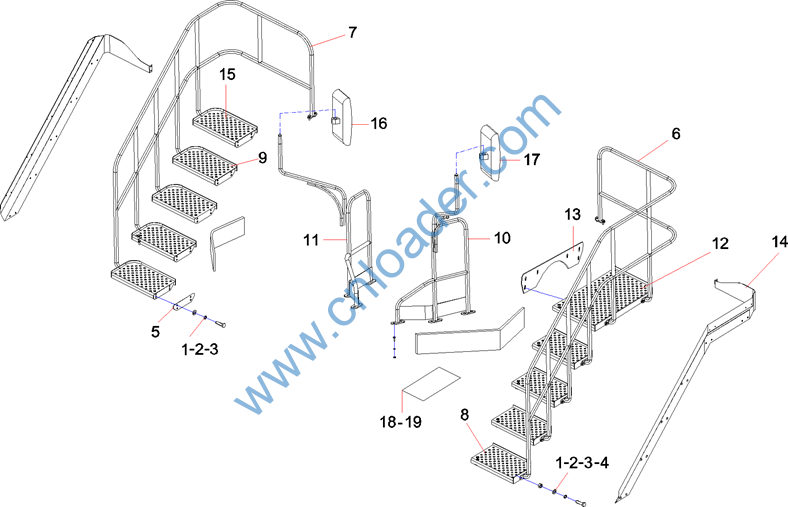

Part No. |
Description |
|
A210111000025 |
Bolt M10x35 |
|
A210401000001 |
Washer Lock M10 |
|
A210405000011 |
Washer Flat M10 |
|
A210307000017 |
Nut |
|
10941204 |
Pad, adjusting |
|
12472844 |
Handrail, rear, left |
|
10939948 |
Handrail, rear, right |
|
10940334 |
Pedal, lef |
|
10940336 |
Pedal, right |
|
13585208 |
Armrest, upper(left) |
|
13585209 |
Armrest, upper(right) |
|
12472494 |
Pedal, left |
|
12647067 |
Pad, adjusting |
|
12570559 |
Assembly, handrail and platform and pedal |
|
13568086 |
Pedal, right |
|
A229900002197 |
Mirror, Hoist |
|
A229900002196 |
Mirror, rearview, left |
|
13713425 |
Dashboard |
|
13713423 |
Dashboard |
|

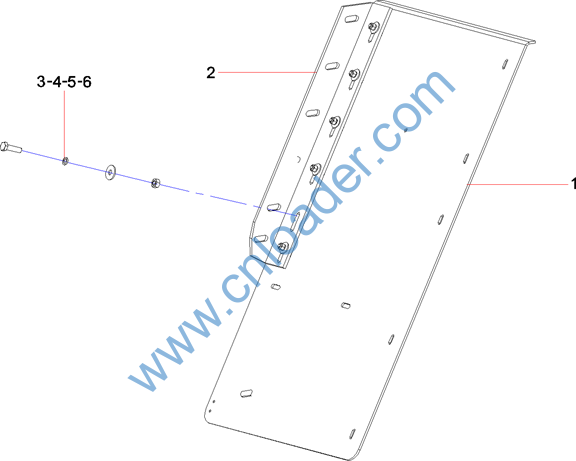

Part No. |
Description |
|
A210111000079 |
Bolt M6×16 |
|
A210401000016 |
Washer Lock M6 |
|
A210405000006 |
Washer Flat M6 |
|
A210307000016 |
Nut |
|
13568302 |
Baffler, right, handrail |
|
13568305 |
Baffler, left, handrail |
|
Part No. |
Description |
|
12008185 |
Plate |
|
10347359 |
Seat, mounting |
|
A210111000040 |
Bolt M12x40 |
|
A210401000002 |
Washer |
|
A210404000004 |
Washer Flat M12 |
|
A210307000001 |
Nut |
