Body,container reach stacker,RSC45C2 SANY SVD








Part No.

Description

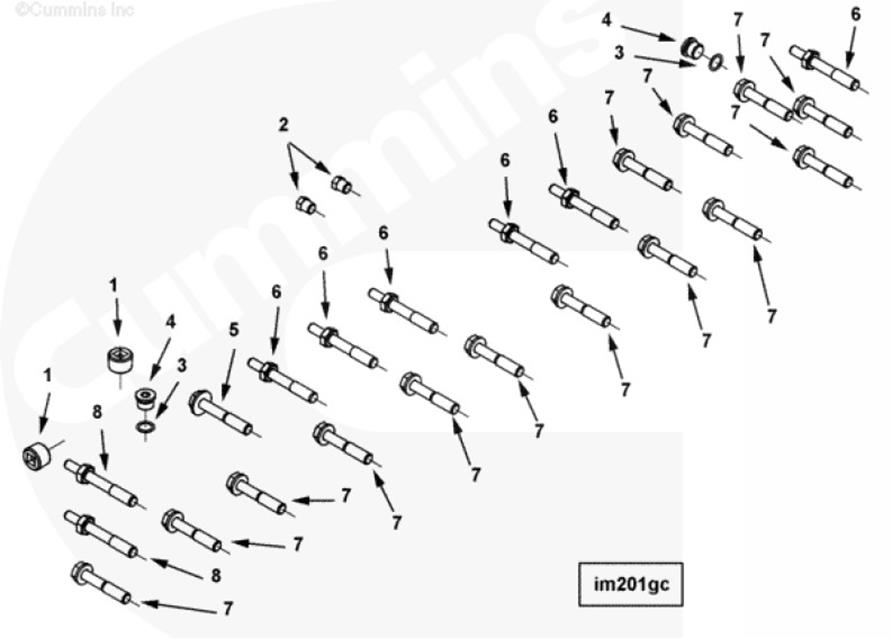

60138498

Tube plug

60138503

Tube plug

60140216

O-seal ring

60139543

Plug, screw

60139280

Screw Captive Washer Cap

60139283

Screw Captive Washer Cap

60139284

Screw Captive Washer Cap

60139506

Bolt








Part No.

Description

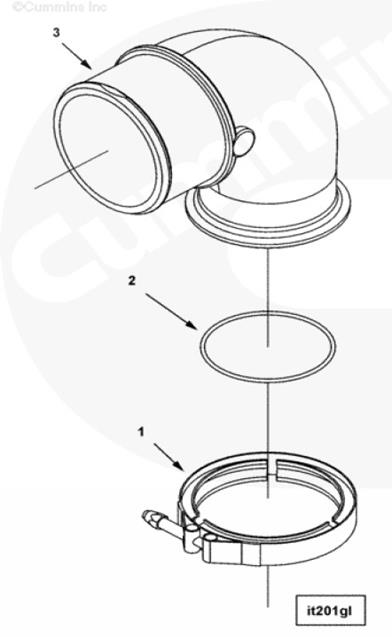

60140343

V-Hoop

60140233

O-seal ring

60139443

Connection Air Transfer












Part No.

Description

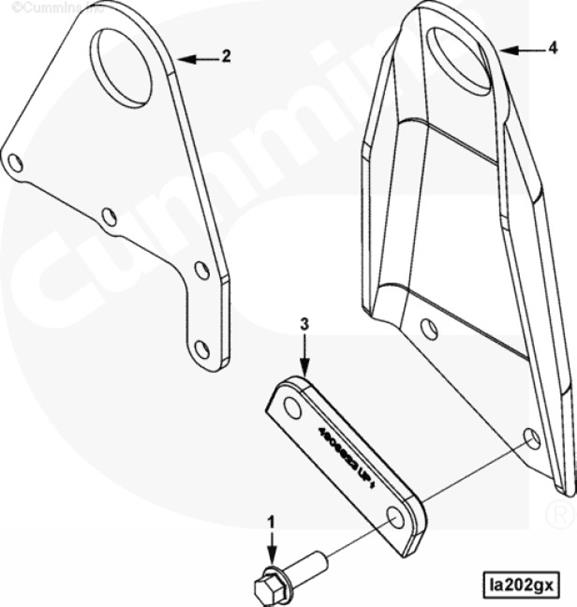

60139899

Screw Hex Flange Head Cap

60139785

Bracket Lifting

60138522

Plate Clamping

60139786

Bracket Lifting










Part No.

Description

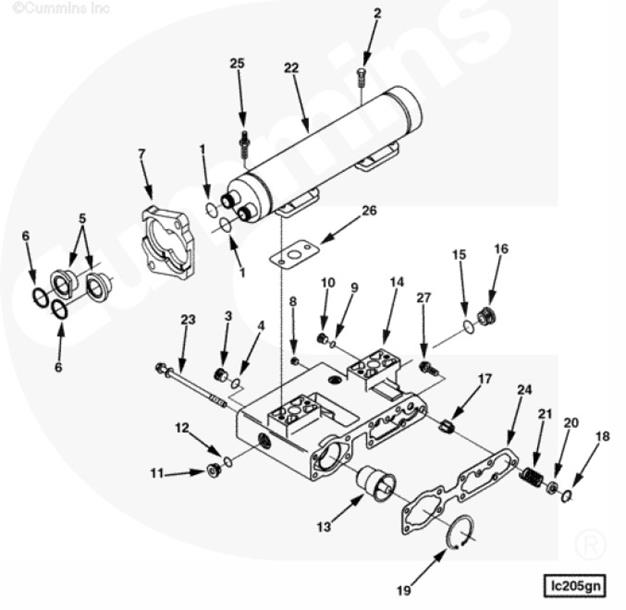

60140206

O-seal ring

60139486

Bolt

60139542

Plug, screw

60140218

O-seal ring

60140402

Adapter O Ring

60140266

Seal, rectangular

60139471

Retainer, connection

60138497

Tube plug

60140216

O-seal ring

60139543

Plug, screw

60139545

Plug, screw

60140217

O-seal ring

60139385

Thermostat

60138888

Head, filter, oil, lube

60140219

O-seal ring

60139547

Plug, screw

60139157

Plunger Bypass Valve

60139008

Ring, retainer

60139009

Ring, retainer

60139757

Plug, Expansion

60140058

Spring Compression

60140112

Cooler Oil












Part No.

Description

60139904

Screw Hex Flange Head Cap

60139509

Cleaner seat Packing

60139503

Bolt

60139457

Gasket, support, cooler, Oil

60139910

Screw Hex Flange Head Cap








Part No.

Description

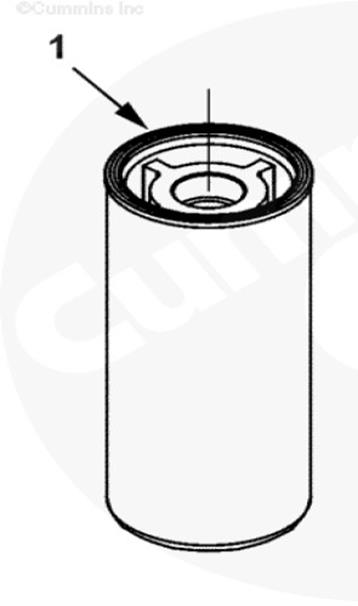

B222100000595

Filter, engine oil












Part No.

Description

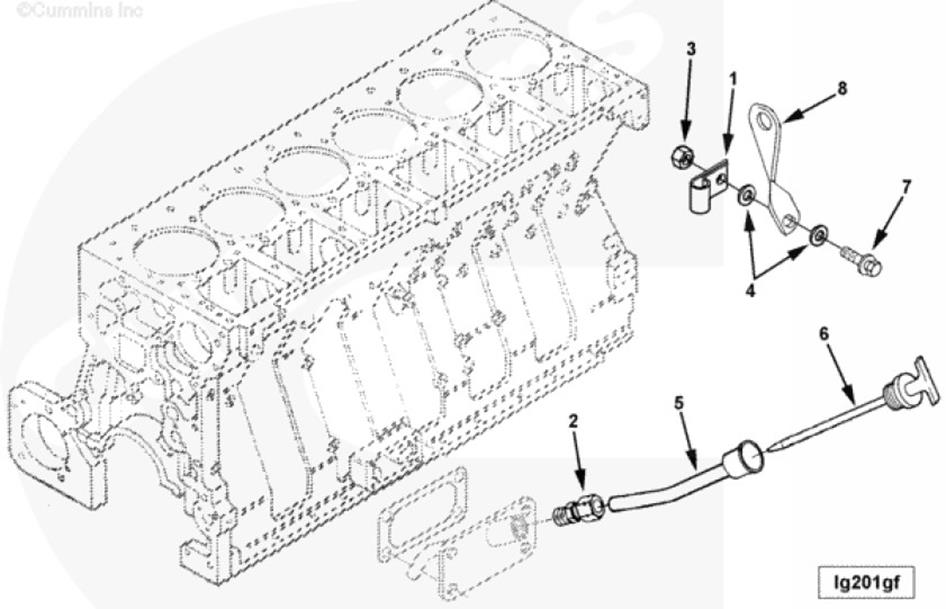

60139364

Clip

60139299

Connector Tube

60140148

Nut

60139771

Gasket, flat

60140446

Tube Oil Gauge

60140449

Engine Oil Dipstick

60139279

Screw Captive Washer Cap

60139288

Brace Tube
