Body,container reach stacker,RSC45C2 SANY DVF

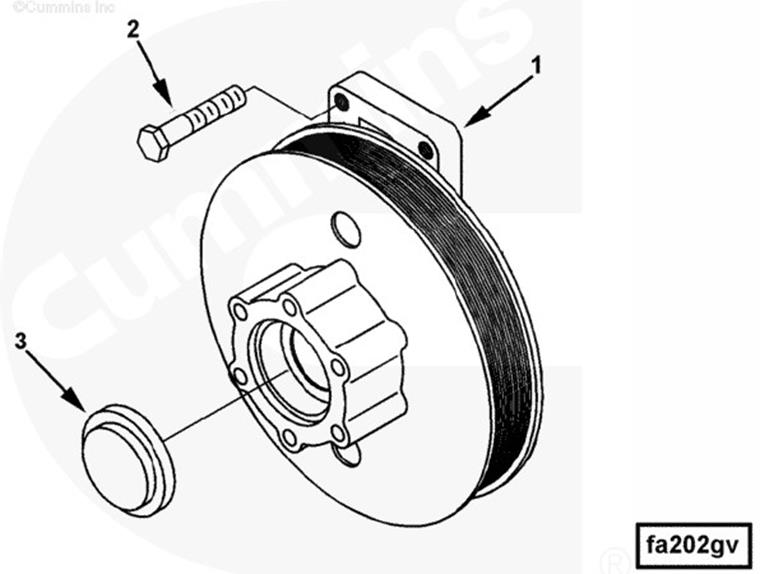

Part No.

Description

60139202

Hub Fan

60139494

Bolt

60140404

Adapter Pilot

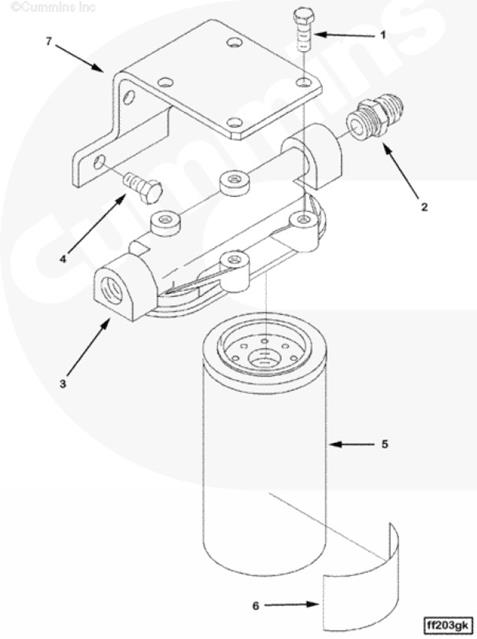

Part No.

Description

60139508

Bolt

60140007

Connector, screw, outer

60138885

Head, filter, fuel

60139277

Screw Captive Washer Cap

B222100000596

Filter, diesel

60140350

Label

60139310

Bracket Filter

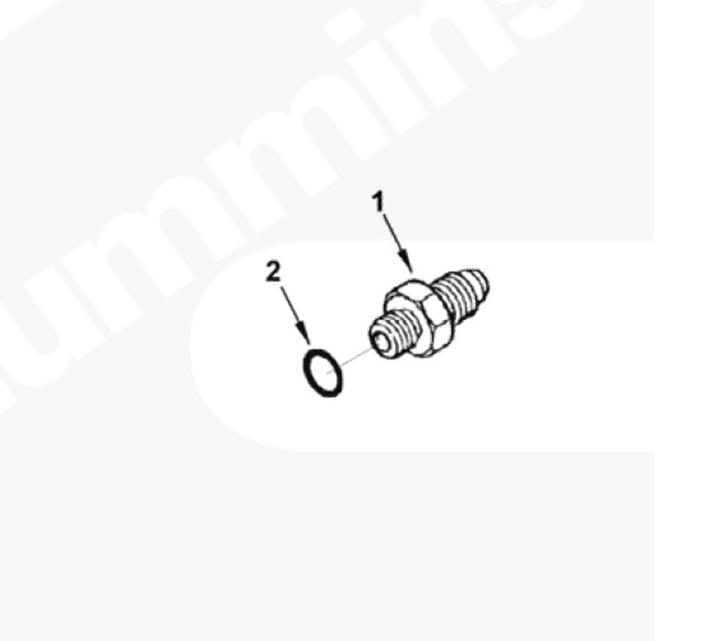

Part No.

Description

60140004

Connector, screw, outer

60140217

O-seal ring

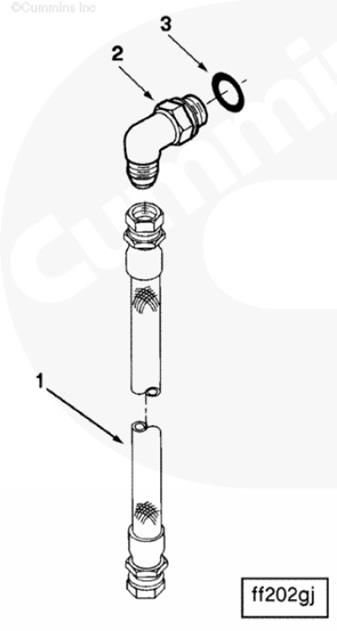

Part No.

Description

60140313

Hose

60140007

Connector, screw, outer

60140217

O-seal ring

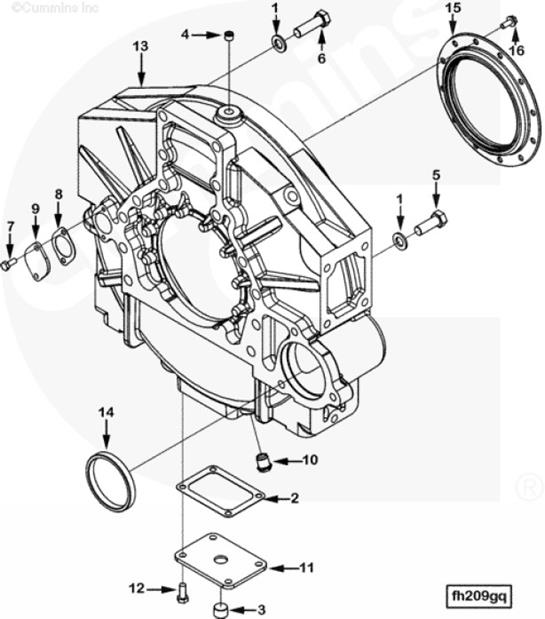

Part No.

Description

60139766

Gasket, flat

60139092

Gasket

60138499

Tube plug

60138501

Tube plug

60139482

Bolt

60139484

Bolt

60139485

Bolt

60139246

Gasket, plate, cover

60138577

Cover Access Hole

60139551

Plug, screw

60139236

Cover Plate

60139499

Bolt

60139190

Housing, flywheel

60140454

Socket

60140118

Seal, Oil

60139918

Screw Hex Flange Head Cap










Part No.

Description

60140261

Seal, rectangular

60140263

Seal, rectangular

60140085

Body Fuel Pump Damper

60138690

Cover Fuel Pump Damper

60139768

Gasket, flat

60138691

Diaphragm Fuel Pump Damper

60139274

Screw Captive Washer Cap

60139781

Gasket, flat

60140264

Seal, rectangular

60139955

Screw Socket Head Cap

60139945

Washer, locking

60139869

Screw, drive

60140060

Spring, Compression

60139954

Screw Socket Head Cap

60139716

Nameplate

60139813

Spring Valve

60138718

Shield Shutoff Valve

60140262

Seal, rectangular

60138859

Screen, filter

60138726

Disc Valve

60138896

Cap Fuel Pump Filter

60140209

O-seal ring

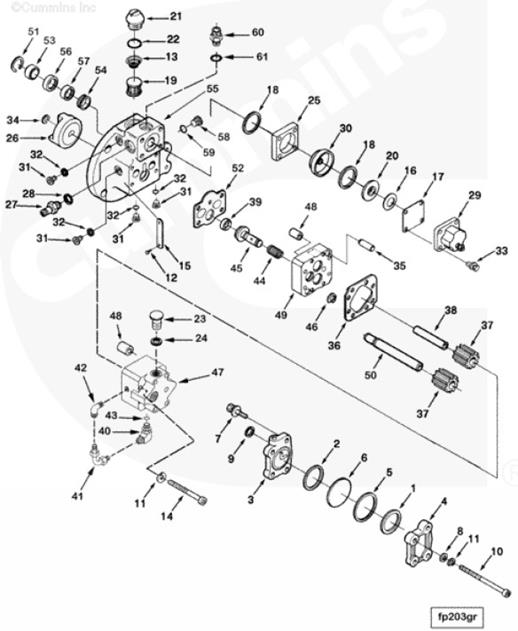

Part No.

Description

60139552

Plug, screw

60140213

O-seal ring

60140164

Housing, actuator

60138953

Hub Jaw Coupling

60139469

Nipple Coupling

60140216

O-seal ring

60138915

Solenoid

60138922

Disc Actuator

60139549

Plug, screw

60140220

O-seal ring

60139275

Screw Captive Washer Cap

60139003

Ring, retainer

60140047

Dowel Pin

60140081

Gasket, pump, fuel

60138845

Gear, huel Pumping

60140092

Shaft Fuel Pump

60138517

Dowel Ring

60138731

Valve Check

60139735

Tube Fuel Drain

60140436

Elbow Male Adapter

60140213

O-seal ring

60140059

Spring Compression
