零件代码 PART NUMBER |
名称 PART NAME |
|
|

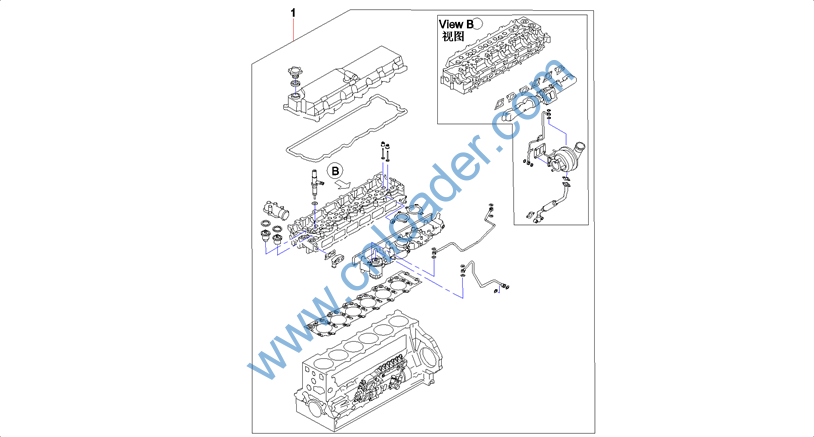

60046506 |
发动机垫圈包 |
Kit, Gasket (Engine) |
|
60046516 |
气缸盖罩 |
Cover GP, Valve Mechanism |
|
60046515 |
气缸盖 |
Cylinder Head AS |
|
60046508 |
缸体 |
Cylinder Block |
|
60046520 |
油底壳和机油尺 |
Oil Pan & Lever Gauge(Engine) |
|
60046519 |
凸轮轴与气门 |
Camshaft & Valve Mechanism |
|
60046517 |
曲柄连杆机构及飞轮 |
Crank Connecting Rod & Flywheel |
|
60046521 |
正时齿轮箱和飞轮壳 |
Timing gearbox and flywheel |
|
60046512 |
进气歧管 |
Manifold GP, Air Inlet |
|
60046514 |
排气歧管 |
Manifold GP, Exhaust |
|
60046497 |
呼吸系统 |
Breathing System |
|
60046502 |
水泵 |
Pump, Water |
|
60046511 |
节温器及节温器室 |
Thermostat & Housing |
|
60046507 |
发动机水管 |
Hose, Water (Engine) |
|
60046522 |
风扇及皮带 |
Fan & Belt, Fan |
|
60046500 |
涡轮增压器 |
Turbocharger |
|
60046498 |
喷油系统 |
Fuel Injection System |
|
60046501 |
燃油泵和管 |
Pump & Tube, Fuel Injection |
|
60046503 |
机油冷却器和机滤 |
Cooler & Filter, Oil |
|
60046509 |
机油泵和机油滤网 |
Oil Pump & Strainer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60046510 |
机油管 |
Lines GP, Engine Oil |
|
60046496 |
电器控制部件 |
Parts, Electric Control |
|
60046524 |
蓄电池和电缆 |
Battery & Cable |
|
60046513 |
耦合装置和喷射器 |
Coupling Equipment & Injector |
|
60046525 |
油门踏板和控制器 |
Throttle Pedal & Controller |
|
60046523 |
仪表板开关及其他零部件 |
Gauge Panel Switches & Other |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
B229900004647 |
垫圈修理包 Kit, Maintenance (Gasket) |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
B229900003257 |
发动机修理包 Kit, Maintenance (Engine) |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

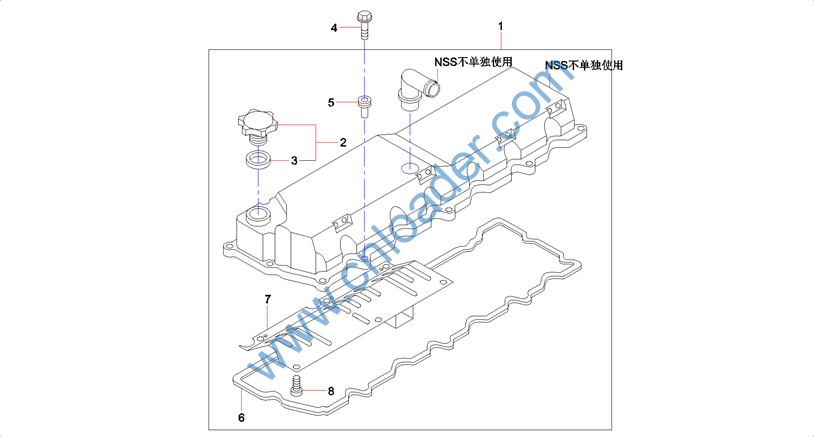

B229900004397 |
气门室盖总成 |
Cover GP, Valve Mechanism |
|
B229900005123 |
机油盖 |
Cap AS, Engine Oil Filler |
|
B229900005124 |
机油盖垫 |
Gasket, Oil Filler Cap |
|
B229900004899 |
螺栓 M8×35凸缘 |
Bolt |
|
B229900004434 |
橡胶 |
Sleeve, Spacer |
|
B229900004560 |
垫片 |
Gasket |
|
B229900004192 |
板 |
Plate |
|
60008997 |
螺钉 |
Bolt |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

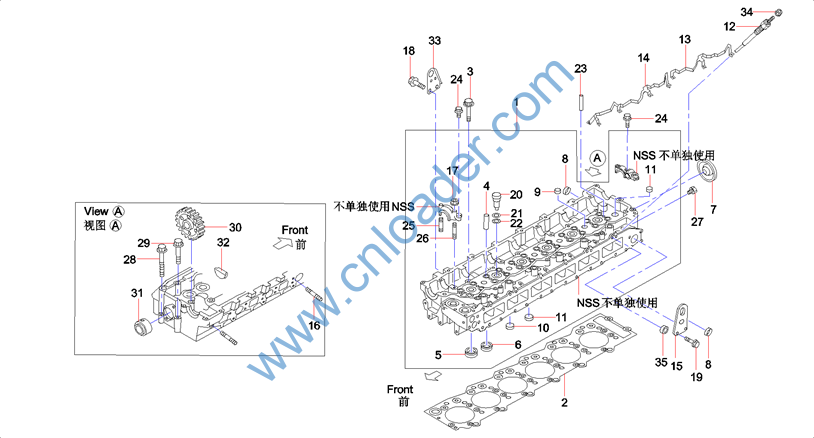

B229900004265 |
缸盖总成 |
Cylinder Head AS |
|
B229900003270 |
气缸垫 |
Gasket |
|
B229900004948 |
螺栓 M14×115凸缘 |
Bolt |
|
B229900005043 |
气门导管 |
Guide, Inlet |
|
B229900004351 |
进气门座 |
Seat, Inlet |
|
B229900004388 |
排气门座 |
Seat, Exhaust |
|
B229900004227 |
堵盖 |
Plug, Cup |
|
B229900004651 |
堵塞 |
Plug, Cup |
|
B229900004652 |
堵塞 |
Plug |
|
B229900004655 |
堵塞 |
Plug, Cup |
|
B229900004662 |
堵塞 |
Plug |
|
B229900004449 |
预热塞 |
Plug, Preheat |
|
B229900004451 |
预热塞连片 |
Gasket, Heat Conducting |
|
B229900004452 |
预热塞连片 |
Gasket, Heat Conducting |
|
B229900004314 |
后吊耳 |
Hook |
|
B229900005013 |
螺柱 |
Stud |
|
B229900004802 |
螺母 |
Nut |
|
60008998 |
螺栓 |
Bolt |
|
B229900004896 |
螺栓 M10×22凸缘 |
Bolt |
|
B229900005028 |
喷油嘴 |
Nozzle |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900005030 |
喷油嘴垫片 |
Washer |
|
B229900005029 |
喷油嘴垫片 |
Washer |
|
B229900004208 |
导向杆 |
Rod |
|
B229900004854 |
螺栓 M8×35凸缘 |
Bolt |
|
60009002 |
螺柱 |
Stud |
|
60009003 |
螺柱 |
Stud |
|
60008996 |
堵塞 |
Plug |
|
60009000 |
螺栓 |
Bolt |
|
60009001 |
螺栓 |
Bolt |
|
B221801000041 |
惰齿轮 |
Gear, Idler |
|
B229900004231 |
惰轮轴 |
Shaft, Idler Gear |
|
B229900004490 |
插销 |
Dowel |
|
B229900004398 |
前吊耳 |
Hook |
|
B229900004816 |
螺母 M4凸缘 |
Nut |
|
B229900004538 |
垫片 |
Shim |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

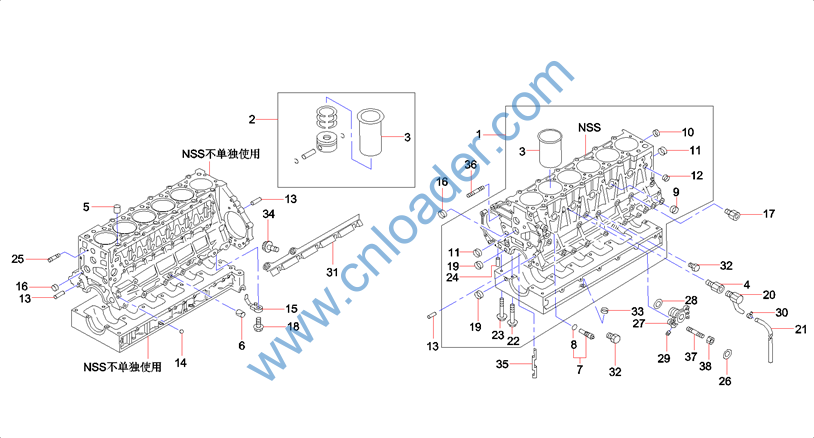

B229900005039 |
气缸体总成 |
Cylinder Block GP |
|
B229900003273 |
气缸套组件 1级 四配套 |
Kits, Piston & Rod |
|
B229900003271 |
气缸套1级 |
Liner, Cylinder (Grade 1) |
|
B229900004722 |
过渡接头 |
Connector |
|
B229900005059 |
销 |
Dowel |
|
B229900005060 |
销 |
Dowel |
|
B220401001134 |
阀 |
Valve |
|
B229900004547 |
垫片 |
Shim |
|
B229900004650 |
堵塞 |
Plug |
|
B229900004657 |
堵塞 |
Plug, Cup |
|
B229900004659 |
堵塞 |
Plug, Cup |
|
B229900004652 |
堵塞 |
Plug |
|
B229900005061 |
销 |
Dowel |
|
B229900004661 |
堵塞 |
Plug |
|
B229900004360 |
冷却喷头 |
Nozzle, Cooling |
|
B229900004663 |
堵塞 |
Plug, Cup |
|
B229900004723 |
过渡接头 |
Connector |
|
B220401001135 |
阀 |
Valve |
|
B229900004493 |
衬套 |
Sleeve |
|
B220400000444 |
放水阀 |
Valve |
