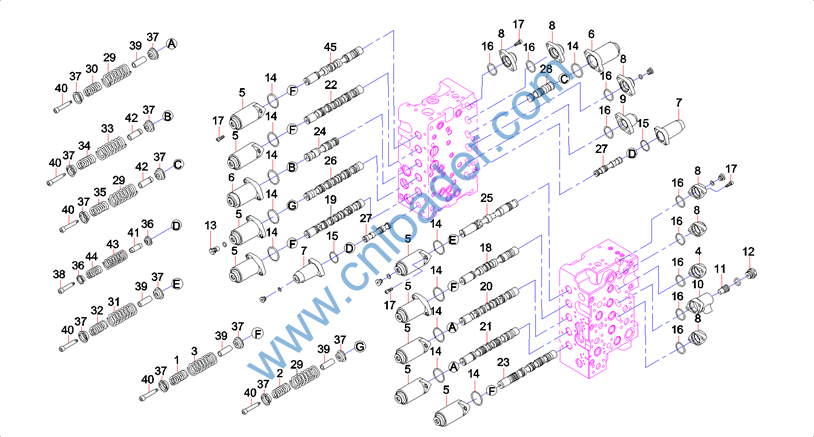

SY335C9I2KH hydraulic excavator SANY HTN





零件代码 PART NUMBER

名称 PART NAME

60150693

弹簧

Spring

60008770

弹簧

Spring

60081441

弹簧

Spring

60150678

Cover Spool

60100505

弹簧盖

Cover, spring

60100506

弹簧盖

Cover, spring

60100507

弹簧盖

Cover, spring

60008789

Cover

60008790

Cover

60100469

Cover

60100509

活塞

Piston

60100468

Plug

60100466

Plug

60100514

O形圈

O-ring

60008821

O形圈

O-ring

60050051

O形圈

O-ring

60008721

内六角螺钉

Bolt

60150691

左行走阀芯

Sub-Ass’Y Travel Spool

60150682

斗杆阀芯

Sub-Ass’Y Arm1 Spool

60150680

动臂阀芯

Sub-Ass’Y Boom1 Spool










零件代码 PART NUMBER

名称 PART NAME

60221775

铲斗阀芯

Spool bucket

60150685

回转阀芯

Spool Swing

60150683

斗杆阀芯

Spool Arm2

60150681

动臂阀芯

Spool Boom2

60150689

直线行走阀芯

Sub-Ass’Y Straight Travel Spool

60100473

备用阀芯

Spool, service valve

60150687

液压切断阀

Spool Bypass-Cut

60150686

回转优先阀

Spool Swing Priority

60008769

弹簧

Spring

60081442

弹簧

Spring

60100502

弹簧

Spring

60100503

弹簧

Spring

60008771

弹簧

Spring

60150692

弹簧

Spring

60039319

弹簧

Spring

60008825

Seat

60008823

Seat

60038528

螺栓

Bolt

60008818

挡圈

Ring, retaining

60008819

螺柱

Stud






60100508

挡圈

Ring, retaining

60008801

挡圈

Ring, retaining

60150695

弹簧

Spring

60150694

弹簧

Spring

60150688

右行走阀芯

Spool Travel










零件代码 PART NUMBER

名称 PART NAME

60008711

Plug

60100489

节流阀

Valve, throttle

60008713

Plug

60100465

Plug

60008717

螺栓

Bolt

60008697

O形圈

O-ring

60008722

铆钉

Rivet

60008700

O形圈

O-ring

60100511

铭牌

Nameplate

60100516

O形圈

O-ring

60008781

法兰

Flange

60100494

逻辑阀

Bolt

60221776

逻辑阀

Assy logic poppet

60100484

斗杆再生阀

Valve, arm regeneration

60008783

单向阀

Valve, check

60008817

弹簧

Spring

60100491

节流阀

Valve, throttle

60008705

O形圈

O-ring










零件代码 PART NUMBER

名称 PART NAME

60100467

Plug

60008712

Plug

60100492

节流阀

Valve, throttle

60008728

紧定螺钉

Setscrew

60008820

Plug

60150690

主溢流阀

Ass’Y Main Relief Valve

60105087

BP阀芯

Spool,BP valve

60008696

O形圈

O-ring

60008708

O形圈

O-ring

60105086

BP阀体

Body,BP valve

60100493

控制阀组件

Valve GP, control

60038108

提升阀

Valve, lift

60008784

单向阀

Valve, check

60100475

单向阀

Valve, check

60008703

O形圈

O-ring

60100504

弹簧

Spring

60008765

弹簧

Spring

60075545

Ball

60075575

节流阀

Valve, throttle

60075592

弹簧

Spring










零件代码 PART NUMBER

名称 PART NAME

60008714

Plug

60008715

Plug

60008779

Plug

60038656

油塞

Plug, oil

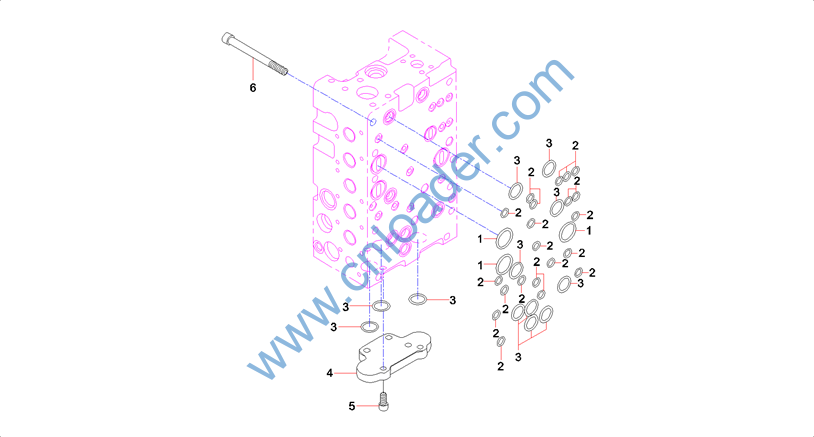

零件代码 PART NUMBER

名称 PART NAME

60100517

O形圈

O-ring

60100515

O形圈

O-ring

60100513

O形圈

O-ring

60100470

Cover

60100512

内六角螺钉

Bolt

60100510

螺栓

Bolt

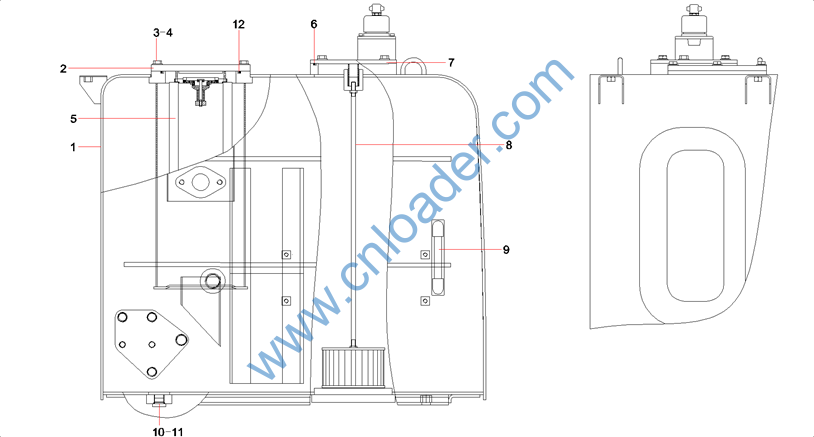

零件代码 PART NUMBER

名称 PART NAME

12681858

油箱组焊件

Hydraulic oil tank

12731156

回油盖

Oil return

A210111000101

螺栓M12×25GB5783 10.9级

Bolt M12×25GB5783 10.9 grade

A210405000001

垫圈

Washer 12GB97.1

60200365

回油过滤器

Filter, return oil

B230101000588

O形圈

O-ring

12731158

吸油盖

Suction

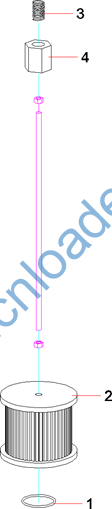

60101257

吸油滤芯总成

Core GP, filter, oil intake

A250100000174

液位计

Gauge, fluid level

B230101000356

O形圈

O-ring

10514225

堵头

Plug

60112246

O形圈

O-ring
