零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820606030361 |
护套 |
Sheath |
|
A239900000066 |
尼龙扎带 |
Strap, nylon (black) |
|
60052677 |
螺栓 |
Bolt |
|
变更或见其他配置 |
螺栓 |
Bolt |
|
变更或见其他配置 |
垫圈 |
Washer 18(GB1230) |
|
A820101116020 |
马达盖板 |
Coverplate, motor |
|
变更或见其他配置 |
减速机总成 |
Reducer GP |
|
变更或见其他配置 |
履带总成 |
Track AS |
|
A820403000736 |
驱动轮 |
Sprocket |
|
变更或见其他配置 |
护板 |
Board, guard |
|
变更或见其他配置 |
支重轮总成 |
Roller AS, track |
|
变更或见其他配置 |
螺栓M20×50GB5783 10.9级 |
Bolt M20×50GB5783 10.9 |
|

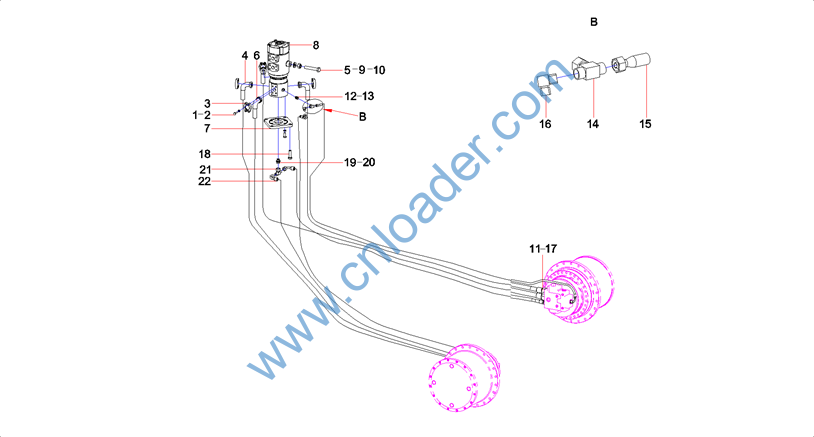

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210204000354 |
螺钉 M10×30GB70.1 10.9级 |
Screw M10×30GB70.1 10.9 |
|
A210433000016 |
垫圈 |
Washer |
|
B210780000244 |
对开法兰 |
Flange, split |
|
B230103002701 |
胶管 |
Hose |
|
A210307000029 |
螺母M20GB6170 10级 |
Nut M20GB6170 10 |
|
变更或见其他配置 |
胶管 |
Hose |
|
A820101212141 |
过渡板 |
Plate, transition |
|
A229900001758 |
回转接头 |
Joint, swivel |
|
A210110000233 |
螺栓 M20×110GB5782 10.9级 |
Bolt M20×110GB5782 10.9 |
|
变更或见其他配置 |
垫圈 |
Washer 20GB1230 |
|
A820205000834 |
G1-M36接头 |
Connector |
|
A820205000843 |
接头 |
Connector |
|
B230101000090 |
O形圈 |
O-ring 17.8×2.4JISB2401 |
|
B210780000413 |
管接头 |
Connector, pipe |
|
B230103002473 |
胶管 |
Hose |
|
B210780000418 |
管接头 |
Connector, pipe |
|
B230101000050 |
O形圈 |
O-ring 28.7×3.5JISB2401 |
|
变更或见其他配置 |
螺栓M16×35GB5783 10.9级 |
Bolt M16×35GB5783 10.9 |
|
A820205000844 |
接头 |
Connector |
|
B230101000047 |
O形圈 |
O-ring |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
B210780000172 |
管接头 Connector, pipe |
|
B230103000284 |
胶管 Hose, rubber |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

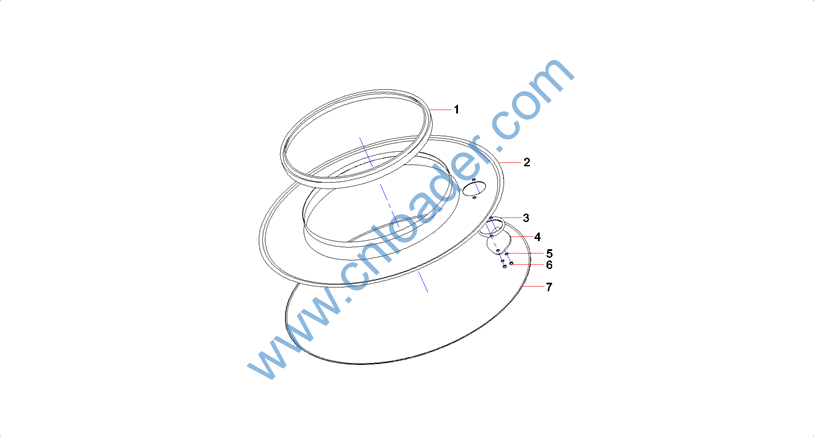

10218932 |
上密封圈 |
Ring, sealing |
|
10398084 |
护圈 |
Ring, protective |
|
A820606020170 |
胶垫 |
Block, rubber |
|
A820101210192 |
密封板 |
Plate, sealing |
|
A210405000011 |
垫圈 |
Washer 10GB97.1 |
|
A210307000017 |
螺母 |
Nut M10GB6170 |
|
A820606020169 |
下密封圈 |
Ring, sealing |
|

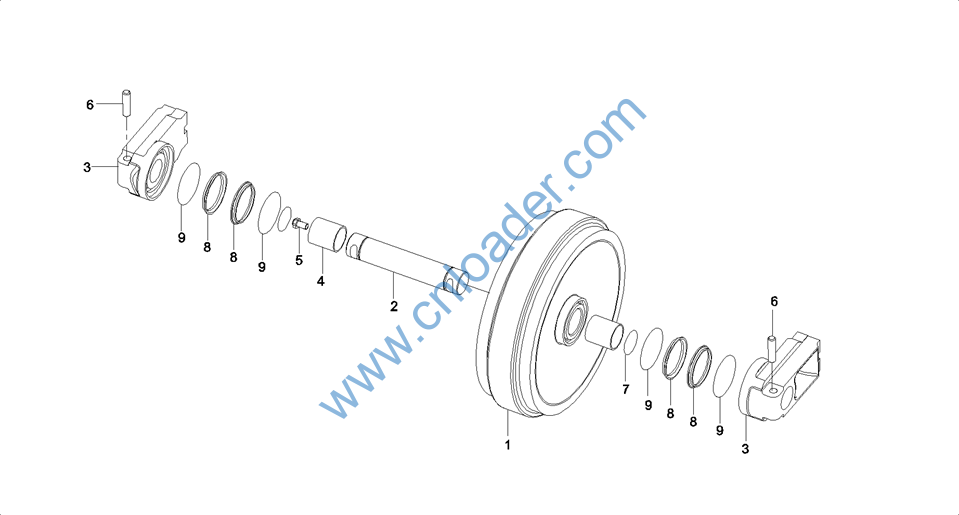

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60047974 |
引导轮 |
Wheel, idler |
|
60047975 |
引导轮轴 |
Body, idler wheel |
|
60047978 |
支座 |
Support |
|
60047982 |
轴套 |
Sleeve, shaft |
|
60047967 |
螺塞 |
Plug, screw |
|
60047972 |
销 |
Pin |
|
60047987 |
O形圈 |
O-ring |
|
60047993 |
浮动油封 |
Seal, oil |
|
60047986 |
O形圈 |
O-ring |
|

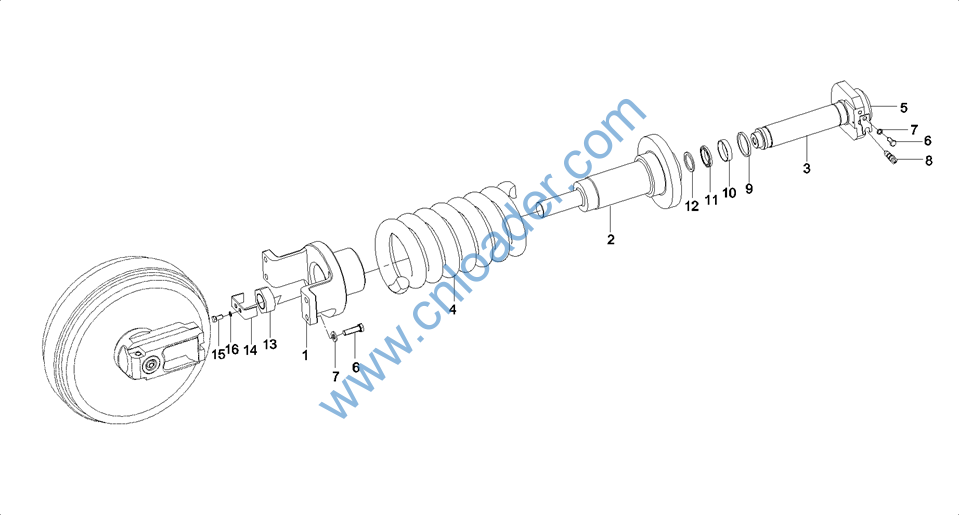

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60047943 |
叉环 |
Mount, connecting |
|
60047976 |
油缸 |
Cylinder |
|
60047981 |
轴 |
Shaft |
|
60047952 |
弹簧 |
Spring |
|
A820101010372 |
支板 |
Plate, support |
|
A210111000054 |
螺栓M16×55GB5783 10.9级 |
Bolt M16×55GB5783 10.9 |
|
A210491000118 |
垫圈 |
Washer 16GB1230 |
|
B229900000862 |
黄油阀 |
Valve, grease |
|
60047992 |
防尘圈 |
Ring, dust |
|
60047946 |
磨损修正圈 |
Ring, wear correction |
|
60047995 |
密封圈 |
Ring, sealing |
|
60047955 |
挡圈 |
Ring, retaining |
|
60047966 |
螺母 |
Nut |
|
60047950 |
锁片 |
Plate, lock |
|
A210110000162 |
螺栓 |
Bolt |
|
10132662 |
垫圈 |
Washer |
|

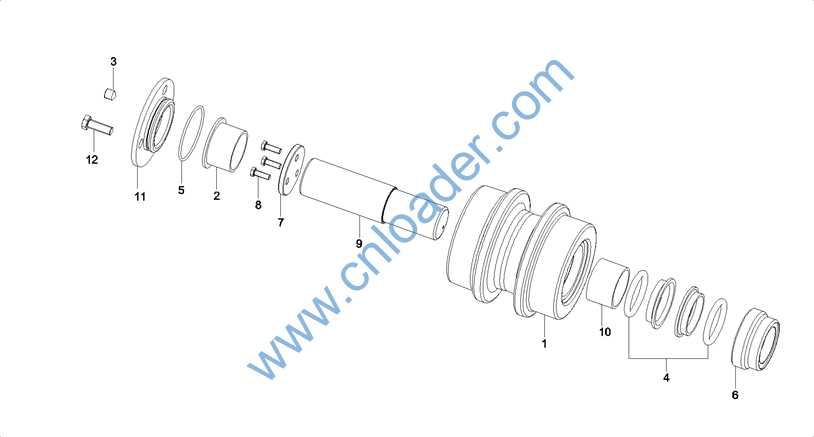

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11908442 |
轮体 |
Body, wheel |
|
60028677 |
带法兰轴套 |
Sleeve,shaft,with flange |
|
60027515 |
闷头螺塞 |
Plug, screw |
|
60028679 |
浮动密封 |
Seal，floating |
|
A210608000089 |
O形圈 |
O-ring 74.4×3.1JISB2401 |
|
11029450 |
浮封座 |
Carrier，seal，floating |
|
12168574 |
垫片 |
Gasket |
|
A210111000012 |
螺栓 M10×20GB5783 10.9级 |
Bolt M10×20GB5783 10.9 |
|
11908438 |
轴 |
shaft |
|
60028678 |
直壁型轴套 |
Bush,straight-wall |
|
11908439 |
侧盖 |
Cover, side |
|
A210111000024 |
螺栓 |
Bolt M10×30GB5783 10.9 |
|

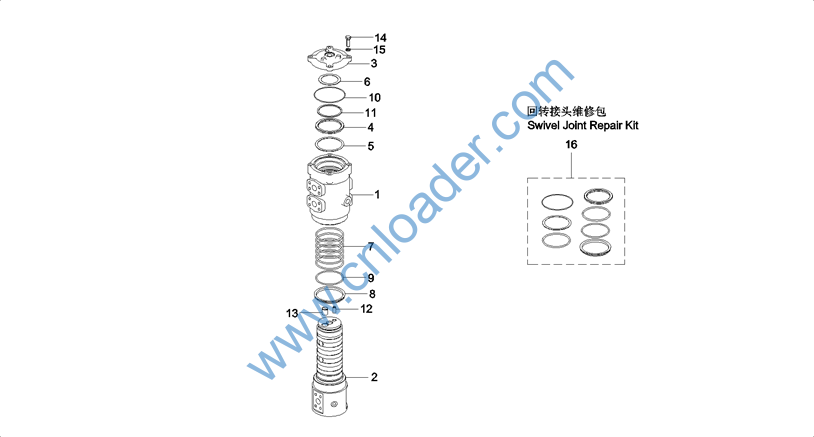

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008458 |
回转体 |
Body, swivel joint |
|
60008618 |
回转轴 |
Shaft, swivel joint |
|
60008457 |
盖 |
Cover |
|
60008619 |
隔套 |
Sleeve, spacer |
|
60008620 |
垫片 |
Shim |
|
60008621 |
垫片 |
Shim |
|
60008829 |
旋转密封 |
Seal, rotary |
|
60008830 |
防尘圈 |
Ring, dust |
|
60008687 |
O形圈 |
O-ring |
|
60008688 |
O形圈 |
O-ring |
|
60008831 |
挡圈 |
Ring, retaining |
|
A880801040009 |
螺堵 |
Plug |
|
60008887 |
螺堵 |
Plug |
|
A210110000188 |
螺栓 |
Bolt |
|
A210401000023 |
垫圈 |
Washer 12GB93 |
|
A260409000416 |
回转接头维修包 |
Repair kit,slewing connector |
