Body,container reach stacker, SRSC45H1 FNY



Item No.

Part No.

Description

Qty.

1

60099514

Cover, Permanent Pump Adapter

4

2

60099592

Gasket

4

3

60099701

Washer, Lock

4

4

60099593

Screw

4

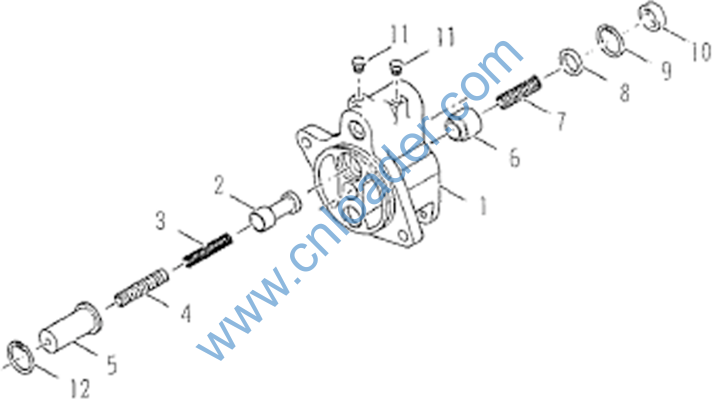

1

60099517

Body, pressure regulating valve

1

2

60099518

Core, Pressure Regulating Valve

1

3

60099609

Spring

1

4

60099610

Spring

1

5

60099608

Sleeve

1

6

60099568

Piston, safety valve

1

7

60099569

Spring

1

8

60099570

Seat

1

9

60099643

Ring, Snap

1

10

60099756

Seal

1

11

60099509

Plug

2

12

60099616

Ring, Snap

1






















Item No.

Part No.

Description

Qty.

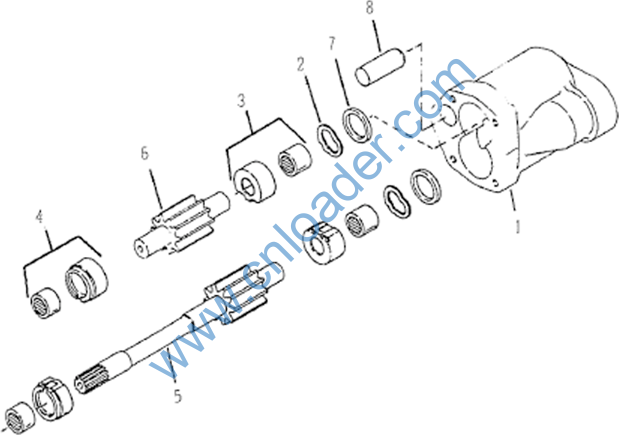

1

60099513

Body, pump

1

2

60099505

Spring, Disc

2

3

60099554

Thrust Plate and Bearing Assembly

2

4

60099553

Thrust Plate and Bearing Assembly

2

5

60099581

Axle Assembly, Drive, Pump

1

6

60099573

Shaft Assembly, Driven, Pump

1

7

60099757

Seal, Pump Shaft

2

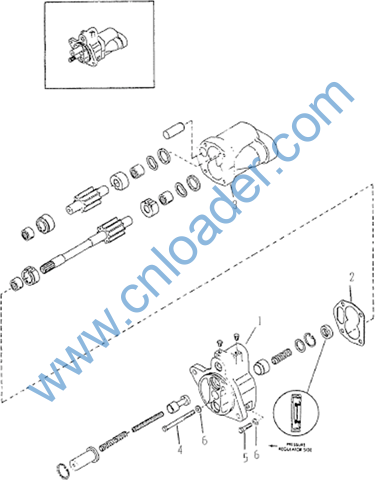

Item No.

Part No.

Description

Qty.

1

60099530

Assembly, pressure adjusting valve

1

2

60099590

Gasket

1

3

60099516

Assembly, auxiliary pump

1

4

60099614

Screw

2

5

60099674

Screw, flat head

2

6

60099699

Washer, Lock

3

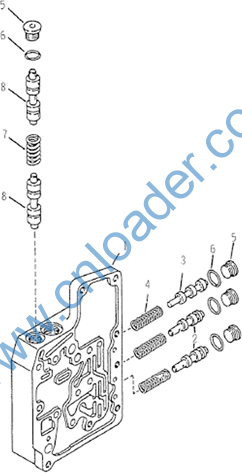

Item No.

Part No.

Description

Qty.

1

60099646

Shell, control valve

1

2

60099525

Core, valve, speed stage

2

3

60099526

Core, valve, speed stage

1

4

60099696

Spring, valve core, speed stage

3

5

60099495

Plug, Pipe

4

6

60099752

O-ring

4

7

60099623

Spring, Steering Valve Core

1

8

60099522

Core, Steering Valve

2

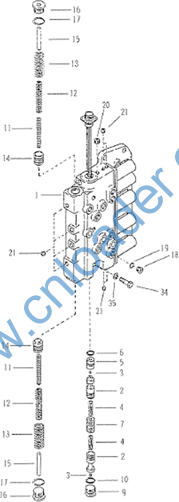

Item No.

Part No.

Description

Qty.

1

60099523

Cover, control valve

1

2

60099519

Assembly, pressure regulating valve core

2

3

60099714

Ball, stop, pressure plate

2

4

60121020

Spring

2

5

60099520

Block, brake, pressure regulating valve

1

6

60099761

O-ring, brake block, pressure regulating valve

1

7

60099521

Block, brake, pressure regulating valve

1

8

60099612

Pin, cylindrical, pressure regulating valve

1

9

60099495

Plug, Pipe

2

10

60099752

O-ring

1

11

60099709

Spring, inner, pressure accumulator

1

12

60099711

Spring, mid, pressure accumulator

2

13

60099710

Spring, outer, pressure accumulator

2

14

60099529

Core, valve, pressure accumulator

2

15

60099708

Pin, stop, valve core, pressure accumulator

2

16

60099496

Plug, Pipe

2

17

60099764

O-ring

2

18

60099780

Plug

8

19

60099750

O-ring

8

20

60099494

Plug, pipe

1

21

60099506

Plug

10

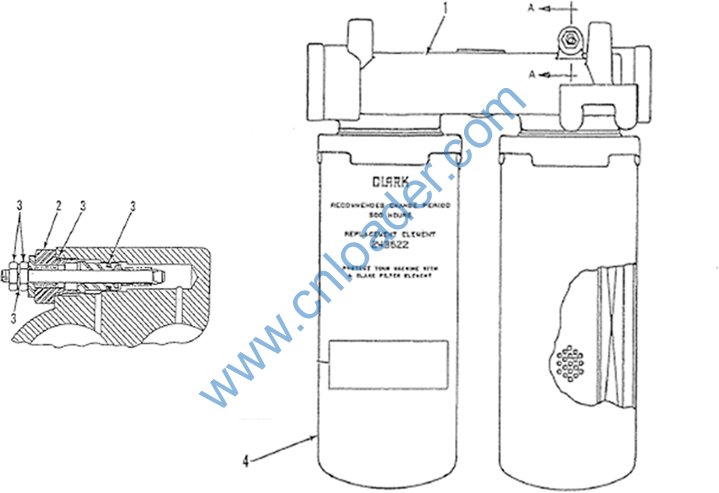

Item No.

Part No.

Description

Qty.

1

B229900000101

Assembly, oil filter head, torque converter

1

2

60121021

Indicator, electrical

1

3

60108685

Package, sealing ring, static gun

1

4

B222100000106

Element, filter

1
















Item No.

Part No.

Description

Qty.

Remark

1

60099744

O-ring

7



2

60099588

Gasket

1



3

60099773

Seal, oil, turbine shaft

1



4

60099760

Ring, Piston

1



5

60121017

Oil

1



6

60099758

Seal

1



7

60099755

O-ring, hub, pump impeller

1



8

60099753

O-ring, pump impeller cover to pump impeller

1



9

60099754

O-ring

1



10

60099591

Bushing

1



11

60121054

O-ring

1



12

60099770

O-ring

1



13

60121029

Washer

2



14

60121037

Washer

1



15

60121034

Washer

1



16

60099667

Pad, liner, sealing plate

2



17

60121072

Washer

1



18

60121048

O-ring

5



19

60099748

O-ring

5



20

60099747

O-ring

5



21

60121045

O-ring

1



22

60121033

Washer

1
