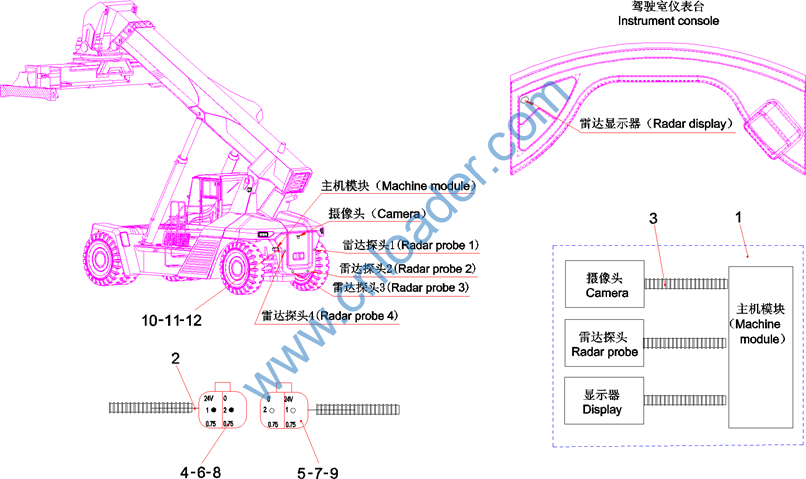

Body,container reach stacker, SRSC45H1 XYM


















Item No.

Part No.

Description

Qty.

1

60180758

Assembly, reversing monitor

1

2

A241900000014

Cable

15

3

A241400000007

Tube, corrugated

15

4

B249900000288

Pin

2

5

B229900001093

Socket

2

6

A249900001139

Lock, 2-position Receptacle

1

7

B241200000584

Lock, 2-position Plug

1

8

B241200000582

Receptacle, 2-position

1

9

B241200000590

Plug, 2-position

1

10

A210111000091

Bolt

4

11

A210307000012

Nut

4

12

A210401000017

Washer

4

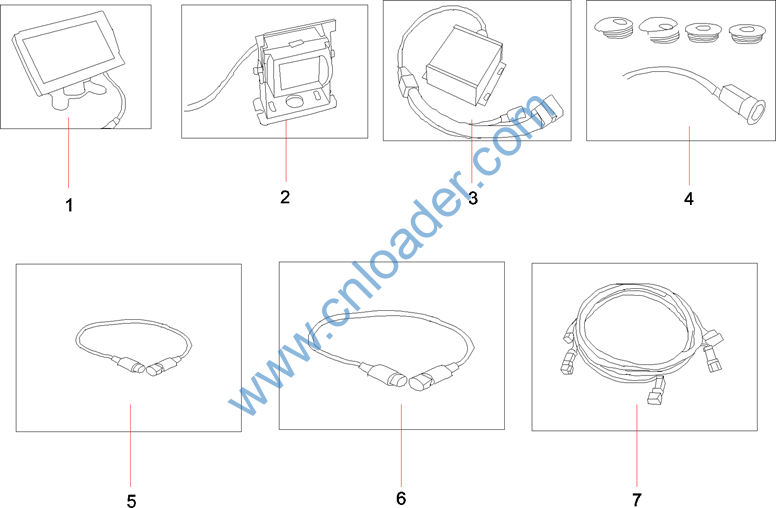

Item No.

Part No.

Description

Qty.

1

60220625

Display, LED

1

2

60192294

Camera, machine

1

3

60220626

Body, main, reversing radar

1

4

60192292

Detector, reversing radar

1

5

60220627

Harness, video transmission

1

6

60220628

Harness, video transmission

1

7

60220629

Harness, main, detector power supply

1

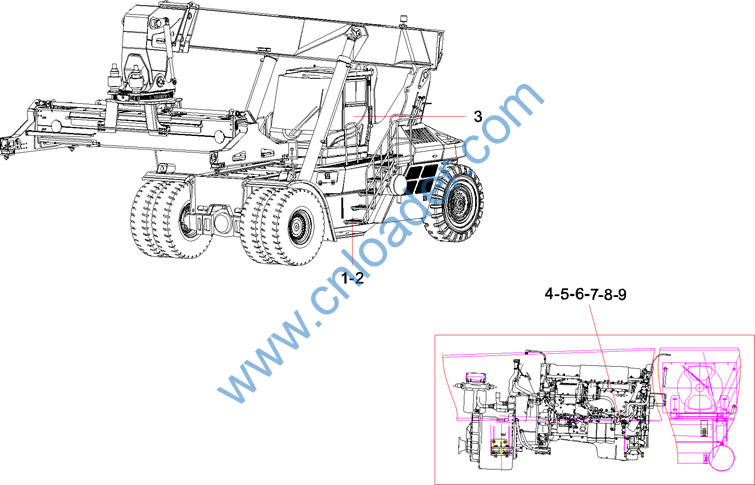

Group 19

System, heating, for extremely cold areas
















Item No.

Part No.

Description

Qty.

1

13444605

System, heating

1

2

13524896

System, heating, hydraulic oil

1

3

13897674

System, electric heating, cab

1

4

60332430

Device, heating, engine

1

5

60132392

O-ring

1

6

60132795

Extensioncable

1

7

60266200

Cable

1

8

60132739

Cable

1

9

60203806

Cable

1






















Item No.

Part No.

Description

Qty.

1

13444596

Layout, box

1

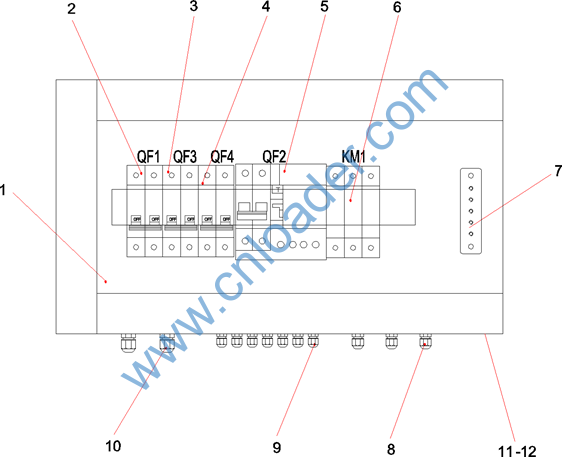

Item No.

Part No.

Description

Qty.

1

60002280

Box, control

1

2

60097554

Breaker

1

3

60037068

Breaker, monopole

1

4

60119060

Breaker, monopole

1

5

60023424

Protector

1

6

B240700000337

Contactor

1

7

B241900000020

Busbar, copper

1

8

A249900000529

Head, fixing, cable

3

9

60004571

Head, fixing, cable, waterproof

7

10

A249900000530

Head, fixing, cable

2

11

60043711

Plug, 4 Core 3 phase supply

1

12

60043715

Socket, 4 Core 3 phase supply

1

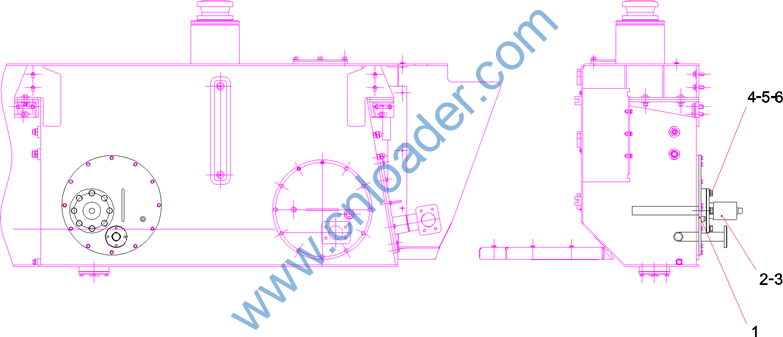

Item No.

Part No.

Description

Qty.

1

13900215

GP, oil suction cover plate

1

2

A210609000082

O-ring

1

3

60266276

Heater

1

4

A210405000003

Washer

8

5

A210401000004

Washer

8

6

A210111000227

Bolt

8
