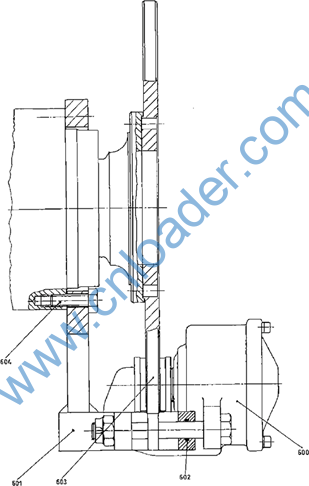

Body,container reach stacker, SRSC45H1 DGR


















Item No.

Part No.

Description

Qty.

600

60006493

Brake

1

601

60006497

Support, brake

1

602

60099247

O-ring

2

603

60006496

Disc, brake

1

604

60099207

Bolt, hexagon

12




















Item No.

Part No.

Description

Qty.

605

60016914

Blade, brake

1

606

60099161

Valve, exhaust

1

608

60099201

Ring, retaining, elastic

1

609

60099151

Spring, butterfly

5

610

60099212

Bolt, nut

1

611

60099188

Screw, adjusting

1

612

60099213

Cap, nut

1

615

60099238

Bolt, pressure

1

616

60099204

Bolt, hexagon

2

617

60099192

Nut, butterfly

2

618

60099203

Pin, split

2

619

60099265

Seal, oil

1

623

60099266

Magnet

2

624

60099194

Ring, separating

2

625

60099244

O-ring

1

626

60099245

O-ring

1

629

60121011

Seat, threaded

1

630

60099259

Ring, seal

1

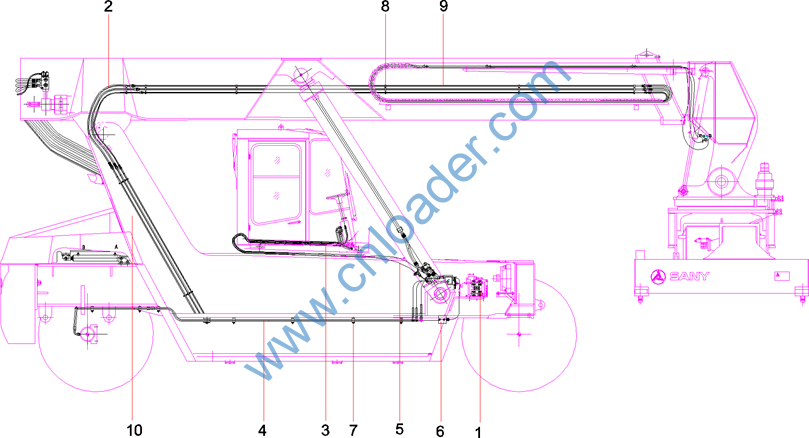

Group 12 System, hydraulic




















Item No.

Part No.

Description

Qty.

1

12602652

Layout, pipeline, frame

1

2

11155390

Layout, boom

1

3

10397319

System, brake, radiator

1

4

10450139

System, steering

1

5

10432886

Diagram, layout, moving system

1

6

10427001

System, control

1

7

12364911

Layout, assemblying, pipe clamp, frame

1

8

12591425

Layout, clamp body, boom

1

9

12611373

Diagram, layout, hydraulic system

1

10

13519058

System hydraulic protection

1

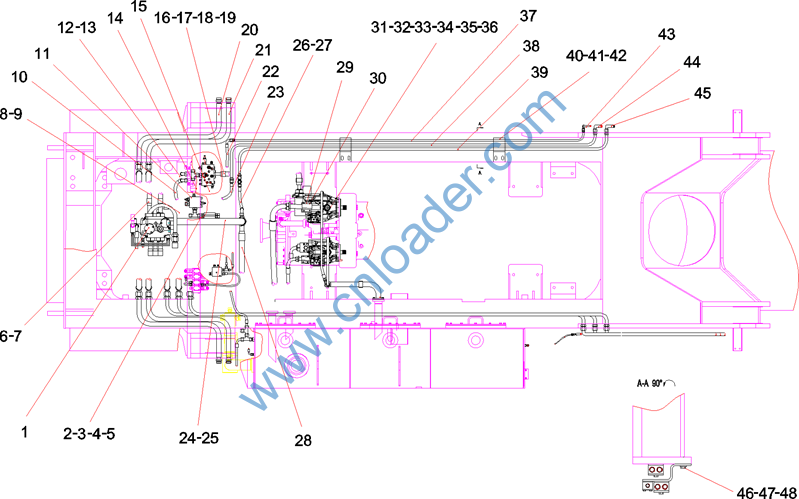

Item No.

Part No.

Description

Qty.

1

10409053

Diagram, assemblying, components, main valve

1

2

A220401000298

Valve, Check

1

3

B210780000053

Fitting, Adapter

2

4

B210780000022

Connector, pipe

2

5

21002990

Connector, pipe

1

6

B230103008473

Hose, rubber

2

7

B230101000215

O-ring

6

8

21030917

Hose, rubber

1

9

B230101000091

O-ring

2

10

B230103007393

Hose, rubber

1

11

A819700001390

Body, multi-channel, spreader

1

12

60156200

Hose, rubber

1

13

B210780001241

Fitting, Elbow

1

14

60156200

Hose, rubber

1

15

12728265

Hose, rubber

1

16

B230103008169

Hose, rubber

1

17

B230101000091

O-ring

2

18

B210780000006

Flange, split

4

19

A210204000227

Screw M12×45GB70.1 12.9

8

20

A810312019037

Pipe, steel

2

21

A810312990138

Pipe, steel

2

22

60222648

Hose, rubber

1

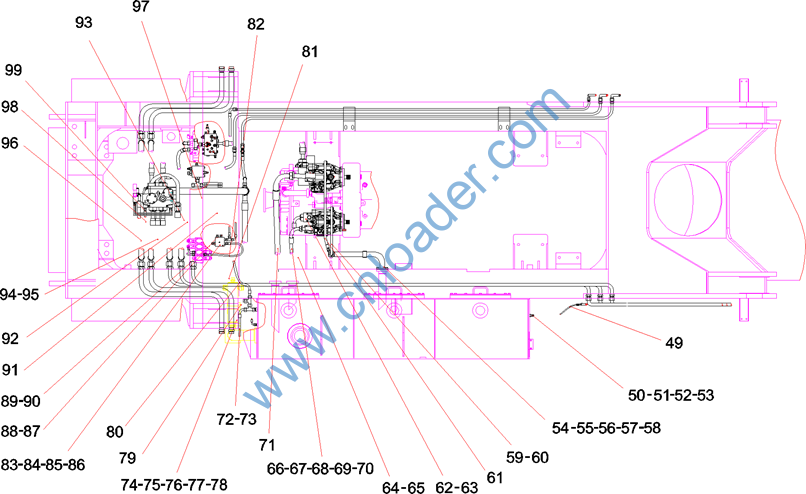

Item No.

Part No.

Description

Qty.

23

B230103000960

Hose, rubber

1

24

A810399000718

Pipe, oil-return, main valve

1

25

A210204000338

Screw

4

26

B230103000413

Hose, rubber

1

27

21051021

Connector

1

28

B230103005971

Hose, rubber

1

29

12068796

Plate, short

1

30

A210204000227

Screw M12×45GB70.1 12.9

6

31

B220301000240

Group, pump, double

1

32

B210780001749

Connector, pressure measuring

2

33

A229900005971

Bolt

8

34

A210204000226

Screw M12×40GB70.1 12.9

6

35

A210609000204

O-ring

2

36

24001381

Connector, pipe

2

37

A810399000720

Pipe, steel

1

38

A810399000557

Pipe, steel

1

39

A810399000721

Pipe, steel

1

40

60165336

Body, pipe clamp

2

41

60165334

Clamp, Tube, Single

3

42

A210405000003

Washer

8

43

A810399000558

Pipe, steel

1

44

A810399000559

Pipe, steel

1


















Item No.

Part No.

Description

Qty.

45

A810399000560

Pipe, steel

1

46

10410182

Support, steel pipe, spreader

2

47

A210208000002

Screw

8

48

A210401000004

Washer

8
