Body,container reach stacker, SRSC45H1 SDG
























Item No.

Part No.

Description

Qty.

23

A230200000176

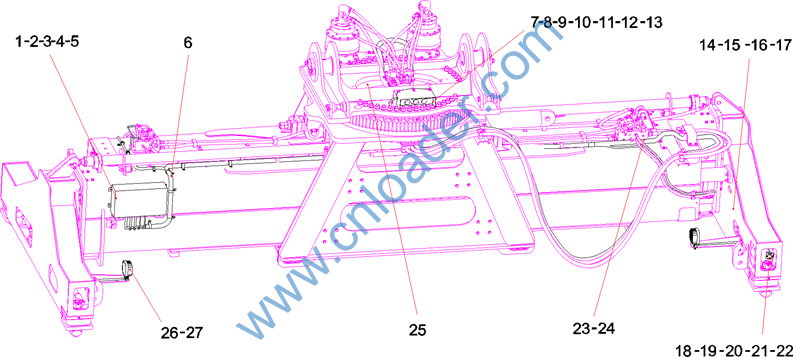

Clip, wire

20

24

A230200000175

Clamp

10

25

A241200001060

Cover plate, plug, 24-core

1

26

12895513

Lamp, working, LED

2

27

12255758

Stud, bamper

2
















Item No.

Part No.

Description

Qty.

1

60002280

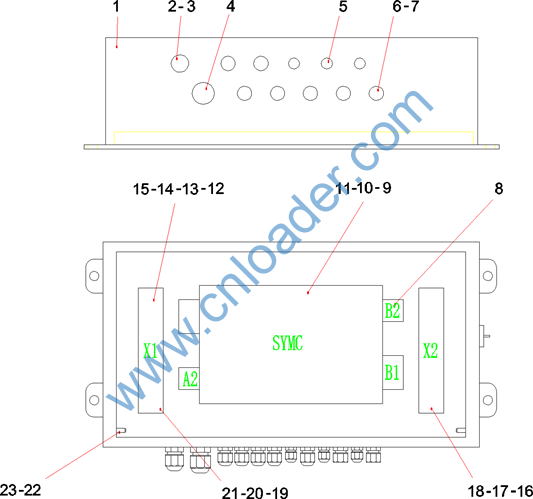

Box, control

1

2

60004572

Head, fixing, cable, waterproof

2

3

60183802

Nut, nylon

2

4

A249900000530

Head, fixing, cable

1

5

A249900000529

Head, fixing, cable

2

6

60004571

Head, fixing, cable, waterproof

8

7

A229900004062

Nut, nylon

8

8

13558814

Harness, terminal, SYMC

1

9

A810201206127

Assembly, movement controller, SANY

1

10

A210204000137

Screw

4

11

A210401000016

Washer

6

12

A241600000002

Rail

1

13

A210210000015

Screw

4

14

A210401000013

Washer

4

15

A210405000004

Washer

4

16

A242300000233

Diode, lighting, plug-in parts

1

17

A242300000026

Resistance, plug-in parts

1

18

A242300000190

Resistance, plug-in

1

19

B242000000017

Terminal

68

20

A242000000306

Plate, end and spacer

2

21

A242000000390

Terminal

136

22

A210307000016

Nut

2
















Item No.

Part No.

Description

Qty.

23

A210405000006

Washer

2




















Item No.

Part No.

Description

Qty.

1

60259837

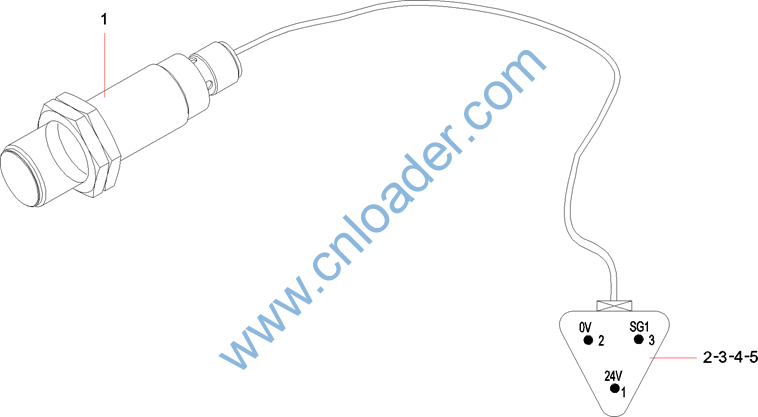

Proximity Switch

1

2

B241200000591

Receptacle, 3-position

1

3

B241200000603

Lock, 3-position Plug

1

4

B249900000288

Pin

3

5

60120501

Tail, socket, 3-wire

1




















Item No.

Part No.

Description

Qty.

1

60232826

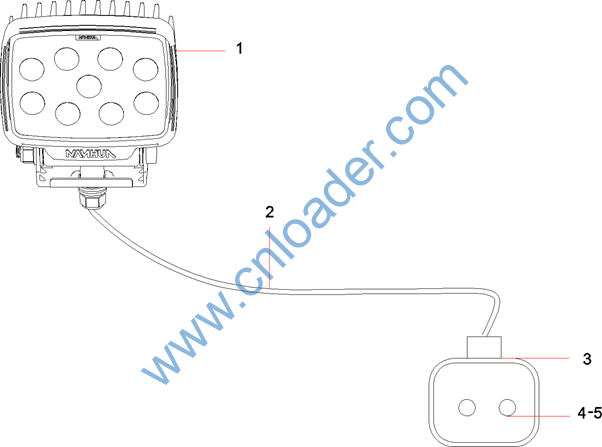

Lamp, working

1

2

A240900000016

Sleeve, plastic (Black)

1

3

B241200000582

Receptacle, 2-position

1

4

B249900000288

Pin

2

5

A249900001139

Lock, 2-position Receptacle

1
















Item No.

Part No.

Description

Qty.

1

10580895

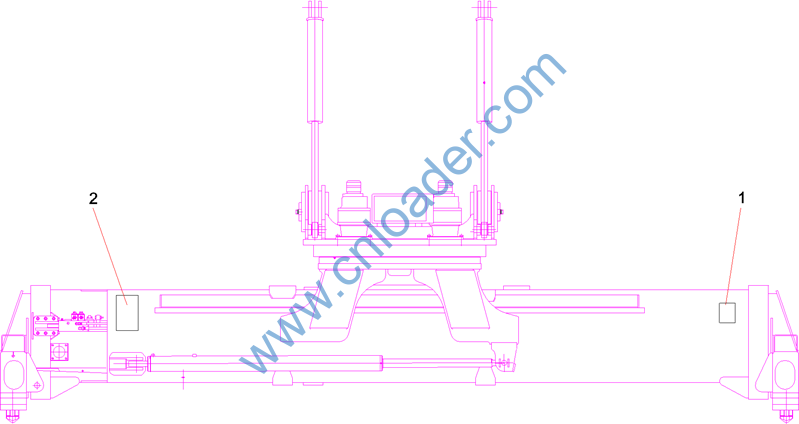

Nameplate

1

2

10518408

Nameplate, electrical, spreader

1
























Item No.

Part No.

Description

Qty.

1

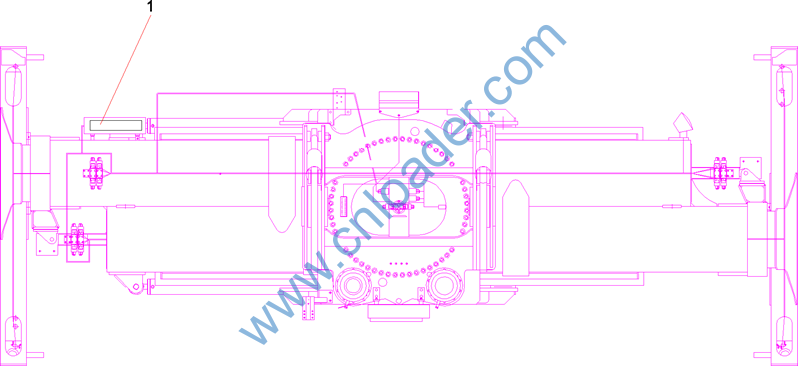

10451446

Diagram, number and function, spreader

1
